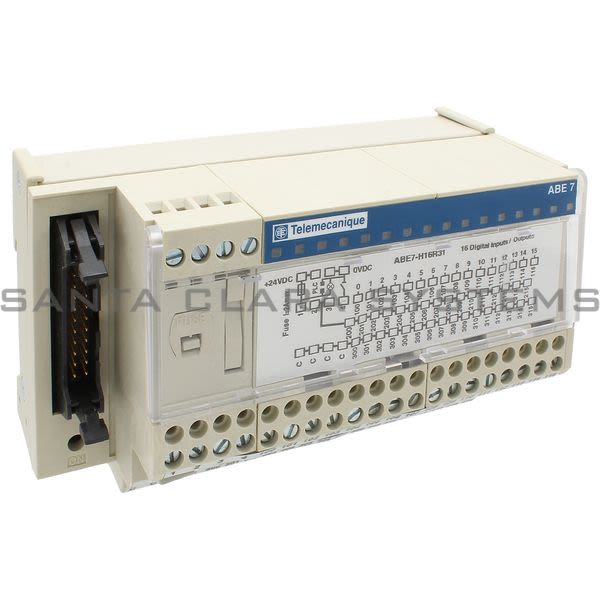

• Telemecanique ABE7H16R31 passive connection sub-base ABE7 - 16 inputs or outputs - Led Product Image

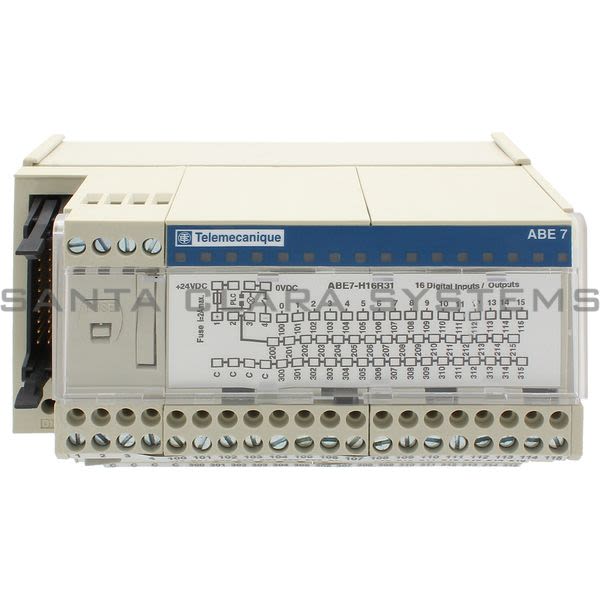

  • Telemecanique ABE7H16R31 passive connection sub-base ABE7 - 16 inputs or outputs - Led Product Image

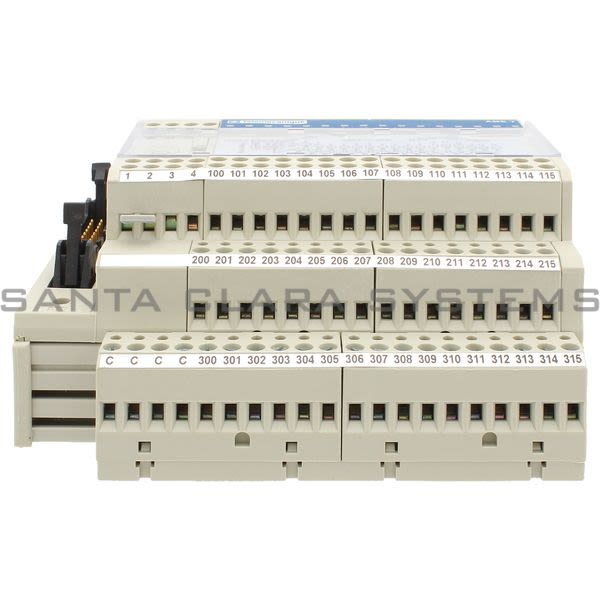

  • Telemecanique ABE7H16R31 passive connection sub-base ABE7 - 16 inputs or outputs - Led Product Image

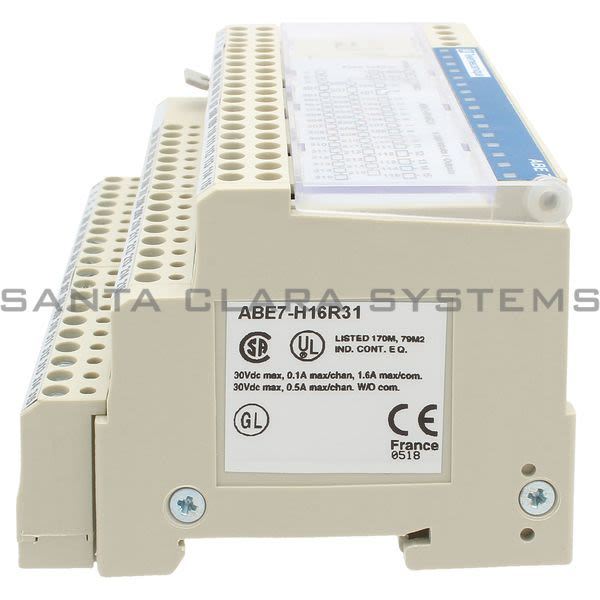

  • Telemecanique ABE7H16R31 passive connection sub-base ABE7 - 16 inputs or outputs - Led Product Image
  • Telemecanique ABE7H16R31 Barcode

ABE7H16R31

Get a Quote

Current response time:

16 Minutes 17 Seconds
  • Description: passive connection sub-base ABE7 - 16 inputs or outputs - Led
  • Product weight: 0.76 lb(US) (0.346 kg)
  • Range of product: Advantys Telefast ABE7
  • IP degree of protection: IP2x conforming to IEC 60529
  • Width: 4.92 in (125 mm)
  • [Ui] rated insulation voltage: 2000 V
  • Tightening torque: 5.31 lbf.in (0.6 N.m) (with flat 3.5 mm)
  • Connections - terminals: Screw type terminals, clamping capacity: 1 x 0.09...1 x 1.5 mm AWG 28...AWG 16 flexible with cable end, Screw type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm AWG 26...AWG 12 solid, Screw type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm AWG 26...AWG 14 flexible without cable end, Screw type terminals, clamping capacity: 2 x 0.09...2 x 0.75 mm AWG 28...AWG 20 flexible with cable end, Screw type terminals, clamping capacity: 2 x 0.2...2 x 2.5 mm AWG 24...AWG 14 solid
  • Shock resistance: 15 gn 11 ms conforming to IEC 60068-2-27
  • Vibration resistance: 2 gn (f = 10...150 Hz) conforming to IEC 60068-2-6
  • [Us] rated supply voltage: 19...30 V conforming to IEC 61131-2
  • Supply circuit type: DC
  • Product certifications: BV, CSA, GL, DNV, UL, LROS (Lloyds register of shipping)
  • Product or component type: Passive discrete I/O sub-base
  • Number of horizontal rows: 3
  • Sub-base type: I/O sub-base
  • status LED: 1 LED per channel, green channel status, 1 LED, green power ON
  • Resistance to incandescent wire: 1382 F (750 C) conforming to IEC 60695-2-11
  • Polarity distribution: 0 V or 24 V
  • Number of channels: 16
  • Short-circuit protection: 2 A internal fuse, 5 x 20 mm, fast blow (PLC end)
  • Number of terminal per channel: 3
  • Connector type: HE-10
  • Resistance to electrostatic discharge: 4 kV (contact) conforming to IEC 61000-4-2 level 3, 8 kV (air) conforming to IEC 61000-4-2 level 3
  • Pin number: 20 pins
  • Resistance to radiated fields: 9.14 V/yd (10 V/m) (26000000...1000000000 Hz) conforming to IEC 61000-4-3 level 3
  • Fixing mode: By clips on 35 mm symmetrical DIN rail, By screws on solid plate with fixing kit
  • Resistance to fast transients: 2 kV conforming to IEC 61000-4-4 level 3
  • Supply current: <= 1.8 A
  • Ambient air temperature for operation: 23...140 F (-5...60 C) conforming to IEC 61131-2
  • Current per channel: <= 0.5 A
  • Ambient air temperature for storage: -40...176 F (-40...80 C) conforming to IEC 61131-2
  • Current per output common: <= 1.8 A
  • Pollution degree: 2 conforming to IEC 60664-1
  • Voltage drop on power supply fuse: 0.3 V
  • Installation category: II conforming to IEC 60664-1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ABE7H16R31 . Santa Clara Systems carries 10,295 items from Telemecanique.
  • Passive Connection Sub-Base Abe7 - 16 Inputs Or Outputs - Led
