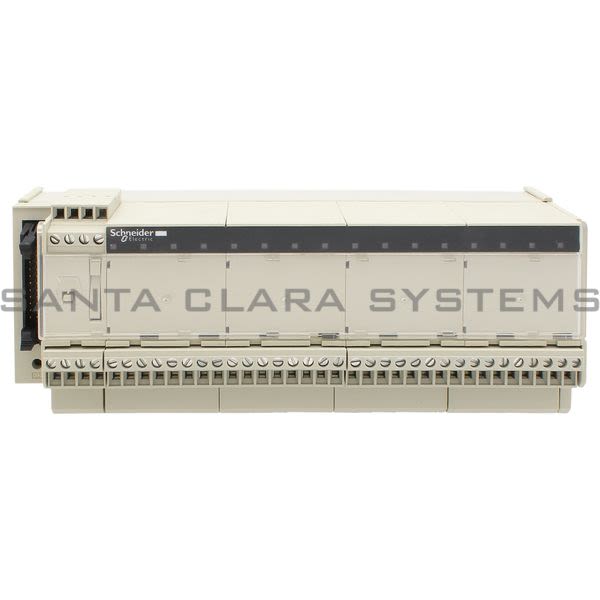

• Telemecanique ABE7R16S210 sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 10 mm Product Image

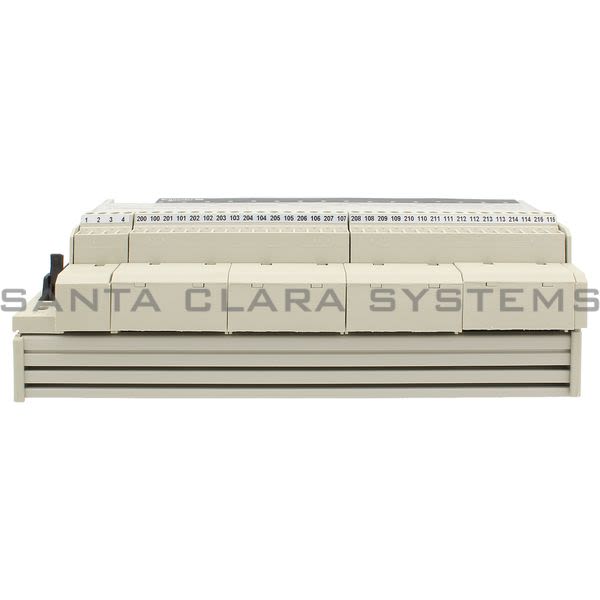

  • Telemecanique ABE7R16S210 sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 10 mm Product Image

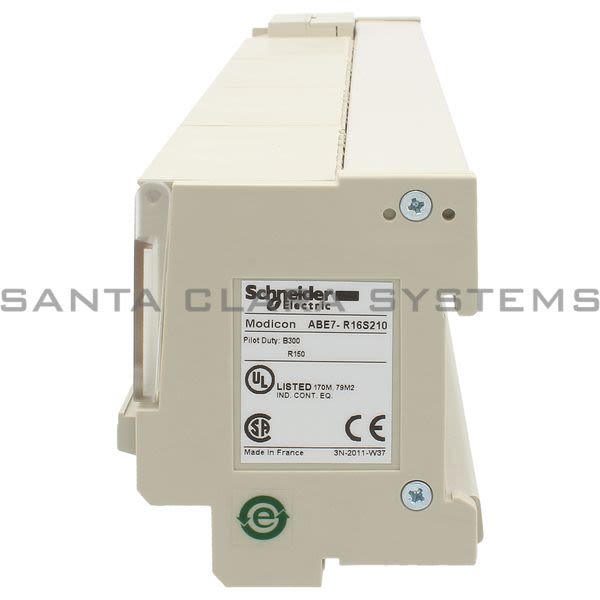

  • Telemecanique ABE7R16S210 sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 10 mm Product Image

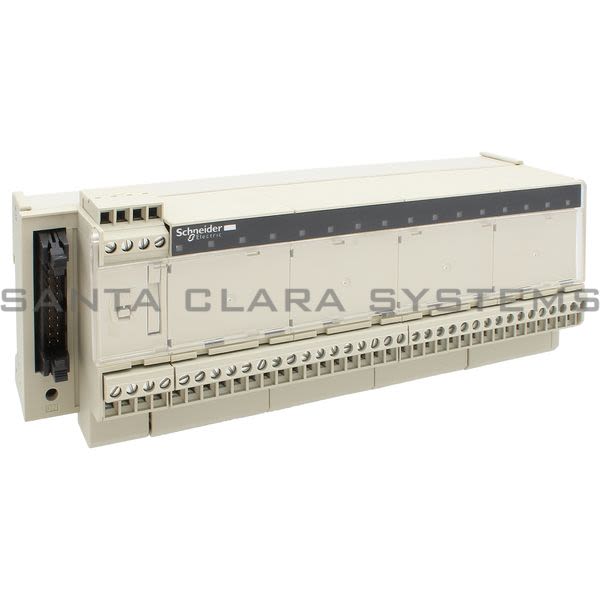

  • Telemecanique ABE7R16S210 sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 10 mm Product Image
  • Telemecanique ABE7R16S210 Barcode

ABE7R16S210

Product Summary:

  • Product weight: 0.89 lb(US) (0.405 kg)
  • Range of product: Advantys Telefast ABE7
  • IP degree of protection: IP2x conforming to IEC 60529
  • Width: 8.11 in (206 mm)
  • Protective treatment: TC
Get a Quote

Current response time:

14 Minutes 19 Seconds
  • Description: sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 10 mm
  • Product weight: 0.89 lb(US) (0.405 kg)
  • Range of product: Advantys Telefast ABE7
  • IP degree of protection: IP2x conforming to IEC 60529
  • Width: 8.11 in (206 mm)
  • Protective treatment: TC
  • [Ui] rated insulation voltage: 2000 V
  • [Uimp] rated impulse withstand voltage: 2.5 kV conforming to IEC 60947-1
  • Mechanical durability: 20000000 cycles
  • Tightening torque: 5.31 lbf.in (0.6 N.m) (with flat 3.5 mm
  • Shock resistance: 15 gn 11 ms conforming to IEC 60068-2-27
  • Electrical durability: 500000 cycles, maximum switching current: 1500 mA at 230 V AC-12 (preactuator end), 500000 cycles, maximum switching current: 1500 mA at 24 V DC-12 (preactuator end), 500000 cycles, maximum switching current: 600 mA at 24 V DC-13 10 ms (preactuator end), 500000 cycles, maximum switching current: 900 mA at 230 V AC-15 (preactuator end)
  • [Us] rated supply voltage: 24 V DC (PLC end)
  • Operating time: <= 10 ms between coil energisation and NO closing, <= 5 ms between coil de-energisation and NO opening
  • Switching frequency: <= 0.5 Hz, <= 10 Hz
  • Terminal block type: Removable
  • Max immunity to micro breaks: <= 5 ms
  • Product or component type: Electromechanical output relay sub-base
  • Polarity distribution: Volt-free
  • Dielectric strength: 2000 V conforming to IEC 60947-1
  • Fixing mode: By clips on 35 mm symmetrical DIN rail, By screws on solid plate with fixing kit
  • Product certifications: GL, CSA, BV, LROS (Lloyds register of shipping), UL, DNV
  • Number of channels: 16
  • Number of terminal per channel: 2
  • Current per output common: <= 10 A
  • Current per channel: 5 A (preactuator end)
  • Resistance to incandescent wire: 1382 F (750 C), extinction time: < 30 s conforming to IEC 60695-2-11
  • Minimum switching current: 10 mA at >= 5 V
  • Drop-out voltage: 2.4 V at 68 F (20 C) (PLC end)
  • Resistance to radiated fields: 9.14 V/yd (10 V/m) (26000000...1000000000 Hz) conforming to IEC 61000-4-3 level 3
  • Resistance to fast transients: 2 kV conforming to IEC 61000-4-4 level 3
  • Threshold tripping voltage: At 40 C
  • Ambient air temperature for operation: 23...140 F (-5...60 C) conforming to IEC 61131-2
  • Drop-out current: 1 mA at 68 F (20 C)
  • Ambient air temperature for storage: -40...176 F (-40...80 C) conforming to IEC 61131-2
  • power dissipation per channel in W: <= 0.36 W (PLC end)
  • Pollution degree: 2 conforming to IEC 60664-1
  • Contacts type and composition: 1 NO (preactuator end)
  • Maximum switching voltage: 250 V AC 50/60 Hz conforming to IEC 60947-5-1, 30 V DC conforming to IEC 60947-5-1
  • Electrical reliability: 1.00E-08
  • Contact bounce time: <= 5 ms 1 NO
  • operating rate in Hz: 10 Hz no load, 0.5 Hz at Ie
  • Installation category: II conforming to IEC 60664-1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ABE7R16S210 . Santa Clara Systems carries 10,141 items from Telemecanique.
  • Sub-Base - Soldered Electromechanical Relays Abe7 - 16 Channels - Relay 10 Mm
