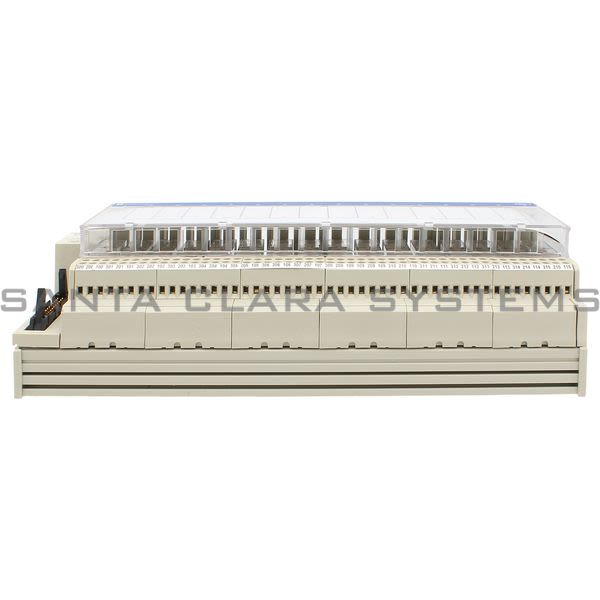

• Telemecanique ABE7R16T330 sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 12.5 mm Product Image
  • Telemecanique ABE7R16T330 sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 12.5 mm Product Image
  • Telemecanique ABE7R16T330 sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 12.5 mm Product Image
  • Telemecanique ABE7R16T330 sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 12.5 mm Product Image
  • Telemecanique ABE7R16T330 Barcode

ABE7R16T330

Product Summary:

  • Product weight: 2.87 lb(US) (1.3 kg)
  • Range of product: Advantys Telefast ABE7
  • IP degree of protection: IP2x conforming to IEC 60529
  • [Uimp] rated impulse withstand voltage: 2.5 kV
  • Tightening torque: 5.31 lbf.in (0.6 N.m) (with flat 3.5 mm
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 12.5 mm
  • Product weight: 2.87 lb(US) (1.3 kg)
  • Range of product: Advantys Telefast ABE7
  • IP degree of protection: IP2x conforming to IEC 60529
  • [Ui] rated insulation voltage: 2000 V between terminals/mounting rails, 300 V between coil circuit/contact circuits conforming to IEC 60947-1
  • [Uimp] rated impulse withstand voltage: 2.5 kV
  • Tightening torque: 5.31 lbf.in (0.6 N.m) (with flat 3.5 mm
  • Shock resistance: 15 gn 11 ms conforming to IEC 60068-2-27
  • Vibration resistance: 2 gn (f = 10...150 Hz) conforming to IEC 60068-2-6
  • [Us] rated supply voltage: 19...30 V conforming to IEC 61131-2
  • Supply circuit type: DC
  • Product certifications: DNV, GL, BV, LROS (Lloyds register of shipping), CSA, UL
  • Product or component type: Sub-base with plug-in electromechanical relay
  • Product compatibility: ABR7S33
  • Sub-base type: Output sub-base
  • Contacts type and composition: 1 C/O
  • Resistance to incandescent wire: 1382 F (750 C) conforming to IEC 60695-2-11
  • status LED: 1 LED per channel, green channel status, 1 LED, green power ON
  • Number of channels: 16
  • Polarity distribution: Volt-free
  • Short-circuit protection: 1 A internal fuse, 5 x 20 mm, fast blow (PLC end), 2 A fuse per channel, 5 x 20 mm, fast blow (output circuit)
  • Resistance to electrostatic discharge: 4 kV (contact) conforming to IEC 61000-4-2 level 3, 8 kV (air) conforming to IEC 61000-4-2 level 3
  • Fixing mode: By clips on 35 mm symmetrical DIN rail, By screws on solid plate with fixing kit
  • Resistance to radiated fields: 9.14 V/yd (10 V/m) (26000000...1000000000 Hz) conforming to IEC 61000-4-3 level 3
  • Supply current: <= 1 A
  • Resistance to fast transients: 2 kV conforming to IEC 61000-4-4 level 3
  • Voltage drop on power supply fuse: 0.3 V
  • Ambient air temperature for operation: 23...140 F (-5...60 C) conforming to IEC 61131-2
  • Ambient air temperature for storage: -40...176 F (-40...80 C) conforming to IEC 61131-2
  • Pollution degree: 2 conforming to IEC 60664-1
  • Installation category: II conforming to IEC 60664-1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ABE7R16T330 . Santa Clara Systems carries 10,141 items from Telemecanique.
  • Sub-Base - Soldered Electromechanical Relays Abe7 - 16 Channels - Relay 12.5 Mm
