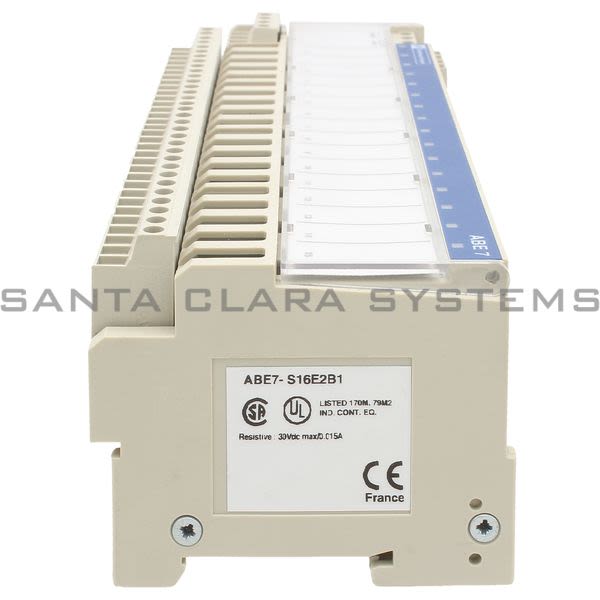

• Telemecanique ABE7S16E2B1 sub-base - soldered solid state output relay ABE7 - 16 inputs - 24 V DC Product Image

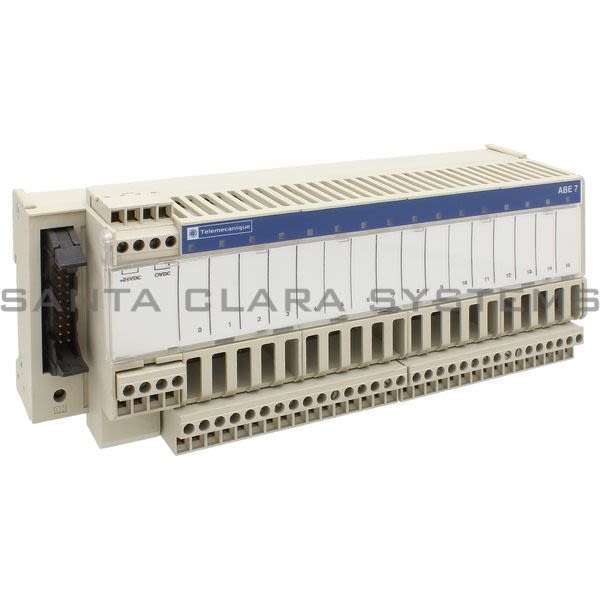

  • Telemecanique ABE7S16E2B1 sub-base - soldered solid state output relay ABE7 - 16 inputs - 24 V DC Product Image

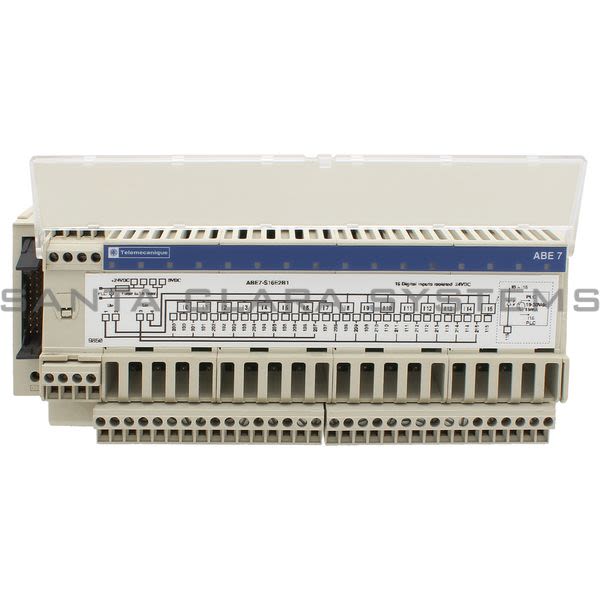

  • Telemecanique ABE7S16E2B1 sub-base - soldered solid state output relay ABE7 - 16 inputs - 24 V DC Product Image

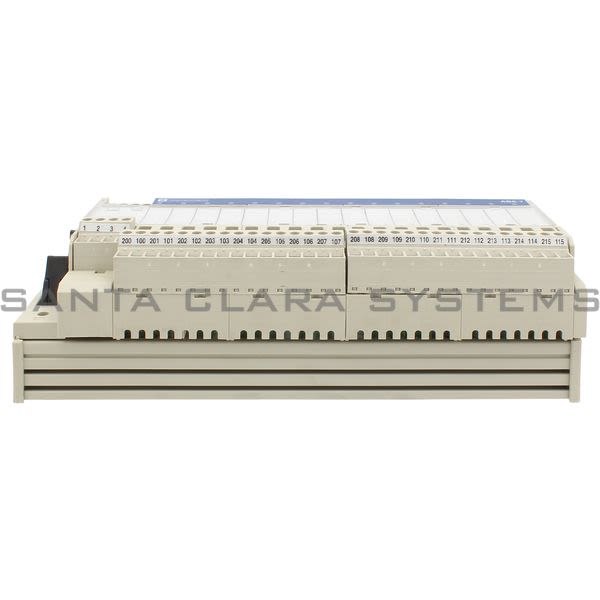

  • Telemecanique ABE7S16E2B1 sub-base - soldered solid state output relay ABE7 - 16 inputs - 24 V DC Product Image
  • Telemecanique ABE7S16E2B1 Barcode

ABE7S16E2B1

Product Summary:

  • Product weight: 0.82 lb(US) (0.37 kg)
  • Range of product: Advantys Telefast ABE7
  • IP degree of protection: IP2x conforming to IEC 60529
  • Standards: IEC 61131-2 Type 1
  • [Ui] rated insulation voltage: 2000 V
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: sub-base - soldered solid state output relay ABE7 - 16 inputs - 24 V DC
  • Product weight: 0.82 lb(US) (0.37 kg)
  • Range of product: Advantys Telefast ABE7
  • IP degree of protection: IP2x conforming to IEC 60529
  • Standards: IEC 61131-2 Type 1
  • [Ui] rated insulation voltage: 2000 V
  • [Uimp] rated impulse withstand voltage: 2.5 kV conforming to IEC 60947-1
  • Tightening torque: 5.31 lbf.in (0.6 N.m) (with flat 3.5 mm)
  • Connections - terminals: Screw type terminals, clamping capacity: 1 x 0.09...1 x 1.5 mm, cable cross section: 0...0 in (0.09...1.5 mm) AWG 28...AWG 16 flexible with cable end, Screw type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm, cable cross section: 0...0 in (0.14...2.5 mm) AWG 26...AWG 12 solid, Screw type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm, cable cross section: 0...0 in (0.14...2.5 mm) AWG 26...AWG 14 flexible without cable end, Screw type terminals, clamping capacity: 2 x 0.09...2 x 0.75 mm, cable cross section: 0...0 in (0.09...0.75 mm) AWG 28...AWG 20 flexible with cable end, Screw type terminals, clamping capacity: 2 x 0.2...2 x 2.5 mm, cable cross section: 0...0 in (0.2...2.5 mm) AWG 24...AWG 14 solid
  • Shock resistance: 15 gn 11 ms conforming to IEC 60068-2-27
  • Vibration resistance: 2 gn (f = 10...150 Hz) conforming to IEC 60068-2-6
  • [Us] rated supply voltage: 24 V DC (PLC end), 24 V DC (sensor end)
  • Protection type: Internal fuse of 1 A (5 x 20 mm), fast blow type at PLC end, Adjustable by external fuse, fast blow type at sensor end
  • Response time: <= 0.05 ms from state 0 to 1, <= 0.4 ms from state 1 to 0
  • Switching frequency: <= 1000 Hz duty cycle: 50 %
  • Terminal block type: Removable
  • Dielectric strength: 2000 V 50/60 Hz conforming to IEC 60947-1
  • Product or component type: Solid state input relay sub-base
  • Supply voltage limits: 19...30 V DC (PLC end) conforming to IEC 61131-2
  • Product certifications: CSA, LROS (Lloyds register of shipping), UL, DNV, BV, GL
  • isolation PLC/operative part: Yes
  • Number of channels: 16
  • Number of terminal per channel: 2
  • Fixing mode: By clips on 35 mm symmetrical DIN rail, By screws on solid plate with fixing kit
  • Resistance to incandescent wire: 1382 F (750 C) conforming to IEC 60695-2-11
  • Current per channel: 0.012 A
  • Current state 1 guaranteed: >= 2 mA (sensor end)
  • Voltage state 1 guaranteed: >= 15 V (sensor end)
  • Resistance to electrostatic discharge: 4 kV (contact) conforming to IEC 61000-4-2 level 3, 8 kV (air) conforming to IEC 61000-4-2 level 3
  • Maximum switching current: 15 mA (PLC end)
  • Resistance to radiated fields: 9.14 V/yd (10 V/m) (26000000...1000000000 Hz) conforming to IEC 61000-4-3 level 3
  • Minimum switching current: 1 mA (PLC end)
  • Resistance to fast transients: 2 kV conforming to IEC 61000-4-4 level 3
  • Ambient air temperature for operation: 23...140 F (-5...60 C) conforming to IEC 61131-2
  • Ambient air temperature for storage: -40...176 F (-40...80 C) conforming to IEC 61131-2
  • Pollution degree: 2 conforming to IEC 60664-1
  • Installation category: II conforming to IEC 60664-1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ABE7S16E2B1 . Santa Clara Systems carries 10,141 items from Telemecanique.
