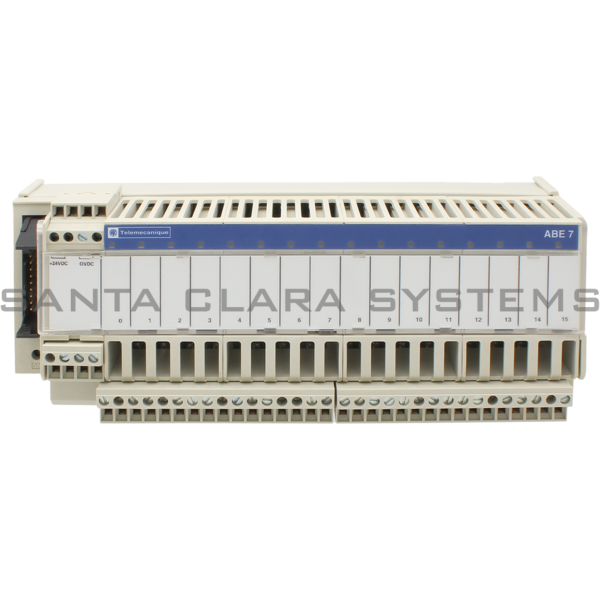

• Telemecanique ABE7S16S2B0 sub-base - soldered solid state output relay ABE7 - 16 outputs - 0.5 A Product Image

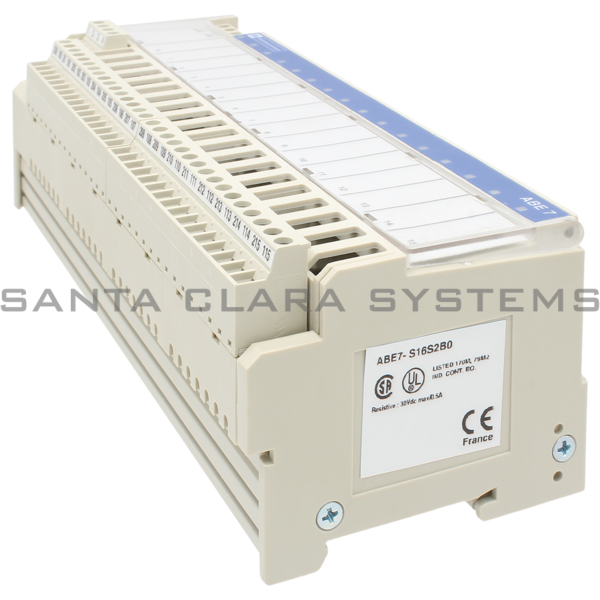

  • Telemecanique ABE7S16S2B0 sub-base - soldered solid state output relay ABE7 - 16 outputs - 0.5 A Product Image

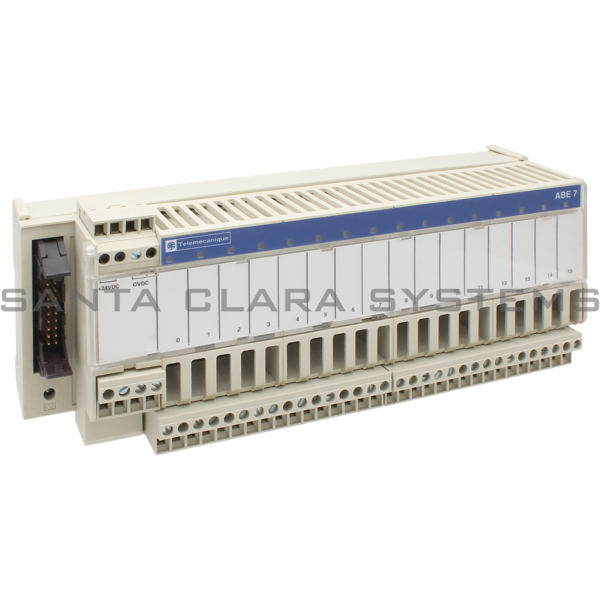

  • Telemecanique ABE7S16S2B0 sub-base - soldered solid state output relay ABE7 - 16 outputs - 0.5 A Product Image

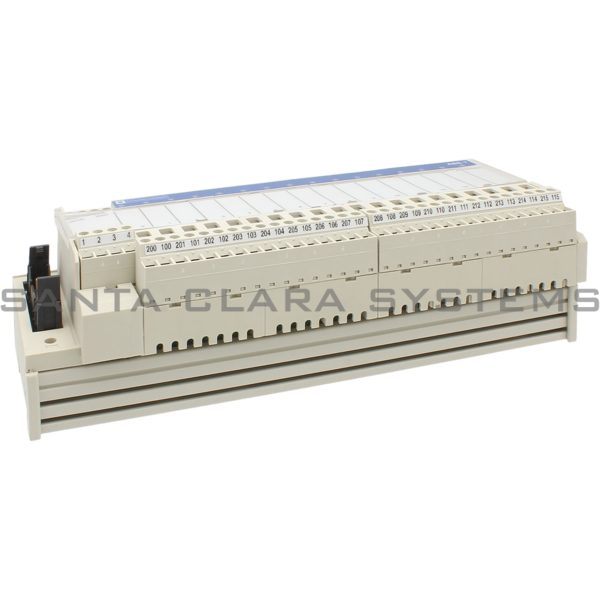

  • Telemecanique ABE7S16S2B0 sub-base - soldered solid state output relay ABE7 - 16 outputs - 0.5 A Product Image
  • Telemecanique ABE7S16S2B0 Barcode

ABE7S16S2B0

Product Summary:

  • Product weight: 0.89 lb(US) (0.405 kg)
  • Range of product: Advantys Telefast ABE7
  • IP degree of protection: IP2x conforming to IEC 60529
  • Width: 8.11 in (206 mm)
  • Protective treatment: TC
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: sub-base - soldered solid state output relay ABE7 - 16 outputs - 0.5 A
  • Product weight: 0.89 lb(US) (0.405 kg)
  • Range of product: Advantys Telefast ABE7
  • IP degree of protection: IP2x conforming to IEC 60529
  • Width: 8.11 in (206 mm)
  • Protective treatment: TC
  • Tightening torque: 5.31 lbf.in (0.6 N.m) (with flat 3.5 mm
  • Shock resistance: 15 gn 11 ms conforming to IEC 60068-2-27
  • [Us] rated supply voltage: 24 V DC (PLC end), 24 V DC (preactuator end)
  • Response time: <= 0.02 ms from state 1 to 0, <= 0.1 ms from state 0 to 1
  • Switching frequency: < 0.6/LI Hz
  • Terminal block type: Removable
  • Product certifications: GL, LROS (Lloyds register of shipping), UL, CSA, DNV, BV
  • Product or component type: Solid state output relay sub-base
  • isolation PLC/operative part: No
  • Fixing mode: By clips on 35 mm symmetrical DIN rail, By screws on solid plate with fixing kit
  • Number of channels: 16
  • Resistance to incandescent wire: 1382 F (750 C), extinction time: < 30 s conforming to IEC 60695-2-11
  • Number of terminal per channel: 2
  • Current state 0 guaranteed: 0.4 mA (PLC end)
  • Relay type: Soldered solid state relay
  • Voltage state 0 guaranteed: 3.4 V (PLC end)
  • Resistance to radiated fields: 9.14 V/yd (10 V/m) (26000000...1000000000 Hz) conforming to IEC 61000-4-3 level 3
  • Current state 1 guaranteed: 3.1 mA (PLC end)
  • Resistance to fast transients: 2 kV conforming to IEC 61000-4-4 level 3
  • Voltage state 1 guaranteed: 16.9 V (PLC end)
  • Ambient air temperature for operation: 23...140 F (-5...60 C) conforming to IEC 61131-2
  • Current per output common: <= 8 A
  • Ambient air temperature for storage: -40...176 F (-40...80 C) conforming to IEC 61131-2
  • Current per channel: 0.5 A (preactuator end)
  • Pollution degree: 2 conforming to IEC 60664-1
  • Minimum switching current: 1 mA
  • Drop-out voltage: <= 0.6 V (preactuator end)
  • Maximum switching current: 500 mA DC-12, 500 mA DC-13
  • Tungsten load: 10 W DC-6
  • Residual current: <= 0.3 mA (preactuator end)
  • Fault type: Short-circuit, Overload
  • Fault indication: Yes
  • switchable inductive energy L/R: <= 400(U.I) ms
  • Circuit breaker threshold: >= 0.75 A
  • Installation category: II conforming to IEC 60664-1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ABE7S16S2B0 . Santa Clara Systems carries 10,141 items from Telemecanique.
  • Sub-Base - Soldered Solid State Output Relay Abe7 - 16 Outputs - 0.5 A
