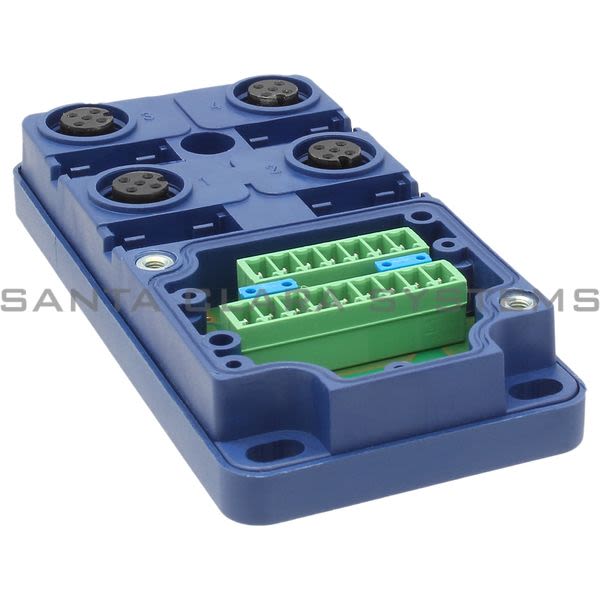

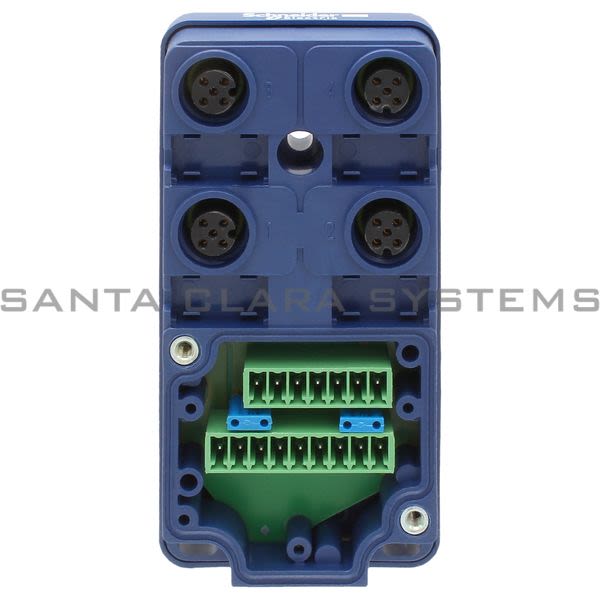

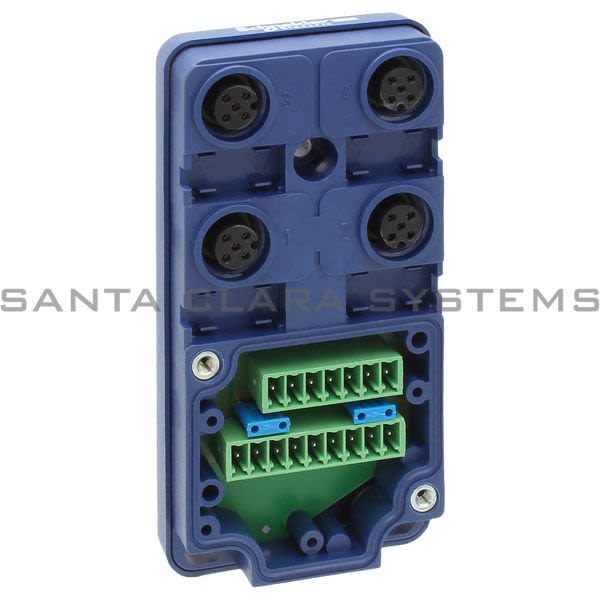

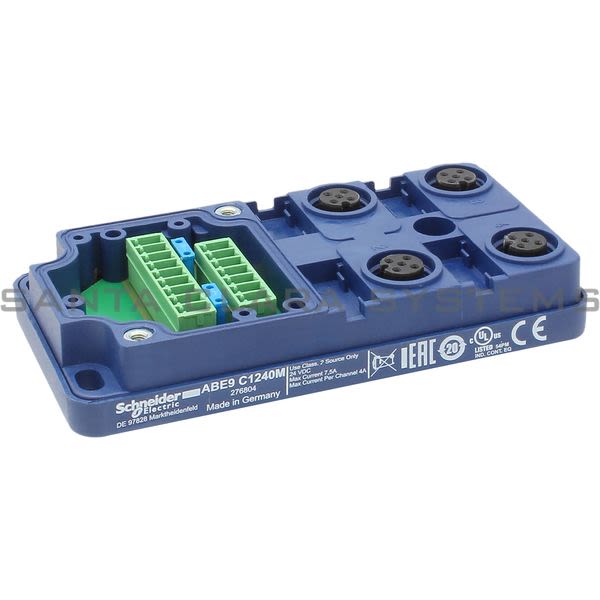

• Telemecanique ABE9C1240M IP67 passive splitter box - with 4 channels M12 connector Product Image
  • Telemecanique ABE9C1240M IP67 passive splitter box - with 4 channels M12 connector Product Image
  • Telemecanique ABE9C1240M IP67 passive splitter box - with 4 channels M12 connector Product Image
  • Telemecanique ABE9C1240M IP67 passive splitter box - with 4 channels M12 connector Product Image
  • Telemecanique ABE9C1240M Barcode

ABE9C1240M

Product Summary:

  • Product weight: 0.13 lb(US) (0.06 kg)
  • Range of product: Advantys ABE9
  • IP degree of protection: IP67 IEC 529
  • System Voltage: 24 V DC
  • Vibration resistance: 0.2 gn 57...150 Hz IEC 68-2-6, FC tests
Get a Quote

Current response time:

10 Minutes 2 Seconds
  • Description: IP67 passive splitter box - with 4 channels M12 connector
  • Product weight: 0.13 lb(US) (0.06 kg)
  • Range of product: Advantys ABE9
  • IP degree of protection: IP67 IEC 529
  • System Voltage: 24 V DC
  • Vibration resistance: 0.2 gn 57...150 Hz IEC 68-2-6, FC tests
  • Shock resistance: 30 gn 11 ms EN 68-2-2, 30 gn 11 ms IEC 68-2-2
  • Electrical connection: 1 male plug-in connector, 4 female connectors M12 5 pins
  • Number of ways: 8 ways
  • Product or component type: IP67 passive splitter box
  • Product certifications: cULus
  • Number of channels: 4
  • Current per channel: <= 4 A
  • Ambient air temperature for operation: -4...176 F (-20...80 C)
  • Insulation group: Category 3 VDE 0110
  • Ambient air temperature for storage: -40...185 F (-40...85 C)
  • status LED: Without
  • Operating position: Any position
  • Fixing mode: M4 screw fixing
  • Contact resistance: 5000 Ohm
  • Current of common: 16 A 0 in (1 mm), 12 A 0 in (0.75 mm)
  • Separation of commons: Without or with
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ABE9C1240M . Santa Clara Systems carries 10,141 items from Telemecanique.
  • Ip67 Passive Splitter Box - With 4 Channels M12 Connector
