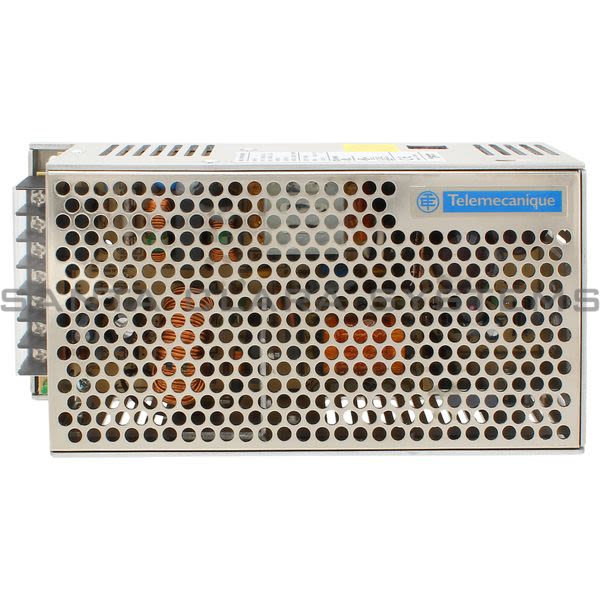

• Telemecanique ABL1RPM24062 regulated SMPS - single phase - 100..240 V input - 24 V output - 150 W Product Image

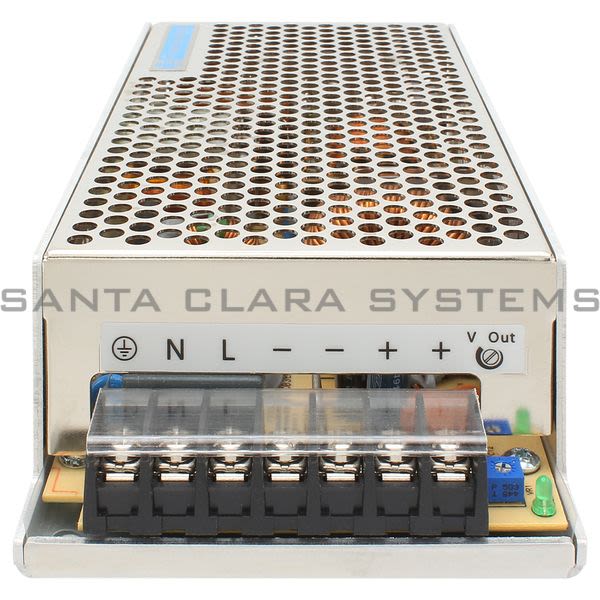

  • Telemecanique ABL1RPM24062 regulated SMPS - single phase - 100..240 V input - 24 V output - 150 W Product Image

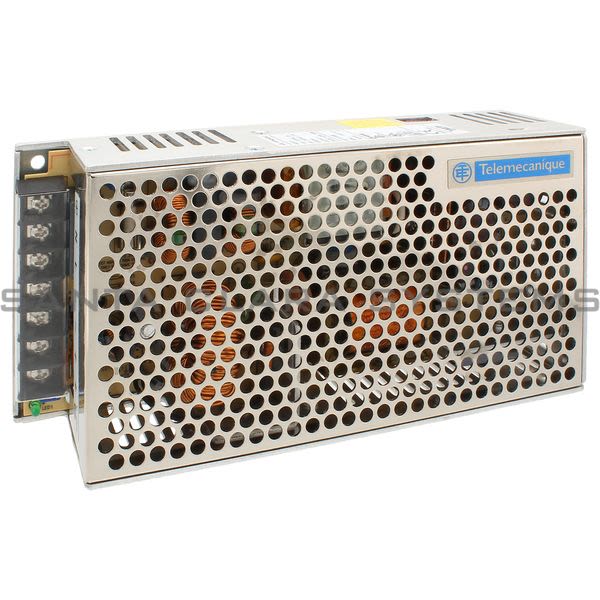

  • Telemecanique ABL1RPM24062 regulated SMPS - single phase - 100..240 V input - 24 V output - 150 W Product Image

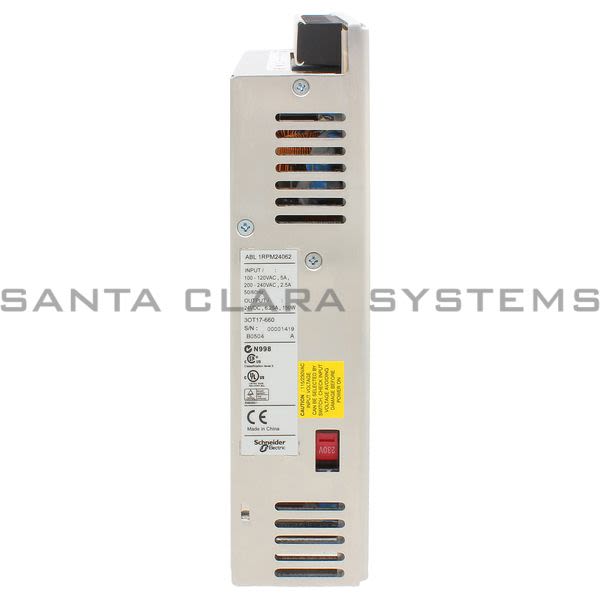

  • Telemecanique ABL1RPM24062 regulated SMPS - single phase - 100..240 V input - 24 V output - 150 W Product Image
  • Telemecanique ABL1RPM24062 Barcode

ABL1RPM24062

Product Summary:

  • Product weight: 2.14 lb(US) (0.97 kg)
  • Range of product: Phaseo Dedicated
  • IP degree of protection: IP20 conforming to EN/IEC 60950
  • Operating altitude: 6561.68 ft. (2000 m)
  • Mounting support: Panel, Reversible mounting bracket
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: regulated SMPS - single phase - 100..240 V input - 24 V output - 150 W
  • Product weight: 2.14 lb(US) (0.97 kg)
  • Range of product: Phaseo Dedicated
  • IP degree of protection: IP20 conforming to EN/IEC 60950
  • Operating altitude: 6561.68 ft. (2000 m)
  • Connections - terminals: Screw type terminals ground connection, connection capacity: 1 x 4 mm AWG 12, Screw type terminals input connection, connection capacity: 2 x 4 mm AWG 12, Screw type terminals output connection, connection capacity: 4 x 4 mm AWG 12
  • Mounting support: Panel, Reversible mounting bracket
  • Vibration resistance: 2 gn (f = 9...150 Hz) conforming to EN/IEC 61131-2, 3.5 mm (f = 5...9 Hz) conforming to EN/IEC 61131-2
  • Overvoltage category: II
  • Relative humidity: 20...90 %
  • Input voltage: AC single phase, AC single phase, DC
  • Input voltage limits: 85...132 V, 170...264 V
  • Product certifications: CSA 22-2 No 60950-1, RCM, CCSAus, UL 508, EAC, KC, TUV 60950-1
  • Product or component type: Power supply
  • Network frequency: 47...63 Hz
  • Environmental characteristic: Low frequency harmonic currents conforming to EN/IEC 61000-3-2, EMC conforming to EN 50081-1, EMC conforming to EN 50082-2, EMC conforming to EN 61000-6-3, EMC conforming to EN/IEC 61000-6-2, Safety conforming to EN/IEC 60950-1, Safety conforming to SELV
  • Power supply type: Regulated switch mode
  • Inrush current: <= 50 A at 115 V AC, <= 100 A at 230 V AC
  • rated power in W: 150 W
  • Cos phi: 0.7...0.95
  • Ambient air temperature for operation: 32...113 F (0...45 C) without derating factor, 113...140 F (45...60 C) with derating factor
  • Efficiency: > 80 %
  • Ambient air temperature for storage: -13...185 F (-25...85 C)
  • Output voltage: 24 V DC
  • power dissipation in W: 37.5 W
  • Power supply output current: 6.2 A
  • Current consumption: 5 A at 100 V, 2.5 A at 240 V
  • Operating position: Any position
  • Input protection type: Integrated fuse (not interchangeable)
  • Pollution degree: 2
  • Output voltage limits: 21.6...26.4 V
  • Dielectric strength: 1500 V between input and ground, 3000 V between input and output, 500 V between output and ground
  • Name of test: Conducted interference conforming to EN 61000-4-8 level 4, Conducted/radiated emissions conforming to EN 55022 Class B, Conducted/radiated emissions conforming to EN/IEC 55011, Electrostatic discharges conforming to EN/IEC 61000-4-2 level 3, Emission conforming to EN/IEC 61000-6-3, Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3, Primary outage conforming to IEC 61000-4-11, Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3, Rapid transient conforming to IEC 61000-4-4 level 3, Surge conforming to EN/IEC 61000-4-5
  • Line and load regulation: +/- 3 %
  • Holding time: >= 10 ms at 100 V, >= 40 ms at 240 V
  • Output protection type: Against overload, protection technology: 1.1...1.5 x In, Against overvoltage, protection technology: tripping if U > 1.25 x Un, Against short-circuits, protection technology: automatic reset, Thermal
  • Marking: CE
  • Output coupling: Parallel, Series
  • meantime between failure [MTBF]: > 100000 hat 104 F (40 C)
  • status LED: 1 LED green output voltage
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ABL1RPM24062 . Santa Clara Systems carries 10,141 items from Telemecanique.
  • Regulated Smps - Single Phase - 100..240 V Input - 24 V Output - 150 W
