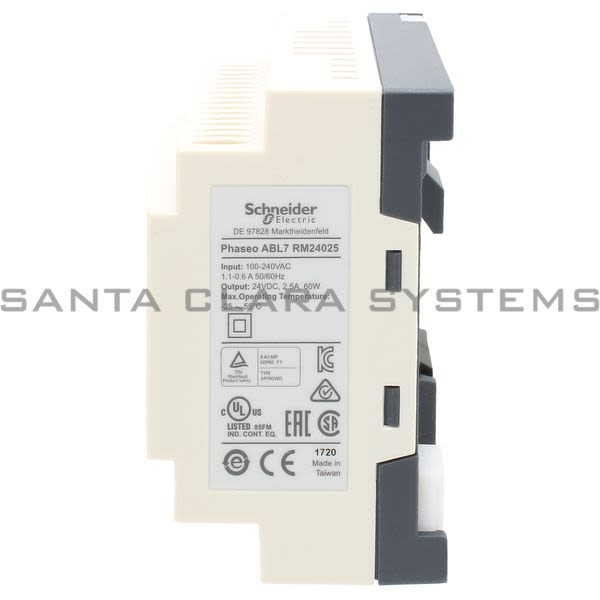

• Telemecanique ABL7RM24025 regulated SMPS with auto reset - 1 or 2-phase - 100...240 V AC - 24 V - 2.5 A Product Image

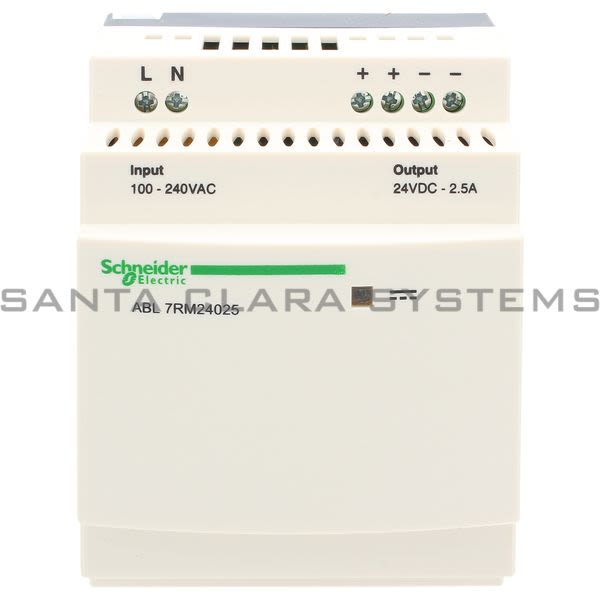

  • Telemecanique ABL7RM24025 regulated SMPS with auto reset - 1 or 2-phase - 100...240 V AC - 24 V - 2.5 A Product Image

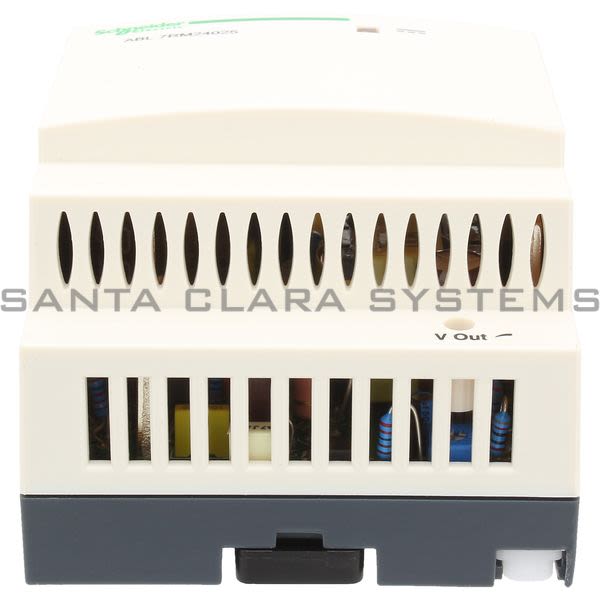

  • Telemecanique ABL7RM24025 regulated SMPS with auto reset - 1 or 2-phase - 100...240 V AC - 24 V - 2.5 A Product Image

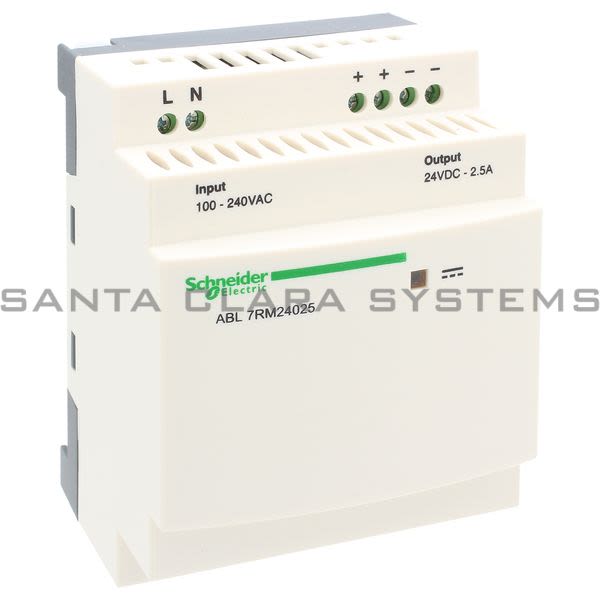

  • Telemecanique ABL7RM24025 regulated SMPS with auto reset - 1 or 2-phase - 100...240 V AC - 24 V - 2.5 A Product Image
  • Telemecanique ABL7RM24025 Barcode

ABL7RM24025

Product Summary:

  • Product weight: 0.56 lb(US) (0.255 kg)
  • Range of product: Phaseo
  • IP degree of protection: IP20 conforming to EN/IEC 60529
  • Standards: CSA C22.2 No 60950-1, UL 508
  • Width: 2.91 in (74 mm)
Get a Quote

Current response time:

13 Minutes 32 Seconds
  • Description: regulated SMPS with auto reset - 1 or 2-phase - 100...240 V AC - 24 V - 2.5 A
  • Product weight: 0.56 lb(US) (0.255 kg)
  • Range of product: Phaseo
  • IP degree of protection: IP20 conforming to EN/IEC 60529
  • Standards: CSA C22.2 No 60950-1, UL 508
  • Width: 2.91 in (74 mm)
  • Height: 3.94 in (100 mm)
  • Depth: 2.32 in (59 mm)
  • Operating altitude: 6561.68 ft. (2000 m)
  • Connections - terminals: Screw type terminals input connection, connection capacity: 2 x 0.14...2 x 2.5 mm AWG 26...AWG 14, Screw type terminals output connection, connection capacity: 4 x 0.14...4 x 2.5 mm AWG 26...AWG 14
  • Mounting support: Panel 2 screws, diameter : 4 mm, 35 x 7.5 mm symmetrical DIN rail, 35 x 15 mm symmetrical DIN rail
  • Overvoltage category: Class II conforming to VDE 0106-1
  • Relative humidity: 0...90 % during operation, 0...95 % in storage
  • Input voltage: 100...240 V AC phase to phase, terminal(s): L1-L2, 100...240 V AC single phase, terminal(s): N-L1
  • Input voltage limits: 170...264 V
  • Product certifications: KC, EAC
  • Product or component type: Power supply
  • Network frequency: 47...63 Hz
  • Power supply type: Regulated switch mode
  • Inrush current: <= 90 A 1 ms
  • Environmental characteristic: EMC conforming to EN 55022 Class B, EMC conforming to EN 61000-6-3, EMC conforming to EN/IEC 61000-6-2, EMC conforming to EN/IEC 61204-3, Safety conforming to EN/IEC 60950-1, Safety conforming to SELV
  • Cos phi: > 0.5
  • Output voltage: 24 V DC
  • Efficiency: 84%
  • Ambient air temperature for storage: -40...158 F (-40...70 C)
  • rated power in W: 60 W
  • Output voltage limits: 22.2...28.8 V adjustable
  • Provided equipment: Power factor correction filter conforming to IEC 61000-3-2
  • power dissipation in W: 11.4 W
  • Input protection type: Integrated fuse (not interchangeable)
  • Current consumption: 0.7 A at 240 V
  • Dielectric strength: Between input and output
  • Power supply output current: 2.5 A
  • Line and load regulation: +/- 3 %
  • Output protection type: Against short-circuits, Against undervoltage, protection technology: tripping if U < 19 V
  • Residual ripple: 200 mV
  • Ambient air temperature for operation: -13...131 F (-25...55 C) without, 55...70 C with
  • Holding time: >= 150 ms at 230 V
  • Marking: CE
  • Operating position: Vertical
  • Output coupling: Parallel, Series
  • Name of test: Harmonic current emission conforming to EN/IEC 61000-3-2, Conducted emissions on the power line conforming to EN 55022 Class B, Electrostatic discharges conforming to EN/IEC 61000-4-2, Emission conforming to EN 50081-1, Induced electromagnetic field conforming to EN/IEC 61000-4-6, Primary outage conforming to IEC 61000-4-11, Radiated electromagnetic field conforming to EN/IEC 61000-4-3, Radiated emissions conforming to EN 55022 Class B, Rapid transient conforming to IEC 61000-4-4, Surge conforming to EN/IEC 61000-4-5
  • status LED: 1 LED green output voltage
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ABL7RM24025 . Santa Clara Systems carries 10,141 items from Telemecanique.
  • Regulated Smps With Auto Reset - 1 Or 2-Phase - 100...240 V Ac - 24 V - 2.5 A
