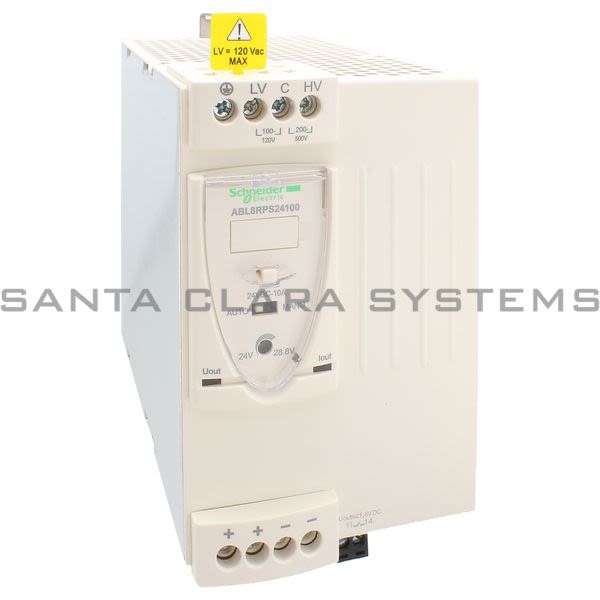

• Telemecanique ABL8RPS24100 regulated SMPS - 1 or 2-phase - 100..500 V - 24 V - 10 A Product Image

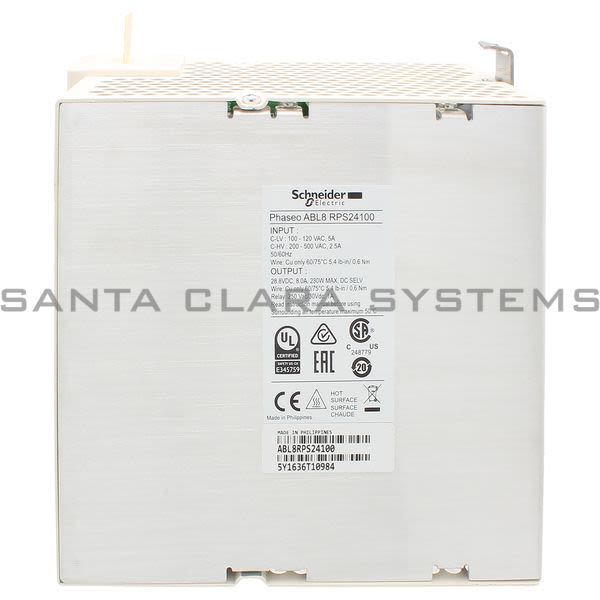

  • Telemecanique ABL8RPS24100 regulated SMPS - 1 or 2-phase - 100..500 V - 24 V - 10 A Product Image

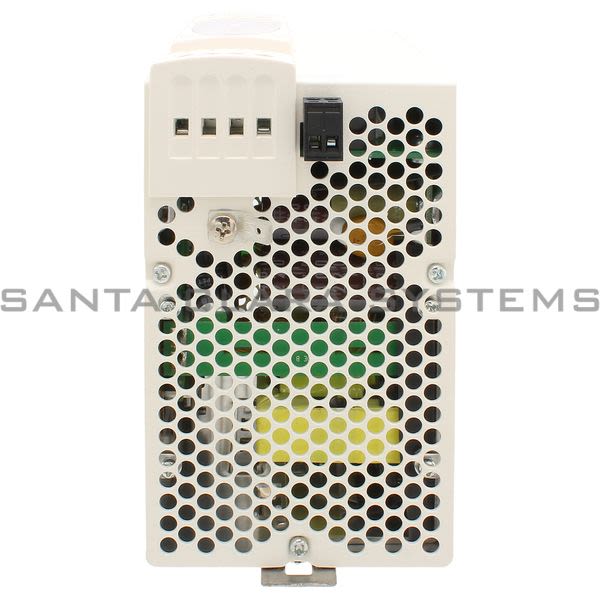

  • Telemecanique ABL8RPS24100 regulated SMPS - 1 or 2-phase - 100..500 V - 24 V - 10 A Product Image

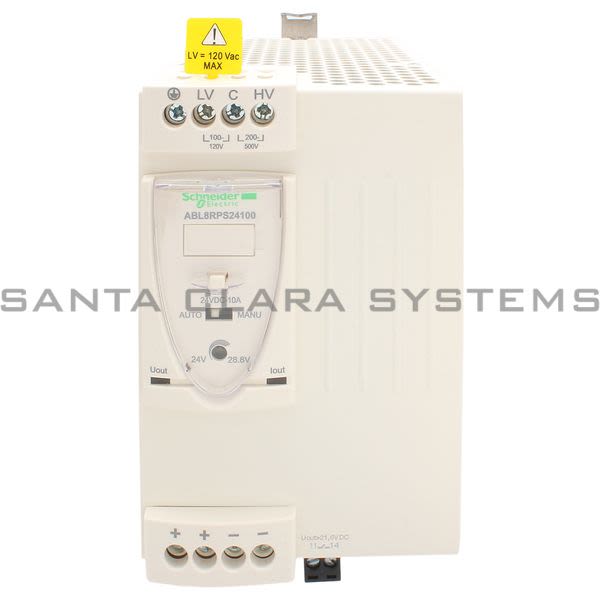

  • Telemecanique ABL8RPS24100 regulated SMPS - 1 or 2-phase - 100..500 V - 24 V - 10 A Product Image
  • Telemecanique ABL8RPS24100 Barcode

ABL8RPS24100

Product Summary:

  • Product weight: 2.2 lb(US) (1 kg)
  • Range of product: Phaseo
  • IP degree of protection: IP20 conforming to EN/IEC 60529
  • Standards: CSA C22.2 No 60950-1, UL 508
  • Width: 3.35 in (85 mm)
Get a Quote

Current response time:

15 Minutes 32 Seconds
  • Description: regulated SMPS - 1 or 2-phase - 100..500 V - 24 V - 10 A
  • Product weight: 2.2 lb(US) (1 kg)
  • Range of product: Phaseo
  • IP degree of protection: IP20 conforming to EN/IEC 60529
  • Standards: CSA C22.2 No 60950-1, UL 508
  • Width: 3.35 in (85 mm)
  • Height: 5.63 in (143 mm)
  • Depth: 5.51 in (140 mm)
  • Operating altitude: 6561.68 ft. (2000 m)
  • Connections - terminals: Screw type terminals input connection, connection capacity: 3 x 0.5...3 x 4 mm AWG 22...AWG 12, Screw type terminals input ground connection, connection capacity: 1 x 0.5...1 x 4 mm AWG 22...AWG 12, Screw type terminals output connection, connection capacity: 4 x 0.5...4 x 4 mm AWG 22...AWG 12, Screw type terminals output ground connection, connection capacity: 1 x 0.5...1 x 4 mm AWG 22...AWG 12, Removable screw terminal block diagnostic relay, connection capacity: 2 x 2.5 mm
  • Mounting support: 35 x 15 mm symmetrical DIN rail, 35 x 7.5 mm symmetrical DIN rail
  • Overvoltage category: Class I conforming to VDE 0106-1
  • Relative humidity: 0...90 % during operation, 0...95 % in storage
  • Input voltage: 100...120 V AC single phase, terminal(s): N-L1, 200...500 V AC phase to phase, terminal(s): L1-L2
  • Input Voltage Limits: 170...550 V, 85...132 V
  • Network Frequency Limits: 47...63 Hz
  • Efficiency: 87%
  • Output Voltage Limits: 24...28.8 V adjustable
  • Output Voltage: 24 V DC
  • Power Supply Output Current: 10:00 AM
  • Product certifications: CB Scheme, EAC, RCM, KC
  • Product or component type: Power supply
  • Network frequency: 47...63 Hz
  • Power supply type: Regulated switch mode
  • Inrush current: <= 30 A 2 ms
  • Environmental characteristic: EMC conforming to EN 61000-6-1, EMC conforming to EN 61000-6-3, EMC conforming to EN/IEC 61000-6-2, EMC conforming to EN/IEC 61000-6-4, EMC conforming to EN/IEC 61204-3, Safety conforming to EN/IEC 60950-1, Safety conforming to EN/IEC 61204-3, Safety conforming to SELV
  • Cos phi: 0.68 at 240 V, 0.69 at 120 V
  • Ambient air temperature for storage: -40...158 F (-40...70 C)
  • rated power in W: 240 W
  • Provided equipment: Power factor correction filter conforming to IEC 61000-3-2
  • power dissipation in W: 31 W
  • Line and load regulation: 1...3 %
  • Dielectric strength: Between input and ground, Between output and ground, Between input and output
  • Output protection type: Against overload, protection technology: manual or automatic reset, Against overvoltage, protection technology: 30...32 V, manual reset, Against short-circuits, protection technology: manual or automatic reset, Against undervoltage, protection technology: tripping if U < 21.6 V, Thermal, protection technology: automatic reset
  • Holding time: >= 120 ms at 400 V, >= 20 ms at 100 V, >= 40 ms at 240 V
  • Ambient air temperature for operation: 122...140 F (50...60 C) with, -13...122 F (-25...50 C) without
  • Permissible temporary current boost: 1.5 x In for 4 s
  • Marking: CE
  • Operating position: Vertical
  • Output coupling: Series, Parallel
  • Name of test: Harmonic current emission conforming to EN/IEC 61000-3-2, Conducted emissions on the power line conforming to EN 55022 Class B, Electrostatic discharges conforming to EN/IEC 61000-4-2, Induced electromagnetic field conforming to EN/IEC 61000-4-6, Magnetic field conforming to EN 61000-4-8, Primary outage conforming to IEC 61000-4-11, Radiated electromagnetic field conforming to EN/IEC 61000-4-3, Radiated emissions conforming to EN 55022 Class B, Rapid transient conforming to IEC 61000-4-4, Surge conforming to EN/IEC 61000-4-5
  • status LED: 1 LED green and red output voltage, 1 LED green, red and orange output current
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ABL8RPS24100 . Santa Clara Systems carries 10,141 items from Telemecanique.
  • Regulated Smps - 1 Or 2-Phase - 100..500 V - 24 V - 10 A
