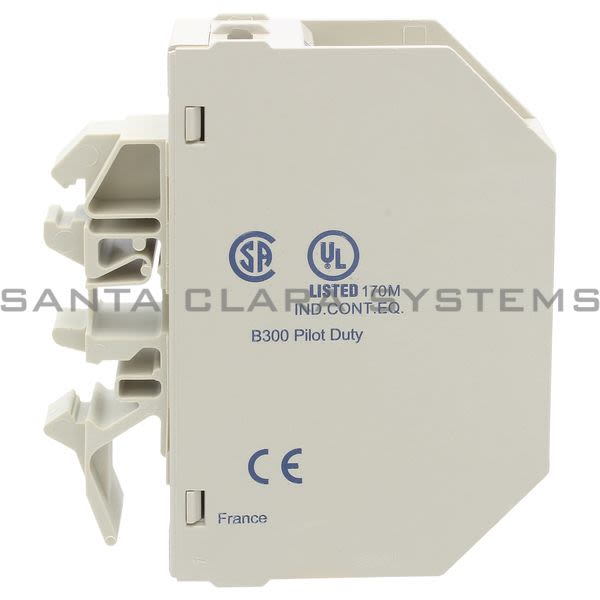

• Telemecanique ABR 1E118B Interface Relay Product Image

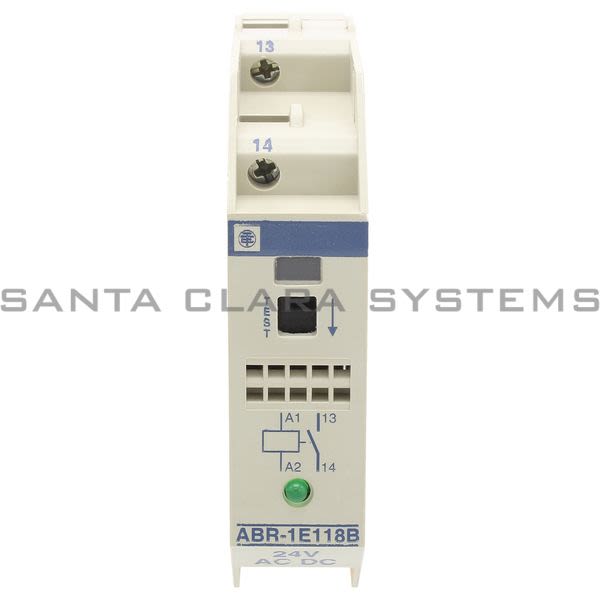

  • Telemecanique ABR 1E118B Interface Relay Product Image

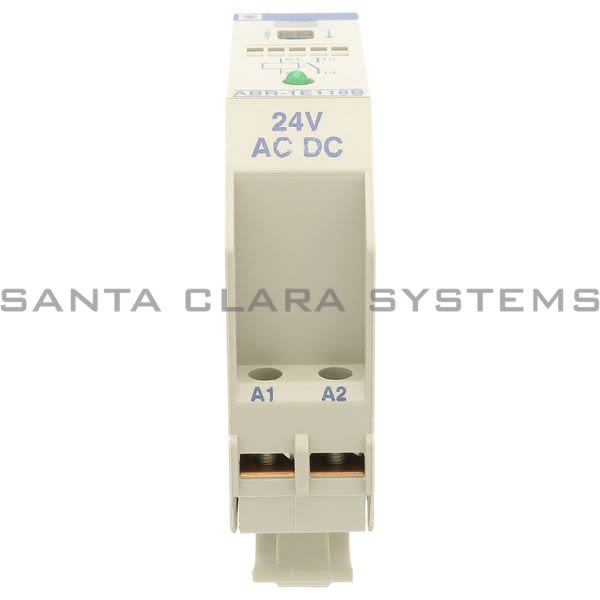

  • Telemecanique ABR 1E118B Interface Relay Product Image

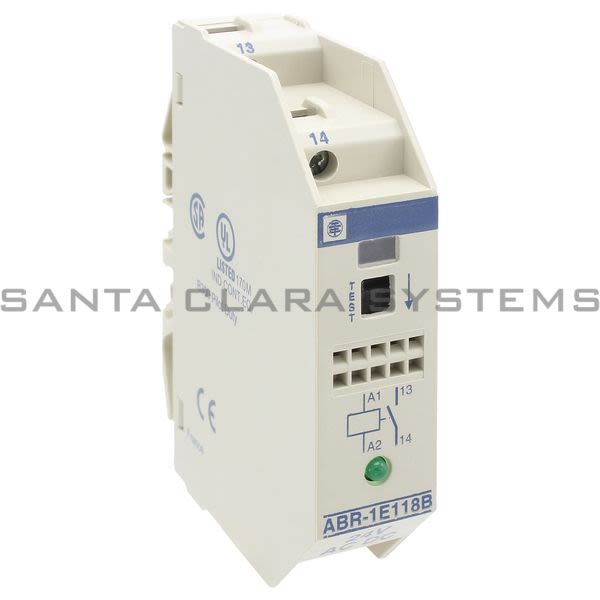

  • Telemecanique ABR 1E118B Interface Relay Product Image
  • Telemecanique ABR 1E118B Barcode

ABR1E118B

Product Summary:

  • Range of product: Interface for discrete signals
  • IP degree of protection: IP20 conforming to IEC 60529
  • Standards: IEC 60947-5-1
  • Protective treatment: TC
  • [Ui] rated insulation voltage: 250 V conforming to IEC 60947-1
Get a Quote

Current response time:

9 Minutes 3 Seconds
  • Description: Interface Relay
  • Range of product: Interface for discrete signals
  • IP degree of protection: IP20 conforming to IEC 60529
  • Standards: IEC 60947-5-1
  • Protective treatment: TC
  • [Ui] rated insulation voltage: 250 V conforming to IEC 60947-1
  • Operating altitude: <= 3000 m
  • Mechanical durability: 20000000 cycles
  • Connections - terminals: Screw clamp terminal
  • Mounting support: Asymmetrical DIN rail
  • [Ith] conventional free air thermal current: 2 A conforming to IEC 60947-1
  • [Uc] control circuit voltage: 24 V
  • Shock resistance: 50 gn for 11 ms conforming to IEC 60068-2-27
  • Vibration resistance: 6 gn conforming to IEC 60068-2-6 (f = 1055 Hz)
  • [Ie] rated operational current: 1 A AC-13 Ue: 230 V per 1000000 cycles conforming to IEC 60947-5-1
  • Control circuit voltage limits: 30 V energization threshold: 16.5 V
  • Operating time: <= 12 ms between de-energisation of coil and closing of NC contact
  • Control circuit type: AC/DC
  • Product or component type: Electromechanical input interface module
  • Contacts type and composition: 1 NO
  • Control circuit frequency: 50/60 Hz
  • Width pitch dimension: 17.5 mm
  • maximum [In] rated current: 55 mA AC
  • Reverse polarity protection: With
  • Short-circuit protection: 16 A external fuse gF (Ik <= 2.5 kA AC and Ik <= 100 A DC)
  • Local signalling: Green mechanical indicator for position of contacts and 1 green LED control signal state
  • Housing colour: Grey
  • Drop-out voltage: 3.8 V
  • Minimum holding current: 4.9 mA DC
  • maximum power dissipation in W: 1.5 W
  • Maximum switching voltage: 125 V DC
  • [Ue] rated operational voltage: <= 125 V DC conforming to IEC 60947-5-1
  • Network frequency: 50/60 Hz
  • Minimum switching current: 3 mA
  • Minimum switching voltage: 17 V
  • Electrical reliability: <= 0.00000001
  • Contact bounce time: <= 3 ms
  • operating rate in Hz: 6 Hz at no-load
  • Flame retardance: V0 conforming to UL 94
  • Cable cross section: 0.342.5 mm, 1 or 2 wires flexible with cable end
  • Operating position: Any position
  • Installation category: II conforming to IEC 60947-1
  • Net weight: 0.095 kg
  • Immunity to microbreaks: 8 ms
  • Dielectric strength: 1500 V between independent contacts
  • Product certifications: CSA
  • Fire resistance: 850 C conforming to IEC 60695-2-1
  • Electromagnetic compatibility: 1.2/50 ms shock waves immunity test 0.25 kV for U > 50 V conforming to IEC 255-4
  • Ambient air temperature for operation: -2060 C at Un
  • Ambient air temperature for storage: -4070 C
  • Pollution degree: 3 conforming to IEC 60947-5-1
  • Sustainable offer status: Green Premium product
  • EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)
  • Toxic heavy metal free: Yes
  • Mercury free: Yes
  • RoHS exemption information: Yes
  • China RoHS Regulation: China RoHS declaration
  • Environmental Disclosure: Product Environmental Profile
  • Circularity Profile: No need of specific recycling operations
  • WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ABR1E118B . Santa Clara Systems carries 10,141 items from Telemecanique.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
