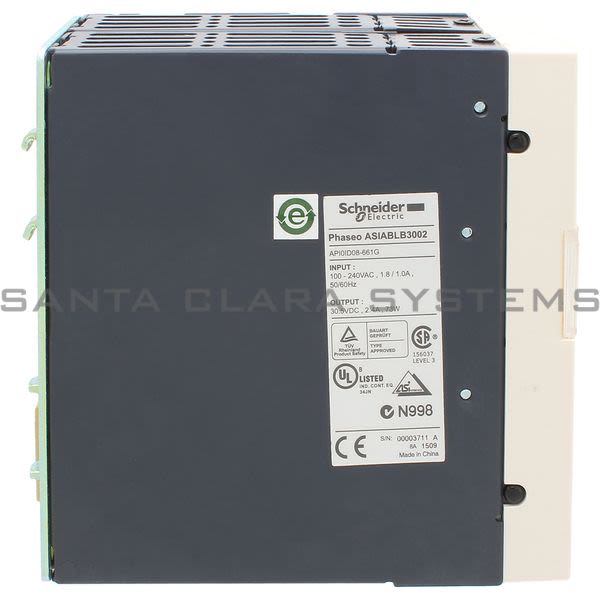

• Telemecanique ASIABLB3002 regulated switch mode power supply - AS-I - 100..240 V - 30 V - 2.4 A Product Image

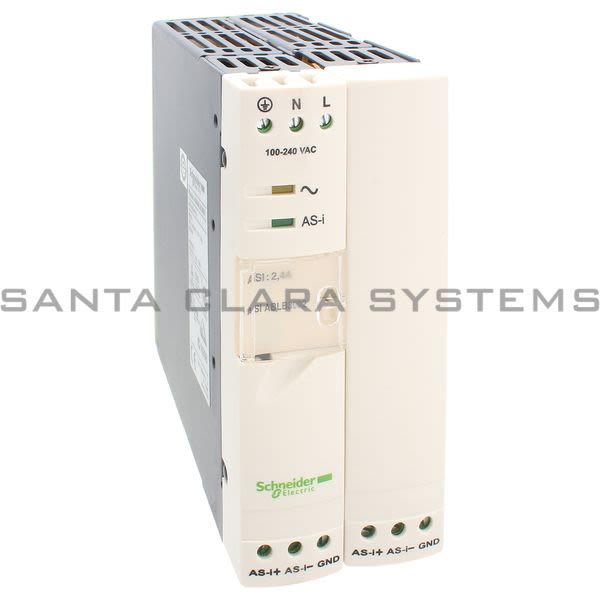

  • Telemecanique ASIABLB3002 regulated switch mode power supply - AS-I - 100..240 V - 30 V - 2.4 A Product Image

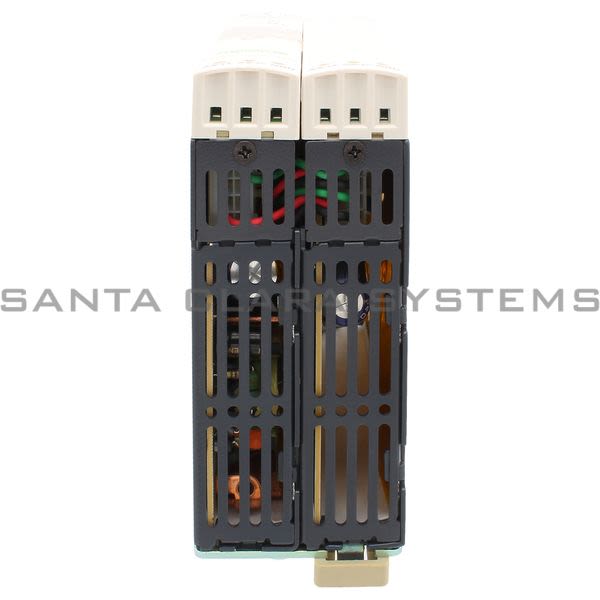

  • Telemecanique ASIABLB3002 regulated switch mode power supply - AS-I - 100..240 V - 30 V - 2.4 A Product Image

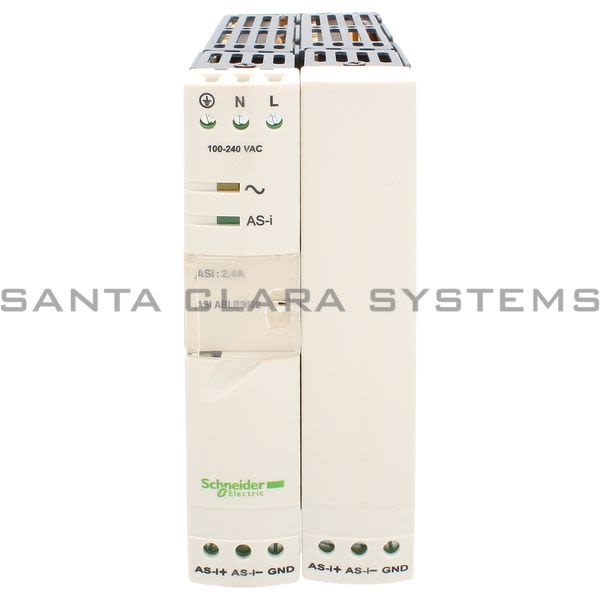

  • Telemecanique ASIABLB3002 regulated switch mode power supply - AS-I - 100..240 V - 30 V - 2.4 A Product Image
  • Telemecanique ASIABLB3002 Barcode

ASIABLB3002

Product Summary:

  • Product weight: 1.76 lb(US) (0.8 kg)
  • Range of product: Phaseo AS-Interface
  • IP degree of protection: IP20 conforming to EN/IEC 60529
  • Operating altitude: 6561.68 ft. (2000 m)
  • Mounting support: 75 mm symmetrical DIN rail, 35 mm symmetrical DIN rail
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: regulated switch mode power supply - AS-I - 100..240 V - 30 V - 2.4 A
  • Product weight: 1.76 lb(US) (0.8 kg)
  • Range of product: Phaseo AS-Interface
  • IP degree of protection: IP20 conforming to EN/IEC 60529
  • Operating altitude: 6561.68 ft. (2000 m)
  • Connections - terminals: Screw type terminals for AS-Interface line, connection capacity: 4 x 2.5 mm, number of terminals = 4, cable cross section = 0 in (2.5 mm) AWG 14, Screw type terminals for input connection, connection capacity: 2 x 2.5 mm, number of terminals = 2, cable cross section = 0 in (2.5 mm) AWG 14, Screw type terminals for input ground connection, connection capacity: 1 x 2.5 mm, number of terminals = 1, cable cross section = 0 in (2.5 mm) AWG 14, Screw type terminals for output ground connection, connection capacity: 2 x 2.5 mm, number of terminals = 2, cable cross section = 0 in (2.5 mm) AWG 14
  • Mounting support: 75 mm symmetrical DIN rail, 35 mm symmetrical DIN rail
  • Relative humidity: 0...95 % without condensation or dripping water
  • Input voltage: 100...240 V AC phase to phase, terminal(s): L1-L2, 100...240 V AC single phase, terminal(s): N-L1
  • Input voltage limits: 85...264 V
  • Product certifications: CSA 22-2 No 950, UL 508, TUV 60950-1
  • Product or component type: Power supply
  • Network frequency limits: 47...63 Hz
  • Environmental characteristic: EMC conforming to EN 50081-1, EMC conforming to EN 55022 Class B, EMC conforming to EN/IEC 61000-6-2, Safety conforming to EN 60950-1
  • Power supply type: Regulated switch mode
  • Input voltage tolerance: - 15...10 %
  • Output voltage: 30 V DC AS-Interface line
  • Inrush current: < 30 A
  • Ambient air temperature for operation: 122...140 F (50...60 C) with derating factor, 32...122 F (0...50 C) without derating factor
  • rated power in W: 72 W
  • Cos phi: 0.65
  • Ambient air temperature for storage: -13...158 F (-25...70 C)
  • Efficiency: > 83 %at 30 V
  • Power supply output current: 2.4 A
  • power dissipation in W: 14.7 Wat 30 V
  • Dielectric strength: 3000 V between input and ground, 3000 V between input and output, 500 V between output and ground, 500 V between outputs
  • Operating position: Vertical
  • Current consumption: 0.5 A
  • Input protection type: Integrated fuse (not interchangeable)
  • Line and load regulation: 3%
  • Residual ripple: 300 mV
  • Holding time: >= 10 ms
  • Output protection type: , protection technology: 1.1 x In, , protection technology: tripping if U > 1.2 x Un, , protection technology: automatic reset, , protection technology: tripping if U < 0.95 x Un
  • Name of test: Conducted/radiated emissions conforming to EN 55022 Class B, Electrostatic discharges conforming to EN/IEC 61000-4-2, Emission conforming to EN 61000-6-3, Induced electromagnetic field conforming to EN/IEC 61000-4-6, Primary outage conforming to IEC 61000-4-11, Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3, Rapid transient conforming to IEC 61000-4-4 level 3, Vibration conforming to EN/IEC 61131-2
  • meantime between failure [MTBF]: > 100000 hat 104 F (40 C)
  • status LED: 1 LED green output voltage, 1 LED orange input voltage
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ASIABLB3002 . Santa Clara Systems carries 10,141 items from Telemecanique.
  • Regulated Switch Mode Power Supply - As-I - 100..240 V - 30 V - 2.4 A
