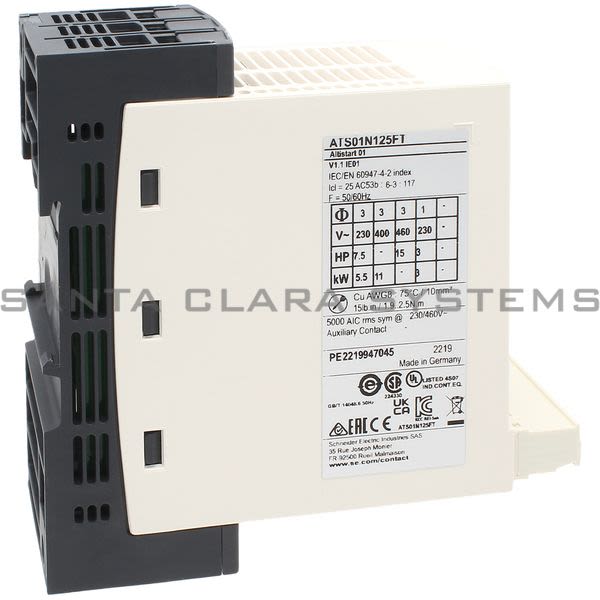

• Telemecanique ATS 01N125FT Soft Starter Product Image

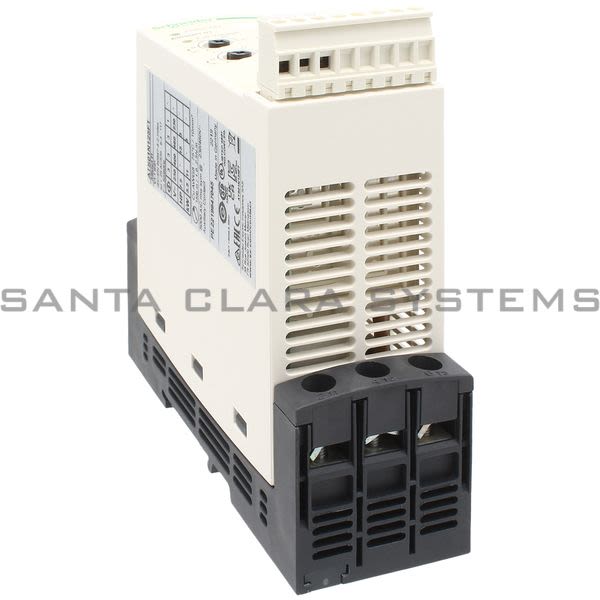

  • Telemecanique ATS 01N125FT Soft Starter Product Image

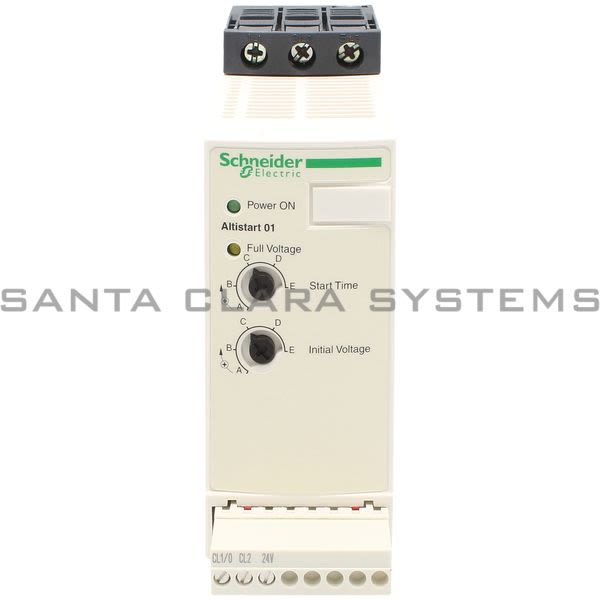

  • Telemecanique ATS 01N125FT Soft Starter Product Image

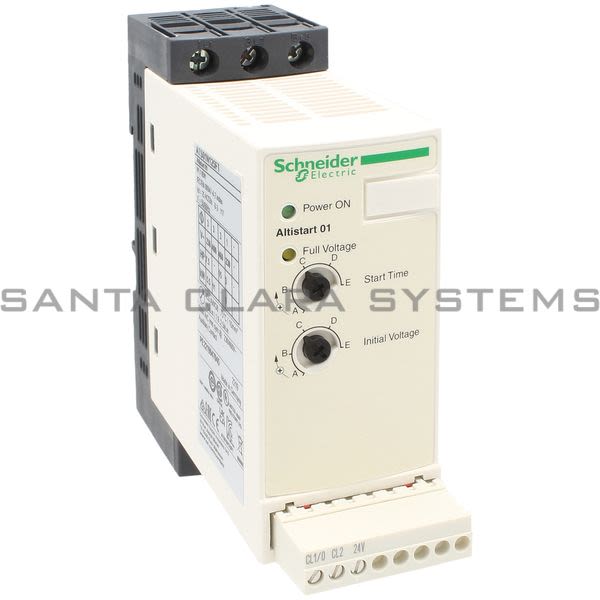

  • Telemecanique ATS 01N125FT Soft Starter Product Image
  • Telemecanique ATS 01N125FT Barcode

ATS01N125FT

Product Summary:

  • Range of product: Altistart 01
  • IP degree of protection: IP20
  • Standards: EN/IEC 60947-4-2
  • Device short name: ATS01
  • Width: 45 mm
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Soft Starter
  • Range of product: Altistart 01
  • IP degree of protection: IP20
  • Standards: EN/IEC 60947-4-2
  • Device short name: ATS01
  • Width: 45 mm
  • Height: 124 mm
  • Depth: 131 mm
  • Operating altitude: <= 1000 m without
  • Tightening torque: 0.5 N.m
  • [Uc] control circuit voltage: 110 V AC +/- 10 % at 35 mA
  • Vibration resistance: 1 gn (f= 13150 Hz) conforming to EN/IEC 60068-2-6
  • Shock resistance: 15 gn for 11 ms conforming to EN/IEC 60068-2-27
  • Electrical connection: 4 mm screw clamp terminal - rigid 1 1...10 mm AWG 8 power circuit
  • motor power kW: 11 kW, 3 phases at 400 V
  • [Us] rated supply voltage: 110...480 V - 10...10 %
  • Relative humidity: 595 % without condensation or dripping water conforming to EN/IEC 60068-2-3
  • Product or component type: Soft starter
  • Product specific application: Simple machine
  • Network number of phases: 1 phase
  • Motor power hp: 11 hp, 3 phases at 460 V
  • IcL starter rating: 25 A
  • Utilisation category: AC-53B conforming to EN/IEC 60947-4-2
  • Current consumption: 125 A at nominal load
  • Type of start: Start with voltage ramp
  • power dissipation in W: 1 W at full load and at end of starting
  • Assembly style: With heat sink
  • Function available: Integrated bypass
  • Supply voltage limits: 99528 V
  • Supply frequency: 50...60 Hz - 5...5 %
  • Network frequency: 47.5...63 Hz
  • Output voltage: <= power supply voltage
  • Starting time: 1 s / 100
  • Starting torque: 30...80 % of starting torque of motor connected directly on the line supply
  • Discrete output current: 2 A DC-13
  • Marking: CE
  • Operating position: Vertical +/- 10 degree
  • Net weight: 0.35 kg
  • Compatibility code: ATS01N1
  • Motor power range AC-3: 2.23 kW at 200240 V 3 phases
  • Motor starter type: Soft starter
  • Electromagnetic compatibility: Conducted and radiated emissions level B conforming to CISPR 11
  • Product certifications: B44.1-96/ASME A17.5 for starter wired to the motor delta terminal
  • Pollution degree: 2 conforming to EN/IEC 60947-4-2
  • Ambient air temperature for operation: -1040 C (without)
  • Ambient air temperature for storage: -2570 C conforming to EN/IEC 60947-4-2
  • REACh Regulation: REACh Declaration
  • REACh free of SVHC: Yes
  • EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)
  • Toxic heavy metal free: Yes
  • Mercury free: Yes
  • RoHS exemption information: Yes
  • China RoHS Regulation: China RoHS declaration
  • Circularity Profile: End of Life Information
  • WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
