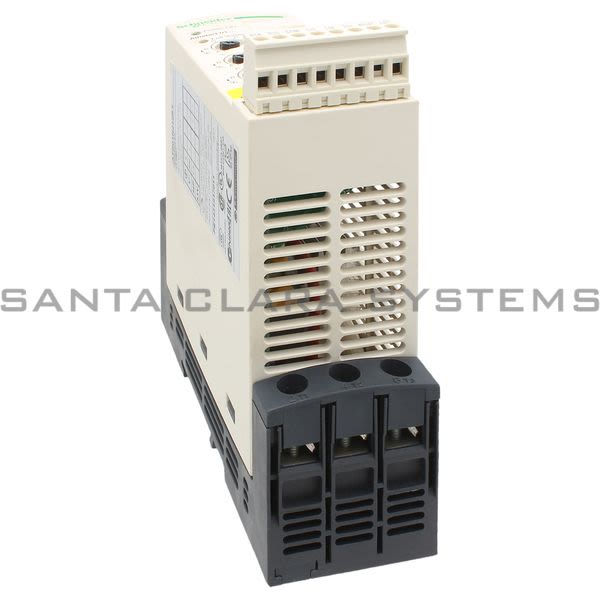

• Telemecanique ATS 01N212RT soft starter for asynchronous motor - ATS01 - 12 A - 460..480 V Product Image

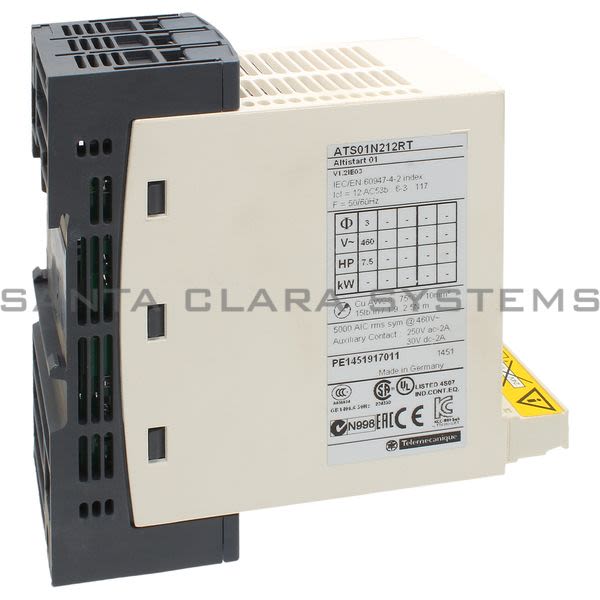

  • Telemecanique ATS 01N212RT soft starter for asynchronous motor - ATS01 - 12 A - 460..480 V Product Image

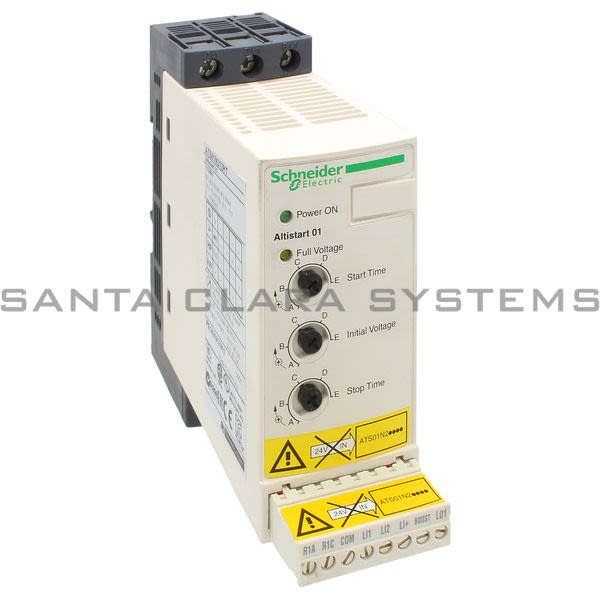

  • Telemecanique ATS 01N212RT soft starter for asynchronous motor - ATS01 - 12 A - 460..480 V Product Image

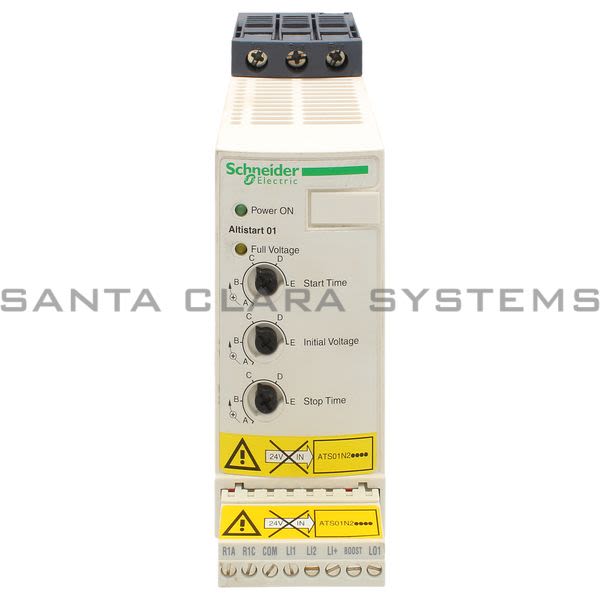

  • Telemecanique ATS 01N212RT soft starter for asynchronous motor - ATS01 - 12 A - 460..480 V Product Image
  • Telemecanique ATS 01N212RT Barcode

ATS01N212RT

Product Summary:

  • Product weight: 0.93 lb(US) (0.42 kg)
  • Range of product: Altistart 01
  • IP degree of protection: IP20
  • Standards: EN/IEC 60947-4-2
  • Device short name: ATS01
Get a Quote

Current response time:

15 Minutes 34 Seconds
  • Description: soft starter for asynchronous motor - ATS01 - 12 A - 460..480 V
  • Product weight: 0.93 lb(US) (0.42 kg)
  • Range of product: Altistart 01
  • IP degree of protection: IP20
  • Standards: EN/IEC 60947-4-2
  • Device short name: ATS01
  • Width: 1.77 in (45 mm)
  • Height: 4.88 in (124 mm)
  • Depth: 5.16 in (131 mm)
  • Operating altitude: <= 3280.84 ft. (1000 m) without derating, > 3280.84 ft. (1000 m) with current derating of 2.2 % per additional 100 m
  • Tightening torque: 16.81...22.12 lbf.in (1.9...2.5 N.m), 4.42 lbf.in (0.5 N.m)
  • [Uc] control circuit voltage: Built into the starter
  • Vibration resistance: 1.5 mm peak to peak 3...13 Hz EN/IEC 60068-2-6, 1 gn 13...150 Hz EN/IEC 60068-2-6
  • Shock resistance: 15 gn 11 ms EN/IEC 60068-2-27
  • Electrical connection: 4 mm screw clamp terminal rigid 1 1...10 mm AWG 8 power circuit, Screw connector rigid 1 0.5...2.5 mm AWG 14 control circuit, 4 mm screw clamp terminal rigid 2 1...6 mm AWG 10 power circuit, Screw connector rigid 2 0.5...1 mm AWG 17 control circuit, Screw connector flexible with cable end 1 0.5...1.5 mm AWG 16 control circuit, 4 mm screw clamp terminal flexible without cable end 1 1.5...10 mm AWG 8 power circuit, Screw connector flexible without cable end 1 0.5...2.5 mm AWG 14 control circuit, 4 mm screw clamp terminal flexible with cable end 2 1...6 mm AWG 10 power circuit, 4 mm screw clamp terminal flexible without cable end 2 1.5...6 mm AWG 10 power circuit, Screw connector flexible without cable end 2 0.5...1.5 mm AWG 16 control circuit
  • Utilization category: AC-53B EN/IEC 60947-4-2
  • [Us] rated supply voltage: 460...480 V - 10...10 %
  • Relative humidity: 5...95 % without condensation or dripping water EN/IEC 60068-2-3
  • Assembly style: With heat sink
  • Electromagnetic compatibility: Damped oscillating waves level 3 IEC 61000-4-12, Electrostatic discharge level 3 IEC 61000-4-2, Immunity to electrical transients level 4 IEC 61000-4-4, Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3, Voltage/current impulse level 3 IEC 61000-4-5, Conducted and radiated emissions level B CISPR 11, Conducted and radiated emissions level B IEC 60947-4-2, EMC immunity EN 50082-2, Harmonics IEC 1000-3-2, Harmonics IEC 1000-3-4, Immunity to conducted interference caused by radio-electrical fields level 3 IEC 61000-4-6, Micro-cuts and voltage fluctuation IEC 61000-4-11, EMC immunity EN 50082-1
  • Product or component type: Soft starter
  • Function available: Integrated bypass
  • Product destination: Asynchronous motors
  • Supply voltage limits: 414...528 V
  • Product certifications: UL, B44.1-96/ASME A17.5 for starter wired to the motor delta terminal, GOST, CSA, CCC, C-Tick
  • Product specific application: Simple machine
  • Supply frequency: 50...60 Hz - 5...5 %
  • Network frequency: 47.5...63 Hz
  • Pollution degree: 2 EN/IEC 60947-4-2
  • Phase: 3 phases
  • Output voltage: <= power supply voltage
  • Motor power hp: 7.5 hp 3 phases 460...480 V
  • Starting time: Adjustable from 1 to 10 s
  • IcL starter rating: 12:00 AM
  • Deceleration time symb: Adjustable from 1 to 10 s
  • Ambient air temperature for operation: 14...104 F (-10...40 C) without derating, 104...122 F (40...50 C) with current derating of 2 % per C
  • Starting torque: 30...80 % of starting torque of motor connected directly on the line supply
  • Ambient air temperature for storage: -13...158 F (-25...70 C) EN/IEC 60947-4-2
  • Current consumption: 60 A at nominal load
  • Discrete input type: Logic LI1, LI2, BOOST stop, run and boost on start-up functions <= 8 mA 27 kOhm
  • Type of start: Start with voltage ramp
  • Discrete input voltage: 24...40 V
  • power dissipation in W: 124 W in transient state, 4 W at full load and at end of starting
  • Discrete input logic: Positive LI1, LI2, BOOST < 5 V and <= 0.2 mA > 13 V >= 0.5 mA
  • Discrete output current: 2 A DC-13, 3 A AC-15
  • Discrete output type: Open collector logic LO1 end of starting signal, Relay outputs R1A, R1C NO
  • Discrete output voltage: 24 V 6...30 V open collector logic
  • Minimum switching current: 10 mA 6 V DC relay outputs
  • Maximum switching current: 2 A 250 V AC inductive cos phi = 0.5 20 ms relay outputs, 2 A 30 V DC inductive cos phi = 0.5 20 ms relay outputs
  • Display type: 1 LED green starter powered up, 1 LED yellow nominal voltage reached
  • Marking: CE
  • Operating position: Vertical +/- 10 degree
  • Compatibility code: ATS01N2
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ATS01N212RT . Santa Clara Systems carries 10,141 items from Telemecanique.
  • Soft Starter For Asynchronous Motor - Ats01 - 12 A - 460..480 V
