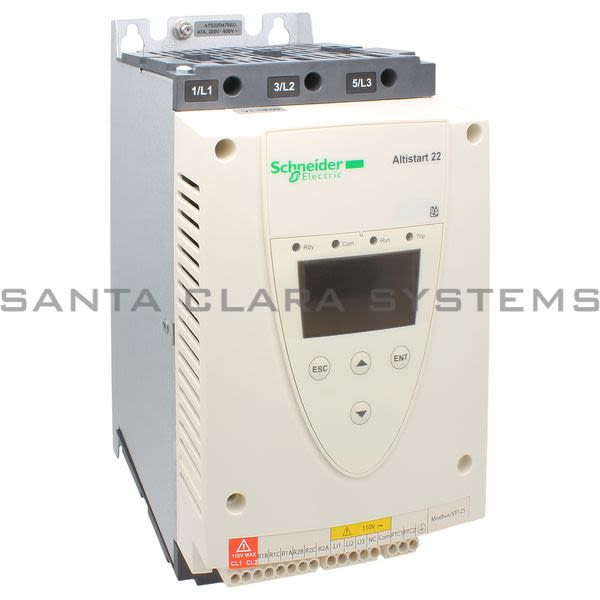

• Telemecanique ATS 22D47S6U soft starter-ATS22-control 110V-power 230V(15hp)/460V(30hp)/575V(40hp) Product Image

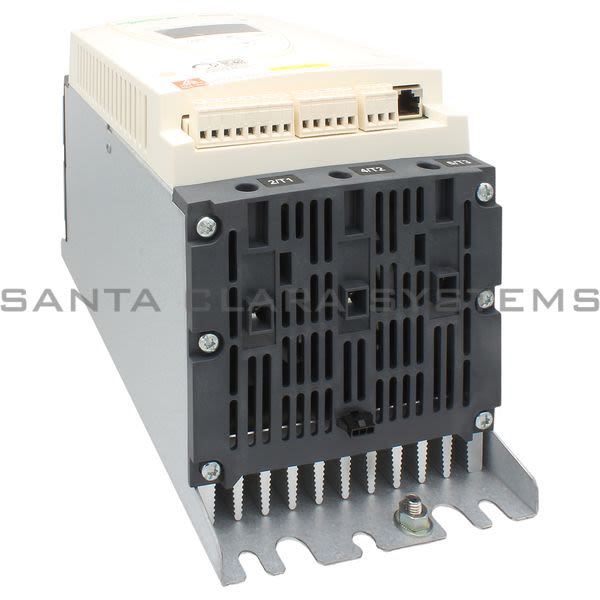

  • Telemecanique ATS 22D47S6U soft starter-ATS22-control 110V-power 230V(15hp)/460V(30hp)/575V(40hp) Product Image

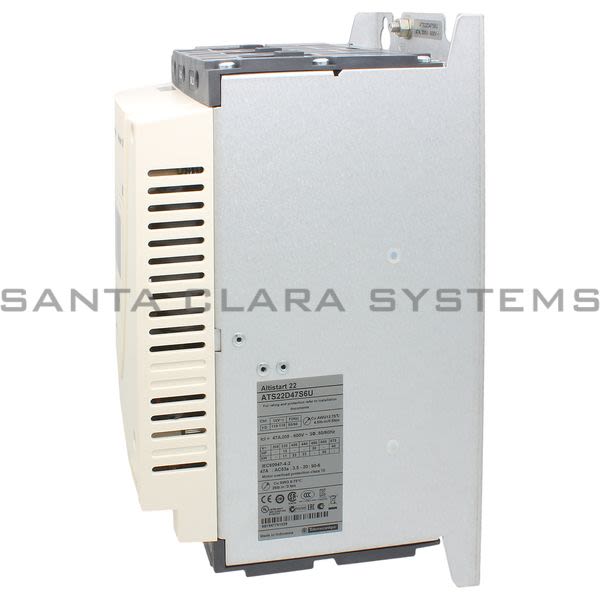

  • Telemecanique ATS 22D47S6U soft starter-ATS22-control 110V-power 230V(15hp)/460V(30hp)/575V(40hp) Product Image

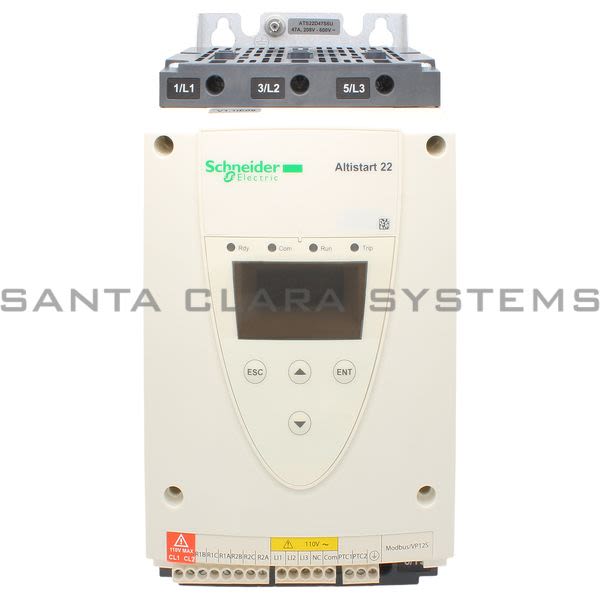

  • Telemecanique ATS 22D47S6U soft starter-ATS22-control 110V-power 230V(15hp)/460V(30hp)/575V(40hp) Product Image
  • Telemecanique ATS 22D47S6U Barcode

ATS22D47S6U

Product Summary:

  • Product weight: 15.43 lb(US) (7 kg)
  • Range of product: Altistart 22
  • IP degree of protection: IP20
  • Standards: EN/IEC 60947-4-2
  • Width: 5.12 in (130 mm)
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: soft starter-ATS22-control 110V-power 230V(15hp)/460V(30hp)/575V(40hp)
  • Product weight: 15.43 lb(US) (7 kg)
  • Range of product: Altistart 22
  • IP degree of protection: IP20
  • Standards: EN/IEC 60947-4-2
  • Width: 5.12 in (130 mm)
  • Height: 10.43 in (265 mm)
  • Depth: 6.65 in (169 mm)
  • Operating altitude: <= 3280.84 ft. (1000 m) without derating, > 3280.84...< 6561.68 ft. (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
  • [Uc] control circuit voltage: 110 V -15...10 % 50/60 Hz
  • Vibration resistance: 1.5 mm 2...13 Hz EN/IEC 60068-2-6, 1 gn 13...200 Hz EN/IEC 60068-2-6
  • Shock resistance: 15 gn 11 ms EN/IEC 60068-2-27
  • Utilization category: AC-53A
  • [Us] rated supply voltage: 208...600 V - 15...10 %
  • Relative humidity: 0...95 % without condensation or dripping water EN/IEC 60068-2-3
  • Protection type: Phase failure line, Thermal protection starter, Thermal protection motor
  • Output current: 0.4...1 Icl adjustable
  • Assembly style: With heat sink
  • Electromagnetic compatibility: Conducted and radiated emissions level A IEC 60947-4-2, Damped oscillating waves level 3 IEC 61000-4-12, Electrostatic discharge level 3 IEC 61000-4-2, Immunity to electrical transients level 4 IEC 61000-4-4, Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3, Voltage/current impulse level 3 IEC 61000-4-5
  • Product or component type: Soft starter
  • Function available: Internal bypass
  • Product destination: Asynchronous motors
  • Supply voltage limits: 177...660 V
  • Product certifications: GOST, CSA, UL, C-Tick, CCC
  • Product specific application: Pumps and fans
  • Supply frequency: 50...60 Hz - 10...10 %
  • Component name: ATS22
  • Network frequency: 45...66 Hz
  • Phase: 3 phases
  • Device connection: In the motor supply line
  • Noise level: 45 dB
  • Pollution degree: Level 2 IEC 60664-1
  • Motor power hp: 15 hp 230 V, 30 hp 460 V, 40 hp 575 V
  • Control circuit consumption: 20 W
  • Factory setting current: 40 A
  • Discrete output number: 2
  • Ambient air temperature for operation: 14...104 F (-10...40 C) without derating, > 104...< 140 F (> 40...< 60 C) with current derating 2.2 % per C
  • power dissipation in W: 48 W for standard applications
  • Discrete output type: Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
  • Ambient air temperature for storage: -13...158 F (-25...70 C)
  • Minimum switching current: 100 mA 12 V DC relay outputs
  • Type of start: Start with torque control (current limited to 3.5 In)
  • Maximum switching current: 5 A 250 V AC resistive 1 relay outputs, 5 A 30 V DC resistive 1 relay outputs, 2 A 250 V AC inductive 0.4 20 ms relay outputs, 2 A 30 V DC inductive 7 ms relay outputs
  • IcL starter rating: 47 A connection in the motor supply line for standard applications
  • Discrete input number: 3
  • Discrete input type: Logic LI1, LI2, LI3 5 mA 20 kOhm
  • Discrete input voltage: 110 V <= 121 V
  • Discrete input logic: Positive logic LI1, LI2, LI3 < 20 V and <= 15 mA > 79 V <= 2 mA
  • PTC probe input: 750 Ohm
  • Communication port protocol: Modbus
  • Connector type: 1 RJ45
  • Communication data link: Serial
  • Physical interface: RS485 multidrop
  • Transmission rate: 4800, 9600 or 19200 bps
  • Installed device: 31
  • Marking: CE
  • Type of cooling: Forced convection
  • Operating position: Vertical +/- 10 degree
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ATS22D47S6U . Santa Clara Systems carries 10,141 items from Telemecanique.
  • Soft Starter-Ats22-Control 110V-Power 230V(15Hp)/460V(30Hp)/575V(40Hp)
