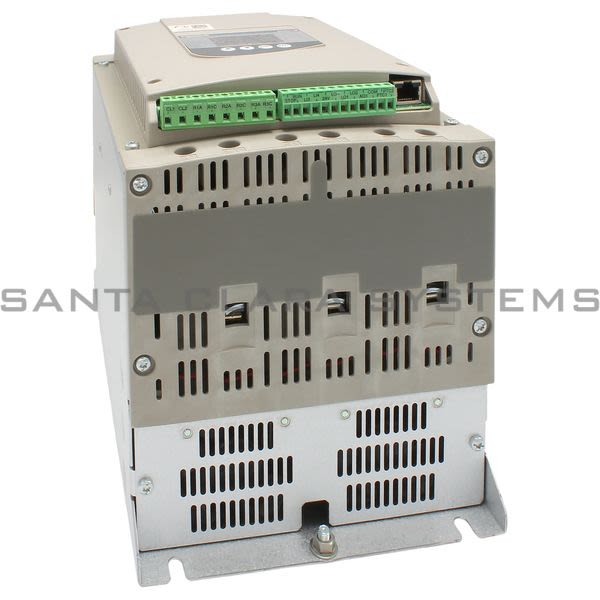

• Telemecanique ATS 48C11Y soft starter for asynchronous motor - ATS48 - 96 A - 208..690 V - 22..90 KW Product Image

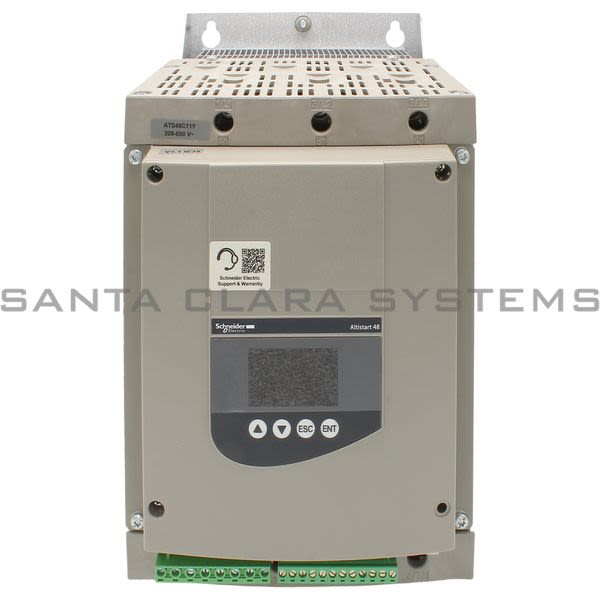

  • Telemecanique ATS 48C11Y soft starter for asynchronous motor - ATS48 - 96 A - 208..690 V - 22..90 KW Product Image

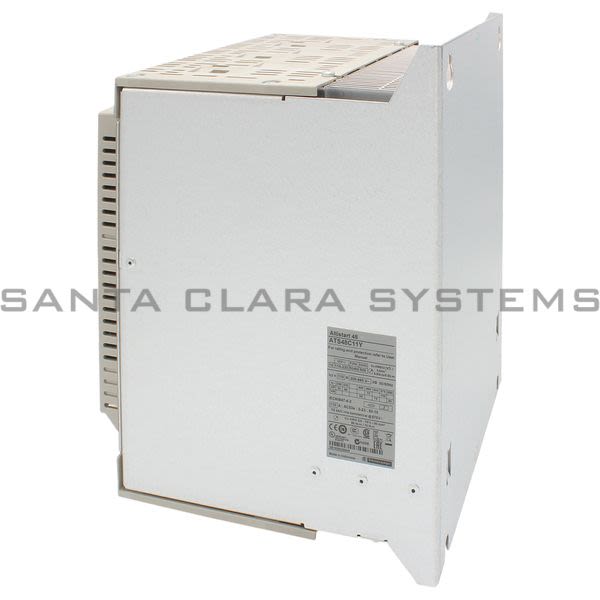

  • Telemecanique ATS 48C11Y soft starter for asynchronous motor - ATS48 - 96 A - 208..690 V - 22..90 KW Product Image

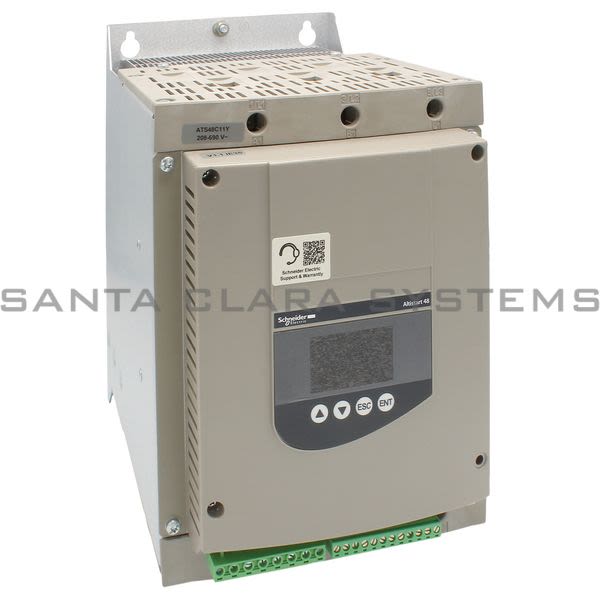

  • Telemecanique ATS 48C11Y soft starter for asynchronous motor - ATS48 - 96 A - 208..690 V - 22..90 KW Product Image
  • Telemecanique ATS 48C11Y Barcode

ATS48C11Y

Product Summary:

  • Product weight: 18.3 lb(US) (8.3 kg)
  • Range of product: Altistart 48
  • IP degree of protection: IP20
  • Standards: EN/IEC 60947-4-2
  • Device short name: ATS48
Get a Quote

Current response time:

6 Minutes 39 Seconds
  • Description: soft starter for asynchronous motor - ATS48 - 96 A - 208..690 V - 22..90 KW
  • Product weight: 18.3 lb(US) (8.3 kg)
  • Range of product: Altistart 48
  • IP degree of protection: IP20
  • Standards: EN/IEC 60947-4-2
  • Device short name: ATS48
  • Width: 7.48 in (190 mm)
  • Height: 11.42 in (290 mm)
  • Depth: 9.25 in (235 mm)
  • Operating altitude: <= 3280.84 ft. (1000 m) without derating, > 3280.84...6561.68 ft. (> 1000...2000 m) with current derating of 2.2 % per additional 100 m
  • [Uc] control circuit voltage: 110 - 15 % to 230 + 10 %, 50/60 Hz
  • Vibration resistance: 1 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-6, 1.5 mm (f = 2...13 Hz) conforming to EN/IEC 60068-2-6
  • Shock resistance: 15 gn 11 ms conforming to EN/IEC 60068-2-27
  • motor power kW: 22 kW at 230 V for severe applications, 30 kW at 230 V for standard applications, 45 kW at 400 V for severe applications, 45 kW at 440 V for severe applications, 55 kW at 400 V for standard applications, 55 kW at 440 V for standard applications, 55 kW at 500 V for severe applications, 55 kW at 525 V for severe applications, 75 kW at 500 V for standard applications, 75 kW at 525 V for standard applications, 75 kW at 660 V for severe applications, 75 kW at 690 V for severe applications, 90 kW at 660 V for standard applications, 90 kW at 690 V for standard applications
  • Utilization category: AC-53A
  • [Us] rated supply voltage: 208...690 V (- 15...10 %)
  • Relative humidity: 0...95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
  • Protection type: Phase failure (line), Thermal protection (motor), Thermal protection (starter)
  • Assembly style: With heat sink
  • Electromagnetic compatibility: Conducted and radiated emissions conforming to IEC 60947-4-2 level A, Conducted and radiated emissions conforming to IEC 60947-4-2 level B, Damped oscillating waves conforming to IEC 61000-4-12 level 3, Electrostatic discharge conforming to IEC 61000-4-2 level 3, Immunity to electrical transients conforming to IEC 61000-4-4 level 4, Immunity to radiated radio-electrical interference conforming to IEC 61000-4-3 level 3, Voltage/current impulse conforming to IEC 61000-4-5 level 3
  • Product or component type: Soft starter
  • Function available: External bypass (optional)
  • Product destination: Asynchronous motors
  • Supply voltage limits: 177...759 V
  • Product certifications: DNV, UL, SEPRO, CCC, C-Tick, CSA, TCF, GOST, NOM 117
  • Product specific application: Heavy duty industry and pumps
  • Supply frequency: 50...60 Hz (- 5...5 %)
  • Network frequency: 47.5...63 Hz
  • Device connection: In the motor supply line
  • Noise level: 58 dB
  • Factory setting current: 96 A
  • Pollution degree: Level 3 conforming to IEC 60664-1
  • Motor power hp: 100 hp at 575 V for standard applications, 25 hp at 208 V for severe applications, 30 hp at 208 V for standard applications, 30 hp at 230 V for severe applications, 40 hp at 230 V for standard applications, 60 hp at 460 V for severe applications, 75 hp at 460 V for standard applications, 75 hp at 575 V for severe applications
  • power dissipation in W: For standard applications 252 W, For standard applications 322 W
  • Control circuit consumption: 30 W
  • Ambient air temperature for operation: 14...104 F (-10...40 C) without derating, > 104...140 F (> 40...60 C) with current derating of 2 % per C
  • Discrete output number: 2
  • Ambient air temperature for storage: -13...158 F (-25...70 C)
  • Type of start: Start with torque control (current limited to 5 In)
  • Discrete output type: (LO1) logic output 0 V common configurable, (LO2) logic output 0 V common configurable, (R1) relay outputs fault relay NO, (R2) relay outputs end of starting relay NO, (R3) relay outputs motor powered NO
  • IcL starter rating: 110 A for standard applications, 88 A for standard applications
  • Output absolute accuracy precision: +/- 5 %
  • Minimum switching current: Relay outputs 10 mA at 6 V DC
  • Maximum switching current: Logic output 0.2 A at 30 V DC, Relay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5, L/R = 20 ms, Relay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5, L/R = 20 ms
  • Discrete input number: 5
  • Discrete input type: PTC, 750 Ohm at 77 F (25 C), (Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm
  • Discrete input voltage: 24 V (<= 30 V)
  • Discrete input logic: Positive logic (Stop, Run, LI3, LI4) state 0 < 5 V and <= 2 mA, state 1 > 11 V and >= 5 mA
  • Supply inrush current: Adjustable 0.4...1.3 Icl
  • Analogue output type: (AO) current output 0-20 mA or 4-20 mA <= 500 Ohm
  • Communication port protocol: Modbus
  • Connector type: 1 RJ45
  • Communication data link: Serial
  • Physical interface: RS485 multidrop
  • Transmission rate: 4800, 9600 or 19200 bps
  • Installed device: 31
  • Marking: CE
  • Type of cooling: Forced convection
  • Operating position: Vertical +/- 10 degree
  • Power range: 15...25 kW at 200...240 V 3 phases, 30...50 kW at 200...240 V 3 phases, 55...100 kW at 380...440 V 3 phases, 55...100 kW at 480...500 V 3 phases
  • Motor starter type: Soft starter
