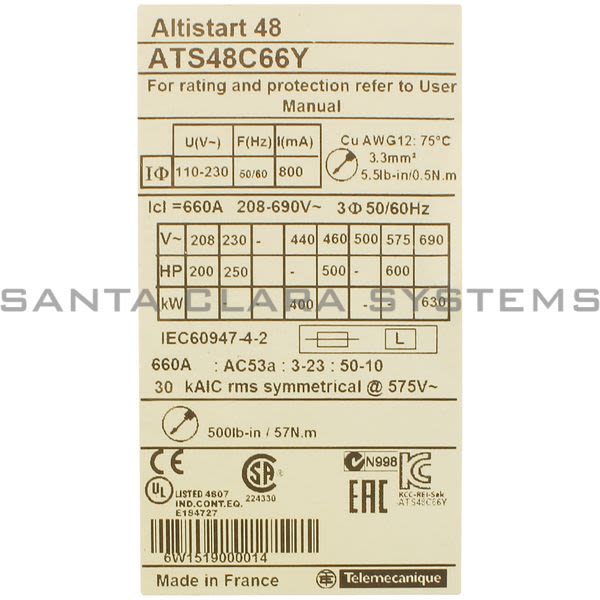

• Telemecanique ATS 48C66Y Soft Starter Product Image

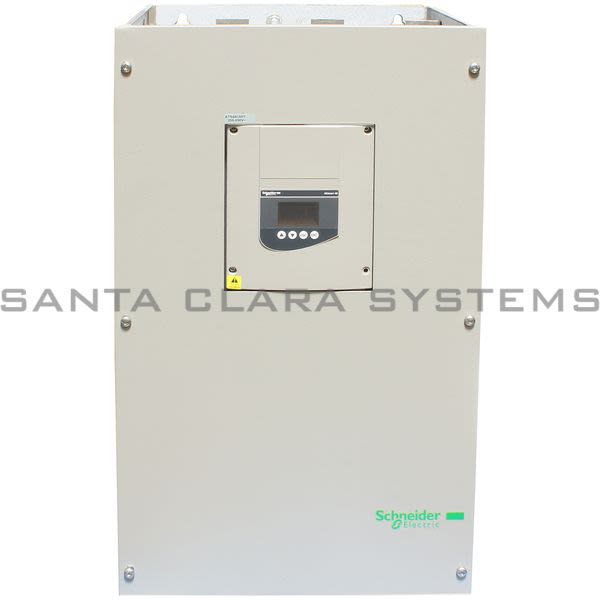

  • Telemecanique ATS 48C66Y Soft Starter Product Image

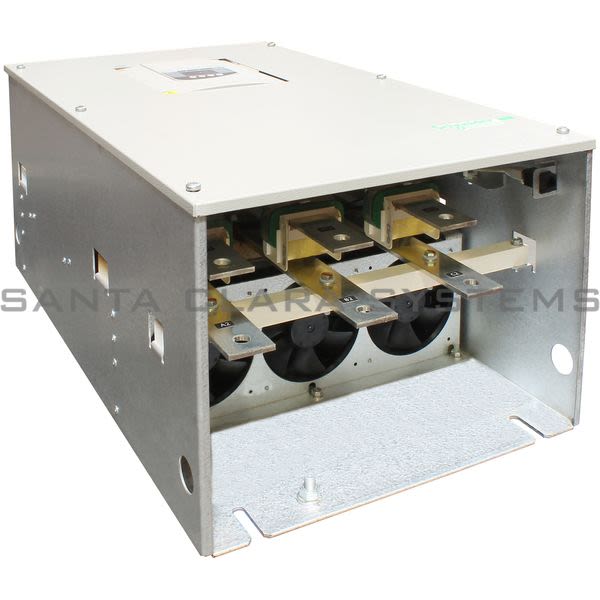

  • Telemecanique ATS 48C66Y Soft Starter Product Image

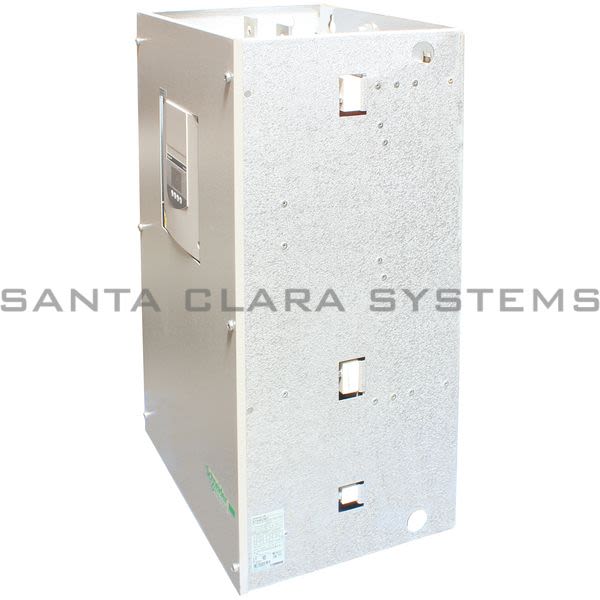

  • Telemecanique ATS 48C66Y Soft Starter Product Image

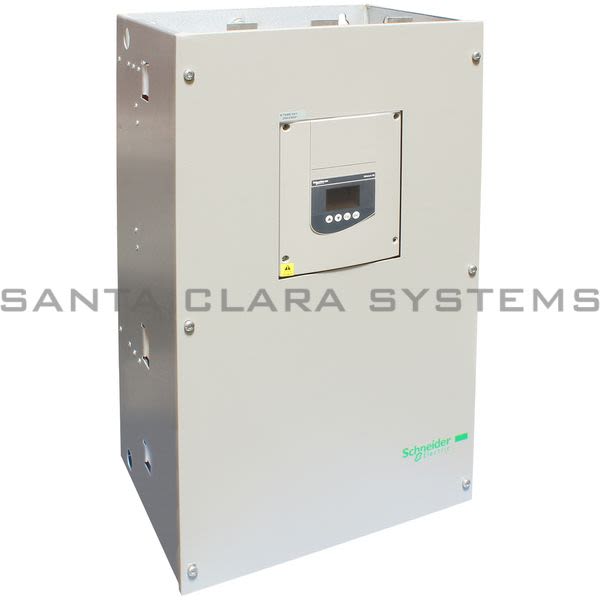

  • Telemecanique ATS 48C66Y Soft Starter Product Image
  • Telemecanique ATS 48C66Y Barcode

ATS48C66Y

Product Summary:

  • Range of product: Altistart 48
  • IP degree of protection: IP00
  • Standards: EN/IEC 60947-4-2
  • Device short name: ATS48
  • Width: 400 mm
Get a Quote

Current response time:

14 Minutes 45 Seconds
  • Description: Soft Starter
  • Range of product: Altistart 48
  • IP degree of protection: IP00
  • Standards: EN/IEC 60947-4-2
  • Device short name: ATS48
  • Width: 400 mm
  • Height: 670 mm
  • Depth: 300 mm
  • Operating altitude: <= 1000 m without
  • [Uc] control circuit voltage: 110 - 15 % to 230 + 10 %, 50/60 Hz
  • Vibration resistance: 1 gn (f= 13200 Hz) conforming to EN/IEC 60068-2-6
  • Shock resistance: 15 gn for 11 ms conforming to EN/IEC 60068-2-27
  • motor power kW: 160 kW at 230 V for severe applications
  • Relative humidity: 095 % without condensation or dripping water conforming to EN/IEC 60068-2-3
  • Protection type: Phase failure: line
  • Product or component type: Soft starter
  • Product destination: Asynchronous motors
  • Product specific application: Heavy duty industry and pumps
  • Power supply voltage: 208...690 V - 15...10 %
  • Motor power hp: 200 hp at 208 V for standard applications
  • power dissipation in W: 1731 W for standard applications
  • Utilisation category: AC-53A
  • Type of start: Start with torque control (current limited to 5 In)
  • Icl nominal current: 660 A for connection in the motor supply line for severe applications
  • Assembly style: With heat sink
  • Function available: External bypass (optional)
  • Power supply voltage limits: 177759 V
  • Power supply frequency: 50...60 Hz - 5...5 %
  • Power supply frequency limits: 47.5...63 Hz
  • Device connection: In the motor supply line
  • Factory setting current: 590 A
  • Control circuit consumption: 80 W
  • Discrete output number: 2
  • Discrete output type: (LO1) logic output 0 V common configurable
  • Minimum switching current: 10 mA at 6 V DC for relay outputs
  • Maximum switching current: Logic output 0.2 A at 30 V DC
  • Discrete input number: 5
  • Discrete input type: PTC, 750 Ohm at 25 C
  • Discrete input voltage: 24 V <= 30 V
  • Discrete input logic: Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA
  • Starting current: 0.4...1.3 Icl adjustable
  • Analogue output type: Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm
  • Communication port protocol: Modbus
  • Connector type: 1 RJ45
  • Communication data link: Serial
  • Physical interface: RS485 multidrop
  • Transmission rate: 4800, 9600 or 19200 bps
  • Max nodes number: 31
  • Marking: CE
  • Type of cooling: Forced convection
  • Operating position: Vertical +/- 10 degree
  • Net weight: 51.4 kg
  • Motor power range AC-3: 110220 kW at 200240 V 3 phases
  • Motor starter type: Soft starter
  • Electromagnetic compatibility: Conducted and radiated emissions level A conforming to IEC 60947-4-2
  • Product certifications: SEPRO
  • Noise level: 55 dB
  • Pollution degree: Level 3 conforming to IEC 60664-1
  • Ambient air temperature for operation: 4060 C (with current derating of 2 % per C)
  • Ambient air temperature for storage: -2570 C
  • Sustainable offer status: Green Premium product
  • REACh Regulation: REACh Declaration
  • EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)
  • Mercury free: Yes
  • RoHS exemption information: Yes
  • China RoHS Regulation: China RoHS declaration
  • Environmental Disclosure: Product Environmental Profile
  • Circularity Profile: End of Life Information
  • WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ATS48C66Y . Santa Clara Systems carries 10,141 items from Telemecanique.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
