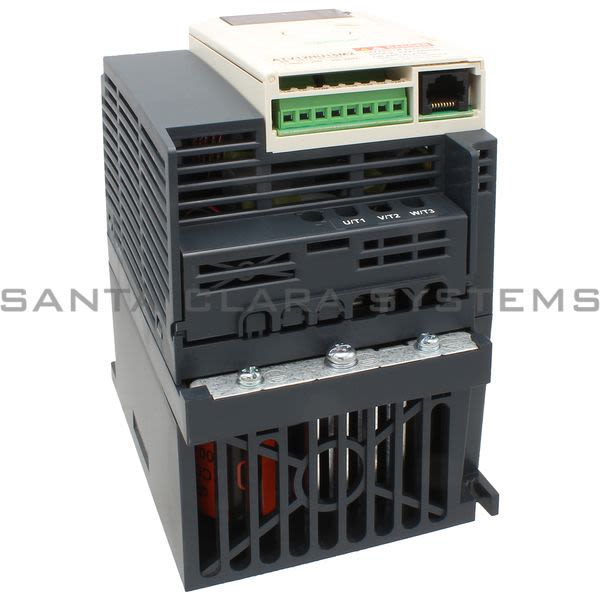

• Telemecanique ATV 12HU15M2 Variable Speed Drives Product Image

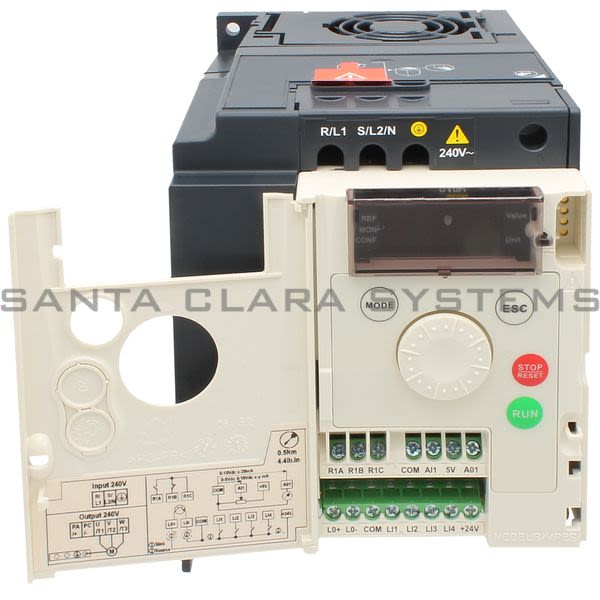

  • Telemecanique ATV 12HU15M2 Variable Speed Drives Product Image

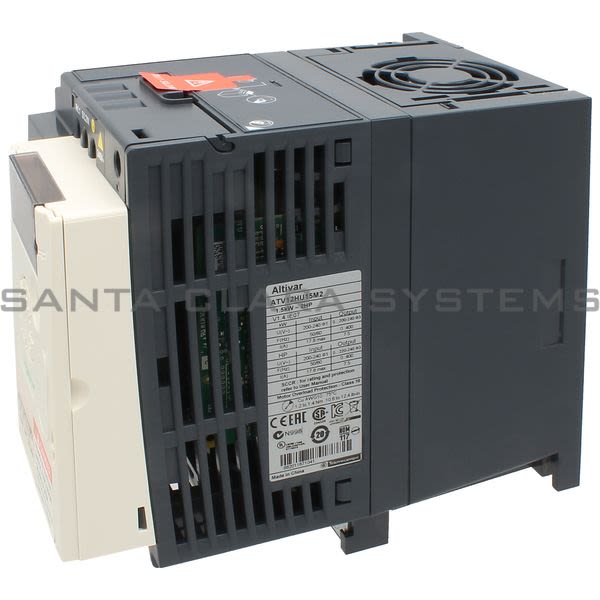

  • Telemecanique ATV 12HU15M2 Variable Speed Drives Product Image

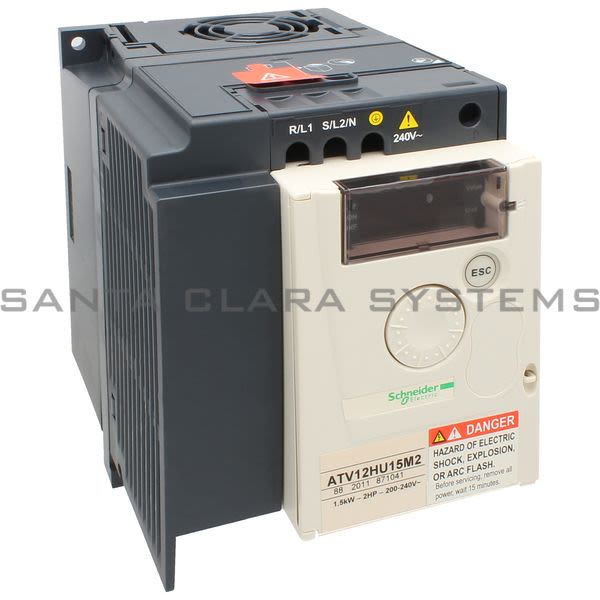

  • Telemecanique ATV 12HU15M2 Variable Speed Drives Product Image
  • Telemecanique ATV 12HU15M2 Barcode

ATV12HU15M2

Product Summary:

  • Range of product: Altivar 12
  • IP degree of protection: IP20 without blanking plate on upper part
  • Width: 105 mm
  • Height: 142 mm
  • Depth: 156.2 mm
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Variable Speed Drives
  • Range of product: Altivar 12
  • IP degree of protection: IP20 without blanking plate on upper part
  • Width: 105 mm
  • Height: 142 mm
  • Depth: 156.2 mm
  • Operating altitude: > 1000...2000 m with current derating 1 % per 100 m
  • Tightening torque: 1.2 N.m
  • Vibration resistance: 1 gn (f = 13200 Hz) conforming to EN/IEC 60068-2-6
  • Shock resistance: 15 gn conforming to EN/IEC 60068-2-27 for 11 ms
  • Electrical connection: Terminal, clamping capacity: 5.5 mm, AWG 10 (L1, L2, L3, U, V, W, PA, PC)
  • motor power kW: 1.5 kW
  • [Us] rated supply voltage: 200...240 V - 15...10 %
  • Relative humidity: 595 % without condensation conforming to IEC 60068-2-3
  • Protection type: Line supply overvoltage
  • Switching frequency: 2...16 kHz adjustable
  • Product or component type: Variable speed drive
  • Product destination: Asynchronous motors
  • Product specific application: Simple machine
  • Assembly style: With heat sink
  • Component name: ATV12
  • Quantity per set: Set of 1
  • EMC filter: Integrated
  • Built-in fan: With
  • Network number of phases: 1 phase
  • Motor power hp: 2 hp
  • Communication port protocol: Modbus
  • Line current: 17.8 A at 200 V
  • Speed range: 120
  • Transient overtorque: 150170 % of nominal motor torque depending on drive rating and type of motor
  • Asynchronous motor control profile: Sensorless flux vector control
  • Noise level: 45 dB
  • Supply frequency: 50/60 Hz +/- 5 %
  • Connector type: 1 RJ45 (on front face) for Modbus
  • Physical interface: 2-wire RS 485 for Modbus
  • Transmission frame: RTU for Modbus
  • Transmission rate: 4800 bit/s
  • Number of addresses: 1247 for Modbus
  • Communication service: Read holding registers (03) 29 words
  • prospective line Isc: 1 kA
  • Continuous output current: 7.5 A at 4 kHz
  • Maximum transient current: 11.2 A for 60 s
  • Speed drive output frequency: 0.5400 Hz
  • Nominal switching frequency: 4 kHz
  • Braking torque: Up to 70 % of nominal motor torque without braking resistor
  • Motor slip compensation: Adjustable
  • Output voltage: 200...240 V 3 phases
  • Insulation: Electrical between power and control
  • Supply: Internal supply for reference potentiometer: 5 V DC (4.755.25 V), <10 mA, protection type: overload and short-circuit protection
  • Analogue input number: 1
  • Analogue input type: Configurable current AI1 0...20 mA 250 Ohm
  • Discrete input number: 4
  • Discrete input type: Programmable LI1...LI4 24 V 18...30 V
  • Discrete input logic: Negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5 kOhm
  • Sampling duration: 20 ms, tolerance +/- 1 ms for logic input
  • Analogue output number: 1
  • Analogue output type: AO1 software-configurable voltage: 0...10 V, impedance: 470 Ohm, resolution 8 bits
  • Discrete output number: 2
  • Discrete output type: Logic output LO+, LO-
  • Minimum switching current: 5 mA at 24 V DC for logic relay
  • Maximum switching current: 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms logic relay
  • Acceleration and deceleration ramps: U
  • Braking to standstill: By DC injection, <30 s
  • Frequency resolution: Analog input: converter A/D, 10 bits
  • Time constant: 20 ms +/- 1 ms for reference change
  • Marking: CE
  • Operating position: Vertical +/- 10 degree
  • Net weight: 1.4 kg
  • Functionality: Basic
  • Specific application: Commercial equipment
  • Variable speed drive application selection: Mixer Commercial equipment
  • Motor starter type: Variable speed drive
  • Electromagnetic compatibility: Electrical fast transient/burst immunity test level 4 conforming to EN/IEC 61000-4-4
  • Electromagnetic emission: Radiated emissions environment 1 category C2 conforming to EN/IEC 61800-3 2...16 kHz shielded motor cable
  • Product certifications: CSA
  • Ambient air temperature for storage: -2570 C
  • Ambient air temperature for operation: -1050 C protective cover from the top of the drive removed
  • Sustainable offer status: Green Premium product
  • REACh Regulation: REACh Declaration
  • EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)
  • Mercury free: Yes
  • RoHS exemption information: Yes
  • China RoHS Regulation: China RoHS declaration
  • Environmental Disclosure: Product Environmental Profile
  • Circularity Profile: End of Life Information
  • WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
