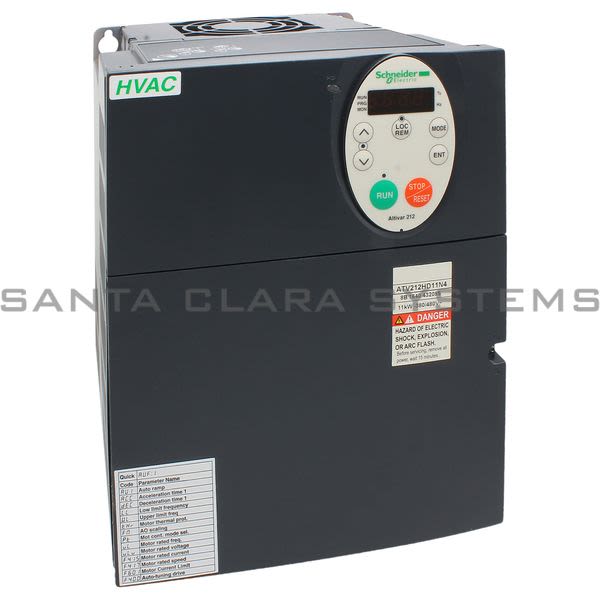

• Telemecanique ATV 212HD11N4 Variable Frequency Drive Product Image

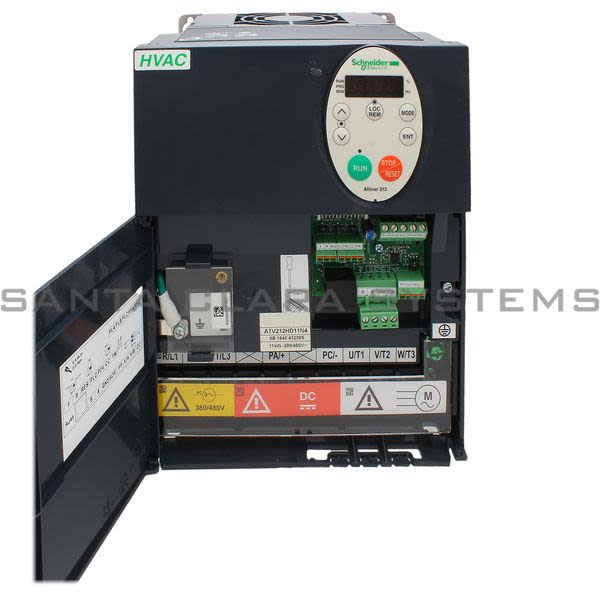

  • Telemecanique ATV 212HD11N4 Variable Frequency Drive Product Image

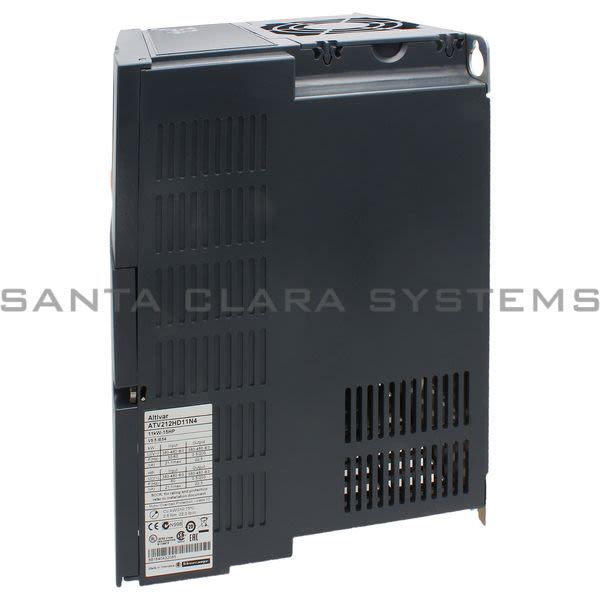

  • Telemecanique ATV 212HD11N4 Variable Frequency Drive Product Image

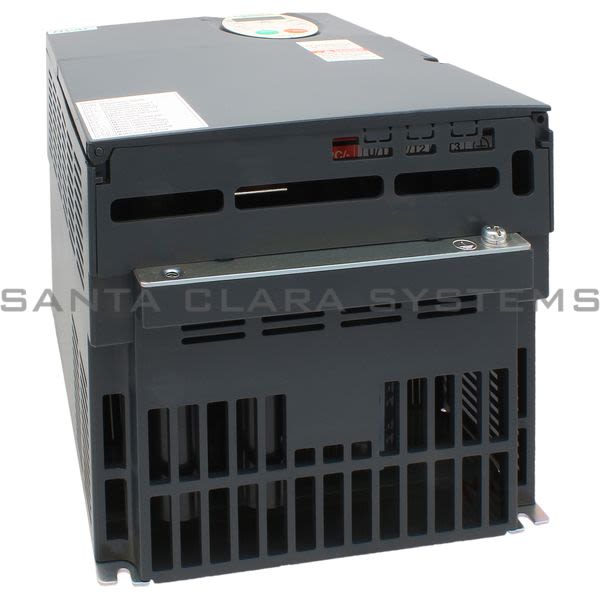

  • Telemecanique ATV 212HD11N4 Variable Frequency Drive Product Image
  • Telemecanique ATV 212HD11N4 Barcode

ATV212HD11N4

Product Summary:

  • Range of product: Altivar 212
  • IP degree of protection: IP21
  • Standards: EN 61800-3 category C2
  • Device short name: ATV212
  • Width: 180 mm
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Variable Frequency Drive
  • Range of product: Altivar 212
  • IP degree of protection: IP21
  • Standards: EN 61800-3 category C2
  • Device short name: ATV212
  • Width: 180 mm
  • Height: 232 mm
  • Depth: 170 mm
  • Operating altitude: 1000...3000 m limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m
  • Tightening torque: 0.6 N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
  • Vibration resistance: 1.5 mm (f= 313 Hz) conforming to EN/IEC 60068-2-6
  • Shock resistance: 15 gn for 11 ms conforming to IEC 60068-2-27
  • Electrical connection: VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: terminal 2.5 mm / AWG 14
  • Insulation resistance: >= 1 mOhm 500 V DC for 1 minute
  • motor power kW: 11 kW
  • [Us] rated supply voltage: 380...480 V - 15...10 %
  • Relative humidity: 595 % without condensation conforming to IEC 60068-2-3
  • Protection type: Overheating protection: drive
  • Response time: FM 2 ms, tolerance +/- 0.5 ms for analog output(s)
  • Switching frequency: 6...16 kHz adjustable
  • Product or component type: Variable speed drive
  • Product destination: Asynchronous motors
  • Product specific application: Pumps and fans in HVAC
  • Assembly style: With heat sink
  • Network number of phases: 3 phases
  • Motor power hp: 15 hp
  • Supply voltage limits: 323528 V
  • Supply frequency: 50...60 Hz - 5...5 %
  • Network frequency: 47.5...63 Hz
  • EMC filter: Class C2 EMC filter integrated
  • Line current: 16.8 A at 480 V
  • Apparent power: 17.1 kVA at 380 V
  • prospective line Isc: 22 kA
  • Continuous output current: 22.5 A at 380 V
  • Maximum transient current: 24.8 A for 60 s
  • Speed drive output frequency: 0.5200 Hz
  • Nominal switching frequency: 12 kHz
  • Transient overtorque: 120 % of nominal motor torque +/- 10 % for 60 s
  • Asynchronous motor control profile: Voltage/frequency ratio, 2 points
  • Regulation loop: Adjustable PI regulator
  • Motor slip compensation: Not available in voltage/frequency ratio motor control
  • Local signalling: 1 LED (red)DC bus energized:
  • Output voltage: <= power supply voltage
  • Isolation: Electrical between power and control
  • Type of cable: Without mounting kit: 1 wire(s)IEC cable at 45 C, copper 90 C / XLPE/EPR
  • Supply: Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 A, protection type: overload and short-circuit protection
  • Analogue input number: 2
  • Analogue input type: VIA switch-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits
  • Sampling duration: 2 ms +/- 0.5 ms F discrete
  • Linearity error: VIA: +/- 0.15 % of maximum value for input
  • Analogue output number: 1
  • Analogue output type: FM switch-configurable voltage 0...10 V DC, impedance: 7620 Ohm, resolution 10 bits
  • Discrete output number: 2
  • Discrete output type: Configurable relay logic: (FLA, FLC) NO - 100000 cycles
  • Minimum switching current: 3 mA at 24 V DC for configurable relay logic
  • Maximum switching current: 5 A at 250 V AC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R)
  • Discrete input type: F programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm
  • Discrete input logic: Positive logic (source) (F, R, RES), <= 5 V (state 0), >= 11 V (state 1)
  • Acceleration and deceleration ramps: Automatic based on the load
  • Braking to standstill: By DC injection
  • Dielectric strength: 3535 V DC between earth and power terminals
  • Frequency resolution: Display unit: 0.1 Hz
  • Communication port protocol: METASYS N2
  • Connector type: 1 open style
  • Physical interface: 2-wire RS 485
  • Transmission frame: RTU
  • Transmission rate: 9600 bps or 19200 bps
  • Data format: 8 bits, 1 stop, odd even or no configurable parity
  • Type of polarization: No impedance
  • Number of addresses: 1247
  • Communication service: Read holding registers (03) 2 words maximum
  • Option card: Communication card for LonWorks
  • Operating position: Vertical +/- 10 degree
  • Net weight: 6.45 kg
  • power dissipation in W: 430 W
  • Air flow: 147 m3/h
  • Functionality: Mid
  • Specific application: HVAC
  • Variable speed drive application selection: Compressor for scroll Building - HVAC
  • Motor power range AC-3: 711 kW at 380440 V 3 phases
  • Motor starter type: Variable speed drive
  • Electromagnetic compatibility: Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
  • Pollution degree: 2 conforming to IEC 61800-5-1
  • Environmental characteristic: Classes 3C1 conforming to IEC 60721-3-3
  • Noise level: 51 dB conforming to 86/188/EEC
  • Ambient air temperature for operation: -1040 C (without)
  • Ambient air temperature for storage: -2570 C
  • Product certifications: C-Tick
  • Marking: CE
  • REACh Regulation: REACh Declaration
  • EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)
  • Mercury free: Yes
  • China RoHS Regulation: China RoHS declaration
  • Environmental Disclosure: Product Environmental Profile
  • Circularity Profile: End of Life Information
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ATV212HD11N4 . Santa Clara Systems carries 10,141 items from Telemecanique.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
