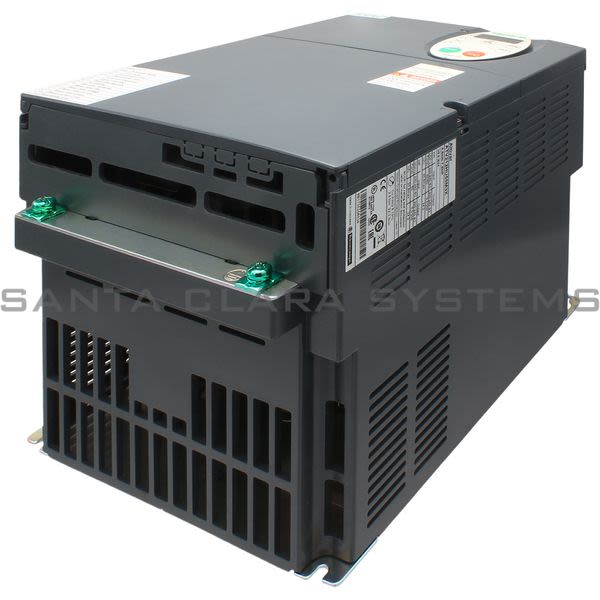

• Telemecanique ATV212HU55M3X variable speed drive ATV212 - 5.5kW - 7.5hp - 240V - 3ph - wo EMC - IP21 Product Image

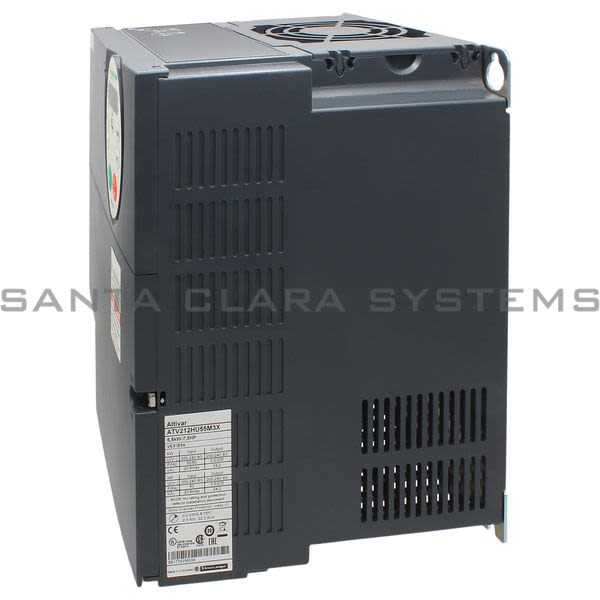

  • Telemecanique ATV212HU55M3X variable speed drive ATV212 - 5.5kW - 7.5hp - 240V - 3ph - wo EMC - IP21 Product Image

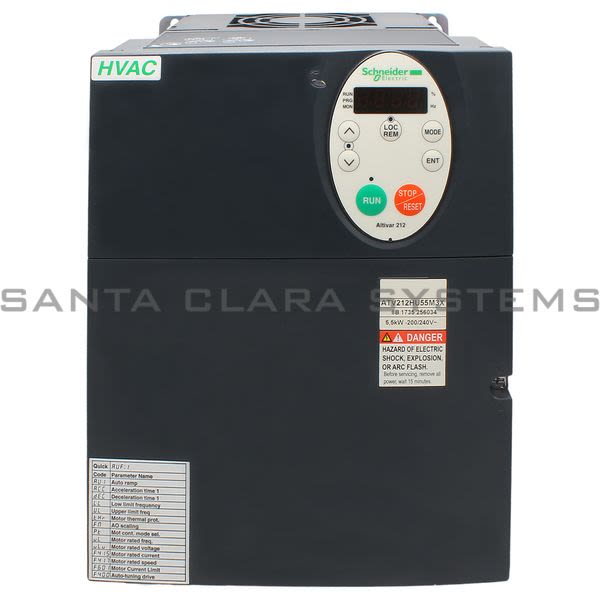

  • Telemecanique ATV212HU55M3X variable speed drive ATV212 - 5.5kW - 7.5hp - 240V - 3ph - wo EMC - IP21 Product Image

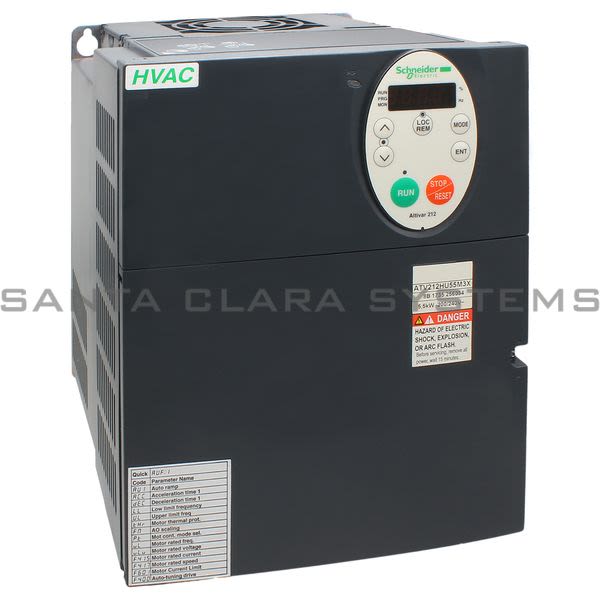

  • Telemecanique ATV212HU55M3X variable speed drive ATV212 - 5.5kW - 7.5hp - 240V - 3ph - wo EMC - IP21 Product Image
  • Telemecanique ATV212HU55M3X Barcode

ATV212HU55M3X

Product Summary:

  • Product weight: 13.45 lb(US) (6.1 kg)
  • Range of product: Altivar 212
  • IP degree of protection: IP21
  • Device short name: ATV212
  • Width: 7.09 in (180 mm)
Get a Quote

Current response time:

17 Minutes 59 Seconds
  • Description: variable speed drive ATV212 - 5.5kW - 7.5hp - 240V - 3ph - wo EMC - IP21
  • Product weight: 13.45 lb(US) (6.1 kg)
  • Range of product: Altivar 212
  • IP degree of protection: IP21
  • Standards: EN 61800-3, EN 61800-5-1, IEC 61800-3 environments 2 category C1, IEC 61800-5-1, IEC 61800-3 environments 2 category C2, EN 61800-3 environments 2 category C2, EN 61800-3 environments 1 category C2, IEC 61800-3 environments 1 category C3, EN 61800-3 environments 1 category C3, IEC 61800-3 environments 2 category C3, IEC 61800-3, EN 61800-3 environments 2 category C3, IEC 61800-3 environments 1 category C2, EN 61800-3 environments 2 category C1, UL Type 1, EN 61800-3 environments 1 category C1, IEC 61800-3 environments 1 category C1
  • Device short name: ATV212
  • Width: 7.09 in (180 mm)
  • Height: 9.13 in (232 mm)
  • Depth: 6.69 in (170 mm)
  • Operating altitude: 3280.84...9842.52 ft. (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m, <= 3280.84 ft. (1000 m) without derating
  • Tightening torque: 22.12 lbf.in (2.5 N.m) 22 lb.in L1/R, L2/S, L3/T, 0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES
  • Vibration resistance: 1 gn 13...200 Hz EN/IEC 60068-2-8, 1.5 mm 3...13 Hz EN/IEC 60068-2-6
  • Shock resistance: 15 gn 11 ms IEC 60068-2-27
  • Electrical connection: Terminal 0 in (2.5 mm) AWG 14 VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES, Terminal 16 mm AWG 6 L1/R, L2/S, L3/T
  • Insulation resistance: >= 1 MOhm 500 V DC for 1 minute
  • motor power kW: 5.5 kW
  • [Us] rated supply voltage: 200...240 V - 15...10 %
  • Relative humidity: 5...95 % without condensation IEC 60068-2-3, 5...95 % without dripping water IEC 60068-2-3
  • Protection type: Motor phase break motor, Break on the control circuit drive, Thermal power stage drive, Overvoltages on the DC bus drive, Against exceeding limit speed drive, Against input phase loss drive, With PTC probes motor, Input phase breaks drive, Line supply overvoltage and undervoltage drive, Line supply undervoltage drive, Overcurrent between output phases and earth drive, Overheating protection drive, Short-circuit between motor phases drive, Thermal protection motor
  • Response time: 2 ms +/- 0.5 ms FM analog, 7 ms +/- 0.5 ms FLA, FLC discrete, 7 ms +/- 0.5 ms FLB, FLC discrete, 7 ms +/- 0.5 ms RY, RC discrete
  • Switching frequency: 12...16 kHz with derating factor, 6...16 kHz adjustable
  • Apparent power: 9.2 kVA 240 V
  • Electromagnetic compatibility: Conducted radio-frequency immunity test level 3 IEC 61000-4-6, Voltage dips and interruptions immunity test IEC 61000-4-11, 1.2/50 s - 8/20 s surge immunity test level 3 IEC 61000-4-5, Electrical fast transient/burst immunity test level 4 IEC 61000-4-4, Electrostatic discharge immunity test level 3 IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3
  • Product or component type: Variable speed drive
  • prospective line Isc: 22 kA
  • Pollution degree: 3 IEC 61800-5-1
  • Continuous output current: 24.2 A 230 V
  • Product destination: Asynchronous motors
  • Maximum transient current: 26.6 A 60 s
  • Product specific application: Pumps and fans in HVAC
  • Speed drive output frequency: 0.5...200 Hz
  • Assembly style: With heat sink
  • Nominal switching frequency: 12 kHz
  • Environmental characteristic: Classes 3C1 IEC 60721-3-3, Classes 3S2 IEC 60721-3-3
  • Phase: 3 phases
  • Noise level: 51 dB 86/188/EEC
  • Speed range: 1...10
  • Motor power hp: 7.5 hp
  • Speed accuracy: +/- 10 % of nominal slip 0.2 Tn to Tn
  • Torque accuracy: +/- 15 %
  • Ambient air temperature for operation: 14...104 F (-10...40 C) without derating, > 104...122 F (> 40...50 C) with derating factor
  • Supply voltage limits: 170...264 V
  • Transient overtorque: 120 % of nominal motor torque +/- 10 % 60 s
  • Ambient air temperature for storage: -13...158 F (-25...70 C)
  • Supply frequency: 50...60 Hz - 5...5 %
  • Asynchronous motor control profile: Voltage/frequency ratio - Energy Saving, quadratic U/f, Voltage/frequency ratio, 5 points, Voltage/frequency ratio, 2 points, Flux vector control without sensor, standard, Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo)
  • Network frequency: 47.5...63 Hz
  • Regulation loop: Adjustable PI regulator
  • Product certifications: C-Tick, NOM 117, CSA, UL
  • EMC filter: Without EMC filter
  • Motor slip compensation: Not available in voltage/frequency ratio motor control, Automatic whatever the load, Adjustable
  • Marking: CE
  • Line current: 17.3 A 240 V, 20.8 A 200 V
  • Local signaling: 1 LED red DC bus energized
  • Output voltage: <= power supply voltage
  • Isolation: Electrical between power and control
  • Type of cable: IEC cable without mounting kit 1 113 F (45 C) copper 90 C XLPE/EPR, IEC cable without mounting kit 1 45 C copper 70 C PVC, UL 508 cable with UL Type 1 kit 3 40 C copper 75 C PVC
  • Supply: Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 % <= 10 A overload and short-circuit protection, Internal supply 24 V DC 21...27 V <= 200 A overload and short-circuit protection
  • Analogue input number: 2
  • Analogue input type: Switch-configurable voltage VIA 0...10 V DC 24 V max 30000 Ohm 10 bits, Configurable voltage VIB 0...10 V DC 24 V max 30000 Ohm 10 bits, Configurable PTC probe VIB 0...6 probes 1500 Ohm, Switch-configurable current VIA 0...20 mA 250 Ohm 10 bits
  • Sampling duration: 2 ms +/- 0.5 ms F discrete, 2 ms +/- 0.5 ms R discrete, 2 ms +/- 0.5 ms RES discrete, 3.5 ms +/- 0.5 ms VIA analog, 22 ms +/- 0.5 ms VIB analog
  • Accuracy: +/- 0.6 % VIA for a temperature variation 60 C, +/- 0.6 % VIB for a temperature variation 60 C, +/- 1 % FM for a temperature variation 60 C
  • Linearity error: +/- 0.15 % of maximum value input VIA, +/- 0.15 % of maximum value input VIB, +/- 0.2 % output FM
  • Analogue output number: 1
  • Analogue output type: Switch-configurable voltage FM 0...10 V DC 7620 Ohm 10 bits, Switch-configurable current FM 0...20 mA 970 Ohm 10 bits
  • Discrete output number: 2
  • Discrete output type: Configurable relay logic FLA, FLC NO 100000 cycles, Configurable relay logic FLB, FLC NC 100000 cycles, Configurable relay logic RY, RC NO 100000 cycles
  • Minimum switching current: 3 mA 24 V DC configurable relay logic
  • Maximum switching current: 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R, 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R, 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R, 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R
  • Discrete input type: Programmable F 24 V DC level 1 PLC 4700 Ohm, Programmable R 24 V DC level 1 PLC 4700 Ohm, Programmable RES 24 V DC level 1 PLC 4700 Ohm
  • Discrete input logic: Positive logic (source) F, R, RES <= 5 V >= 11 V, Negative logic (sink) F, R, RES >= 16 V <= 10 V
  • Acceleration and deceleration ramps: Linear adjustable separately from 0.01 to 3200 s, Automatic based on the load
  • Braking to standstill: By DC injection
  • Dielectric strength: 2830 V DC between earth and power terminals, 4230 V DC between control and power terminals
  • Frequency resolution: 0.024/50 Hz analog input, 0.1 Hz display unit
  • Communication port protocol: BACnet, LonWorks, Modbus, APOGEE FLN, METASYS N2
  • Connector type: 1 open style, 1 RJ45
  • Physical interface: 2-wire RS 485
  • Transmission frame: RTU
  • Transmission rate: 9600 bps or 19200 bps
  • Data format: 8 bits, 1 stop, odd even or no configurable parity
  • Type of polarization: No impedance
  • Number of addresses: 1...247
  • Communication service: Time out setting from 0.1 to 100 s, Write single register (06), Monitoring inhibitable, Read device identification (43), Write multiple registers (16) 2 words maximum, Read holding registers (03) 2 words maximum
  • Option card: Communication card LonWorks
  • Operating position: Vertical +/- 10 degree
  • power dissipation in W: 249 W
  • Air flow: 22455.03 Gal/hr(US) (85 m3/h)
  • Specific application: HVAC
  • Discrete and process manufacturing: Building - HVAC : compressor for scroll, Building - HVAC : fan, Building - HVAC : pump
  • Power range: 4...6 kW at 200...240 V 3 phases
  • Motor starter type: Variable speed drive
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ATV212HU55M3X . Santa Clara Systems carries 10,141 items from Telemecanique.
  • Variable Speed Drive Atv212 - 5.5Kw - 7.5Hp - 240V - 3Ph - Wo Emc - Ip21
