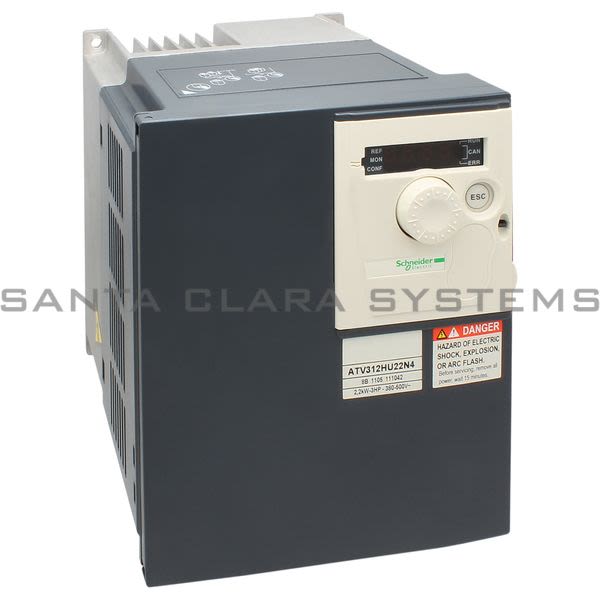

• Telemecanique ATV312HU22N4 variable speed drive ATV312 - 2.2kW - 5.9kVA - 79W - 380..500 V- 3-phase supply Product Image

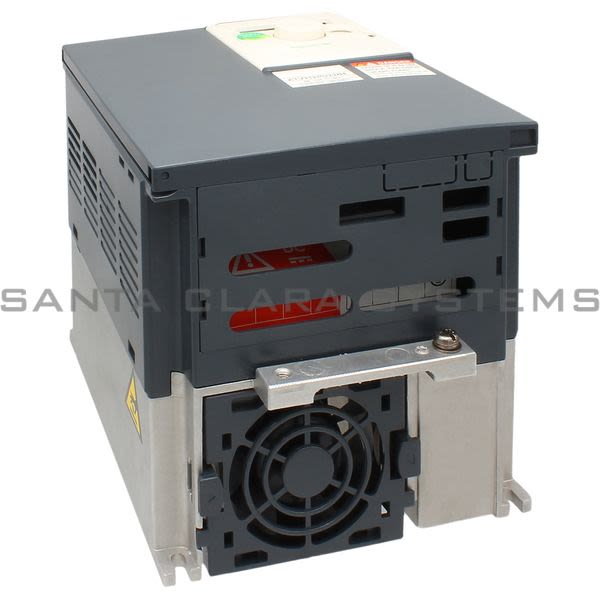

  • Telemecanique ATV312HU22N4 variable speed drive ATV312 - 2.2kW - 5.9kVA - 79W - 380..500 V- 3-phase supply Product Image

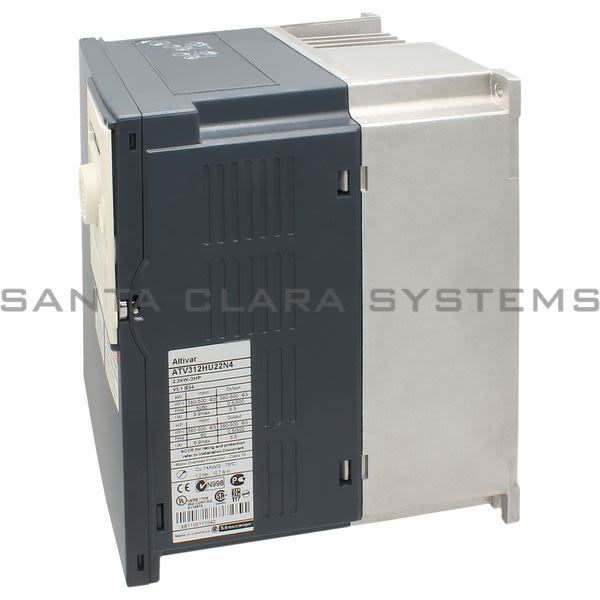

  • Telemecanique ATV312HU22N4 variable speed drive ATV312 - 2.2kW - 5.9kVA - 79W - 380..500 V- 3-phase supply Product Image

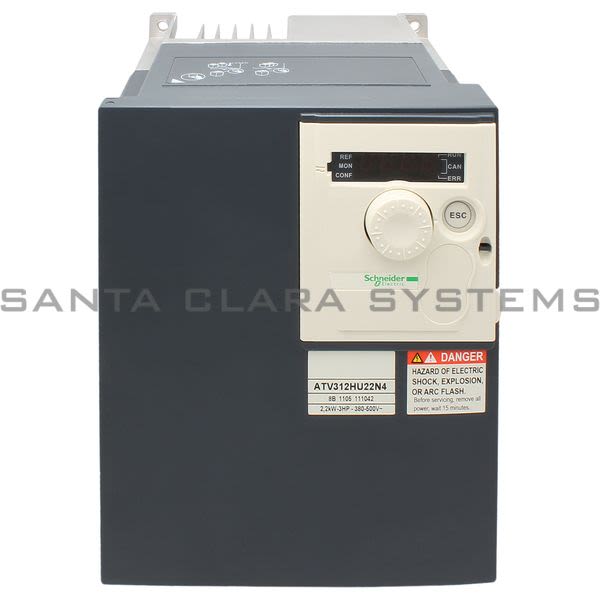

  • Telemecanique ATV312HU22N4 variable speed drive ATV312 - 2.2kW - 5.9kVA - 79W - 380..500 V- 3-phase supply Product Image
  • Telemecanique ATV312HU22N4 Barcode

ATV312HU22N4

Product Summary:

  • Product weight: 6.83 lb(US) (3.1 kg)
  • Range of product: Altivar 312
  • Standards: IEC 61800-3, IEC 61800-5-1
  • Width: 5.59 in (142 mm)
  • Height: 7.24 in (184 mm)
Get a Quote

Current response time:

19 Minutes 49 Seconds
  • Description: variable speed drive ATV312 - 2.2kW - 5.9kVA - 79W - 380..500 V- 3-phase supply
  • Product weight: 6.83 lb(US) (3.1 kg)
  • Range of product: Altivar 312
  • IP degree of protection: IP20 on upper part without cover plate, IP21 on connection terminals, IP31 on upper part, IP41 on upper part
  • Standards: IEC 61800-3, IEC 61800-5-1
  • Width: 5.59 in (142 mm)
  • Height: 7.24 in (184 mm)
  • Depth: 5.98 in (152 mm)
  • Protective treatment: TC
  • Operating altitude: <= 3280.84 ft. (1000 m) without derating, 3280.84...9842.52 ft. (1000...3000 m) with current derating 1 % per 100 m
  • Tightening torque: 10.62 lbf.in (1.2 N.m) L1, L2, L3, U, V, W, PA, PB, PA/+, PC/-, 5.31 lbf.in (0.6 N.m) Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6
  • Vibration resistance: 1.5 mm (f = 3...13 Hz) conforming to EN/IEC 60068-2-6, 1 gn (f = 13...150 Hz) conforming to EN/IEC 60068-2-6
  • Shock resistance: 15 gn 11 ms conforming to EN/IEC 60068-2-27
  • Electrical connection: L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- terminal 0.01 in (5 mm) AWG 10, Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 terminal 0 in (2.5 mm) AWG 14
  • Insulation resistance: >= 500 mOhmat 500 V DC for 1 minute
  • motor power kW: 2.2 kW
  • [Us] rated supply voltage: 380...500 V (- 15...10 %)
  • Relative humidity: 5...95 % without condensation conforming to IEC 60068-2-3, 5...95 % without dripping water conforming to IEC 60068-2-3
  • Protection type: Input phase breaks drive, Line supply overvoltage and undervoltage safety circuits drive, Line supply phase loss safety function, for three phases supply drive, Motor phase breaks drive, Overcurrent between output phases and earth (on power up only) drive, Overheating protection drive, Short-circuit between motor phases drive, Thermal protection motor
  • Response time: AOV, AOC 8 ms analog, R1A, R1B, R1C, R2A, R2B 8 ms discrete
  • Switching frequency: 2...16 kHz adjustable
  • Supply voltage limits: 323...550 V
  • Dielectric strength: 2410 V DC between earth and power terminals, 3400 V AC between control and power terminals
  • Product or component type: Variable speed drive
  • Network frequency: 47.5...63 Hz
  • Electromagnetic compatibility: Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 level 4, Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 level 3, 1.2/50 s - 8/20 s surge immunity test conforming to IEC 61000-4-5 level 3
  • Product destination: Asynchronous motors
  • prospective line Isc: 5 kA
  • Product specific application: Simple machine
  • Continuous output current: 5.5 A at 4 kHz
  • Product certifications: DNV, UL, CSA, NOM, GOST, C-Tick
  • Assembly style: With heat sink
  • Output frequency: 0...500 kHz
  • Pollution degree: 2
  • Component name: ATV312
  • Nominal switching frequency: 4 kHz
  • Motor power hp: 3 hp
  • Transient overtorque: 170...200 % of nominal motor torque
  • Braking torque: 100 % with braking resistor continuously, 150 % without braking resistor, 150 % with braking resistor for 60 s
  • Supply frequency: 50...60 Hz (- 5...5 %)
  • Regulation loop: Frequency PI regulator
  • Ambient air temperature for storage: -13...158 F (-25...70 C)
  • Phase: 3 phases
  • Motor slip compensation: Automatic whatever the load, Suppressible, Adjustable
  • Ambient air temperature for operation: 14...122 F (-10...50 C) without derating with protective cover on top of the drive, 14...140 F (-10...60 C) with derating factor without protective cover on top of the drive
  • Line current: 8.9 Afor 380 V, 5 kA, 6.7 Afor 500 V
  • Output voltage: <= power supply voltage
  • EMC filter: Integrated
  • Apparent power: 5.9 kVA
  • Insulation: Electrical between power and control
  • Maximum transient current: 8.3 A 60 s
  • Analogue input number: 3
  • power dissipation in W: 79 W at nominal load
  • Analogue input type: AI1 configurable voltage 0...10 V, input voltage 30 V max, impedance 30000 Ohm, AI2 configurable voltage +/- 10 V, input voltage 30 V max, impedance 30000 Ohm, AI3 configurable current 0...20 mA, impedance 250 Ohm
  • Speed range: 1...50
  • Sampling duration: AI1, AI2, AI3 8 ms analog, LI1...LI6 4 ms discrete
  • Asynchronous motor control profile: Factory set : constant torque, Sensorless flux vector control with PWM type motor control signal
  • Linearity error: +/- 0.2 % output
  • Supply: Internal supply for logic inputsat 19...30 V, <= 100 mA for overload and short-circuit protection, Internal supply for reference potentiometer (2.2 to 10 kOhm)at 10...10.8 V, <= 10 mA for overload and short-circuit protection
  • Analogue output number: 1
  • Communication port protocol: CANopen, Modbus
  • Analogue output type: AOC configurable current 0...20 mA, impedance 800 Ohm, resolution 8 bits, AOV configurable voltage 0...10 V, impedance 470 Ohm, resolution 8 bits
  • Discrete input logic: (LI1...LI4) logic input not wired, < 13 V (state 1), (LI1...LI6) negative logic (source), > 19 V (state 0), (LI1...LI6) positive logic (source), < 5 V (state 0), > 11 V (state 1)
  • Option card: CANopen daisy chain communication card, DeviceNet communication card, Fipio communication card, Modbus TCP communication card, Profibus DP communication card
  • Discrete output number: 2
  • Discrete output type: (R1A, R1B, R1C) configurable relay logic 1 NO + 1 NC, electrical durability 100000 cycles, (R2A, R2B) configurable relay logic NC, electrical durability 100000 cycles
  • Minimum switching current: R1-R2 10 mAat 5 V DC
  • Maximum switching current: R1-R2 on inductive load, 2 A at 250 V AC, (cos phi = 0.4, and L/R = 7 ms), R1-R2 on inductive load, 2 A at 30 V DC, (cos phi = 0.4, and L/R = 7 ms), R1-R2 on resistive load, 5 A at 250 V AC, (cos phi = 1, and L/R = 0 ms), R1-R2 on resistive load, 5 A at 30 V DC, (cos phi = 1, and L/R = 0 ms)
  • Discrete input number: 6
  • Discrete input type: (LI1...LI6) programmable, 24 V 0...100 mA with PLC, impedance 3500 Ohm
  • Acceleration and deceleration ramps: Linear adjustable separately from 0.1 to 999.9 s, S, U or customized
  • Braking to standstill: By DC injection
  • Local signaling: 1 LED red drive voltage, Four 7-segment display units CANopen bus status
  • Time constant: 5 ms for reference change
  • Frequency resolution: Analog input 0.1...100 Hz, Display unit 0.1 Hz
  • Connector type: 1 RJ45 Modbus/CANopen
  • Physical interface: RS485 multidrop serial link
  • Transmission frame: RTU
  • Transmission rate: 10, 20, 50, 125, 250, 500 kbps or 1 Mbps CANopen, 4800, 9600 or 19200 bps Modbus
  • Number of addresses: 1...247 Modbus, 1...127 CANopen
  • Number of drive: 127 CANopen, 31 Modbus
  • Marking: CE
  • Operating position: Vertical +/- 10 degree
  • Outer dimension: 215 x 185 x 158 mm, 184 x 140 x 150 mm, 402 x 239 x 192 mm
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ATV312HU22N4 . Santa Clara Systems carries 10,141 items from Telemecanique.
