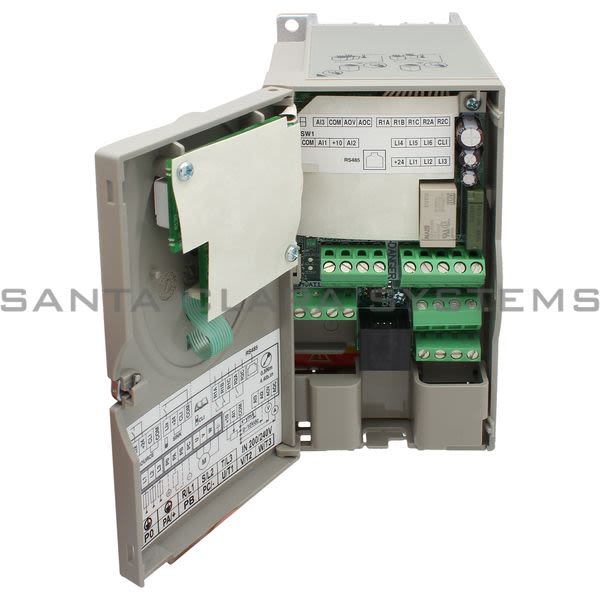

• Telemecanique ATV31H037M3X variable speed drive ATV31 - 0.37kW - 200..240 V 3-phase supply - IP20 Product Image

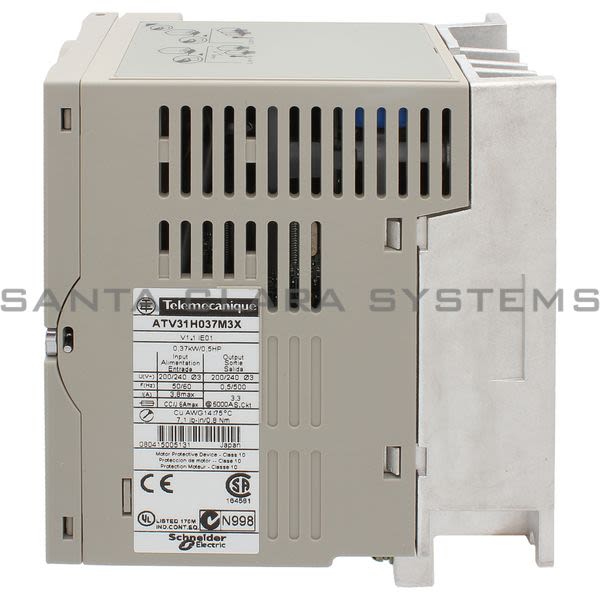

  • Telemecanique ATV31H037M3X variable speed drive ATV31 - 0.37kW - 200..240 V 3-phase supply - IP20 Product Image

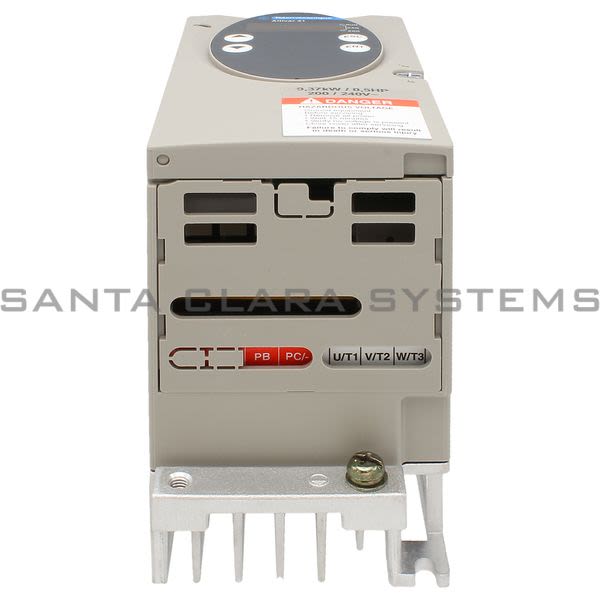

  • Telemecanique ATV31H037M3X variable speed drive ATV31 - 0.37kW - 200..240 V 3-phase supply - IP20 Product Image

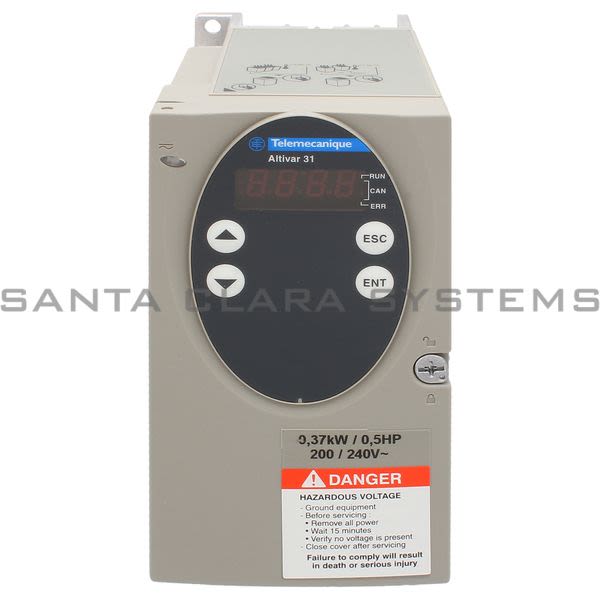

  • Telemecanique ATV31H037M3X variable speed drive ATV31 - 0.37kW - 200..240 V 3-phase supply - IP20 Product Image

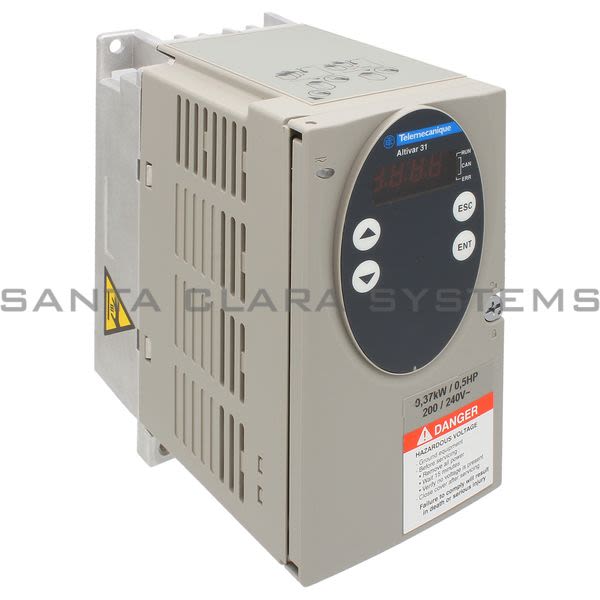

  • Telemecanique ATV31H037M3X variable speed drive ATV31 - 0.37kW - 200..240 V 3-phase supply - IP20 Product Image
  • Telemecanique ATV31H037M3X Barcode

ATV31H037M3X

Product Summary:

  • Product weight: 23.59 lb(US) (10.7 kg)
  • Range of product: Altivar 31
  • IP degree of protection: IP55
  • Standards: EN 50178
  • Protective treatment: TC
Get a Quote

Current response time:

6 Minutes 33 Seconds
  • Description: variable speed drive ATV31 - 0.37kW - 200..240 V 3-phase supply - IP20
  • Product weight: 23.59 lb(US) (10.7 kg)
  • Range of product: Altivar 31
  • IP degree of protection: IP55
  • Standards: EN 50178
  • Protective treatment: TC
  • Operating altitude: <= 3280.84 ft. (1000 m) without derating, >= 3280.84 ft. (1000 m) with current derating 1 % per 100 m
  • Tightening torque: 5.31 lbf.in (0.6 N.m) Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6, 7.08 lbf.in (0.8 N.m) L1, L2, L3, U, V, W, PA, PB, PA/+, PC/-
  • Vibration resistance: 1 gn 13...150 Hz EN/IEC 60068-2-6, 1.5 mm 3...13 Hz EN/IEC 60068-2-6
  • Shock resistance: 15 gn 11 ms EN/IEC 60068-2-27
  • Electrical connection: Terminal 0 in (2.5 mm) AWG 14 Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6, Terminal 0 in (2.5 mm) AWG 14 L1, L2, L3, U, V, W, PA, PB, PA/+, PC/-
  • Insulation resistance: >= 500 mOhm 500 V DC for 1 minute
  • motor power kW: 4 kW
  • [Us] rated supply voltage: 380...500 V - 15...10 %
  • Relative humidity: 5...95 % without condensation IEC 60068-2-3, 5...95 % without dripping water IEC 60068-2-3
  • Protection type: Input phase breaks drive, Line supply overvoltage and undervoltage safety circuits drive, Line supply phase loss safety function, for three phases supply drive, Motor phase breaks drive, Overcurrent between output phases and earth (on power up only) drive, Overheating protection drive, Short-circuit between motor phases drive, Thermal protection motor
  • Response time: 8 ms analog AOV, AOC, 8 ms discrete R1A, R1B, R1C, R2A, R2B
  • Switching frequency: 2...16 kHz adjustable
  • Supply voltage limits: 323...550 V
  • Dielectric strength: 2410 V DC between earth and power terminals, 3400 V AC between control and power terminals
  • Product or component type: Variable speed drive
  • Network frequency limits: 47.5...63 Hz
  • Electromagnetic compatibility: 1.2/50 s - 8/20 s surge immunity test level 3 IEC 61000-4-5, Electrical fast transient/burst immunity test level 4 IEC 61000-4-4, Electrostatic discharge immunity test level 3 IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3
  • Product destination: Asynchronous motors
  • Speed drive output frequency: 0.5...500 Hz
  • Product specific application: Simple machine
  • Nominal switching frequency: 4 kHz
  • Product certifications: CSA, C-Tick, N998, UL
  • Assembly style: Enclosed
  • Pollution degree: 2
  • Component name: ATV31
  • Braking torque: 100 % with braking resistor continuously, 30 % without braking resistor, <= 150 % with braking resistor 60 s
  • EMC filter: Integrated
  • Regulation loop: Frequency PI regulator
  • Motor slip compensation: Automatic whatever the load, Adjustable, Suppressible
  • Supply frequency: 50...60 Hz - 5...5 %
  • Output voltage: <= power supply voltage
  • Phase: 3 phases
  • Ambient air temperature for storage: -13...158 F (-25...70 C)
  • Ambient air temperature for operation: 14...122 F (-10...50 C) without derating with protective cover on top of the drive, 14...140 F (-10...60 C) with derating factor without protective cover on top of the drive
  • Motor power hp: 5 hp
  • Insulation: Electrical between power and control
  • Line current: 10.6 A 500 V 1 kA, 13.9 A 380 V 1 kA
  • Supply: Internal supply for logic inputs 19...30 V 100 mA overload protection, Internal supply for logic inputs 19...30 V 100 mA short-circuit protection, Internal supply for reference potentiometer 10...10.8 V 10 mA overload protection, Internal supply for reference potentiometer 10...10.8 V 10 mA short-circuit protection
  • Apparent power: 9.2 kVA
  • Analogue input type: Configurable current AI3 0...20 mA 250 Ohm, Configurable voltage AI1 0...10 V 30 V max 30000 Ohm, Configurable voltage AI2 +/- 10 V 30 V max 30000 Ohm
  • prospective line Isc: 5 kA
  • Sampling duration: 4 ms LI1...LI6 discrete, 8 ms AI1, AI2, AI3 analog
  • Nominal output current: 9.5 A 4 kHz
  • Maximum transient current: 14.3 A 60 s
  • Linearity error: +/- 0.2 % output
  • power dissipation in W: 150 W at nominal load
  • Analogue output number: 2
  • Speed range: 1...50
  • Analogue output type: Configurable current AOC 0...20 mA 800 Ohm 8 bits, Configurable voltage AOV 0...10 V 470 Ohm 8 bits
  • Transient overtorque: Of nominal motor torque
  • Discrete input logic: Logic input not wired LI1...LI4 < 13 V, Negative logic (source) LI1...LI6 > 19 V, Positive logic (source) LI1...LI6 < 5 V > 11 V
  • Asynchronous motor control profile: Factory set : constant torque, Sensorless flux vector control with PWM type motor control signal
  • Discrete output number: 2
  • Analogue input number: 3
  • Discrete output type: Configurable relay logic R1A, R1B, R1C 1 NO + 1 NC 100000 cycles, Configurable relay logic R2A, R2B NC 100000 cycles
  • Minimum switching current: 10 mA 5 V DC R1-R2
  • Maximum switching current: 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms R1-R2, 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms R1-R2, 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms R1-R2, 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms R1-R2
  • Discrete input number: 6
  • Discrete input type: Programmable LI1...LI6 24 V 0...100 mA PLC 3500 Ohm
  • Acceleration and deceleration ramps: S, U or customized, Linear adjustable separately from 0.1 to 999.9 s
  • Braking to standstill: By DC injection
  • Local signaling: 1 LED red drive voltage, Four 7-segment display units CANopen bus status
  • Time constant: 5 ms for reference change
  • Frequency resolution: 0.1 Hz display unit, 0.1...100 Hz analog input
  • Communication port protocol: CANopen, Modbus
  • Connector type: 1 RJ45 CANopen via VW3 CANTAP2 adaptor, 1 RJ45 Modbus
  • Physical interface: RS485 multidrop serial link Modbus
  • Transmission frame: RTU Modbus
  • Transmission rate: 10, 20, 50, 125, 250, 500 kbps or 1 Mbps CANopen via VW3 CANTAP2 adaptor, 4800, 9600 or 19200 bps Modbus
  • Number of addresses: 1...127 CANopen via VW3 CANTAP2 adaptor, 1...247 Modbus
  • Number of drive: 127 CANopen via VW3 CANTAP2 adaptor, 31 Modbus
  • Marking: CE
  • Operating position: Vertical +/- 10 degree
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ATV31H037M3X . Santa Clara Systems carries 10,141 items from Telemecanique.
  • Variable Speed Drive Atv31 - 0.37Kw - 200..240 V 3-Phase Supply - Ip20
