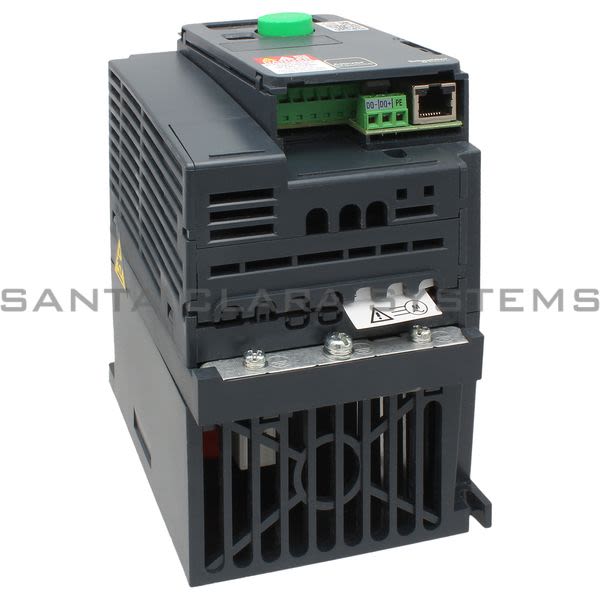

• Telemecanique ATV320U15N4C variable speed drive ATV320 - 1.5kW - 380...500V - 3 phase - compact Product Image

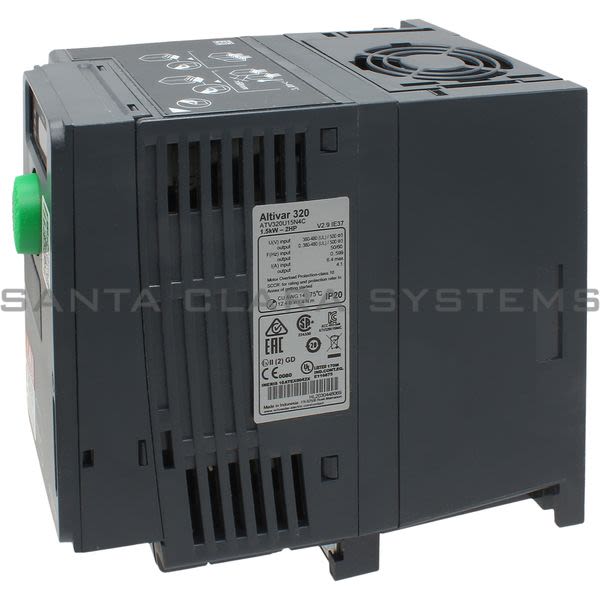

  • Telemecanique ATV320U15N4C variable speed drive ATV320 - 1.5kW - 380...500V - 3 phase - compact Product Image

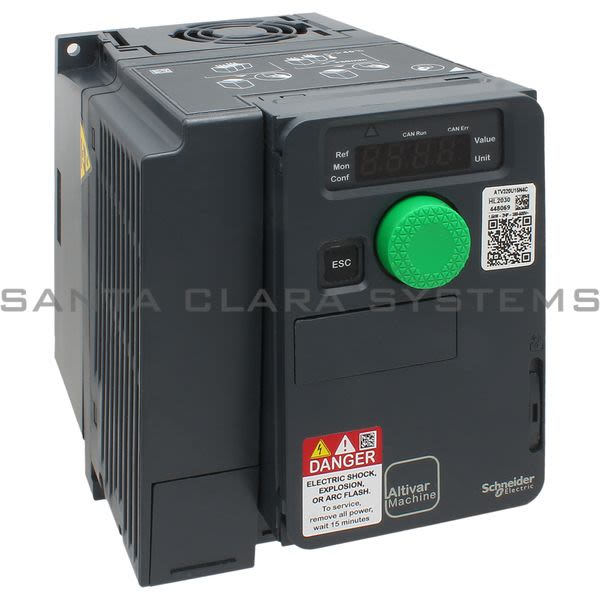

  • Telemecanique ATV320U15N4C variable speed drive ATV320 - 1.5kW - 380...500V - 3 phase - compact Product Image

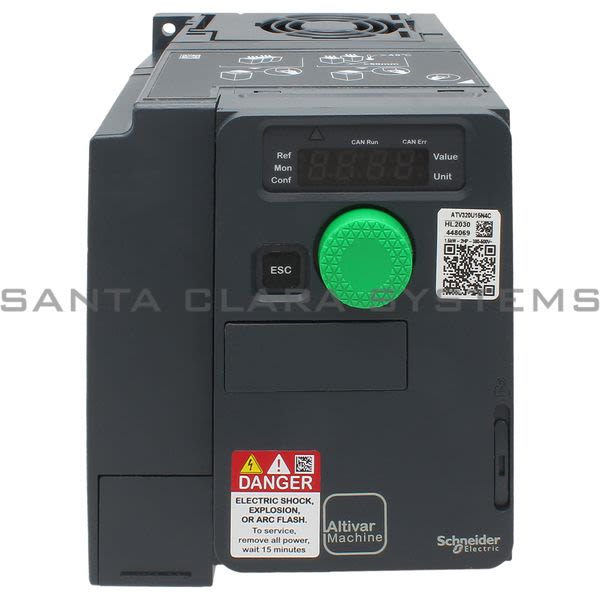

  • Telemecanique ATV320U15N4C variable speed drive ATV320 - 1.5kW - 380...500V - 3 phase - compact Product Image
  • Telemecanique ATV320U15N4C Barcode

ATV320U15N4C

Product Summary:

  • Product weight: 2.87 lb(US) (1.3 kg)
  • Range of product: Altivar Machine ATV320
  • IP degree of protection: IP20 conforming to EN/IEC 61800-5-1
  • Device short name: ATV320
  • Width: 4.13 in (105 mm)
Let Us Find It

Current response time:

9 Minutes 23 Seconds
  • Description: variable speed drive ATV320 - 1.5kW - 380...500V - 3 phase - compact
  • Product weight: 2.87 lb(US) (1.3 kg)
  • Range of product: Altivar Machine ATV320
  • IP degree of protection: IP20 conforming to EN/IEC 61800-5-1
  • Standards: EN/IEC 61800-3, EN/IEC 61800-3 environment 1 category C2, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1
  • Device short name: ATV320
  • Width: 4.13 in (105 mm)
  • Height: 142 mm, 188 mm with EMC plate
  • Depth: 6.22 in (158 mm)
  • Operating altitude: <= 3280.84 ft. (1000 m) without derating, 3280.84...9842.52 ft. (1000...3000 m) with current derating 1 % per 100 m
  • Vibration resistance: 1.5 mm peak to peak (f = 2...13 Hz) conforming to EN/IEC 60068-2-6, 1 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-6
  • Shock resistance: 15 gn during 11 ms conforming to EN/IEC 60068-2-27
  • Electrical connection: Control, screw terminal: 0.5...1.5 mm AWG 20...AWG 16, Motor/braking resistor, screw terminal: 2.5...6 mm AWG 14...AWG 10, Power supply, screw terminal: 2.5...6 mm AWG 14...AWG 10
  • Insulation resistance: > 1 mOhm at 500 V DC for 1 minute to earth
  • motor power kW: 1.5 kW heavy duty
  • [Us] rated supply voltage: 380...500 V (- 15...10 %)
  • Relative humidity: 5...95 % without condensation conforming to IEC 60068-2-3, 5...95 % without dripping water conforming to IEC 60068-2-3
  • Protection type: Drive: thermal protection, Drive: overcurrent between output phases and earth, Drive: input phase breaks, Drive: overheating protection, Drive: short-circuit between motor phases
  • Switching frequency: 4...16 kHz with current derating, 2...16 kHz adjustable
  • Degree of protection: UL type 1 with UL type 1 conformity kit
  • Output voltage: <= power supply voltage
  • Isolation: Between power and control terminals
  • Product or component type: Variable speed drive
  • Permissible temporary current boost: 1.5 x In during 60 s heavy duty
  • Product specific application: Complex machines
  • Speed range: 1...100 with asynchronous motor in open-loop mode
  • Noise level: 51 dB conforming to 86/188/EEC
  • Speed accuracy: +/- 10 % of nominal slip 0.2 Tn to Tn
  • power dissipation in W: 61 W (fan) at 380 V, 4 kHz
  • Format of the drive: Compact
  • Torque accuracy: +/- 15 %
  • Volume of cooling air: 4755.18 Gal/hr(US) (18 m3/h)
  • Product destination: Asynchronous motors, Synchronous motors
  • Transient overtorque: 170...200 % of nominal motor torque
  • Operating position: Vertical +/- 10 degree
  • EMC filter: Class C2 EMC filter integrated
  • Braking torque: <= 170 % with braking resistor during 60 s
  • Electromagnetic compatibility: Conducted radio-frequency immunity test conforming to IEC 61000-4-6 level 3, Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 level 4, Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 level 3, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11, 1.2/50 s - 8/20 s surge immunity test conforming to IEC 61000-4-5 level 3
  • Regulation loop: Adjustable PID regulator
  • Pollution degree: 2 conforming to EN/IEC 61800-5-1
  • Motor slip compensation: Adjustable 0...300 %, Not available in voltage/frequency ratio (2 or 5 points), Automatic whatever the load
  • Type of cooling: Fan
  • Acceleration and deceleration ramps: U, Deceleration ramp automatic stop DC injection, Deceleration ramp adaptation, Ramp switching, Linear, CUS, S
  • Phase: 3 phases
  • Braking to standstill: By DC injection
  • Ambient air temperature for operation: 14...122 F (-10...50 C) without derating, 122...140 F (50...60 C) with derating factor
  • Supply frequency: 50...60 Hz (- 5...5 %)
  • Frequency resolution: Display unit: 0.1 Hz, Analog input: 0.012/50 Hz
  • Ambient air temperature for storage: -13...158 F (-25...70 C)
  • Motor power hp: 2 hp heavy duty
  • Connector type: 1 RJ45 Modbus/CANopen on control terminal
  • Line current: 6.4 A at 380 V heavy duty, 4.9 A at 500 V heavy duty
  • Physical interface: 2-wire RS 485 Modbus
  • Product certifications: RCM, UL, EAC, CSA, NOM 117
  • prospective line Isc: <= 5 kA
  • Transmission frame: RTU Modbus
  • Marking: CE
  • Apparent power: 4.2 kVA at 500 V heavy duty
  • Transmission rate: 4.8, 9.6, 19.2, 38.4 kbit/s Modbus, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps CANopen
  • Continuous output current: 4.1 A at 4 kHz heavy duty
  • Data format: 8 bits, configurable odd, even or no parity Modbus
  • Maximum transient current: 6.2 A during 60 s heavy duty
  • Type of polarization: No impedance Modbus
  • Asynchronous motor control profile: Voltage/frequency ratio - Energy Saving, quadratic U/f, Flux vector control without sensor, standard, Voltage/frequency ratio, 2 points, Flux vector control without sensor - Energy Saving, Voltage/frequency ratio, 5 points
  • Number of addresses: 1...247 Modbus, 1...127 CANopen
  • Synchronous motor control profile: Vector control without sensor
  • Method of access: Slave CANopen
  • Speed drive output frequency: 0.1...599 Hz
  • Supply: Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC (+/- 5 %) current <= 10 mA (overload and short-circuit protection)
  • Nominal switching frequency: 4 kHz
  • Local signaling: 1 LED green CANopen run, 1 LED red CANopen error, 1 LED red drive fault
  • Safety function: STO (safe torque off) SIL 3, SS1 (safe stop 1), SMS (safe maximum speed), SLS (safe limited speed), GDL (guard door locking)
  • Communication port protocol: CANopen, Modbus
  • Option card: Communication module: CANopen daisy chain RJ45, Communication module: CANopen SUB-D 9, Communication module: CANopen open style terminal block, Communication module: EtherCAT RJ45, Communication module: DeviceNet, Communication module: Ethernet/IP, Communication module: Profibus DP V1, Communication module: Profinet, Communication module: Ethernet Powerlink
  • Analogue input number: 3
  • Analogue input type: Voltage (AI1): 0...10 V DC, impedance 30000 Ohm, resolution 10 bits, Bipolar differential voltage (AI2): +/- 10 V DC, impedance 30000 Ohm, resolution 10 bits, Current (AI3): 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance 250 Ohm, resolution 10 bits
  • Discrete input number: 7
  • Discrete input type: Programmable (sink/source) (DI1...DI4): 24...30 V DC: level 1 PLC, Programmable as pulse input 20 kpps (DI5): 24...30 V DC: level 1 PLC, Switch-configurable PTC probe (DI6): 24...30 V DC, Safe torque off (STO): 24...30 V DC, impedance 1500 Ohm
  • Discrete input logic: Negative logic (sink): : DI1...DI6, > 19 V (state 0) < 13 V (state 1), Positive logic (source): : DI1...DI6, < 5 V (state 0) > 11 V (state 1)
  • Analogue output number: 1
  • Analogue output type: Software-configurable current (AQ1): 0...20 mA, impedance 800 Ohm, resolution 10 bits, Software-configurable voltage (AQ1): 0...10 V, impedance 470 Ohm, resolution 10 bits
  • Sampling duration: Analog input (AI1, AI2, AI3): 2 ms, Analog output (AQ1): 2 ms
  • Accuracy: Analog input AI1, AI2, AI3: +/- 0.2 % for a temperature of -10...60 C, Analog input AI1, AI2, AI3: +/- 0.5 % for a temperature of 25 C, Analog output AQ1: +/- 1 % for a temperature of 25 C, Analog output AQ1: +/- 2 % for a temperature of -10...60 C
  • Linearity error: Analog input (AI1, AI2, AI3): +/- 0.2...0.5 % of maximum value, Analog output (AQ1): +/- 0.3 %
  • Discrete output number: 3
  • Discrete output type: Configurable relay logic NO/NC (R1A, R1B, R1C): electrical durability 100000 cycles, Configurable relay logic NO (R2A, R2B): electrical durability 100000 cycles, Logic (LO)
  • Refresh time: Logic input (DI1...DI6): 8 ms (+/- 0.7 ms), Relay output (R1A, R1B, R1C): 2 ms, Relay output (R2A, R2C): 2 ms
  • Minimum switching current: Relay output (R1, R2): 5 mA at 24 V DC
  • Maximum switching current: Relay output (R1) on resistive load (cos phi = 1: 3 A at 250 V AC, Relay output (R1) on resistive load (cos phi = 1: 4 A at 30 V DC, Relay output (R1, R2) on inductive load (cos phi = 0.4: 2 A at 250 V AC, Relay output (R1, R2) on inductive load (cos phi = 0.4: 2 A at 30 V DC, Relay output (R2) on resistive load (cos phi = 1: 5 A at 250 V AC, Relay output (R2) on resistive load (cos phi = 1: 5 A at 30 V DC
  • Specific application: Machinery
  • Discrete and process manufacturing: Hoisting self erecting, Material handling carousel, Material handling conveyor, Material handling lifting platfrom, Material handling palletizers - medium performance, Material handling transfer table, Material handling turn table, Material working (wood, ceramic, stone, pvc, metal) cutting - medium accuracy, Material working (wood, ceramic, stone, pvc, metal) drilling, Material working (wood, ceramic, stone, pvc, metal) saw, Packaging bagging, Packaging feed conveyor low performance, Packaging filling bottles - intermittent operation, Packaging linear labeling, Packaging other application, Packaging stretching wrapping, Packaging tray take, Textile knitting, Textile printing machines, Textile spinning, Washing machines car, Washing machines other application, Hoisting standard crane - travelling or trolley
  • Power range: 1.1...2 kW 380...440 V 3 phases, 1.1...2 kW 480...500 V 3 phases
  • Motor starter type: Variable speed drive
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ATV320U15N4C . Santa Clara Systems carries 10,141 items from Telemecanique.
  • Variable Speed Drive Atv320 - 1.5Kw - 380...500V - 3 Phase - Compact
