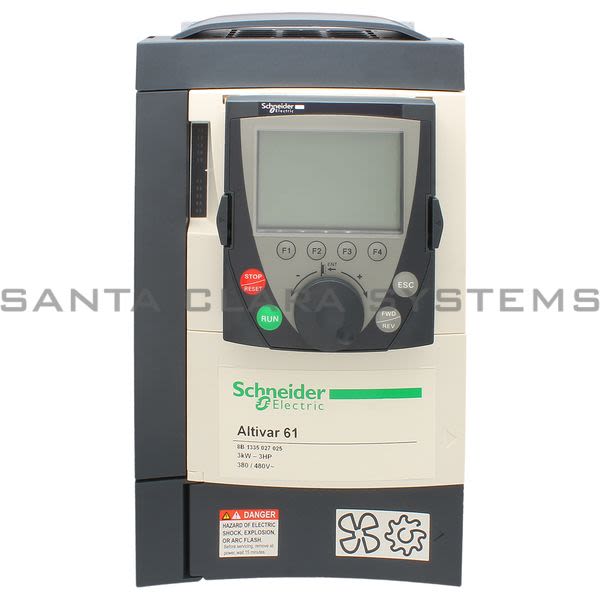

• Telemecanique ATV61HU30N4 ATV61 3 kW 480V 3 phases EMC IP20 with graph term Product Image

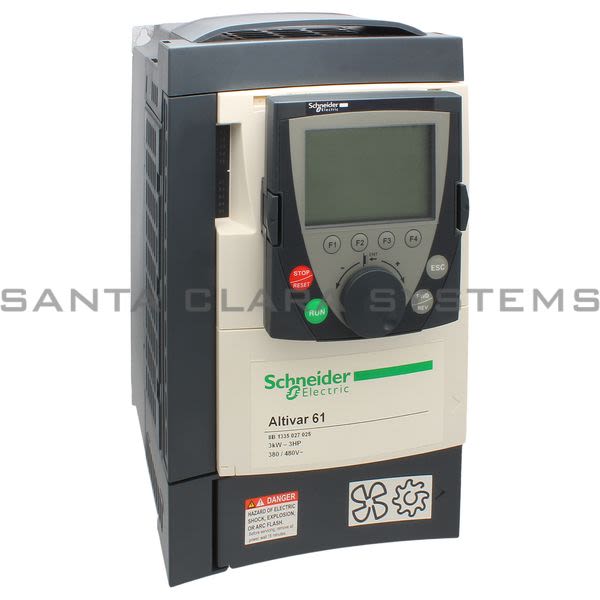

  • Telemecanique ATV61HU30N4 ATV61 3 kW 480V 3 phases EMC IP20 with graph term Product Image

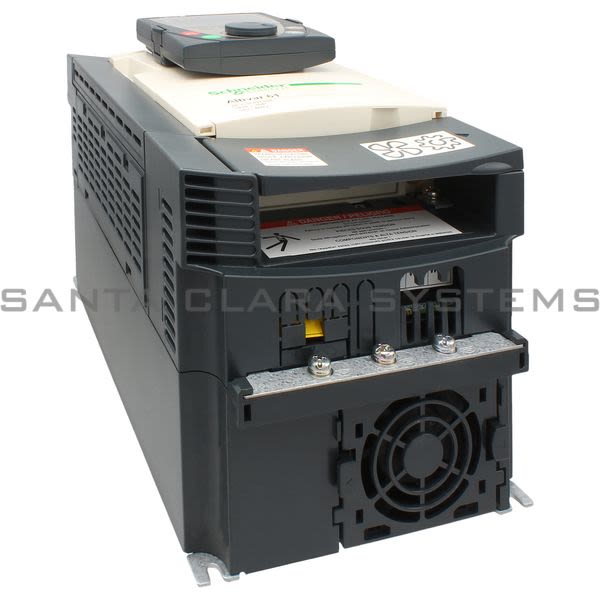

  • Telemecanique ATV61HU30N4 ATV61 3 kW 480V 3 phases EMC IP20 with graph term Product Image

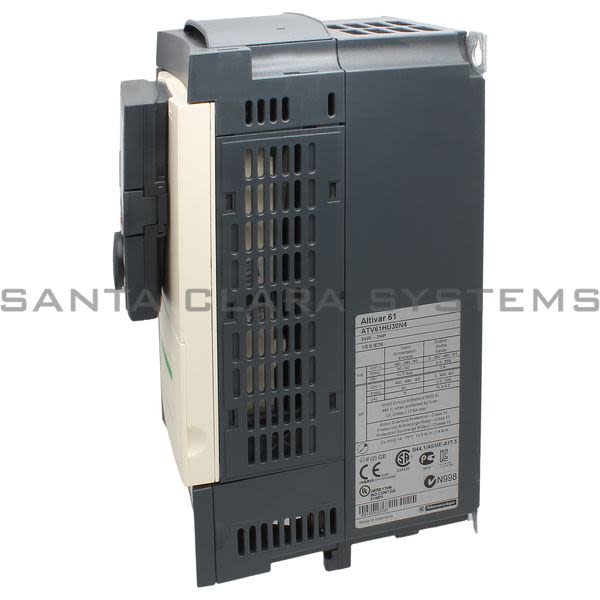

  • Telemecanique ATV61HU30N4 ATV61 3 kW 480V 3 phases EMC IP20 with graph term Product Image
  • Telemecanique ATV61HU30N4 Barcode

ATV61HU30N4

Product Summary:

  • Product weight: 8.82 lb(US) (4 kg)
  • Range of product: Altivar 61
  • Width: 6.1 in (155 mm)
  • Height: 10.24 in (260 mm)
  • Depth: 7.36 in (187 mm)
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: ATV61 3 kW 480V 3 phases EMC IP20 with graph term
  • Product weight: 8.82 lb(US) (4 kg)
  • Range of product: Altivar 61
  • IP degree of protection: IP20 on upper part without blanking plate on cover conforming to EN/IEC 60529, IP20 on upper part without blanking plate on cover conforming to EN/IEC 61800-5-1, IP21 conforming to EN/IEC 60529, IP21 conforming to EN/IEC 61800-5-1, IP41 on upper part conforming to EN/IEC 60529, IP41 on upper part conforming to EN/IEC 61800-5-1, IP54 on lower part conforming to EN/IEC 60529, IP54 on lower part conforming to EN/IEC 61800-5-1
  • Standards: UL Type 1, EN 61800-3 environments 1 category C2, IEC 60721-3-3 class 3S2, IEC 60721-3-3 class 3C1, EN/IEC 61800-3, EN/IEC 61800-5-1, EN 55011 class A group 1, EN 61800-3 environments 2 category C2
  • Width: 6.1 in (155 mm)
  • Height: 10.24 in (260 mm)
  • Depth: 7.36 in (187 mm)
  • Operating altitude: <= 3280.84 ft. (1000 m) without derating, 3280.84...9842.52 ft. (1000...3000 m) with current derating 1 % per 100 m
  • Tightening torque: AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR 5.31 lbf.in (0.6 N.m), L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB 12.39 lbf.in (1.4 N.m) / 12.3 lb.in
  • Vibration resistance: 1.5 mm peak to peak (f = 3...13 Hz) conforming to EN/IEC 60068-2-6, 1 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-6
  • Shock resistance: 15 gn 11 ms conforming to EN/IEC 60068-2-27
  • Electrical connection: AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR terminal 2.5 mm / AWG 14, L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB terminal 6 mm / AWG 8
  • Insulation resistance: > 1 mOhm at 500 V DC for 1 minute to earth
  • motor power kW: 3 kW 3 phasesat 380...480 V
  • [Us] rated supply voltage: 380...480 V (- 15...10 %)
  • Relative humidity: 5...95 % without condensation conforming to IEC 60068-2-3, 5...95 % without dripping water conforming to IEC 60068-2-3
  • Protection type: Drive against exceeding limit speed, Drive against input phase loss, Drive break on the control circuit, Drive input phase breaks, Drive line supply overvoltage, Drive line supply undervoltage, Drive overcurrent between output phases and earth, Drive overheating protection, Drive overvoltages on the DC bus, Drive power removal, Drive short-circuit between motor phases, Drive thermal protection, Motor motor phase break, Motor power removal, Motor thermal protection
  • Response time: <= 100 ms in STO (Safe Torque Off), R1A, R1B, R1C <= 7 ms, tolerance +/- 0.5 ms, R2A, R2B <= 7 ms, tolerance +/- 0.5 ms
  • Switching frequency: 1...16 kHz adjustable, 12...16 kHz with derating factor
  • Product destination: Asynchronous motors, Synchronous motors
  • Noise level: 54.5 dB conforming to 86/188/EEC
  • Product or component type: Variable speed drive
  • Supply voltage limits: 323...528 V
  • Dielectric strength: 3535 V DC between earth and power terminals, 5092 V DC between control and power terminals
  • Product specific application: Pumping and ventilation machine
  • Supply frequency: 50...60 Hz (- 5...5 %)
  • Electromagnetic compatibility: Conforming to IEC 61000-4-2 level 3, Conforming to IEC 61000-4-11, Conforming to IEC 61000-4-6 level 3, Conforming to IEC 61000-4-3 level 3, Conforming to IEC 61000-4-4 level 4
  • Component name: ATV61
  • Network frequency: 47.5...63 Hz
  • Continuous output current: 6.2 A at 12 kHz, 460 V 3 phases, 7.8 A at 12 kHz, 380 V 3 phases
  • Product certifications: UL, NOM 117, CSA, C-Tick, DNV, GOST
  • Output frequency: 0.1...599 Hz
  • Pollution degree: 2 conforming to EN/IEC 61800-5-1
  • Phase: 3 phases
  • Speed range: 1...100 in open-loop mode, without speed feedback
  • Line current: 9 Afor 480 V 3 phases 3 kW, 10.7 Afor 380 V 3 phases 3 kW
  • Speed accuracy: +/- 10 % of nominal slip 0.2 Tn to Tn torque variation without speed feedback
  • EMC filter: Class C2 EMC filter integrated
  • Torque accuracy: +/- 15 % in open-loop mode, without speed feedback
  • Assembly style: With heat sink
  • Transient overtorque: 130 % of nominal motor torque, +/- 10 %for 60 s
  • Apparent power: 7 kVAfor 380 V 3 phases 3 kW
  • Braking torque: 30 % without braking resistor, <= 125 % with braking resistor
  • Ambient air temperature for operation: 14...122 F (-10...50 C) without derating, 122...140 F (50...60 C) with derating factor
  • prospective line Isc: 5 kA 3 phases
  • Regulation loop: Frequency PI regulator
  • Ambient air temperature for storage: -13...158 F (-25...70 C)
  • Maximum transient current: 9.3 Afor 60 s 3 phases
  • Motor slip compensation: Can be suppressed, Not available in voltage/frequency ratio (2 or 5 points), Adjustable, Automatic whatever the load
  • Nominal switching frequency: 12 kHz
  • Local signaling: 1 LED red presence of drive voltage
  • Output voltage: <= power supply voltage
  • Asynchronous motor control profile: Voltage/frequency ratio - Energy Saving, quadratic U/f, Voltage/frequency ratio, 5 points, Voltage/frequency ratio, 2 points, Flux vector control without sensor, standard
  • Isolation: Between power and control terminals
  • Synchronous motor control profile: Vector control without sensor, standard
  • Type of cable: With an IP21 or an IP31 kit: 3-strand IEC cableat 104 F (40 C), copper 70 C PVC, Without mounting kit: 1-strand IEC cableat 113 F (45 C), copper 70 C PVC, Without mounting kit: 1-strand IEC cableat 113 F (45 C), copper 90 C XLPE/EPR, With UL Type 1 kit: 3-strand UL 508 cableat 104 F (40 C), copper 75 C PVC
  • Communication port protocol: CANopen, Modbus
  • Type of polarization: No impedance Modbus
  • Option card: APOGEE FLN communication card, BACnet communication card, CC-Link communication card, Controller inside programmable card, DeviceNet communication card, Ethernet/IP communication card, Fipio communication card, I/O extension card, Interbus-S communication card, LonWorks communication card, METASYS N2 communication card, Modbus Plus communication card, Modbus TCP communication card, Modbus/Uni-Telway communication card, Multi-pump card, Profibus DP communication card, Profibus DP V1 communication card
  • Supply: Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <= 10 mA for overload and short-circuit protection, Internal supply 24 V DC (21...27 V), <= 200 mA for overload and short-circuit protection, External supply 24 V DC (19...30 V)
  • Analogue input number: 2
  • Analogue input type: AI1-/Al1+ bipolar differential voltage +/- 10 V DC, input voltage 24 V max, resolution 11 bits + sign, AI2 software-configurable current 0...20 mA, impedance 242 Ohm, resolution 11 bits, AI2 software-configurable voltage 0...10 V DC, input voltage 24 V max, impedance 30000 Ohm, resolution 11 bits
  • Sampling duration: Discrete input LI6 (if configured as logic input) 2 ms, +/- 0.5 ms, Analog input AI1-/Al1+ 2 ms, +/- 0.5 ms, Analog input Al2 2 ms, +/- 0.5 ms, Analog output AO1 2 ms, +/- 0.5 ms, Discrete input LI1...LI5 2 ms, +/- 0.5 ms
  • Accuracy: AI1-/Al1+ +/- 0.6 % for a temperature variation 60 C, AI2 +/- 0.6 % for a temperature variation 60 C, AO1 +/- 1 % for a temperature variation 60 C
  • Linearity error: AI1-/Al1+ +/- 0.15 % of maximum value, AI2 +/- 0.15 % of maximum value, AO1 +/- 0.2 %
  • Analogue output number: 1
  • Analogue output type: AO1 software-configurable current, analogue output range 0...20 mA, impedance 500 Ohm, resolution 10 bits, AO1 software-configurable logic output 10 V, <= 20 mA, AO1 software-configurable voltage, analogue output range 0...10 V DC, impedance 470 Ohm, resolution 10 bits
  • Discrete output number: 2
  • Discrete output type: (R1A, R1B, R1C) configurable relay logic NO/NC, electrical durability 100000 cycles, (R2A, R2B) configurable relay logic NO, electrical durability 100000 cycles
  • Minimum switching current: Configurable relay logic 3 mAat 24 V DC
  • Maximum switching current: R1, R2 on resistive load, 5 A at 30 V DC, cos phi = 1, 0 ms, R1, R2 on inductive load, 2 A at 30 V DC, cos phi = 0.4, 7 ms, R1, R2 on resistive load, 5 A at 250 V AC, cos phi = 1, 0 ms, R1, R2 on inductive load, 2 A at 250 V AC, cos phi = 0.4, 7 ms
  • Discrete input number: 7
  • Discrete input type: (LI1...LI5) programmable, 24 V DC, voltage limits <= 30 V, with level 1 PLC, impedance 3500 Ohm, (LI6) switch-configurable, 24 V DC, voltage limits <= 30 V, with level 1 PLC, impedance 3500 Ohm, (LI6) switch-configurable PTC probe, 0...6, impedance 1500 Ohm, (PWR) safety input, 24 V DC, voltage limits <= 30 V, impedance 1500 Ohm
  • Discrete input logic: LI1...LI5 positive logic (source), < 5 V (state 0), > 11 V (state 1), LI1...LI5 negative logic (sink), > 16 V (state 0), < 10 V (state 1), LI6 (if configured as logic input) negative logic (sink), > 16 V (state 0), < 10 V (state 1), LI6 (if configured as logic input) positive logic (source), < 5 V (state 0), > 11 V (state 1)
  • Acceleration and deceleration ramps: Automatic adaptation of ramp if braking capacity exceeded, by using resistor, Linear adjustable separately from 0.01 to 9000 s, S, U or customized
  • Braking to standstill: By DC injection
  • Frequency resolution: Analog input 0.024/50 Hz, Display unit 0.1 Hz
  • Connector type: 1 RJ45 Modbus on front face, 1 RJ45 Modbus on terminal, Male SUB-D 9 on RJ45 CANopen
  • Physical interface: 2-wire RS 485 Modbus
  • Transmission frame: RTU Modbus
  • Transmission rate: 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps CANopen, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps Modbus on terminal, 9600 bps, 19200 bps Modbus on front face
  • Data format: 8 bits, 1 stop, even parity Modbus on front face, 8 bits, odd even or no configurable parity Modbus on terminal
  • Number of addresses: 1...247 Modbus, 1...127 CANopen
  • Method of access: Slave CANopen
  • Marking: CE
  • Operating position: Vertical +/- 10 degree
