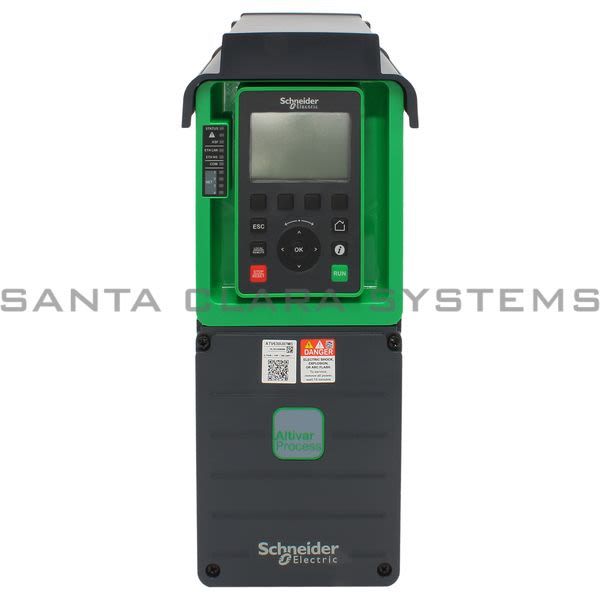

• Telemecanique ATV 630U07M3 Variable Speed Drive Product Image

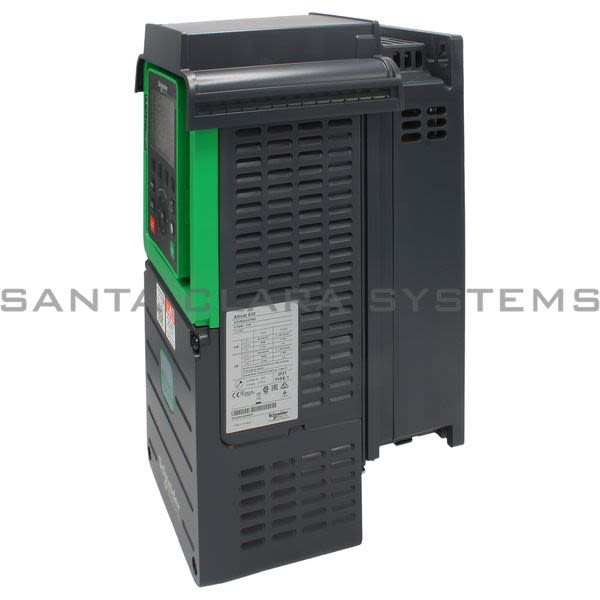

  • Telemecanique ATV 630U07M3 Variable Speed Drive Product Image

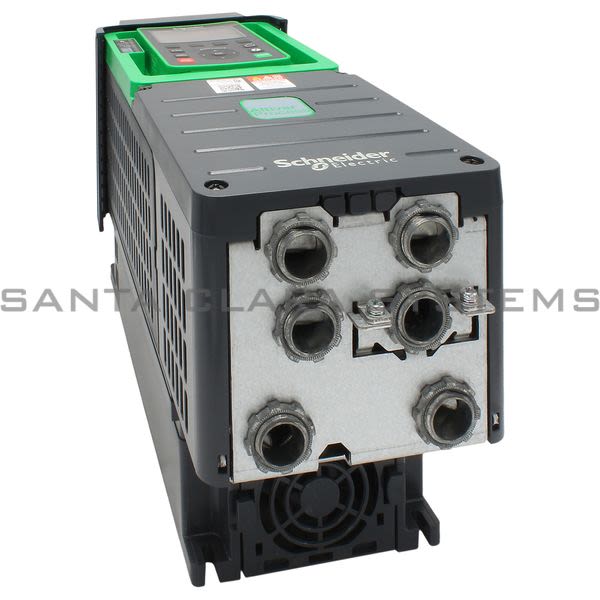

  • Telemecanique ATV 630U07M3 Variable Speed Drive Product Image

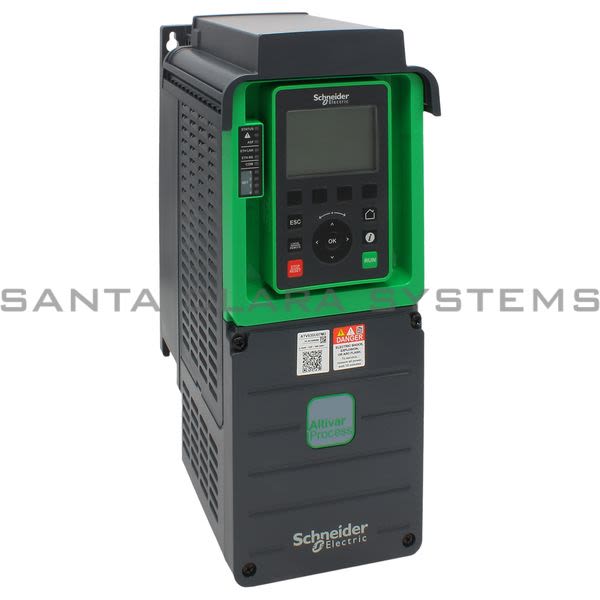

  • Telemecanique ATV 630U07M3 Variable Speed Drive Product Image
  • Telemecanique ATV 630U07M3 Barcode

ATV630U07M3

Product Summary:

  • Range of product: Altivar Process ATV600
  • IP degree of protection: IP21 conforming to IEC 61800-5-1
  • Standards: UL 508C
  • Device short name: ATV630
  • Width: 144 mm
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Variable Speed Drive
  • Range of product: Altivar Process ATV600
  • IP degree of protection: IP21 conforming to IEC 61800-5-1
  • Standards: UL 508C
  • Device short name: ATV630
  • Width: 144 mm
  • Height: 350 mm
  • Depth: 203 mm
  • Operating altitude: <= 1000 m without
  • Vibration resistance: 1.5 mm peak to peak (f= 213 Hz) conforming to IEC 60068-2-6
  • Shock resistance: 15 gn for 11 ms conforming to IEC 60068-2-27
  • Electrical connection: Control: removable screw terminals0.5...1.5 mm/AWG 20...AWG 16
  • Insulation resistance: > 1 MOhm 500 V DC for 1 minute to earth
  • motor power kW: 0.75 kW (normal duty)
  • [Us] rated supply voltage: 200...240 V - 15...10 %
  • Relative humidity: 595 % without condensation conforming to IEC 60068-2-3
  • Protection type: Thermal protection: motor
  • Switching frequency: 2...12 kHz adjustable
  • Degree of protection: UL type 1 conforming to UL 508C
  • Product or component type: Variable speed drive
  • Product specific application: Process and utilities
  • Variant: Standard version
  • Product destination: Asynchronous motors
  • Mounting mode: Wall mount
  • EMC filter: Without EMC filter
  • Type of cooling: Forced convection
  • Supply frequency: 50...60 Hz - 5...5 %
  • Network number of phases: 3 phases
  • Motor power hp: 1 hp normal duty
  • Line current: 3 A at 200 V (normal duty)
  • prospective line Isc: 50 kA
  • Apparent power: 1.1 kVA at 240 V (normal duty)
  • Continuous output current: 4.6 A at 4 kHz for normal duty
  • Maximum transient current: 5.1 A during 60 s (normal duty)
  • Asynchronous motor control profile: Variable torque standard
  • Synchronous motor control profile: Permanent magnet motor
  • Output frequency: 0.00010.5 kHz
  • Speed drive output frequency: 0.1599 Hz
  • Nominal switching frequency: 4 kHz
  • Safety function: STO (safe torque off) SIL 3
  • Discrete input logic: 16 preset speeds
  • Communication port protocol: Modbus TCP
  • Option card: Slot A: communication module, Profibus DP V1
  • Output voltage: <= power supply voltage
  • Permissible temporary current boost: 1.1 x In during 60 s (normal duty)
  • Motor slip compensation: Automatic whatever the load
  • Acceleration and deceleration ramps: Linear adjustable separately from 0.01...9999 s
  • Braking to standstill: By DC injection
  • Frequency resolution: Display unit: 0.1 Hz
  • Connector type: RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP
  • Physical interface: 2-wire RS 485 for Modbus serial
  • Transmission frame: RTU for Modbus serial
  • Transmission rate: 10/100 Mbit/s for Ethernet IP/Modbus TCP
  • Exchange mode: Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
  • Data format: 8 bits, configurable odd, even or no parity for Modbus serial
  • Type of polarization: No impedance for Modbus serial
  • Number of addresses: 1247 for Modbus serial
  • Method of access: Slave Modbus TCP
  • Supply: External supply for digital inputs: 24 V DC (1930 V), <1.25 mA, protection type: overload and short-circuit protection
  • Local signalling: 3 LEDslocal diagnostic:
  • Net weight: 4.3 kg
  • Analogue input number: 3
  • Analogue input type: AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution 12 bits
  • Discrete input number: 8
  • Discrete input type: DI1...DI6 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm
  • Input compatibility: DI1...DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2
  • Analogue output number: 2
  • Analogue output type: Software-configurable voltage AO1, AO2: 0...10 V DC impedance 470 Ohm, resolution 10 bits
  • Sampling duration: 2 ms +/- 0.5 ms (DI1...DI4) - discrete input
  • Linearity error: AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input
  • Relay output number: 3
  • Relay output type: Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles
  • Refresh time: Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
  • Minimum switching current: Relay output R1, R2, R3: 5 mA at 24 V DC
  • Maximum switching current: Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC
  • Isolation: Between power and control terminals
  • Variable speed drive application selection: Compressor centrifugal Building - HVAC
  • Motor power range AC-3: 0.551 kW at 200240 V 3 phases
  • Noise level: 54.5 dB conforming to 86/188/EEC
  • power dissipation in W: Natural convection: 27 W at 200 V, switching frequency 4 kHz
  • Volume of cooling air: 38 m3/h
  • Operating position: Vertical +/- 10 degree
  • maximum THDI: <48 % full load conforming to IEC 61000-3-12
  • Electromagnetic compatibility: Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
  • Pollution degree: 2 conforming to EN/IEC 61800-5-1
  • Ambient air temperature for operation: -1550 C (without)
  • Ambient air temperature for storage: -4070 C
  • Environmental characteristic: Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3
  • Product certifications: TV
  • Marking: CE
  • Sustainable offer status: Green Premium product
  • REACh Regulation: REACh Declaration
  • EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)
  • Mercury free: Yes
  • RoHS exemption information: Yes
  • China RoHS Regulation: China RoHS declaration
  • Environmental Disclosure: Product Environmental Profile
  • Circularity Profile: End of Life Information
  • WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ATV630U07M3 . Santa Clara Systems carries 10,141 items from Telemecanique.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
