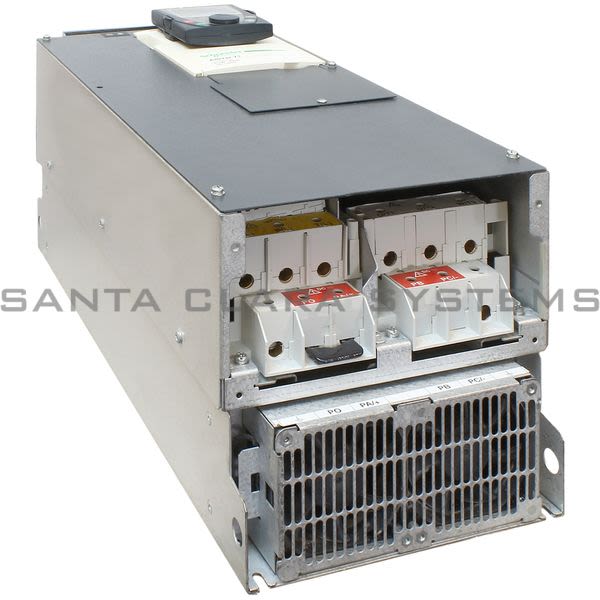

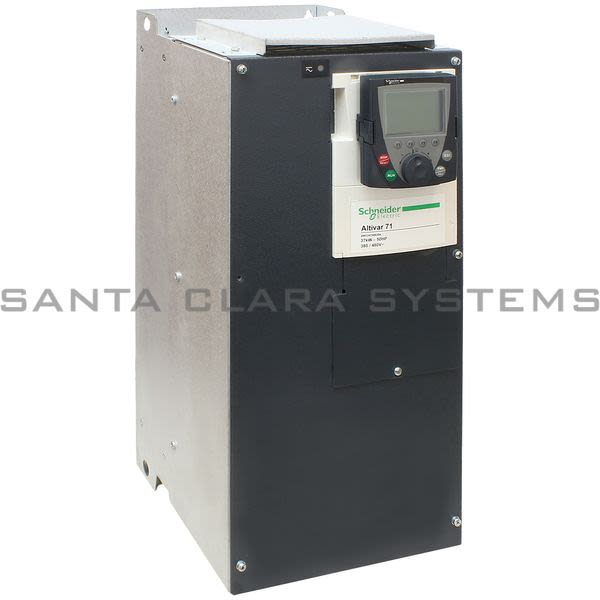

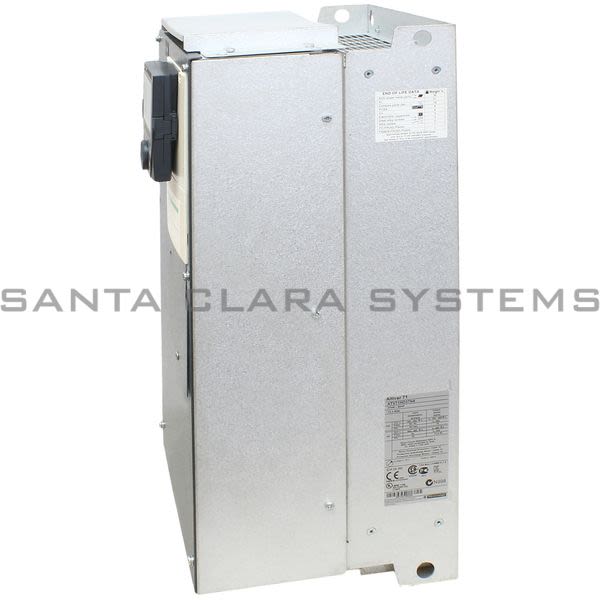

• Telemecanique ATV71HD37N4 variable speed drive ATV71 - 37kW-50HP - 480V - EMC filter-graphic terminal Product Image
  • Telemecanique ATV71HD37N4 variable speed drive ATV71 - 37kW-50HP - 480V - EMC filter-graphic terminal Product Image
  • Telemecanique ATV71HD37N4 variable speed drive ATV71 - 37kW-50HP - 480V - EMC filter-graphic terminal Product Image

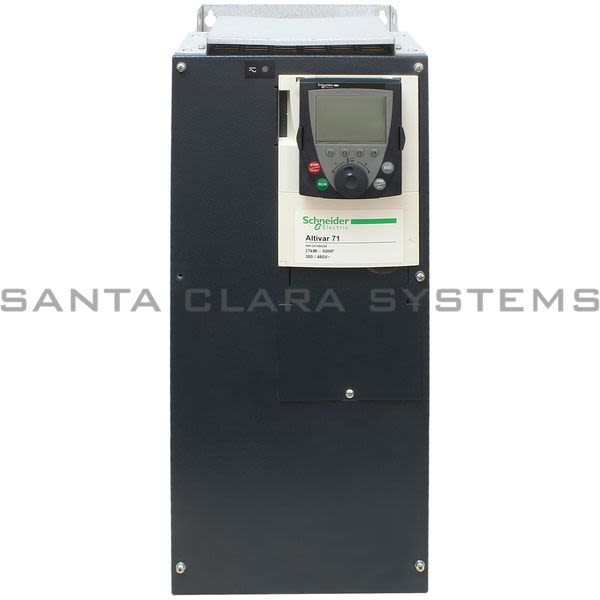

  • Telemecanique ATV71HD37N4 variable speed drive ATV71 - 37kW-50HP - 480V - EMC filter-graphic terminal Product Image
  • Telemecanique ATV71HD37N4 Barcode

ATV71HD37N4

Product Summary:

  • Product weight: 81.57 lb(US) (37 kg)
  • Range of product: Altivar 71
  • IP degree of protection: IP20
  • Width: 9.45 in (240 mm)
  • Height: 21.65 in (550 mm)
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: variable speed drive ATV71 - 37kW-50HP - 480V - EMC filter-graphic terminal
  • Product weight: 81.57 lb(US) (37 kg)
  • Range of product: Altivar 71
  • IP degree of protection: IP20
  • Standards: UL Type 1, EN 55011 class A group 2, IEC 60721-3-3 class 3C1, EN/IEC 61800-3, EN 61800-3 environments 2 category C3, EN/IEC 61800-5-1, EN 61800-3 environments 1 category C3, IEC 60721-3-3 class 3S2
  • Width: 9.45 in (240 mm)
  • Height: 21.65 in (550 mm)
  • Depth: 10.47 in (266 mm)
  • Operating altitude: <= 3280.84 ft. (1000 m) without derating, 3280.84...9842.52 ft. (1000...3000 m) with current derating 1 % per 100 m
  • Tightening torque: L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB 106.19 lbf.in (12 N.m) / 102.2 lb.in, AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR 5.31 lbf.in (0.6 N.m)
  • Vibration resistance: 1.5 mm peak to peak (f = 3...13 Hz) conforming to EN/IEC 60068-2-6, 1 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-6
  • Shock resistance: 15 gn 11 ms conforming to EN/IEC 60068-2-27
  • Electrical connection: AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR terminal 2.5 mm / AWG 14, L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB terminal 50 mm / AWG 1/0
  • Insulation resistance: > 1 mOhm at 500 V DC for 1 minute to earth
  • motor power kW: 37 kWat 380...480 V 3 phases
  • [Us] rated supply voltage: 380...480 V (- 15...10 %)
  • Relative humidity: 5...95 % without condensation conforming to IEC 60068-2-3, 5...95 % without dripping water conforming to IEC 60068-2-3
  • Protection type: Drive against exceeding limit speed, Drive against input phase loss, Drive break on the control circuit, Drive input phase breaks, Drive line supply overvoltage, Drive line supply undervoltage, Drive overcurrent between output phases and earth, Drive overheating protection, Drive overvoltages on the DC bus, Drive short-circuit between motor phases, Drive thermal protection, Motor motor phase break, Motor power removal, Motor thermal protection
  • Response time: <= 100 ms in STO (Safe Torque Off), AO1 2 ms, tolerance +/- 0.5 ms analog output(s), R1A, R1B, R1C 7 ms, tolerance +/- 0.5 ms discrete output(s), R2A, R2B 7 ms, tolerance +/- 0.5 ms discrete output(s)
  • Switching frequency: 1...16 kHz adjustable, 2.5...16 kHz with derating factor
  • Product destination: Synchronous motors, Asynchronous motors
  • Noise level: 64 dB conforming to 86/188/EEC
  • Product or component type: Variable speed drive
  • Supply voltage limits: 323...528 V
  • Dielectric strength: 3535 V DC between earth and power terminals, 5092 V DC between control and power terminals
  • Product specific application: Complex, high-power machines
  • Supply frequency: 50...60 Hz (- 5...5 %)
  • Electromagnetic compatibility: Conducted radio-frequency immunity test conforming to IEC 61000-4-6 level 3, Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 level 4, Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 level 3, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11, 1.2/50 s - 8/20 s surge immunity test conforming to IEC 61000-4-5 level 3
  • Component name: ATV71
  • Network frequency: 47.5...63 Hz
  • Speed range: 1...100 asynchronous motor in open-loop mode, without speed feedback, 1...50 synchronous motor in open-loop mode, without speed feedback, 1...1000 asynchronous motor in closed-loop mode with encoder feedback
  • Product certifications: GOST, UL, NOM 117, CSA, C-Tick
  • Motor power hp: 50 hpat 380...480 V 3 phases
  • Speed accuracy: +/- 0.01 % of nominal speed 0.2 Tn to Tn torque variation in closed-loop mode with encoder feedback, +/- 10 % of nominal slip 0.2 Tn to Tn torque variation without speed feedback
  • Pollution degree: 2 conforming to EN/IEC 61800-5-1, 3 conforming to UL 840
  • Motor cable length: <= 656.17 ft. (200 m) Unshielded cable, <= 328.08 ft. (100 m) Shielded cable
  • Torque accuracy: +/- 15 % in open-loop mode, without speed feedback, +/- 5 % in closed-loop mode with encoder feedback
  • Transient overtorque: 220 % of nominal motor torque +/- 10 %for 2 s, 170 % of nominal motor torque +/- 10 %for 60 s every 10 minutes
  • Phase: 3 phases
  • Braking torque: <= 150 % with braking or hoist resistor, 30 % without braking resistor
  • Line current: 69 Afor 480 V 3 phases 37 kW / 50 hp, 84 Afor 380 V 3 phases 37 kW / 50 hp
  • Synchronous motor control profile: Vector control without speed feedback
  • EMC filter: Integrated
  • Regulation loop: Adjustable PI regulator
  • Ambient air temperature for operation: 14...122 F (-10...50 C) without derating
  • Assembly style: With heat sink
  • Motor slip compensation: Automatic whatever the load, Not available in voltage/frequency ratio (2 or 5 points), Adjustable, Suppressible
  • Ambient air temperature for storage: -13...158 F (-25...70 C)
  • Apparent power: 55.3 kVAat 380 V 3 phases 37 kW / 50 hp
  • Local signaling: 1 LED red presence of drive voltage
  • prospective line Isc: <= 22 kA, 3 phases
  • Output voltage: <= power supply voltage
  • Nominal output current: 65 A at 2.5 kHz 460 V 3 phases 37 kW / 50 hp, 79 A at 2.5 kHz 380 V 3 phases 37 kW / 50 hp
  • Insulation: Electrical between power and control
  • Maximum transient current: 130 Afor 2 s 3 phases 37 kW / 50 hp, 118.5 Afor 60 s 3 phases 37 kW / 50 hp
  • Type of cable: With a NEMA Type1 kit: 3-strand UL 508 cableat 104 F (40 C), copper 75 C PVC, With an IP21 or an IP31 kit: 3-strand IEC cableat 104 F (40 C), copper 70 C PVC, Without mounting kit: 1-strand IEC cableat 113 F (45 C), copper 70 C PVC, Without mounting kit: 1-strand IEC cableat 113 F (45 C), copper 90 C XLPE/EPR
  • Output frequency: 0.1...599 Hz
  • Nominal switching frequency: 2.5 kHz
  • Supply: Internal supply for reference potentiometer (1 to 10 kOhm), 10.5 V DC +/- 5 %, <= 10 mA for overload and short-circuit protection, Internal supply, 24 V DC, voltage limits 21...27 V, <= 200 mA for overload and short-circuit protection
  • Asynchronous motor control profile: Sensorless flux vector control (SFVC) (voltage or current vector), Flux vector control (FVC) with sensor (current vector), Voltage/frequency ratio (2 or 5 points), ENA (Energy adaptation) system for unbalanced loads
  • Analogue input number: 2
  • Type of polarization: No impedance Modbus
  • Analogue input type: AI1-/Al1+ bipolar differential voltage +/- 10 V DC, input voltage 24 V max, resolution 11 bits + sign, AI2 software-configurable current 0...20 mA, impedance 242 Ohm, resolution 11 bits, AI2 software-configurable voltage 0...10 V DC, input voltage 24 V max, impedance 30000 Ohm, resolution 11 bits
  • Sampling duration: AI1-/Al1+ 2 ms, +/- 0.5 ms analog input(s), Al2 2 ms, +/- 0.5 ms analog input(s), LI1...LI5 2 ms, +/- 0.5 ms discrete input(s), LI6 (if configured as logic input) 2 ms, +/- 0.5 ms discrete input(s)
  • Accuracy: AI1-/Al1+ +/- 0.6 % for a temperature variation 60 C, AI2 +/- 0.6 % for a temperature variation 60 C, AO1 +/- 1 % for a temperature variation 60 C
  • Linearity error: AI1-/Al1+, AI2 +/- 0.15 % of maximum value, AO1 +/- 0.2 %
  • Analogue output number: 1
  • Analogue output type: AO1 software-configurable current 0...20 mA, impedance 500 Ohm, resolution 10 bits, AO1 software-configurable logic output 10 V <= 20 mA, AO1 software-configurable voltage 0...10 V DC, impedance 470 Ohm, resolution 10 bits
  • Discrete output number: 2
  • Discrete output type: R1A, R1B, R1C configurable relay logic NO/NC, electrical durability 100000 cycles, R2A, R2B configurable relay logic NO, electrical durability 100000 cycles
  • Minimum switching current: Configurable relay logic 3 mAat 24 V DC
  • Maximum switching current: R1, R2 on resistive load, 5 A at 250 V AC, cos phi = 1,, R1, R2 on resistive load, 5 A at 30 V DC, cos phi = 1,, R1, R2 on inductive load, 2 A at 250 V AC, cos phi = 0.4,, R1, R2 on inductive load, 2 A at 30 V DC, cos phi = 0.4,
  • Discrete input number: 7
  • Discrete input type: LI6: switch-configurable 24 V DC with level 1 PLC, impedance: 3500 Ohm, PWR: safety input 24 V DC, impedance: 1500 Ohm conforming to ISO 13849-1 level d, LI1...LI5: programmable 24 V DC with level 1 PLC, impedance: 3500 Ohm, LI6: switch-configurable PTC probe 0...6, impedance: 1500 Ohm
  • Discrete input logic: LI1...LI5 positive logic (source), < 5 V (state 0), > 11 V (state 0), LI1...LI5 negative logic (sink), > 16 V (state 0), < 10 V (state 0), LI6 (if configured as logic input) positive logic (source), < 5 V (state 0), > 11 V (state 0), LI6 (if configured as logic input) negative logic (sink), > 16 V (state 0), < 10 V (state 0)
  • Acceleration and deceleration ramps: Automatic adaptation of ramp if braking capacity exceeded, by using resistor, Linear adjustable separately from 0.01 to 9000 s, S, U or customized
  • Braking to standstill: By DC injection
  • Frequency resolution: Analog input 0.024/50 Hz, Display unit 0.1 Hz
  • Communication port protocol: CANopen, Modbus
  • Connector type: 1 RJ45 Modbus on front face, 1 RJ45 Modbus on terminal, Male SUB-D 9 on RJ45 CANopen
  • Physical interface: 2-wire RS 485 Modbus
  • Transmission frame: RTU Modbus
  • Transmission rate: 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps CANopen, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps Modbus on terminal, 9600 bps, 19200 bps Modbus on front face
  • Data format: 8 bits, 1 stop, even parity Modbus on front face, 8 bits, odd even or no configurable parity Modbus on terminal
  • Number of addresses: 1...247 Modbus, 1...127 CANopen
  • Method of access: Slave CANopen
  • Marking: CE
  • Operating position: Vertical +/- 10 degree
  • Functionality: Full
  • Specific application: Other applications
  • Option card: CC-Link communication card, Controller inside programmable card, DeviceNet communication card, Ethernet/IP communication card, Fipio communication card, I/O extension card, Interbus-S communication card, Interface card for encoder, Modbus Plus communication card, Modbus TCP communication card, Modbus/Uni-Telway communication card, Overhead crane card, Profibus DP communication card, Profibus DP V1 communication card
