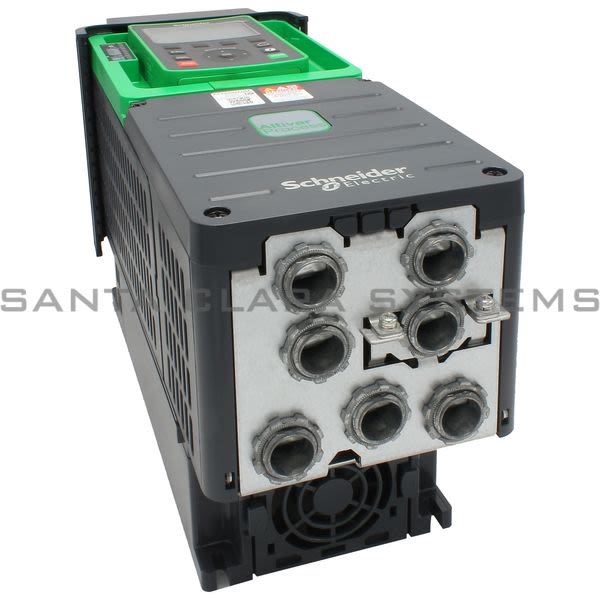

• Telemecanique ATV 930U22N4 Variable Speed Drive Product Image

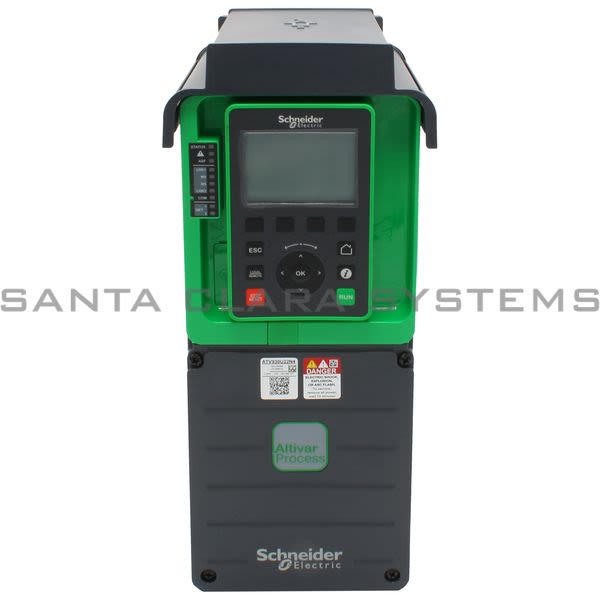

  • Telemecanique ATV 930U22N4 Variable Speed Drive Product Image

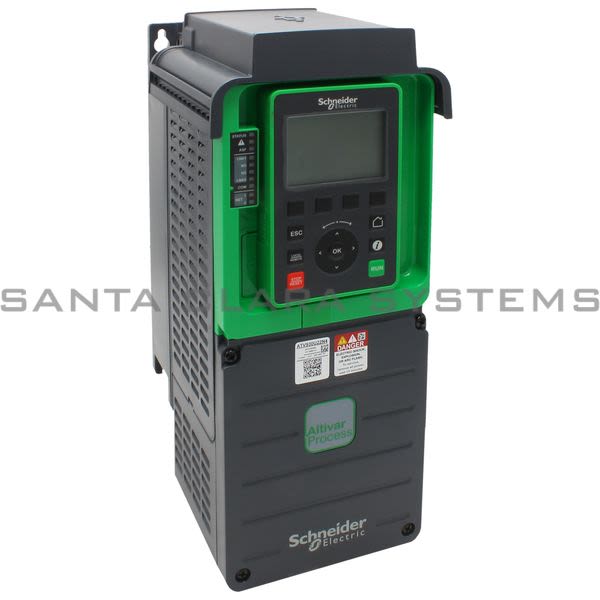

  • Telemecanique ATV 930U22N4 Variable Speed Drive Product Image

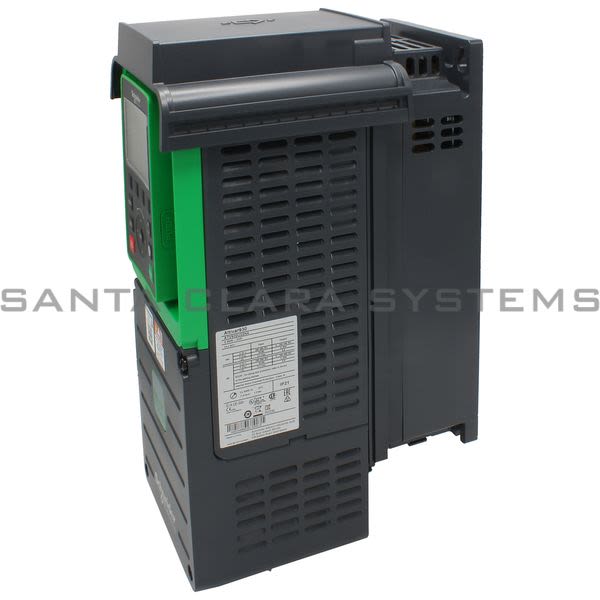

  • Telemecanique ATV 930U22N4 Variable Speed Drive Product Image
  • Telemecanique ATV 930U22N4 Barcode

ATV930U22N4

Product Summary:

  • Range of product: Altivar Process ATV900
  • IP degree of protection: IP21 conforming to IEC 61800-5-1
  • Standards: UL 508C
  • Device short name: ATV930
  • Width: 144 mm
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Variable Speed Drive
  • Range of product: Altivar Process ATV900
  • IP degree of protection: IP21 conforming to IEC 61800-5-1
  • Standards: UL 508C
  • Device short name: ATV930
  • Width: 144 mm
  • Height: 350 mm
  • Depth: 206 mm
  • Operating altitude: <= 1000 m without
  • Vibration resistance: 1.5 mm peak to peak (f= 213 Hz) conforming to IEC 60068-2-6
  • Shock resistance: 15 gn for 11 ms conforming to IEC 60068-2-27
  • Electrical connection: Control: screw terminal0.5...1.5 mm/AWG 20...AWG 16
  • Insulation resistance: > 1 MOhm 500 V DC for 1 minute to earth
  • motor power kW: 2.2 kW (normal duty)
  • [Us] rated supply voltage: 380...480 V - 15...10 %
  • Relative humidity: 595 % without condensation conforming to IEC 60068-2-3
  • Protection type: Thermal protection: motor
  • Switching frequency: 2...16 kHz adjustable
  • Degree of protection: UL type 1 conforming to UL 508C
  • Product or component type: Variable speed drive
  • Device application: Industrial application
  • Variant: Standard version
  • Mounting mode: Wall mount
  • EMC filter: Integrated with 50 m conforming to EN/IEC 61800-3 category C2
  • Type of cooling: Forced convection
  • Supply frequency: 50...60 Hz +/- 5 %
  • Network number of phases: 3 phases
  • Motor power hp: 3 hp normal duty
  • Line current: 4.3 A at 380 V (normal duty)
  • prospective line Isc: 50 kA
  • Apparent power: 3.2 kVA at 480 V (normal duty)
  • Continuous output current: 5.6 A at 4 kHz for normal duty
  • Maximum transient current: 6.7 A during 60 s (normal duty)
  • Asynchronous motor control profile: Constant torque standard
  • Synchronous motor control profile: Permanent magnet motor
  • Speed drive output frequency: 0.1599 Hz
  • Nominal switching frequency: 4 kHz
  • Safety function: STO (safe torque off) SIL 3
  • Number of preset speeds: 16 preset speeds
  • Communication port protocol: Modbus TCP
  • Option module: Slot A: communication module for Profibus DP V1
  • Output voltage: <= power supply voltage
  • Motor slip compensation: Can be suppressed
  • Acceleration and deceleration ramps: Linear adjustable separately from 0.01...9999 s
  • Braking to standstill: By DC injection
  • Frequency resolution: Display unit: 0.1 Hz
  • Connector type: 2 RJ45 for Ethernet IP/Modbus TCP on the control block
  • Physical interface: 2-wire RS 485 for Modbus serial
  • Transmission frame: RTU for Modbus serial
  • Transmission rate: 10/100 Mbit/s for Ethernet IP/Modbus TCP
  • Exchange mode: Half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
  • Data format: 8 bits, configurable odd, even or no parity for Modbus serial
  • Type of polarization: No impedance for Modbus serial
  • Number of addresses: 1247 for Modbus serial
  • Method of access: Slave Modbus TCP
  • Supply: External supply for digital inputs: 24 V DC (1930 V), <1.25 mA, protection type: overload and short-circuit protection
  • Local signalling: Local diagnostic: 3 LED (mono/dual colour)
  • Net weight: 4.5 kg
  • Analogue input number: 3
  • Analogue input type: AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution 12 bits
  • Discrete input number: 10
  • Discrete input type: DI1...DI8 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm
  • Input compatibility: DI1...DI8: discrete input level 1 PLC conforming to EN/IEC 61131-2
  • Discrete input logic: Positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1)
  • Analogue output number: 2
  • Analogue output type: Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits
  • Discrete output number: 2
  • Discrete output type: Logic output DQ+ 01 kHz <= 30 V DC 100 mA
  • Sampling duration: 2 ms +/- 0.5 ms (DI1...DI8) - discrete input
  • Linearity error: AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input
  • Maximum switching current: Relay output R1 on resistive load, cos phi = 1: 3 A at 250 V AC
  • Relay output number: 3
  • Relay output type: Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles
  • Refresh time: Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
  • Minimum switching current: Relay output R1, R2, R3: 5 mA at 24 V DC
  • Isolation: Between power and control terminals
  • Variable speed drive application selection: Mixer Food and beverage processing
  • Power range: 2.23 kW at 380440 V 3 phases
  • Noise level: 54.5 dB conforming to 86/188/EEC
  • power dissipation in W: Natural convection: 30 W at 380 V, switching frequency 4 kHz
  • Volume of cooling air: 38 m3/h
  • Operating position: Vertical +/- 10 degree
  • maximum THDI: <48 % full load conforming to IEC 61000-3-12
  • Electromagnetic compatibility: Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
  • Environmental characteristic: Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3
  • Pollution degree: 2 conforming to EN/IEC 61800-5-1
  • Ambient air temperature for operation: -1550 C (without)
  • Ambient air temperature for storage: -4070 C
  • Product certifications: CSA
  • Marking: CE
  • Sustainable offer status: Green Premium product
  • REACh Regulation: REACh Declaration
  • Mercury free: Yes
  • RoHS exemption information: Yes
  • Environmental Disclosure: Product Environmental Profile
  • Circularity Profile: End of Life Information
