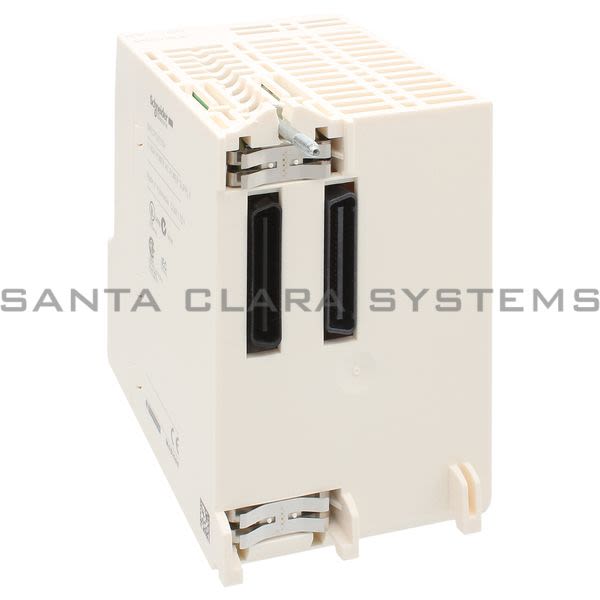

• Telemecanique BMX CPS3500H Power supply module X80 - 100..240 V AC - for severe environments Product Image

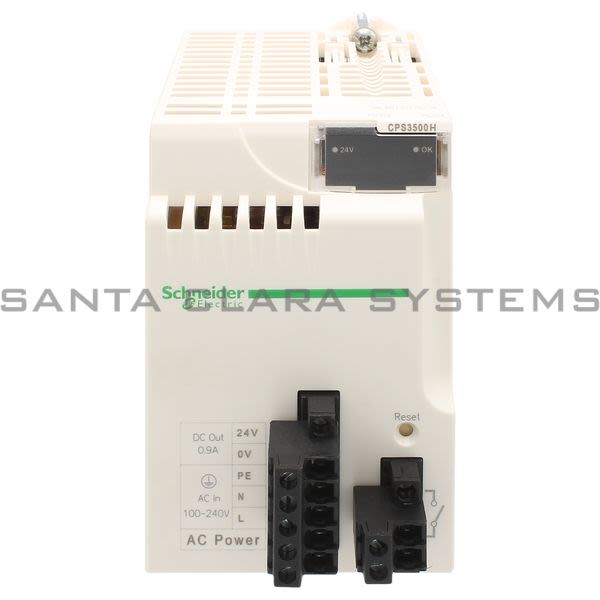

  • Telemecanique BMX CPS3500H Power supply module X80 - 100..240 V AC - for severe environments Product Image

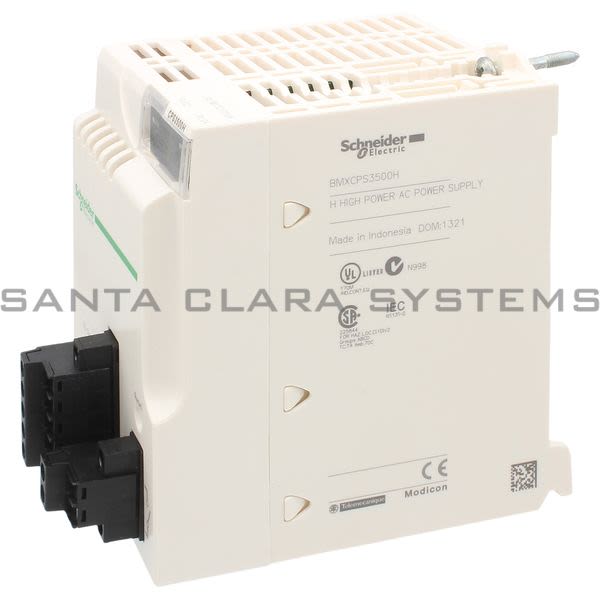

  • Telemecanique BMX CPS3500H Power supply module X80 - 100..240 V AC - for severe environments Product Image

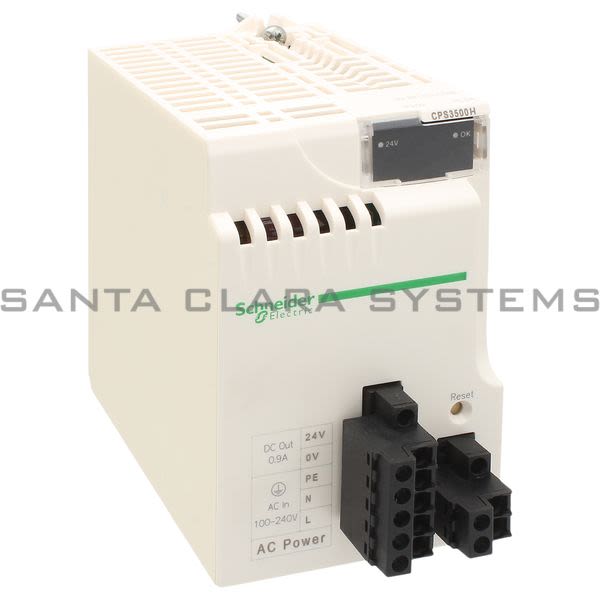

  • Telemecanique BMX CPS3500H Power supply module X80 - 100..240 V AC - for severe environments Product Image
  • Telemecanique BMX CPS3500H Barcode

BMXCPS3500H

Product Summary:

  • Range of product: Modicon X80
  • IP degree of protection: IP20
  • Standards: EN 61131-2
  • Protective treatment: Conformal coating
  • Operating altitude: 0...2000 m
Get a Quote

Current response time:

15 Minutes 36 Seconds
  • Description: Power supply module X80 - 100..240 V AC - for severe environments
  • Range of product: Modicon X80
  • IP degree of protection: IP20
  • Standards: EN 61131-2
  • Protective treatment: Conformal coating
  • Operating altitude: 0...2000 m
  • Vibration resistance: 3 gn
  • Shock resistance: 30 gn
  • Electrical connection: 1 connector 2 pin(s)alarm relay
  • Insulation resistance: >= 100 MOhm primary/ground
  • Relative humidity: 595 % at 55 C without condensation
  • Protection type: Internal fuse not accessible for primary circuit
  • Control type: RESET push-button cold restart
  • Product or component type: Power supply module
  • Backplane compatibility: Not compatible with BMEXBP..02
  • Product specific application: For severe environments
  • Primary voltage: 100...240 V
  • Supply circuit type: AC
  • Secondary power: 15 W 3.3 V DC at 060 C I/O module logic power supply
  • Primary voltage limit: 85...264 V
  • Network frequency: 50/60 Hz
  • Network frequency limits: 4763 Hz
  • Apparent power: 0.07 kVA
  • Input current: 0.52 A 240 V
  • Inrush current: 30 A 120 V
  • I²t on activation: 1 A.s 120 V
  • It on activation: 0.05 A.s 120 V
  • Current at secondary voltage: 0.9 A 24 V DC sensor power supply
  • maximum power dissipation in W: 8.5 W
  • status LED: 1 LED (green)rack voltage OK:
  • Net weight: 0.36 kg
  • Immunity to microbreaks: 1 ms
  • Dielectric strength: 1500 V primary/secondary I/O module logic power supply
  • Directives: 2014/35/EU - low voltage directive
  • Product certifications: Merchant Navy
  • Ambient air temperature for storage: -4085 C
  • Ambient air temperature for operation: -2570 C
  • Environmental characteristic: Gas resistant class Gx
  • Sustainable offer status: Green Premium product
  • REACh Regulation: REACh Declaration
  • Mercury free: Yes
  • RoHS exemption information: Yes
  • Environmental Disclosure: Product Environmental Profile
  • Circularity Profile: End of Life Information
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on BMXCPS3500H . Santa Clara Systems carries 10,141 items from Telemecanique.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
