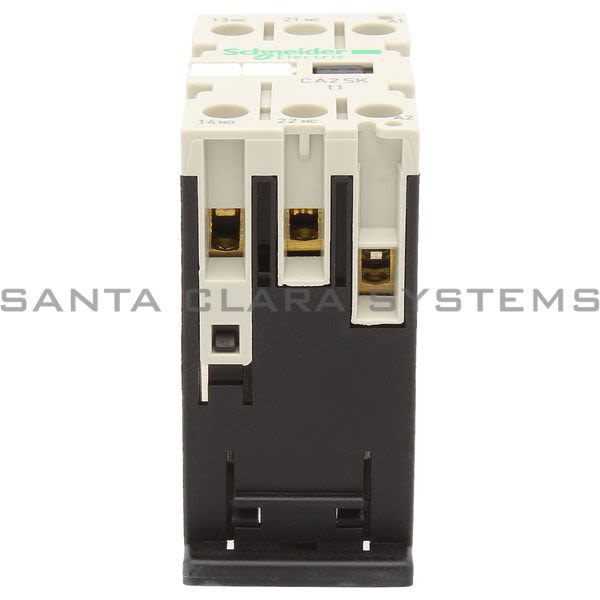

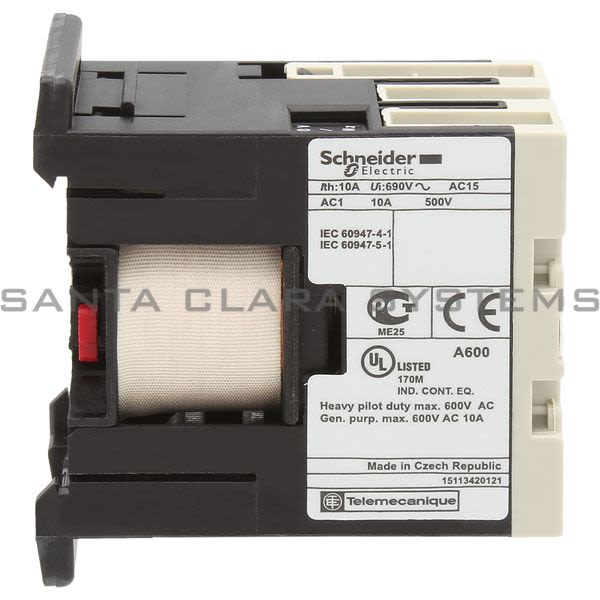

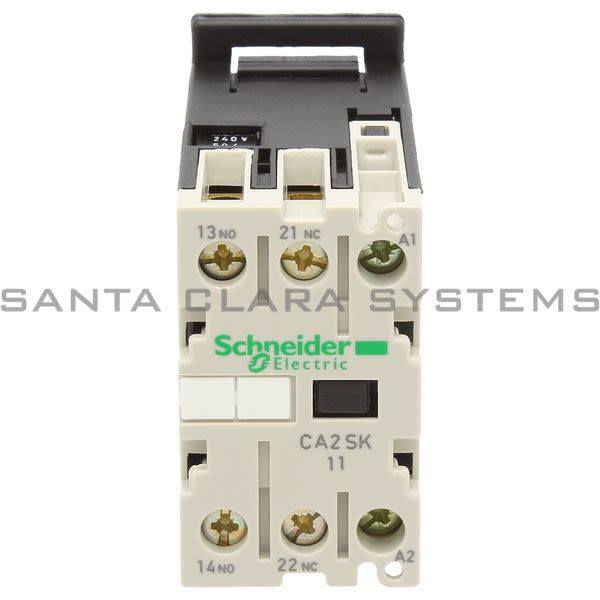

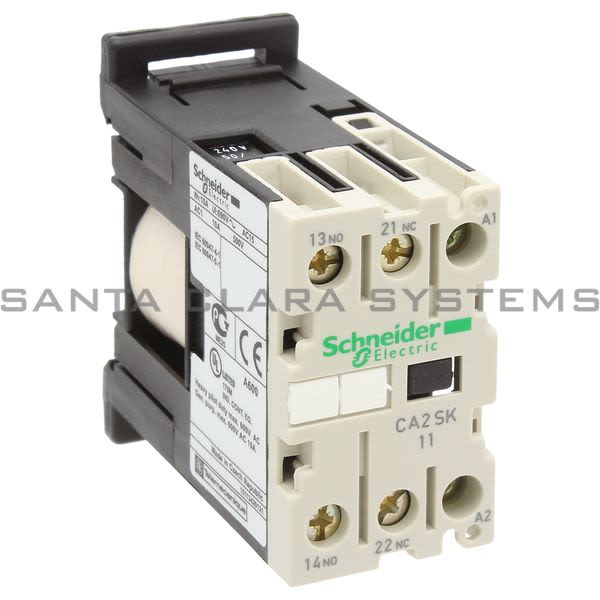

CA2SK11U7

Telemecanique - Control Relay

Current response time:

12 Minutes 6 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Control Relay
Product weight: 0.29 lb(US) (0.132 kg)
IP degree of protection: IP2x
Standards: IEC 60947VDE 0660BS 5424NF C 63-110
Device short name: CA2SK
Width: 1.06 in (27 mm)
Height: 2.2 in (56 mm)
Depth: 2.19 in (55.5 mm)
Protective treatment: TC conforming to IEC 60068
[Ui] rated insulation voltage: 690 V conforming to CSA C22.2 No 14690 V conforming to BS 5424690 V conforming to IEC 60947690 V conforming to VDE 0110 group C690 V conforming to UL 508
Operating altitude: 6561.68 ft. (2000 m) without derating in temperature
Mechanical durability: 10 Mcycles
Tightening torque: 7.08 lbf.in (0.8 N.m) - on screw clamp terminals pozidriv No 1
Connections - terminals: Screw clamp terminals 2 cable(s) 0...0.01 in² (1.5...4 mm²) - cable stiffness: solidScrew clamp terminals 1 cable(s) 0...0.01 in² (1.5...6 mm²) - cable stiffness: solidScrew clamp terminals 1 cable(s) 0...0.01 in² (0.5...6 mm²) - cable stiffness: flexible - without cable endScrew clamp terminals 1 cable(s) 0...0.01 in² (0.35...6 mm²) - cable stiffness: flexible - with cable endScrew clamp terminals 2 cable(s) 0...0 in² (0.35...1.5 mm²) - cable stiffness: flexible - with cable endScrew clamp terminals 2 cable(s) 0...0 in² (0.35...2.5 mm²) - cable stiffness: flexible - without cable end
Range: TeSys
Mounting support: PlateRail
[Ith] conventional free air thermal current: 10 A at <= 131 °F (55 °C)
System Voltage: <= 690 V <= 400 Hz

Operating rate: 1200 cyc/h
Product name: TeSys CASK
[Uc] control circuit voltage: 240 V AC 50/60 Hz
Utilization category: DC-13AC-15
Control circuit voltage limits: 0.85...1.1 Uc at 122 °F (50 °C) operational0.2...0.75 Uc at 122 °F (50 °C) drop-out
Operating time: 6...8 ms coil de-energisation and NO opening7...14 ms coil energisation and NO closing8...16 ms coil energisation and NC opening8...10 ms coil de-energisation and NC closing
Associated fuse rating: 10 A gL conforming to VDE 066010 A gL conforming to IEC 60947
Control circuit type: AC 50/60 Hz
Product certifications: cULus
Product or component type: Control relay
Contactor application: Control circuit
Ambient air temperature for operation: -4...122 °F (-20...50 °C)
Ambient air temperature for storage: -58...158 °F (-50...70 °C)
Pole contact composition: 1 NO + 1 NC
inrush power in VA: 16 VA at 68 °F (20 °C)
hold-in power consumption in VA: 4.2 VA at 68 °F (20 °C)
Heat dissipation: 1.4 W
