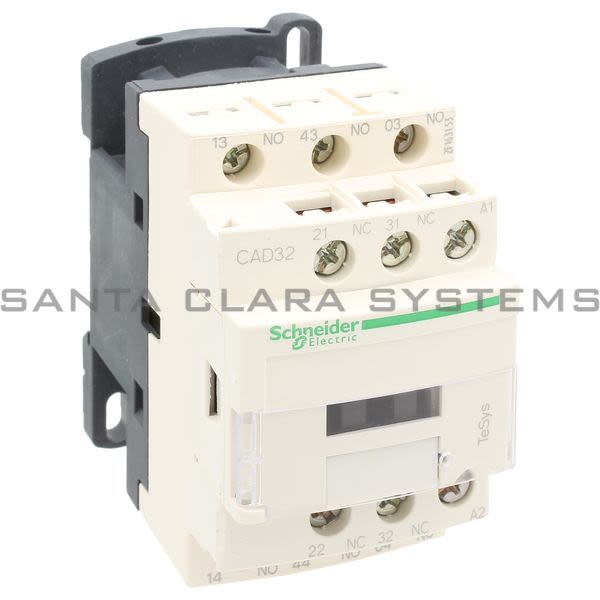

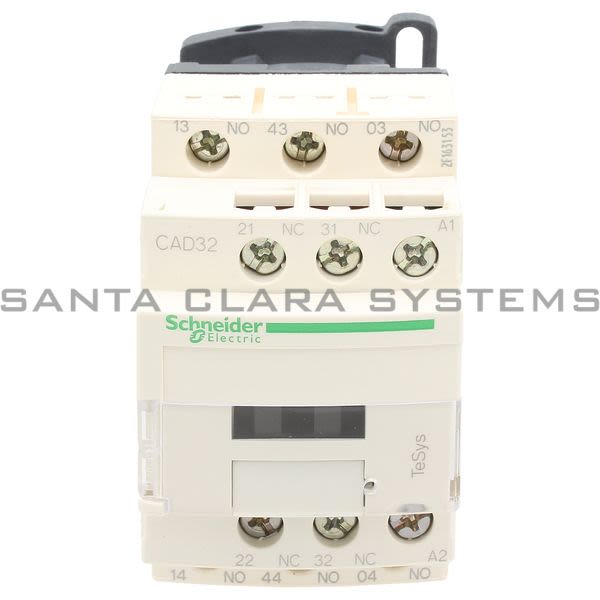

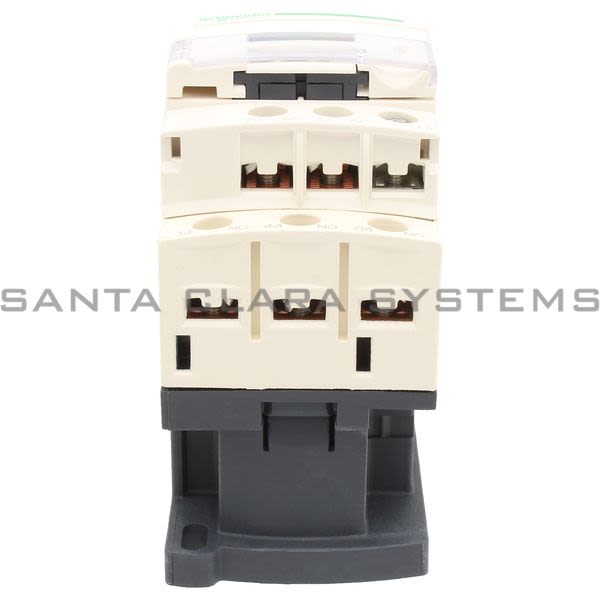

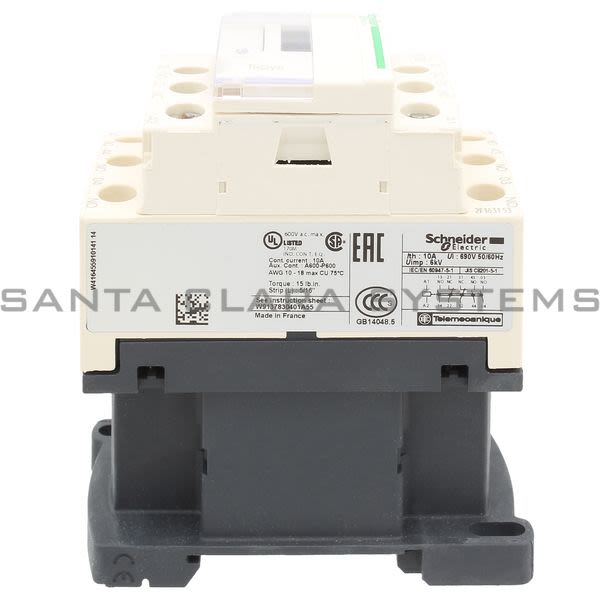

CAD32G7

Telemecanique - TeSys D control relay - 3 NO + 2 NC - <= 690 V - 120 V AC standard coil

Current response time:

By 5AM PT on Friday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys D control relay - 3 NO + 2 NC - <= 690 V - 120 V AC standard coil
Product weight: 1.28 lb(US) (0.58 kg)
IP degree of protection: IP2x front face conforming to VDE 0106
Standards: VDE 0660, IEC 60947-5-1, NF C 63-140, BS 4794, EN 60947-5
Device short name: CAD
Width: 1.77 in (45 mm)
Height: 3.03 in (77 mm)
Depth: 3.31 in (84 mm)
Protective treatment: TH conforming to IEC 60068
[Ui] rated insulation voltage: 690 V conforming to IEC 60947-5-1, 600 V certifications UL, 600 V certifications CSA
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947
Operating altitude: 9842.52 ft. (3000 m) without derating in temperature
Mechanical durability: 30 Mcycles
Tightening torque: 10.62 lbf.in (1.2 N.m) - on screw clamp terminals - with screwdriver Philips No 2, 10.62 lbf.in (1.2 N.m) - on screw clamp terminals - with screwdriver flat 6 mm
Connections - terminals: Screw clamp terminals 1 cable(s) 0...0.01 in (1...4 mm) - cable stiffness: flexible - without cable end, Screw clamp terminals 2 cable(s) 0...0.01 in (1...4 mm) - cable stiffness: flexible - without cable end, Screw clamp terminals 1 cable(s) 0...0.01 in (1...4 mm) - cable stiffness: flexible - with cable end, Screw clamp terminals 2 cable(s) 0...0 in (1...2.5 mm) - cable stiffness: flexible - with cable end, Screw clamp terminals 1 cable(s) 0...0.01 in (1...4 mm) - cable stiffness: solid - without cable end, Screw clamp terminals 2 cable(s) 0...0.01 in (1...4 mm) - cable stiffness: solid - without cable end
Range: TeSys
Mounting support: Rail, Plate
[Ith] conventional free air thermal current: 10 A at <= 140 F (60 C)
System Voltage: <= 690 V AC 25...400 Hz
Operating rate: 180 cyc/mn
Product name: TeSys CAD

[Uc] control circuit voltage: 120 V DC
Insulation resistance: > 10 MOhm
Utilization category: DC-13, AC-15, AC-14
Control circuit voltage limits: 0.3...0.6 Uc drop-out, 0.8...1.1 Uc operational 50 Hz, 0.85...1.1 Uc operational 60 Hz
Operating time: 4...19 ms coil energisation and NC opening, 12...22 ms coil energisation and NO closing, 4...12 ms coil de-energisation and NO opening, 6...17 ms coil de-energisation and NC closing
Associated fuse rating: 10 A gG conforming to IEC 60947-5-1
Control circuit type: AC 50/60 Hz
Pole contact composition: 3 NO + 2 NC
Product certifications: CSA, UL
Product or component type: Control relay
Contactor application: Control circuit
Ambient air temperature for operation: -40...158 F (-40...70 C)
Ambient air temperature for storage: -76...176 F (-60...80 C)
Irms rated making capacity: 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1
[Icw] rated short-time withstand current: 100 A 1 s, 120 A 500 ms, 140 A 100 ms
inrush power in VA: 70 VAat 68 F (20 C) 50 Hz
hold-in power consumption in VA: 8 VA at 68 F (20 C) 50 Hz
Minimum switching voltage: 17 V
Minimum switching current: 5 mA
Non-overlap time: 1.5 ms on de-energisation (between NC and NO contact), 1.5 ms on energisation (between NC and NO contact)
Mechanical robustness: Shocks control relay open 10 Gn for 11 ms IEC 60068-2-27, Shocks control relay closed 15 Gn for 11 ms IEC 60068-2-27, Vibrations control relay open 2 Gn, 5...300 Hz IEC 60068-2-6, Vibrations control relay closed 4 Gn, 5...300 Hz IEC 60068-2-6
