CR1F150U7

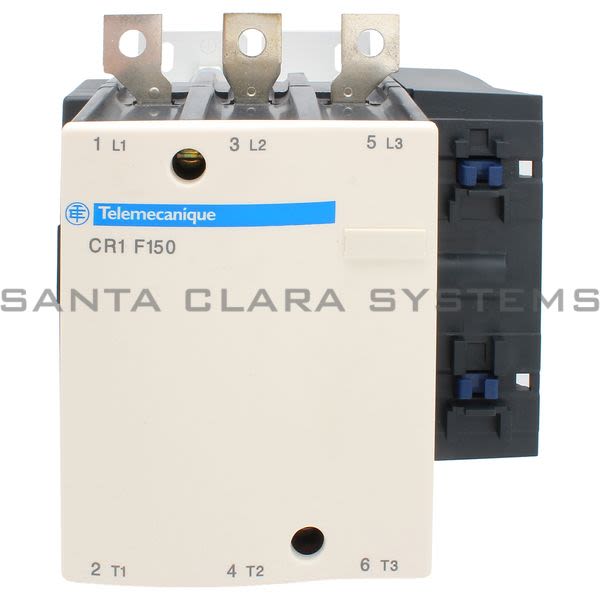

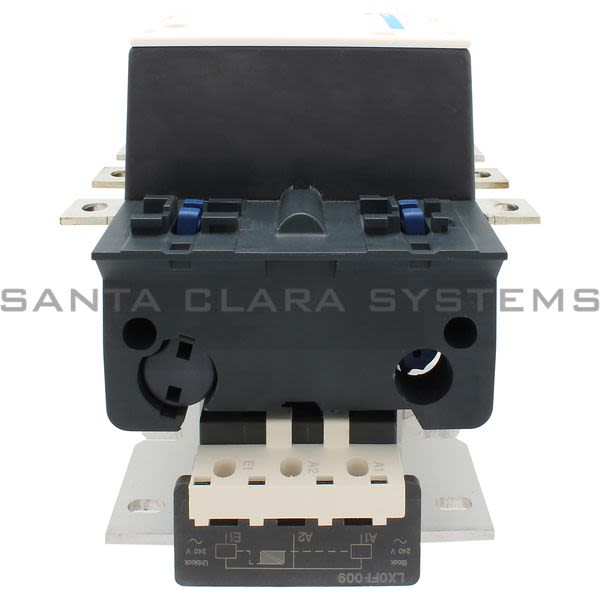

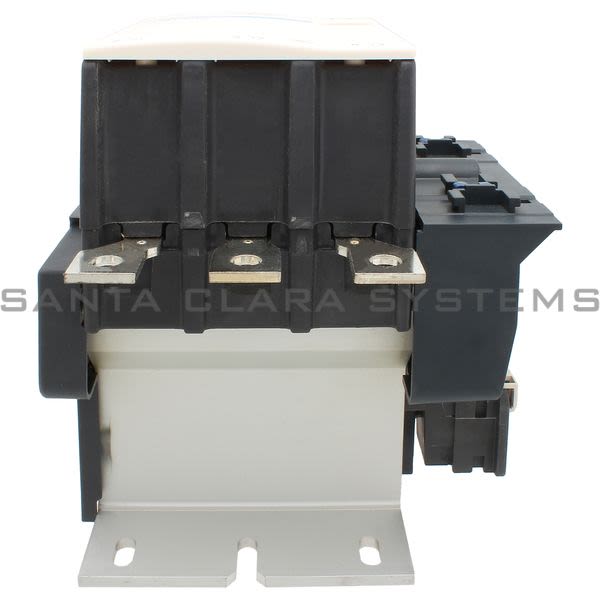

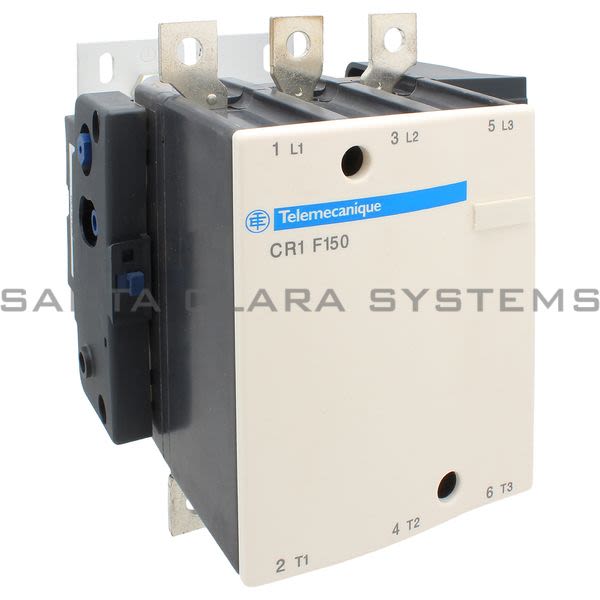

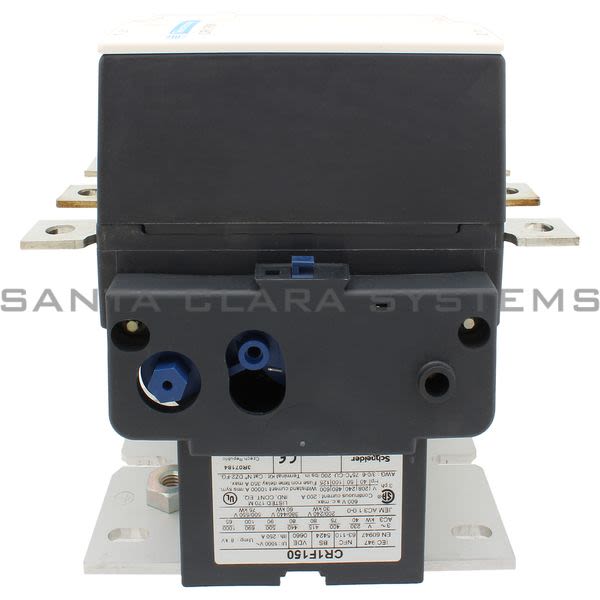

Telemecanique - TeSys F magnetic latching contactor - 3P(3 NO) - 150 A - 240 V AC coil

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys F magnetic latching contactor - 3P(3 NO) - 150 A - 240 V AC coil
Product weight: 7.72 lb(US) (3.5 kg)
Device short name: CR1F
Width: 6.44 in (163.5 mm)
Height: 6.69 in (170 mm)
Depth: 6.73 in (171 mm)
Protective treatment: TC
[Ui] rated insulation voltage: 1500 V conforming to VDE 0110 group C1000 V conforming to IEC 60158-11000 V conforming to IEC 60947-41000 V conforming to BS 775
Operating altitude: 9842.52 ft. (3000 m) without derating in temperature
Mechanical durability: 1 Mcycles
Tightening torque: 159.29 lbf.in (18 N.m)
Connections - terminals: Lugs-ring terminals 1 cable(s) 0.19 in² (120 mm²)Connector 1 cable(s) 0.19 in² (120 mm²)Bars 2 x (25 x 3 mm)Power circuit : bolted connection
Range: TeSys
System Voltage: 1000 V AC 25...200 Hz
Operating rate: 120 cyc/h at <= 104 °F (40 °C)
Product name: TeSys F
[Uc] control circuit voltage: 240 V AC 50/60 Hz
motor power kW: 75 kW 400 V AC 50/60 Hz AC-4
[Ie] rated operational current: 250 A (<= 104 °F (40 °C)) at <= 440 V AC AC-1150 A (<= 104 °F (40 °C)) at <= 440 V AC AC-3138 A (<= 104 °F (40 °C)) at <= 440 V AC AC-4

Utilization category: AC-4AC-3AC-1
Control circuit voltage limits: 0.85...1.1 Uc latching0.85...1.1 Uc unlatching
Poles description: 3P
Operating time: 35...40 ms latching50...100 ms unlatching
Associated fuse rating: 160 A aM at <= 440 V250 A gG at <= 440 V250 A BS88 at <= 440 V
Control circuit type: AC 50/60 Hz
Average coil consumption: 1100 VA AC 50/60 Hz latching7.3 VA AC 50/60 Hz unlatching
Ambient air temperature for operation: 5...158 °F (-15...70 °C)
Product or component type: Magnetic latching contactor
Ambient air temperature for storage: -76...176 °F (-60...80 °C)
Device application: Control
Contactor application: Motor controlResistive load
Pole contact composition: 3 NO
Irms rated making capacity: 1700 A
Rated breaking capacity: 1500 A at 220...440 V1200 A at 500 V450 A at 1000 V1100 A at 660/690 V
[Icw] rated short-time withstand current: 1200 A <= 104 °F (40 °C) 10 s700 A <= 104 °F (40 °C) 30 s600 A <= 104 °F (40 °C) 1 min450 A <= 104 °F (40 °C) 3 min350 A <= 104 °F (40 °C) 10 min1200 A <= 104 °F (40 °C) 1 s1200 A <= 104 °F (40 °C) 5 s
Average impedance: 0.45 mOhm at 50 Hz - Ith 250 A
Power dissipation per pole: 18 W AC-16 W AC-3
