CR1F265G7

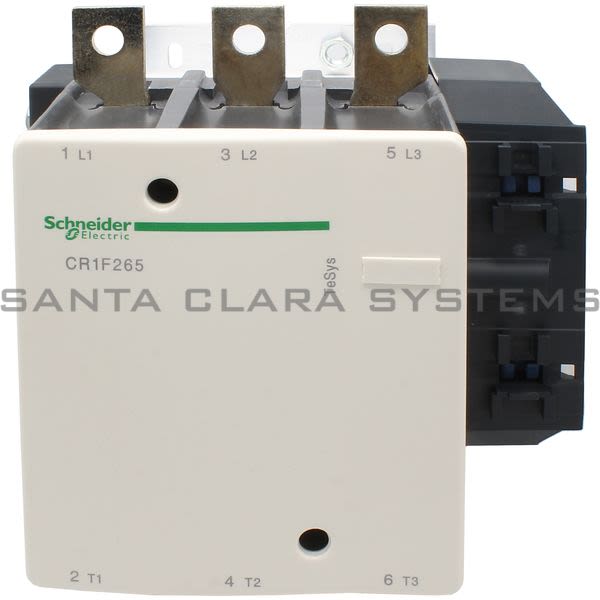

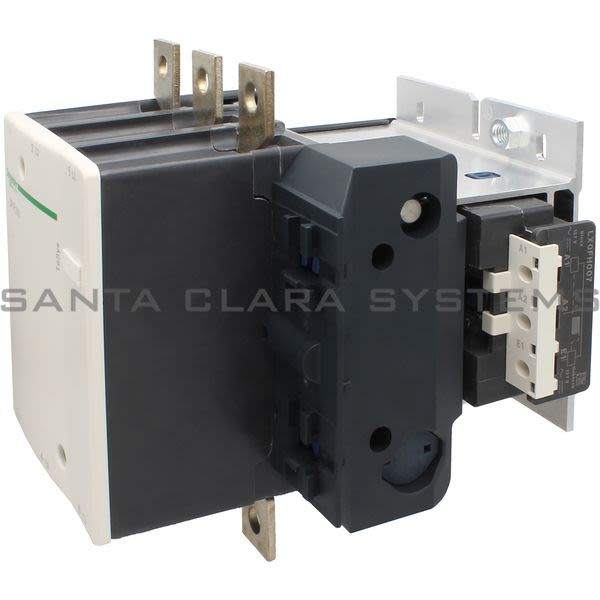

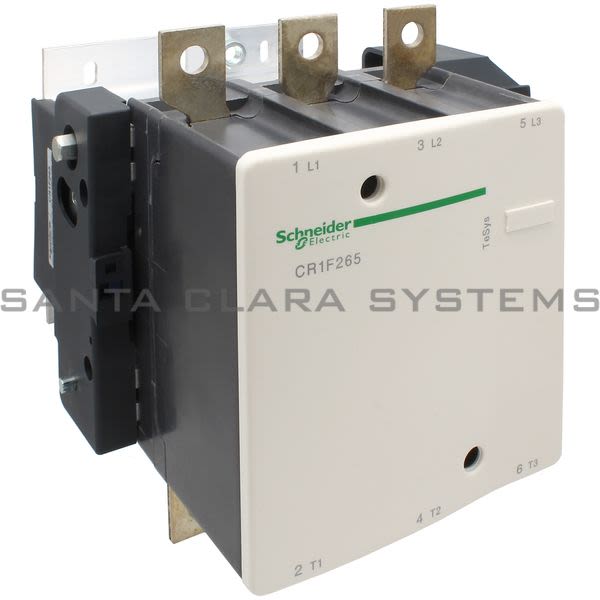

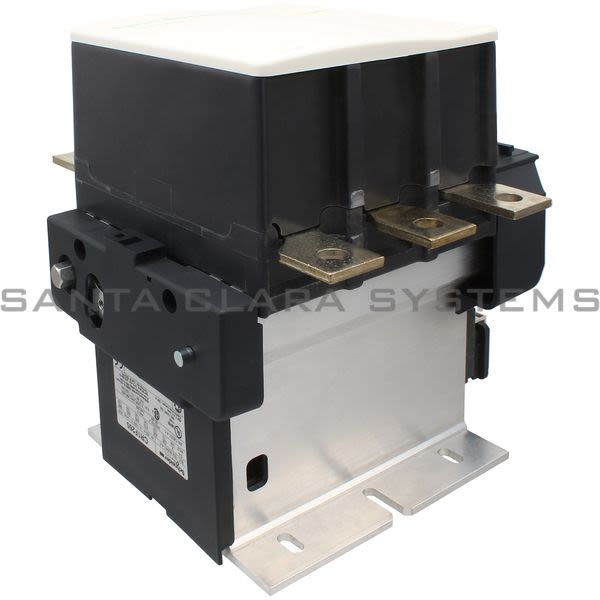

Telemecanique - TeSys F magnetic latching contactor - 3P(3 NO) - 265 A - 127 V AC/DC coil

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys F magnetic latching contactor - 3P(3 NO) - 265 A - 127 V AC/DC coil
Product weight: 16.31 lb(US) (7.4 kg)
Device short name: CR1F
Width: 7.93 in (201.5 mm)
Height: 7.99 in (203 mm)
Depth: 8.39 in (213 mm)
Protective treatment: TC
[Ui] rated insulation voltage: 1500 V conforming to VDE 0110 group C1000 V conforming to IEC 60158-11000 V conforming to IEC 60947-41000 V conforming to BS 775
Operating altitude: 9842.52 ft. (3000 m) without derating in temperature
Mechanical durability: 1 Mcycles
Tightening torque: 309.73 lbf.in (35 N.m)
Connections - terminals: Lugs-ring terminals 1 cable(s) 0.37 in² (240 mm²)Connector 1 cable(s) 0.37 in² (240 mm²)Bars 2 x (32 x 4 mm)Power circuit : bolted connection
Range: TeSys
System Voltage: 1000 V AC 25...200 Hz
Operating rate: 120 cyc/h at <= 104 °F (40 °C)
Product name: TeSys F
[Uc] control circuit voltage: 127 V AC 50...400 Hz127 V DC
motor power kW: 132 kW 400 V AC 50/60 Hz AC-4
[Ie] rated operational current: 350 A (<= 104 °F (40 °C)) at <= 440 V AC AC-1265 A (<= 104 °F (40 °C)) at <= 440 V AC AC-3245 A (<= 104 °F (40 °C)) at <= 440 V AC AC-4

Utilization category: AC-4AC-1AC-3
Control circuit voltage limits: 0.85...1.1 Uc latching0.85...1.1 Uc unlatching
Poles description: 3P
Operating time: 50...100 ms unlatching40...75 ms latching
Associated fuse rating: 315 A aM at <= 440 V400 A gG at <= 440 V400 A BS88 at <= 440 V
Control circuit type: AC 50...400 HzDC standard
Average coil consumption: 1800 VA AC 50...400 Hz latching1800 VA DC latching12 VA AC 50...400 Hz unlatching12 VA DC unlatching
Ambient air temperature for operation: 5...158 °F (-15...70 °C)
Product or component type: Magnetic latching contactor
Ambient air temperature for storage: -76...176 °F (-60...80 °C)
Device application: Control
Contactor application: Resistive loadMotor control
Pole contact composition: 3 NO
Irms rated making capacity: 2940 A
Rated breaking capacity: 2450 A at 220...440 V2200 A at 500 V800 A at 1000 V1700 A at 660/690 V
[Icw] rated short-time withstand current: 2200 A <= 104 °F (40 °C) 10 s1230 A <= 104 °F (40 °C) 30 s950 A <= 104 °F (40 °C) 1 min620 A <= 104 °F (40 °C) 3 min480 A <= 104 °F (40 °C) 10 min2200 A <= 104 °F (40 °C) 1 s2200 A <= 104 °F (40 °C) 5 s
Average impedance: 0.32 mOhm at 50 Hz - Ith 350 A
Power dissipation per pole: 22 W AC-339 W AC-1
