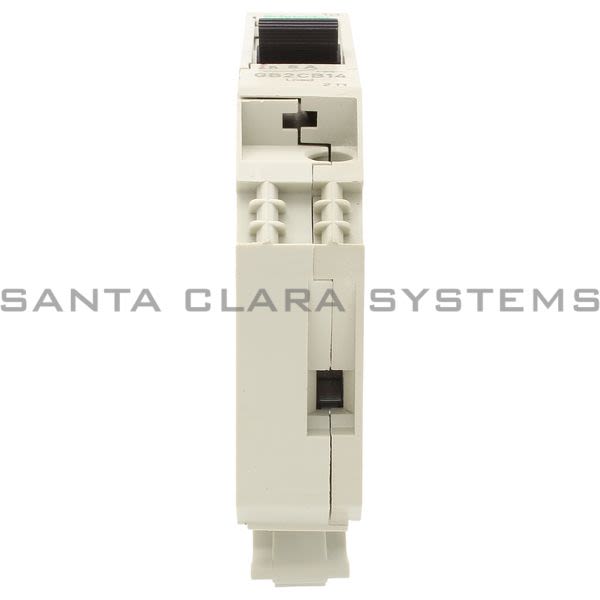

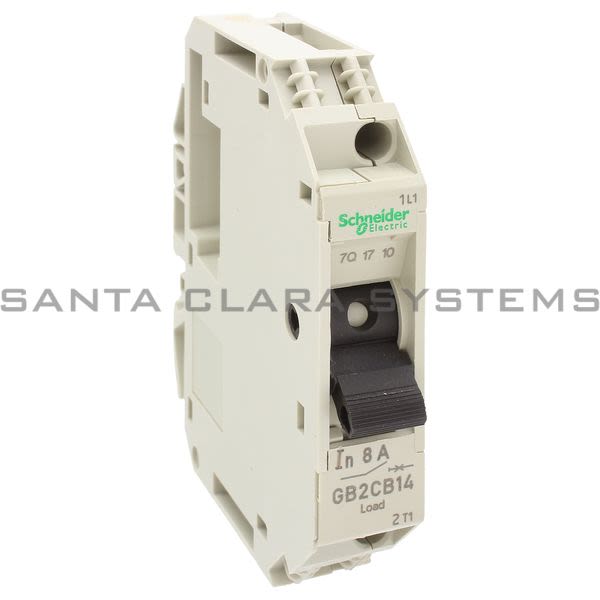

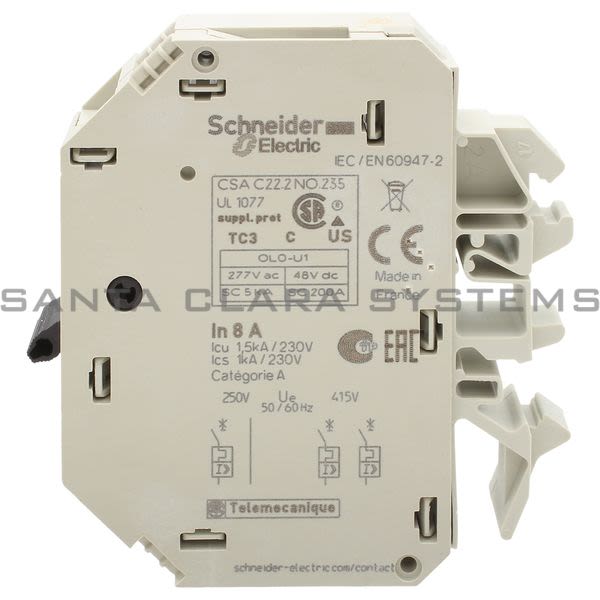

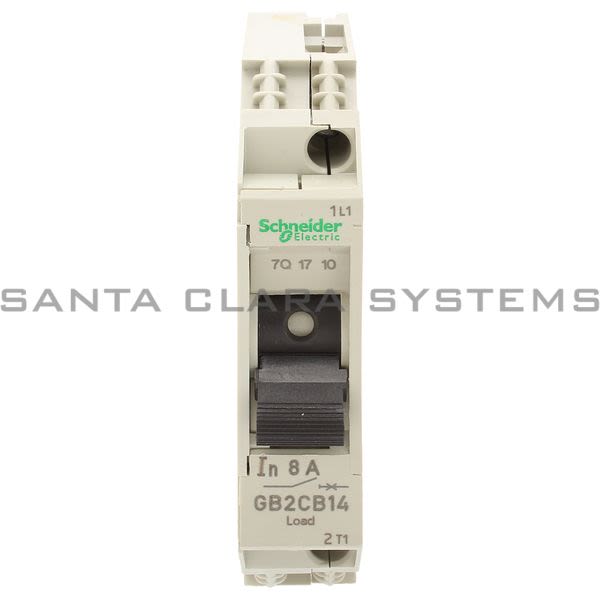

GB2CB14

Telemecanique - TeSys GB2 - thermal-magnetic circuit breaker - 1P - 8 A - Id = 108 A

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys GB2 - thermal-magnetic circuit breaker - 1P - 8 A - Id = 108 A
IP degree of protection: IP20 conforming to IEC 60529
Standards: IEC 60947-2, EN 60947-2, IEC 60947-1, EN 60947-1
Device short name: GB2
Width: 0.59 in (15 mm)
Height: 2.91 in (74 mm)
Depth: 2.64 in (67 mm)
Protective treatment: TC
[Uimp] rated impulse withstand voltage: 4 kV conforming to IEC 60947-2
Operating altitude: 9842.52 ft. (3000 m)
Mechanical durability: 8000 cycles
Tightening torque: 10.62 lbf.in (1.2 N.m) - on connector
Connections - terminals: Connector 1 cable(s) 0...0.01 in (0.75...6 mm) - cable stiffness : solid - without cable end, Connector 2 cable(s) 0...0.01 in (0.75...4 mm) - cable stiffness : solid - without cable end, Connector 1 cable(s) 0...0.01 in (0.75...4 mm) - cable stiffness : flexible - with cable end, Connector 2 cable(s) 0...0 in (0.75...2.5 mm) - cable stiffness : flexible - with cable end
Range: TeSys
Mounting support: Plate, Rail
System Voltage: 277 V AC 50/60 Hz conforming to CSA C22.2 No 14, 48 V DC, 250 V AC 50/60 Hz conforming to IEC 60947-2, 277 V AC 50/60 Hz conforming to UL 1077
Product name: TeSys GB2
Electrical durability: 8000 cycles
Utilization category: Category A conforming to IEC 60947-2, DC-12 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1
Poles description: 1P

Control type: Toggle
Breaking capacity: Icu = 1 kAat 48 V DC conforming to IEC 60947-2, Icu = 3 kAat 110 V AC 50/60 Hz conforming to IEC 60947-2, Icu = 1.5 kAat 24 V DC conforming to IEC 60947-2, Icu = 1.5 kAat 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Mounting position: Horizontal, Vertical
Mounting mode: By clips
Product certifications: NEMKO, UL, CSA
Product or component type: Circuit breaker
Device application: Control
[In] rated current: 8:00 AM
Ambient air temperature for operation: -4...140 F (-20...60 C)
Ambient air temperature for storage: -40...176 F (-40...80 C)
Network type: AC/DC
Fire resistance: 1760 F (960 C) conforming to IEC 60695-2-1
Power dissipation per pole: 2 W
Network frequency: 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity: 75 %at 110 V AC 50/60 Hz conforming to IEC 60947-2, 75 %at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Trip unit technology: Thermal-magnetic
Magnetic tripping current: 108 A
Mechanical robustness: Shocks 22 Gn for 20 ms conforming to IEC 60068-2-27, Vibrations 5 Gn, 5...110 Hz conforming to IEC 60068-2-6
Quantity per set: Set of 6
9 mm pitches: 2

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GB2CB14 . Santa Clara Systems carries 10,301 items from Telemecanique.
