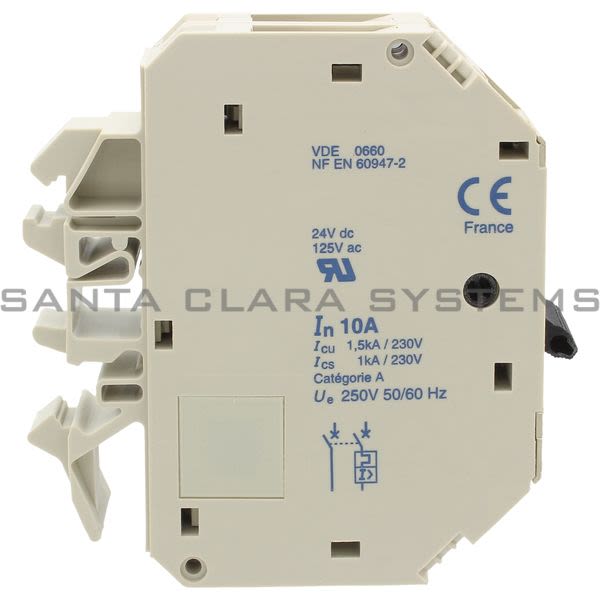

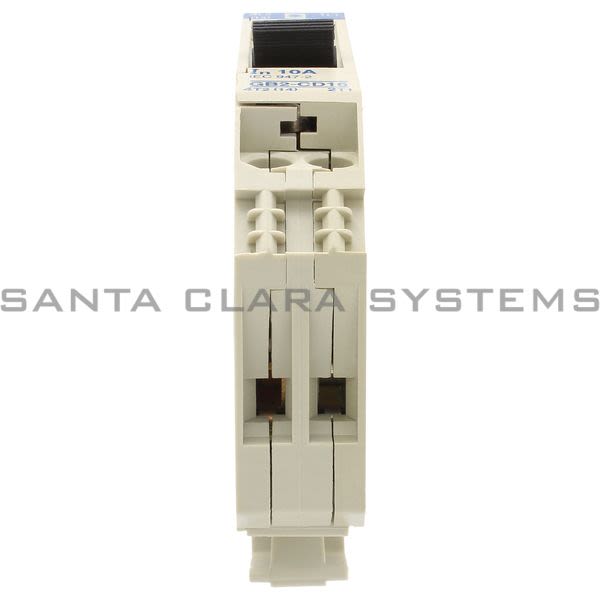

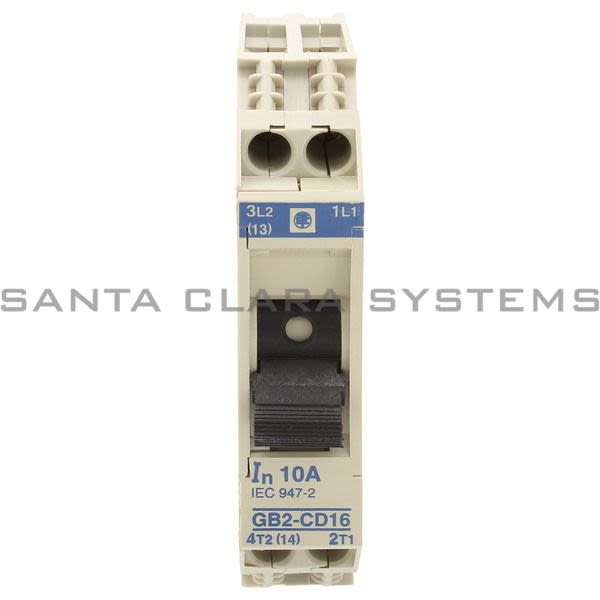

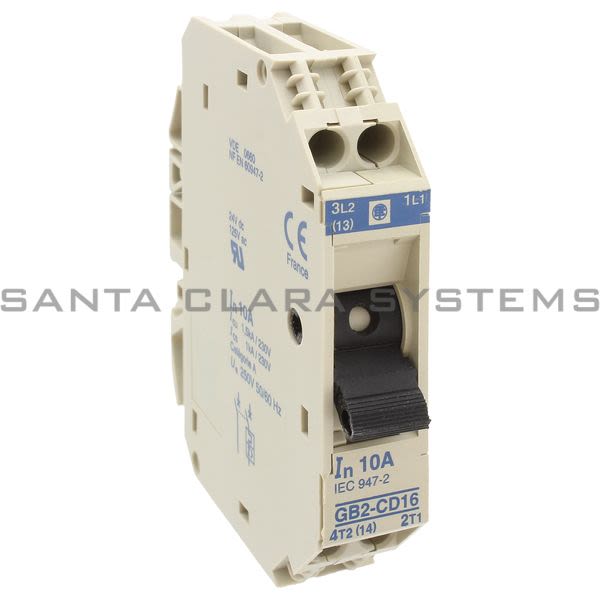

GB2CD16

Telemecanique - Circuit Protector

Current response time:

15 Minutes 43 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Circuit Protector
IP degree of protection: IP20 conforming to IEC 60529
Standards: EN/IEC 60947-1
Device short name: GB2
Width: 15 mm
Height: 74 mm
Depth: 67 mm
Protective treatment: TC
[Uimp] rated impulse withstand voltage: 4 kV IEC 60947-2
Operating altitude: 3000 m
Mechanical durability: 8000 cycles
Tightening torque: 1.2 N.m on connector
Connections - terminals: Connector 1 cable(s) 0.75…6 mm²solid without cable end
Range: TeSys
Mounting support: Plate
Electrical durability: 8000 cycles
Poles description: 1P + N
Control type: Toggle
Breaking capacity: 2 kA Icu at 110 V AC 50/60 Hz conforming to IEC 60947-2
Mounting position: Horizontal
Product or component type: Circuit breaker
Device application: Control

Network type: AC/DC
Utilisation category: Category A conforming to IEC 60947-2
Network frequency: 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity: 75 % at 110 V AC 50/60 Hz conforming to IEC 60947-2
Trip unit technology: Thermal-magnetic
Magnetic tripping current: 138 A
Mounting mode: By clips
[In] rated current: 0.416666666666667
[Ue] rated operational voltage: 250 V AC 50/60 Hz conforming to IEC 60947-2
Power dissipation per pole: 2 W
Mechanical robustness: Shocks: 22 Gn for 20 ms conforming to IEC 60068-2-27
Quantity per set: Set of 6
9 mm pitches: 2
Net weight: 0.07 kg
Product certifications: UL
Ambient air temperature for operation: -20…60 °C
Ambient air temperature for storage: -40…80 °C
Fire resistance: 960 °C conforming to IEC 60695-2-1
Toxic heavy metal free: Yes
Mercury free: Yes
Environmental Disclosure: Product Environmental Profile
Circularity Profile: No need of specific recycling operations
