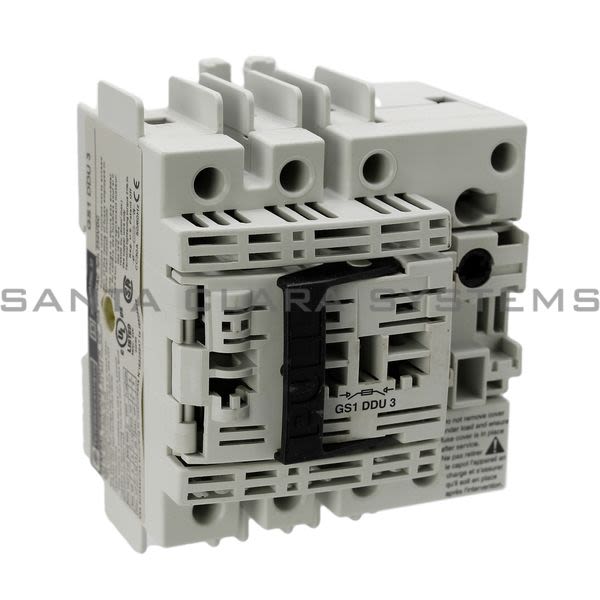

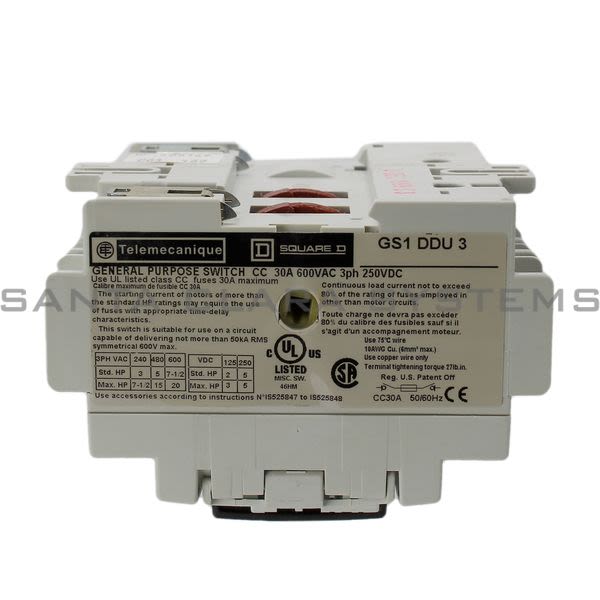

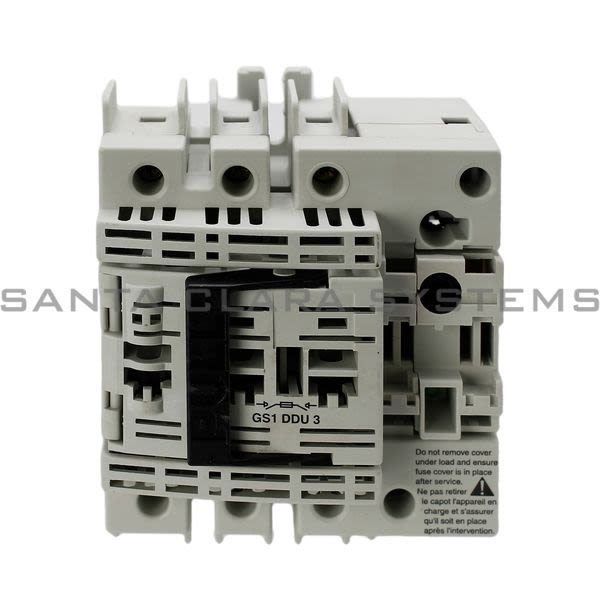

- Description: Disconnect Switch
- Product weight: 1.32 lb(US) (0.6 kg)
- IP degree of protection: IP20 with terminal cover conforming to IEC 60529
- Standards: UL98CSA C22.2 No 4
- Device short name: GS1 DD
- Width: 3.82 in (97 mm)
- Height: 4.57 in (116 mm)
- Depth: 83.5 mm
- [Ui] rated insulation voltage: 690 V
- [Uimp] rated impulse withstand voltage: 8 kV
- Mechanical durability: 10000 cycles
- Tightening torque: Power circuit: 26.55 lbf.in (3 N.m)
- Connections - terminals: Power circuit: lugs-ring terminals cable 2...6 mm²
- Range: TeSys
- Mounting support: RailPlate
- [Ith] conventional free air thermal current: 30 A at 104 °F (40 °C)
- Product name: TeSys GS
- Electrical durability: 6000 cycles
- [Ie] rated operational current: 30 A
- Poles description: 3P
- Fuse type: UL
- Fuse size: CC
- Type of operating handle: External frontalDirect frontal
- Product certifications: ASEFALOVAGLROS (Lloyds register of shipping)
- Product or component type: Switch-disconnector-fuse
- Ambient air temperature for operation: -4...158 °F (-20...70 °C)
- Device application: Protection
- rated operational power in W: 15 kW at 400 V25 kW at 690 V18.5 kW at 500 V
- Ambient air temperature for storage: -40...176 °F (-40...80 °C)
- Design: Compact
- Short-circuit withstand: 5.5 kA
- Fire resistance: 1760 °F (960 °C) body conforming to IEC 60695-2-1
- Protected poles description: 3t
- Contacts type and composition: 3 NO
- Network type: ACDC
- Network frequency: 50/60 Hz
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GS1DDU3 . Santa Clara Systems carries 10,621 items from Telemecanique.
- Tesys Gs - Switch-Disconnector-Fuse - 3 P - Ul 30 A - Fuse Size Cc
