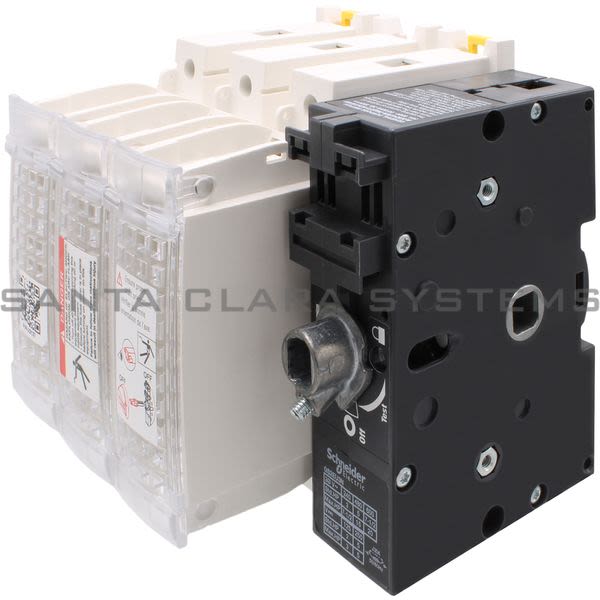

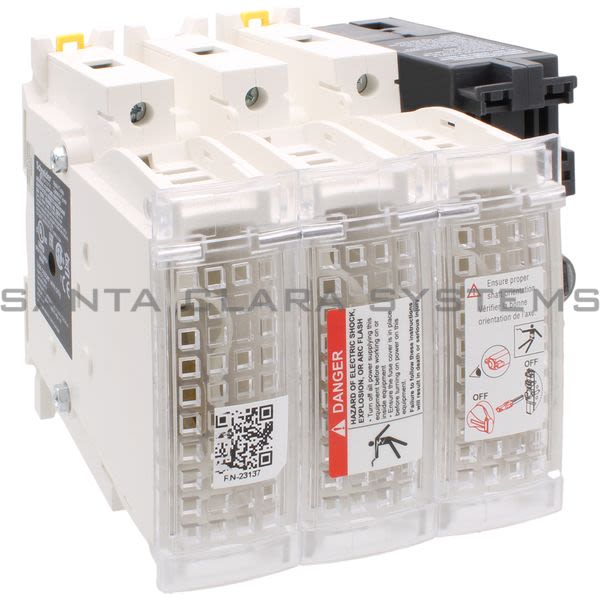

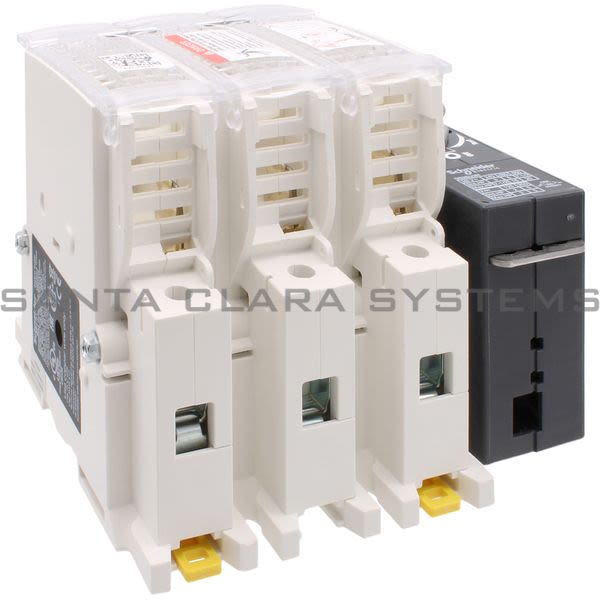

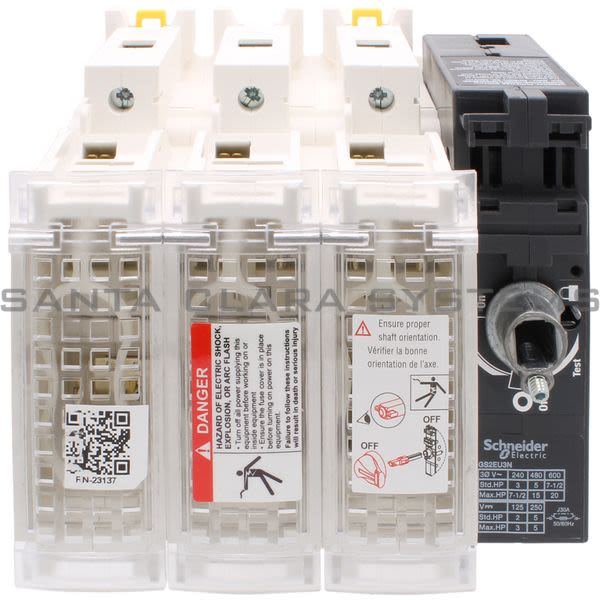

GS2EU3N

Telemecanique - Disconnect Switch

Current response time:

By 5AM PT on Tuesday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Disconnect Switch
IP degree of protection: IP20 with terminal cover conforming to IEC 60529
Standards: UL98CSA C22.2 No 4
Device short name: GS2EU
Width: 5.88 in (149.3 mm)
Height: 5.35 in (136 mm)
Depth: 4.84 in (123 mm)
[Ui] rated insulation voltage: 750 V
[Uimp] rated impulse withstand voltage: 8 kV
Mechanical durability: 10000 cycles
Tightening torque: Power circuit : 6.6 N.m
Connections - terminals: Power circuit : lugs-ring terminals cable 2...13 mm²
Range: TeSys
Mounting support: PlateRail
[Ith] conventional free air thermal current: 30 A at 104 °F (40 °C)
Product name: TeSys GS

Electrical durability: 6000 cycles
[Ie] rated operational current: 30 A
Poles description: 3P
Fuse type: UL
Fuse size: J
Type of operating handle: External frontal
Ambient air temperature for operation: -4...158 °F (-20...70 °C)
Product or component type: Switch-disconnector-fuse
Ambient air temperature for storage: -40...176 °F (-40...80 °C)
rated operational power in W: 15 kW at 400 V25 kW at 690 V18.5 kW at 500 V
Fire resistance: 1760 °F (960 °C) body
Protected poles description: 3t
Short-circuit withstand: 17.6 kA
Contacts type and composition: 3 NO
Network type: ACDC
Network frequency: 50/60 Hz

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GS2EU3N . Santa Clara Systems carries 10,621 items from Telemecanique.
