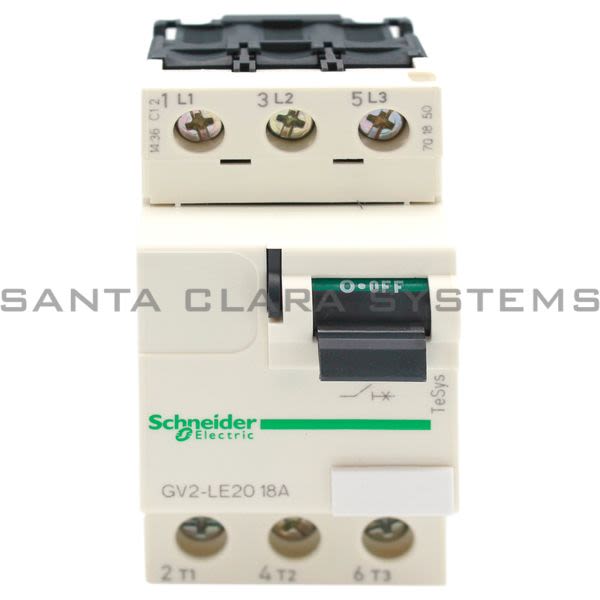

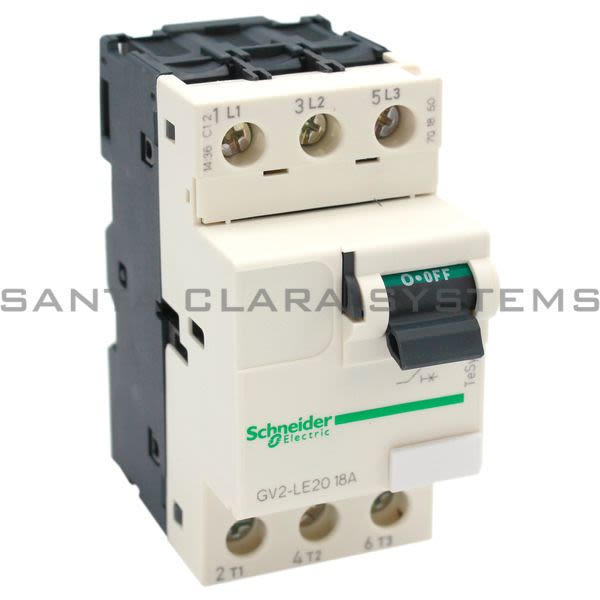

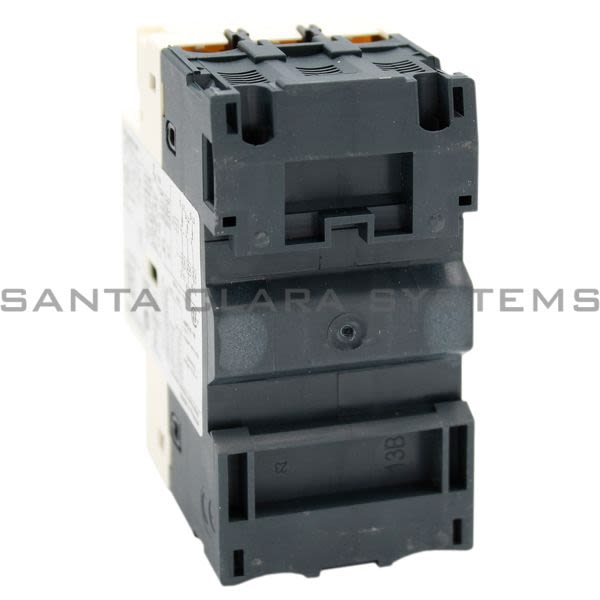

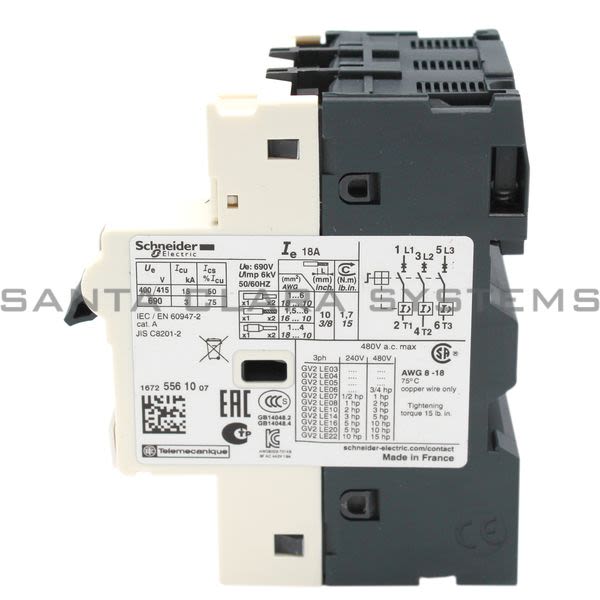

GV2LE20

Telemecanique - Manual Motor Starter

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Manual Motor Starter
IP degree of protection: IP20 conforming to IEC 60529
Standards: EN/IEC 60947-2
Device short name: GV2LE
Width: 45 mm
Height: 89 mm
Depth: 78.5 mm
Protective treatment: TH
[Ui] rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage: IEC 60947-2 6 kV
Operating altitude: 0...2000 m
Mechanical durability: 100000 cycles
Tightening torque: 1.7 N.m on screw clamp terminals
Connections - terminals: Screw clamp terminals 2 cable(s) 16 mm solid
Range: TeSys
Electrical durability: 100000 cycles for AC-3 at 415 V
motor power kW: 7.5 kW at 400/415 V AC 50/60 Hz
Poles description: 3P
Control type: Toggle
Breaking capacity: 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Device application: Motor
Network type: AC
Utilisation category: Category A conforming to IEC 60947-2

Network frequency: 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity: 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Trip unit technology: Magnetic
Magnetic tripping current: 223 A
Fixing mode: 35 mm symmetrical DIN rail: clipped
Operating position: Any position
[Ue] rated operational voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
Power dissipation per pole: 1.8 W
Maximum operating rate: 40 cyc/h
Rated duty: Continuous conforming to IEC 60947-4-1
Mechanical robustness: Shocks: 30 Gn conforming to IEC 60068-2-27
Suitability for isolation: Yes conforming to IEC 60947-1
Net weight: 0.33 kg
Product certifications: IECEE CB Scheme
IK degree of protection: IK04
Ambient air temperature for operation: -2060 C
Ambient air temperature for storage: -4080 C
Fire resistance: 960 C conforming to IEC 60695-2-1
REACh Regulation: REACh Declaration
Mercury free: Yes
Environmental Disclosure: Product Environmental Profile
Circularity Profile: No need of specific recycling operations
WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GV2LE20 . Santa Clara Systems carries 10,300 items from Telemecanique.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
