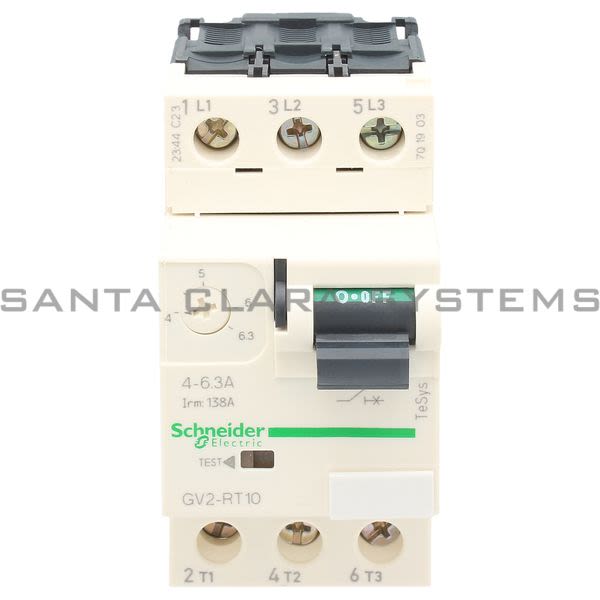

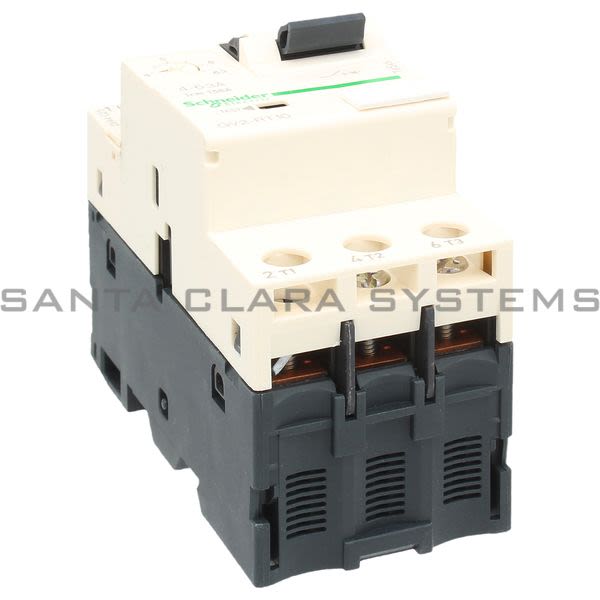

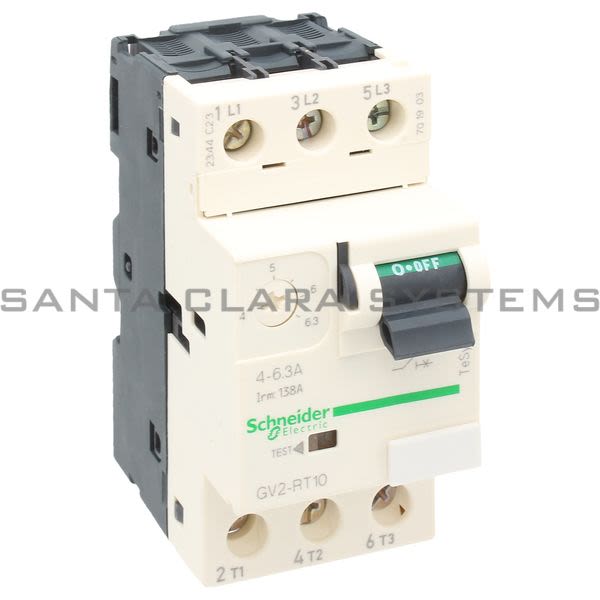

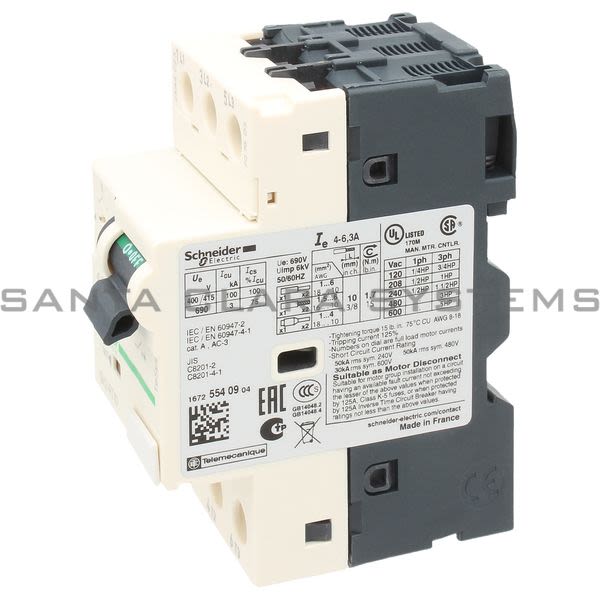

GV2RT10

Telemecanique - TeSys GV2 - Motor circuit breaker - thermal-magnetic - 4?6.3 A

Current response time:

16 Minutes 13 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys GV2 - Motor circuit breaker - thermal-magnetic - 4?6.3 A
IP degree of protection: IP20 conforming to IEC 60529
Standards: EN/IEC 60947-2
Device short name: GV2RT
Width: 45 mm
Height: 89 mm
Depth: 78.5 mm
Protective treatment: TH
[Ui] rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage: IEC 60947-2 6 kV
Operating altitude: 2000 m
Mechanical durability: 100000 cycles
Tightening torque: 1.7 N.m on screw clamp terminals
Connections - terminals: Screw clamp terminals 2 cable(s) 1…6 mm² solid
Range: TeSys
[Ith] conventional free air thermal current: 6.3 A conforming to IEC 60947-4-1
Electrical durability: 100000 cycles for AC-3 at 440 V
motor power kW: 1.1 kW at 220/230 V AC 50/60 Hz motor protection high peak current
Poles description: 3P
Control type: Toggle
Breaking capacity: 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Device application: Motor
Trip unit technology: Thermal-magnetic

Network type: AC
Utilisation category: AC-3 conforming to IEC 60947-4-1
Network frequency: 50/60 Hz conforming to IEC 60947-4-1
Fixing mode: 35 mm symmetrical DIN rail: clipped
Operating position: Any position
[In] rated current: 6.3 A
Thermal protection adjustment range: 4…6.3 A
Magnetic tripping current: 138 A
[Ue] rated operational voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
Power dissipation per pole: 2.5 W
Maximum operating rate: 25 cyc/h
Rated duty: Continuous conforming to IEC 60947-4-1
Suitability for isolation: Yes conforming to IEC 60947-1
Product certifications: IECEE CB Scheme
IK degree of protection: IK04
Ambient air temperature for operation: -20…60 °C
Ambient air temperature for storage: -40…80 °C
Fire resistance: 960 °C conforming to IEC 60695-2-1
REACh Regulation: REACh Declaration
Mercury free: Yes
Environmental Disclosure: Product Environmental Profile
Circularity Profile: No need of specific recycling operations
WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
