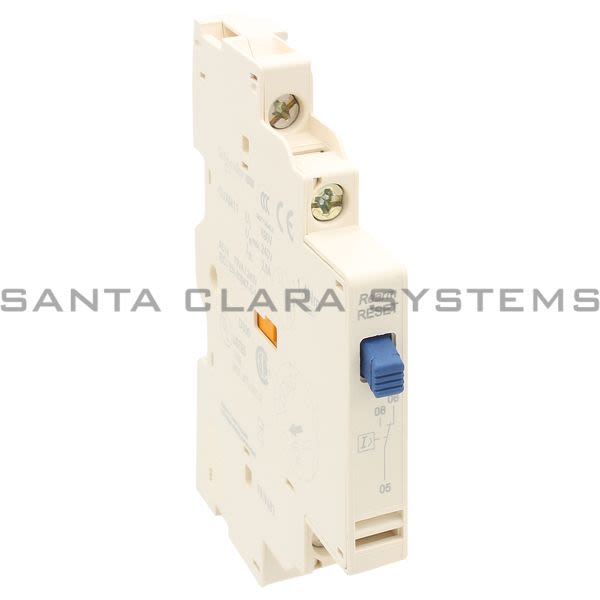

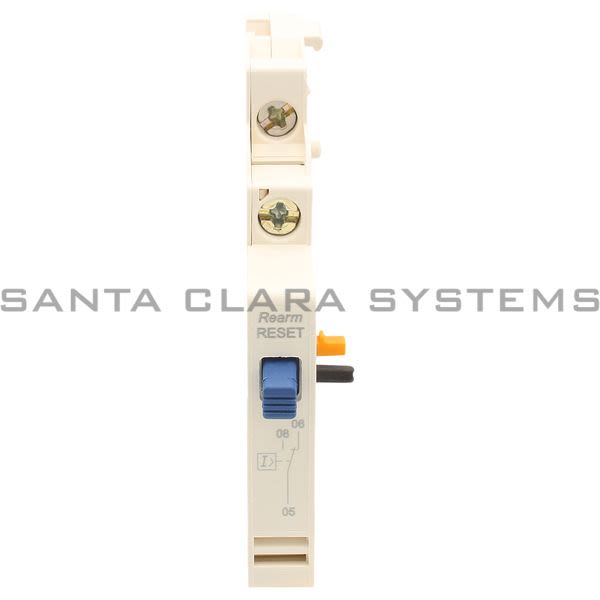

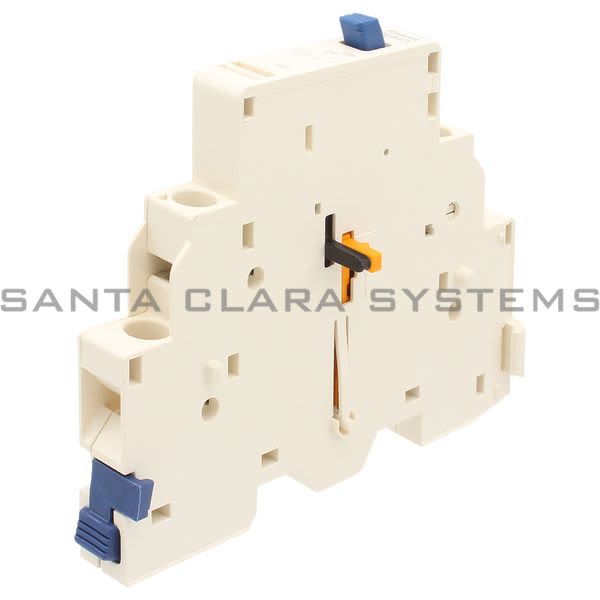

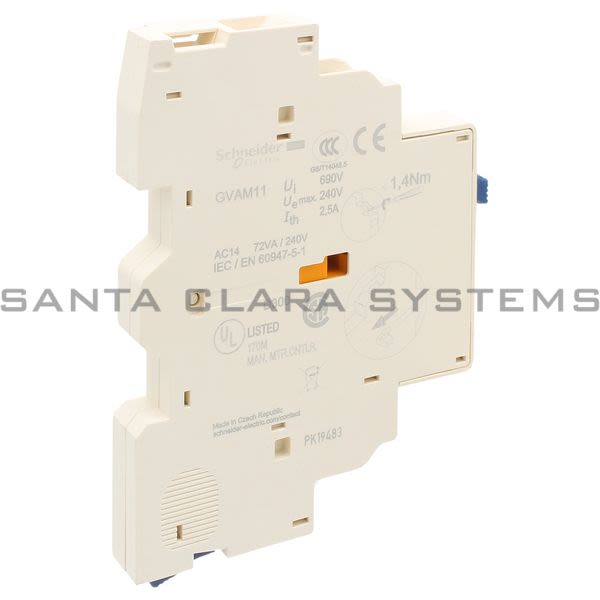

GVAM11

Telemecanique - Auxiliary Contact

Current response time:

6 Minutes 58 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Auxiliary Contact
Device short name: GVAM
Width: 9.3 mm
Height: 89 mm
Depth: 66 mm
[Ui] rated insulation voltage: 690 V conforming to IEC 60947-1
Mechanical durability: 100000 cycles
Tightening torque: 1.4 N.m - on screw clamp terminals
Connections - terminals: Screw clamp terminals 1 cable(s) 1…2.5 mm²solid
Range: TeSys
[Ith] conventional free air thermal current: 2.5 A for fault signalling
Protection type: GB2CB... circuit breaker rating according to operational current for Ue <= 415 V
Product or component type: Auxiliary contact block
Product compatibility: GV2L
Range compatibility: GV2 GV2 circuit breaker
Mounting location: Left side

Auxiliary contacts operation: Short-circuit signal 1 C/O
Pole contact composition: 1 C/O
[Ue] rated operational voltage: 24...240 V AC
Minimum switching current: 5 mA
Minimum switching voltage: 17 V
rated operational power in VA: 36 VA at 24 V AC-14 - electrical durability: 1000 cycles at 1.5 A
rated operational power in W: 120 W at 240 V DC-13 - electrical durability: 100000 cycles
Net weight: 0.055 kg
Environmental characteristic: Normal environment
REACh Regulation: REACh Declaration
Toxic heavy metal free: Yes
Mercury free: Yes
Environmental Disclosure: Product Environmental Profile
Circularity Profile: No need of specific recycling operations
WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
