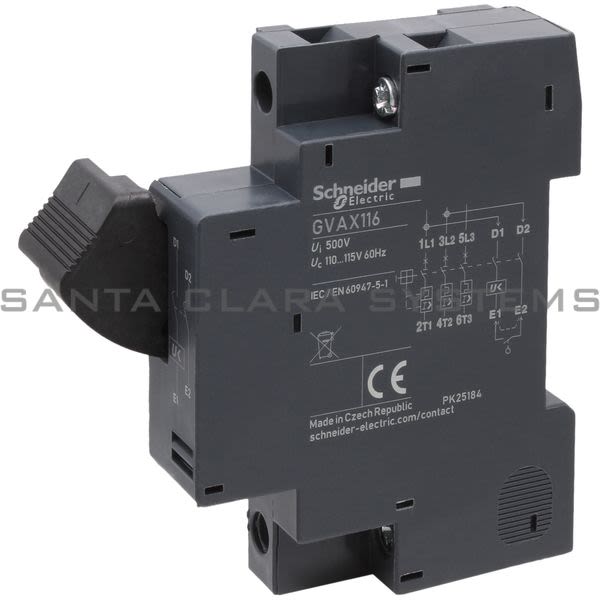

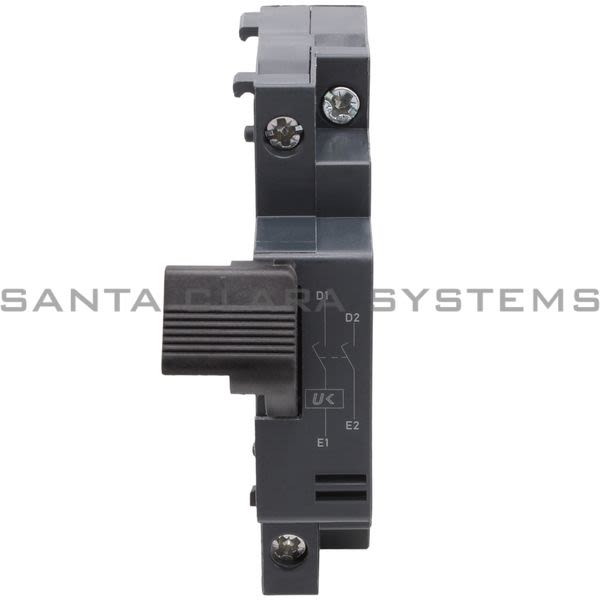

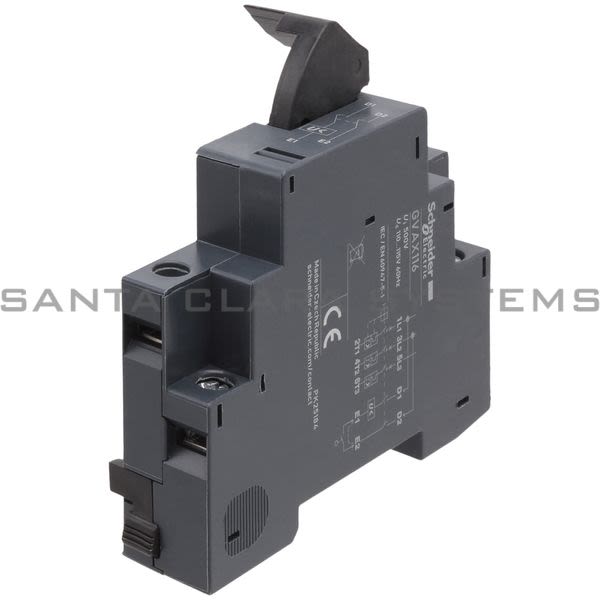

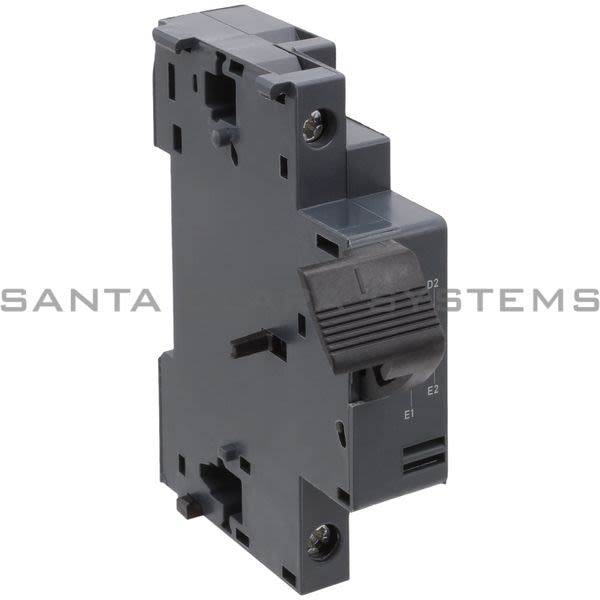

GVAX116

Telemecanique - Under Voltage Trip

Current response time:

14 Minutes 24 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Under Voltage Trip
Product weight: 0.23 lb(US) (0.105 kg)
Device short name: GVAX
[Ui] rated insulation voltage: 600 V AC CSA C22.2 No 14600 V AC UL 508690 V AC IEC 60947-1
Mechanical durability: 10000 cycles with GV3P and GV3L30000 cycles with GV2ME and GV2P
Tightening torque: <= 12.39 lbf.in (1.4 N.m) screw clamp terminals
Connections - terminals: Screw clamp terminals 1 0...0 in² (0.75...2.5 mm²) flexible withoutScrew clamp terminals 1 0...0 in² (1...2.5 mm²) solidScrew clamp terminals 2 0...0 in² (0.75...2.5 mm²) flexible withoutScrew clamp terminals 2 0...0 in² (1...2.5 mm²) solidScrew clamp terminals 1 0...0 in² (0.75...1.5 mm²) flexible withScrew clamp terminals 2 0...0 in² (0.75...1.5 mm²) flexible with
Range: TeSys
[Uc] control circuit voltage: 110...115 V AC 60 Hz
Control circuit voltage limits: 0.85...1.1 Un
Operating time: 10...15 ms IEC 60947-1
Category: 22367 - MANUAL STR PROTECTOR - GV2
Returnability: N
Country of origin: CZ

Product compatibility: GV2ME
Discount Schedule: I11
Product or component type: Safety undervoltage trip
GTIN: 785901493204
Nbr. of units in pkg.: 1
Threshold tripping voltage: 0.7...0.35 Un
Package weight(Lbs): 0
inrush power in VA: 12 VA AC
inrush power in W: 8 W DC
hold-in power consumption in VA: 3.5 VA AC
hold-in power consumption in W: 1.1 W DC
On-load factor: 100%
Quantity per set: Set of 10

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GVAX116 . Santa Clara Systems carries 10,621 items from Telemecanique.
