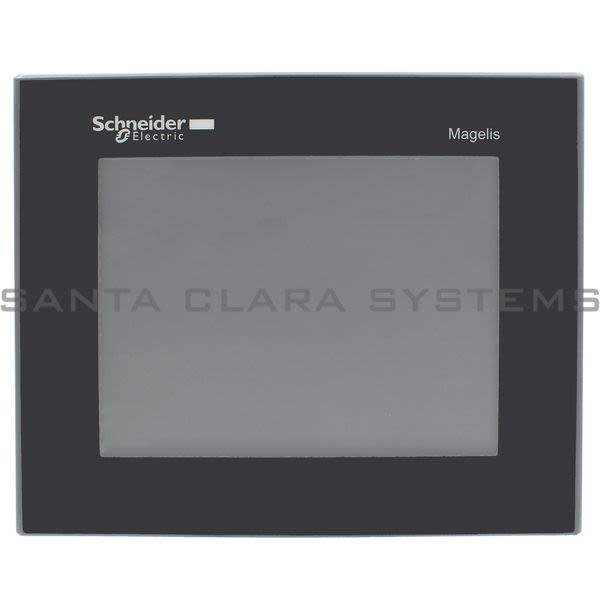

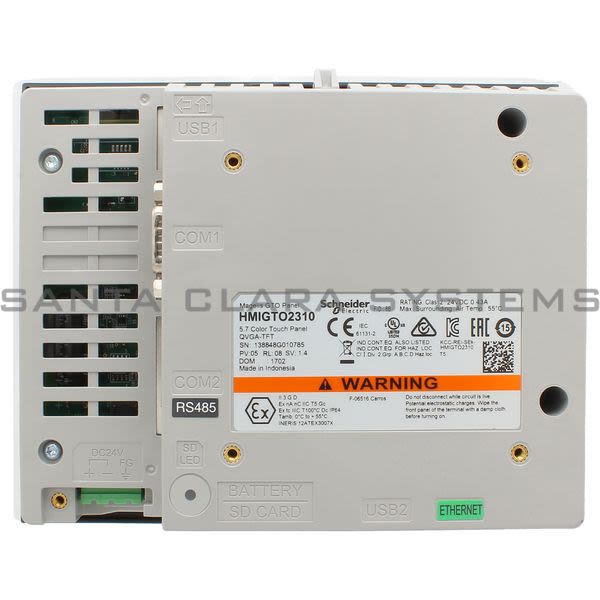

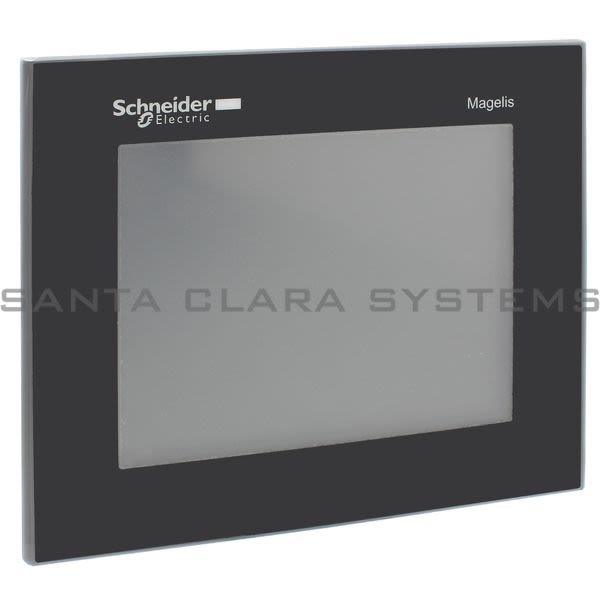

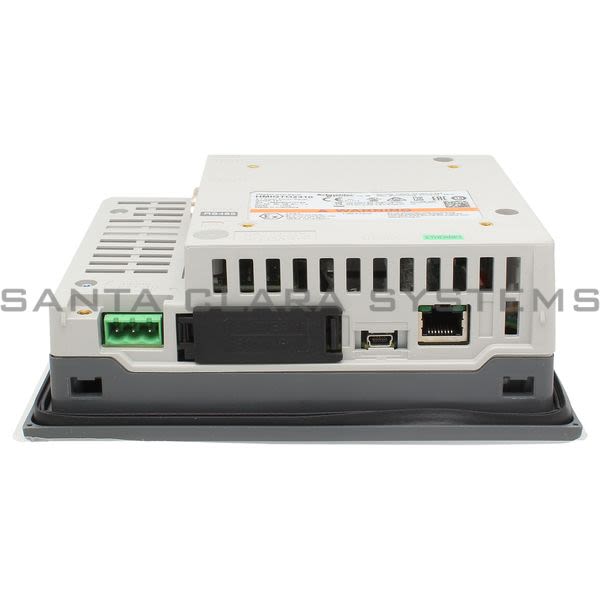

HMIGTO2310

Telemecanique - advanced touchscreen panel 320 x 240 pixels QVGA- 5.7" TFT - 96 MB

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: advanced touchscreen panel 320 x 240 pixels QVGA- 5.7" TFT - 96 MB
Product weight: 1.76 lb(US) (0.8 kg)
Range of product: Magelis GTO
IP degree of protection: IP20 rear panel conforming to IEC 60529IP65 front panel conforming to IEC 60529
Standards: UL 508EN 61131-2IEC 61000-6-2
Width: 6.67 in (169.5 mm)
Height: 5.39 in (137 mm)
Depth: 2.34 in (59.5 mm)
Operating altitude: < 6561.68 ft. (2000 m)
Shock resistance: 147 m/s² 3 chocks in each direction X, Y and Z conforming to EN/IEC 61131-2
Vibration resistance: 3.5 mm (f = 5...9 Hz) conforming to EN/IEC 61131-2 X, Y, Z directions for 10 cycles (approx. 100 min)1 gn (f = 9...150 Hz) conforming to EN/IEC 61131-2 X, Y, Z directions for 10 cycles (approx. 100 min)
[Us] rated supply voltage: 24 V DC
Relative humidity: 10...90 % without condensation
Enclosure material: PPT
Terminal type: Touchscreen display
Product or component type: Advanced touchscreen panel
Display type: Backlit color TFT LCD
Product certifications: KCCC-TickCEcULus
Display color: 65536 colors
Display resolution: 320 x 240 pixels QVGA
Ambient air temperature for operation: 32...131 °F (0...55 °C)
Display size: 5.7 inch
Touch sensitive zone: 1024 x 1024
Ambient air temperature for storage: -4...140 °F (-20...60 °C)

Supply: External source
Touch panel: Resistive film, 1000000 cycles
Operating system: Magelis
Backlight lifespan: 50000 hours (white) at 77 °F (25 °C)
Battery type: Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 d, battery life = 10 yr
Brightness: 16 levels - control by touch panel16 levels - control by software
Character font: Japanese (ANK, Kanji)ASCII (European characters)Taiwanese (traditional Chinese)KoreanChinese (simplified Chinese)
NEMA degree of protection: NEMA 4X front panel (indoor use)
Supply voltage limits: 19.2...28.8 V
Inrush current: <= 30 A
Resistance to electrostatic discharge: 6 kV contact discharge conforming to IEC 61000-4-2 level 3
power consumption in W: <= 10.5 W<= 6.5 W (when power is not supplied to external devices)<= 4.5 W (when backlight is OFF)<= 5 W (when backlight is dimmed)
Local signaling: Status LED (orange) flashing software starting upStatus LED (green) steady offlineStatus LED (green) steady operatingStatus LED (red) steady power supply (ON)Status LED (clear) faded power supply (OFF)COM2 LED (yellow) steady data is being transmittedCOM2 LED (yellow) faded no data transmissionSD card LED (green) steady card is insertedSD card LED (green) faded card is not inserted or is not being accessed
Software designation: Vijeo Designer configuration software >= V6.1
Memory description: 96 MB flash (EPROM)
Data backed up: 512 kB internal RAM (SRAM)
Data storage equipment: SD card <= 32 GBSDHC card <= 32 GB
Downloadable protocols: Modbus Plus Schneider Electric ModiconFIPWAY Schneider Electric ModiconModbus TCP Schneider Electric ModiconModbus Schneider Electric ModiconThird party protocols Mitsubishi MelsecThird party protocols Omron SysmacThird party protocols Rockwell Automation Allen-BradleyThird party protocols Siemens SimaticUni-TE Schneider Electric Modicon
Integrated connection type: COM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bpsCOM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bpsCOM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens MPIEthernet RJ45, interface: 10BASE-T/100BASE-TXEthernet RJ45, interface: IEEE 802.3USB 2.0 type AUSB 2.0 type mini B
Product mounting: Flush mounting
Fixing mode: By 4 screw clamps
Front material: PPT
Type of cooling: Natural convection
