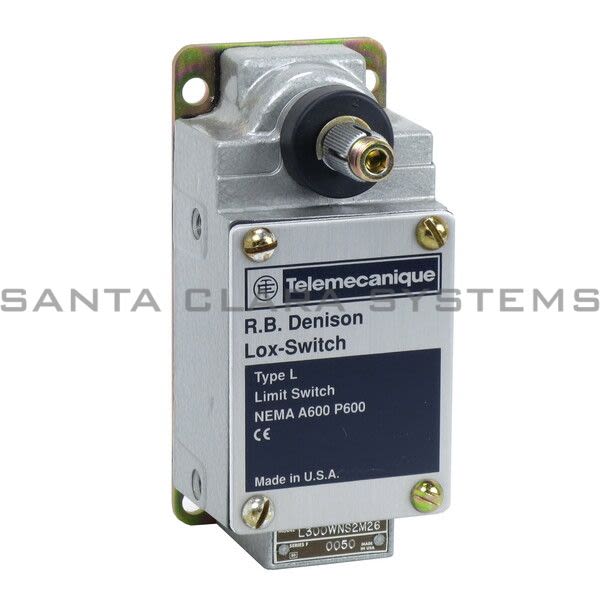

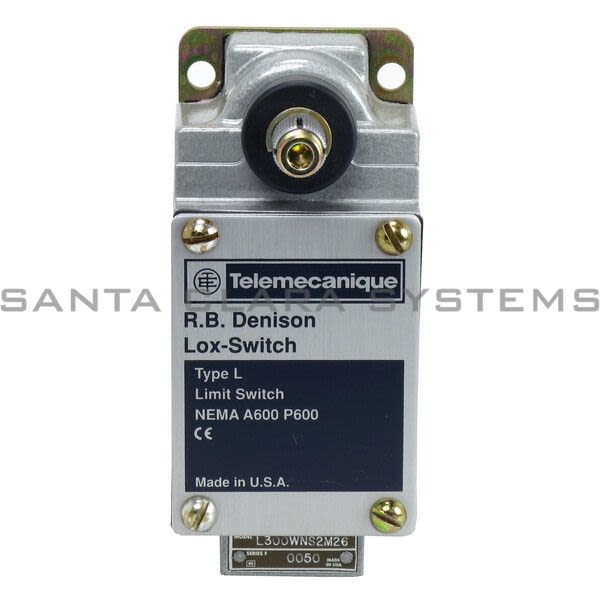

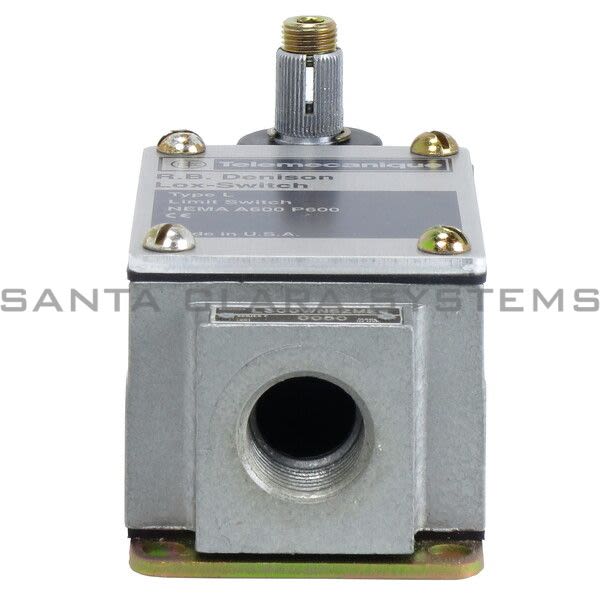

- Description: LIMIT SWITCH 600V 12AMP TYPE L +OPTIONS
- Product weight: 1.5 lb(US)
- Range of product: L100/300
- IP degree of protection: IP67 conforming to IEC 60529
- Device short name: L100, L300
- Width: 2.25 in
- Height: 4.95 in
- Depth: 2.03 in
- Protective treatment: Corrosion resistant gray paint
- [Ui] rated insulation voltage: 600 V (degree of pollution: 3) conforming to UL 508, 600 V (degree of pollution: 3) conforming to CSA C22.2 No 14, 600 V (degree of pollution: 3) conforming to IEC 60947-1
- [Uimp] rated impulse withstand voltage: 2.5 kV AC for 1 minute conforming to CE, 2.2 kV AC for 1 minute conforming to UL, 2.64 kV AC for 1 minute conforming to CSA
- Shock resistance: 30 gn 9 ms conforming to IEC 60068-2-27
- Vibration resistance: 10 gn (f = 10...55 Hz) conforming to IEC 60068-2-6
- Electrical connection: Screw-clamp terminals (AWG 22...AWG 12)
- Number of Poles: 2
- Head type: Rotary head
- Base Plate Style: Style 2
- Body Material: Cast aluminum
- Type of Operator: Spring return without operating lever
- Contact Sequence Number: 26
- Function Available: Neutral position
- Switch actuation: CW and CCW, From left or right
- Contacts Type and Composition: 2 NO
- CW Operation Contacts: 1 NC + 1 NO
- CCW operation contacts: 1 NC + 1 NO
- Contacts Style: D
- Series name: Severe duty foundry
- Product or component type: Limit switch
- Fixing mode: By the body
- NEMA degree of protection: NEMA 1 Nema type 250, NEMA 2 Nema type 250, NEMA 4 Nema type 250, NEMA 12 Nema type 250, NEMA 13 Nema type 250
- Product specific application: Foundry switch
- Electrical shock protection class: Class 0 conforming to IEC 61140
- Body type: Fixed
- Ambient air temperature for operation: -10...185 F
- Ambient air temperature for storage: -10...185 F
- Sale per indivisible quantity: 1
- Type of approach: Lateral approach
- Cable entry: 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
- Switch function: DPST-NO-DB
- Contact form: Form XX
- Contacts material: 90/10 AgCdO on copper backing stationary contact, Silver on steel backing moveable contact
- Contacts usage: -
- Contact operation: Snap action
- Positive opening: Without
- Minimum torque for tripping: 170 ozf.in
- Maximum actuation speed: 90 ft./min with 45 cam angle, levers only, 130 ft./min with 30 cam angle, levers only
- Tripping angle: 9
- Maximum displacement angle: 70
- Repeat accuracy: +/- 0.03 %
- Contact code designation: A600 , AC (Ue = 600 V, Ie = 5 A) conforming to NEMA rating designation, A600 , AC (Ue = 480 V, Ie = 6.25 A) conforming to NEMA rating designation, A600 , AC (Ue = 240 V, Ie = 12.5 A) conforming to NEMA rating designation, A600 , AC (Ue = 120 V, Ie = 20 A) conforming to NEMA rating designation, P600 , DC (Ue = 600 V, Ie = 0.2 A) conforming to NEMA rating designation, P600 , DC (Ue = 250 V, Ie = 1 A) conforming to NEMA rating designation, P600 , DC (Ue = 120 V, Ie = 5 A) conforming to NEMA rating designation
- [Ithe] conventional enclosed thermal current: 20 A
- Short-circuit protection: 20 A Bussmann class CC KTK-R-20 fuse with non-time delay
- terminals description ISO n1: (3-4) right side contact, (1-2) left side contact
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on L300WNS2M26 . Santa Clara Systems carries 10,300 items from Telemecanique.
- Limit Switch 600v 12amp Type L +options
