LA1KN31

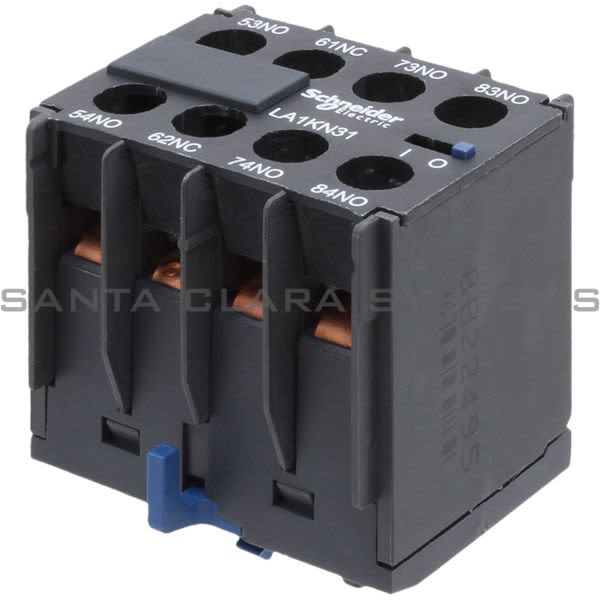

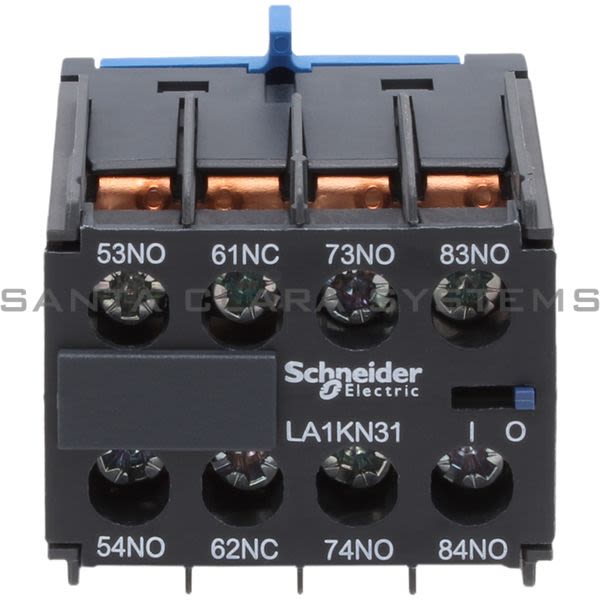

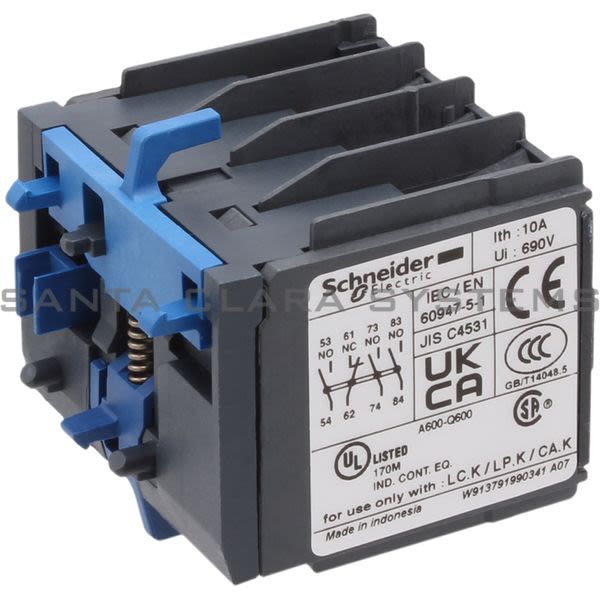

Telemecanique - TeSys K - Auxiliary contact block - 3 NO + 1 NC - screw-clamps terminals

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys K - Auxiliary contact block - 3 NO + 1 NC - screw-clamps terminals
Product weight: 0.045 kg
Range of product: TeSys K control relayTeSys K
IP degree of protection: IP2x conforming to VDE 0106
Standards: NF C 63-110VDE 0660IEC 60947BS 5424
Device short name: LA1
Depth: 35 mm
Protective treatment: TC conforming to IEC 60068
[Ui] rated insulation voltage: 600 V - for control circuit - conforming to CSA C22.2690 V - for control circuit - conforming to BS 5424690 V - for control circuit - conforming to IEC 60947750 V - for control circuit - conforming to VDE 0010 group C
Operating altitude: 2000 m without derating in temperature
Tightening torque: 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 2
Connections - terminals: Screw clamp terminals 1 cable 0.34...1.5 mm² - cable stiffness: flexible - with cable endScrew clamp terminals 2 cable 0.34...1.5 mm² - cable stiffness: flexible - with cable endScrew clamp terminals 1 cable 0.75...4 mm² - cable stiffness: flexible - without cable endScrew clamp terminals 2 cable 0.75...4 mm² - cable stiffness: flexible - without cable endScrew clamp terminals 1 cable 1.5...4 mm² - cable stiffness: solidScrew clamp terminals 2 cable 1.5...4 mm² - cable stiffness: solid
Range: TeSys
[Ith] conventional free air thermal current: 10 A at <= 50 °C
Insulation resistance: > 10 MOhm for control circuit

Associated fuse rating: 10 A gG <= 690 V IEC 6094710 A gG <= 690 V VDE 0660
Mounting location: Front
Environmental characteristic: Normal environment
[Ue] rated operational voltage: <= 690 V AC <= 400 Hz
Product certifications: CSAUL
Product or component type: Auxiliary contact block
Auxiliary contacts operation: Instantaneous
Irms rated making capacity: 110 A at <= 690 V AC conforming to IEC 60947
Pole contact composition: 3 NO + 1 NC
Permissible short-time rating: 80 A 1 s60 A 500 ms110 A 100 ms
Ambient air temperature for operation: -25...50 °C
Ambient air temperature for storage: -50...80 °C
Minimum switching current: 5 mA
Minimum switching voltage: 17 V
Non overlap distance: 0.5 mm

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LA1KN31 . Santa Clara Systems carries 10,621 items from Telemecanique.
