LA1LC012

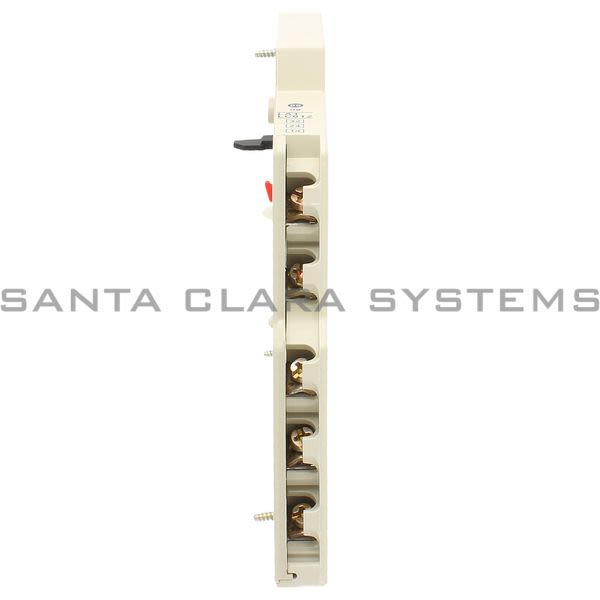

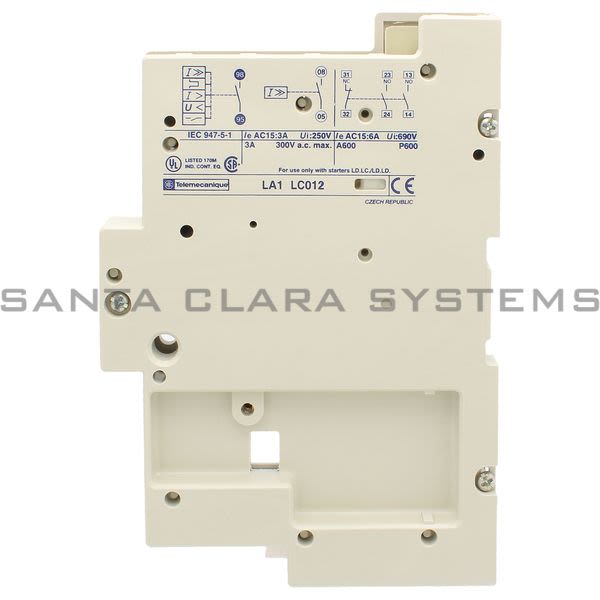

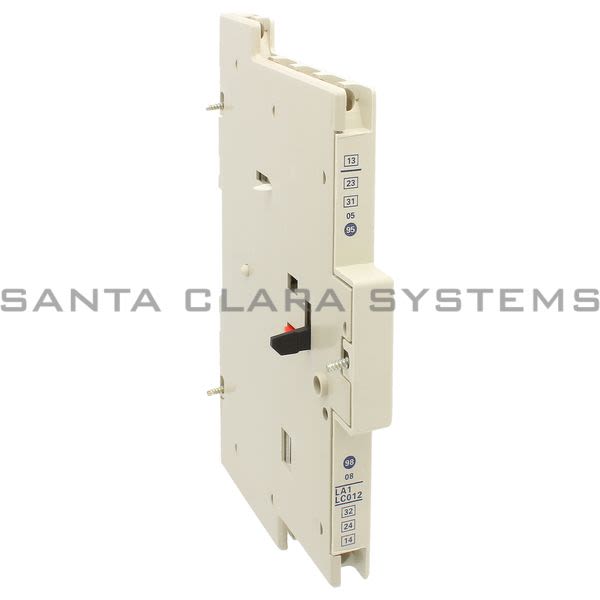

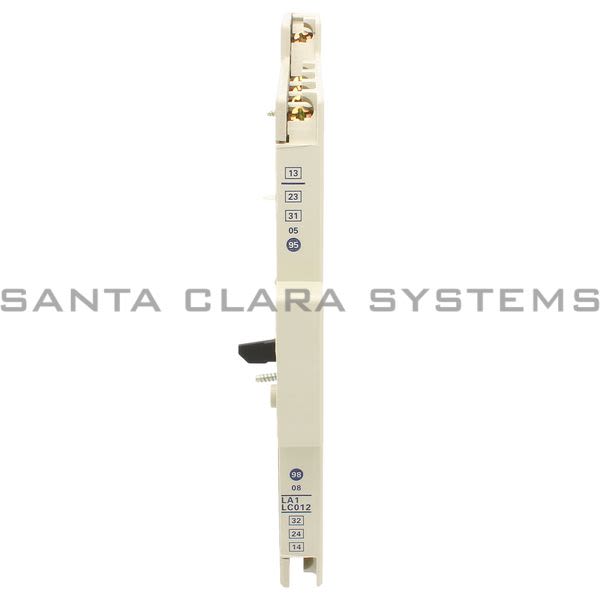

Telemecanique - TeSys integral - auxiliary contact - 4 NO + 1 NC

Current response time:

14 Minutes 25 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys integral - auxiliary contact - 4 NO + 1 NC
Product weight: 0.1 lb(US) (0.045 kg)
Range of product: TeSys K control relay, TeSys K
IP degree of protection: IP2x conforming to VDE 0106
Standards: VDE 0660, IEC 60947, BS 5424, NF C 63-110
Device short name: LA1
Depth: 1.38 in (35 mm)
Protective treatment: TC conforming to IEC 60068
[Ui] rated insulation voltage: 600 V - for control circuit - conforming to CSA C22.2, 690 V - for control circuit - conforming to BS 5424, 690 V - for control circuit - conforming to IEC 60947, 750 V - for control circuit - conforming to VDE 0010 group C
Operating altitude: 6561.68 ft. (2000 m) without derating in temperature
Tightening torque: 11.5 lbf.in (1.3 N.m) - on screw clamp terminals - with screwdriver Philips No 2
Connections - terminals: Screw clamp terminals 1 cable 0...0 in (0.34...1.5 mm) - cable stiffness: flexible - with cable end, Screw clamp terminals 2 cable 0...0 in (0.34...1.5 mm) - cable stiffness: flexible - with cable end, Screw clamp terminals 1 cable 0...0.01 in (0.75...4 mm) - cable stiffness: flexible - without cable end, Screw clamp terminals 2 cable 0...0.01 in (0.75...4 mm) - cable stiffness: flexible - without cable end, Screw clamp terminals 1 cable 0...0.01 in (1.5...4 mm) - cable stiffness: solid, Screw clamp terminals 2 cable 0...0.01 in (1.5...4 mm) - cable stiffness: solid
Range: TeSys
[Ith] conventional free air thermal current: 10 A at <= 122 F (50 C)
System Voltage: <= 690 V AC <= 400 Hz

Insulation resistance: > 10 MOhm control circuit
Associated fuse rating: 10 A gG <= 690 V IEC 60947, 10 A gG <= 690 V VDE 0660
Mounting location: Front
Environmental characteristic: Normal environment
Product certifications: UL, CSA
Product or component type: Auxiliary contact block
Auxiliary contacts operation: Instantaneous
Irms rated making capacity: 110 A at <= 690 V AC conforming to IEC 60947
Pole contact composition: 4 NO
Permissible short-time rating: 80 A 1 s, 60 A 500 ms, 110 A 100 ms
Ambient air temperature for operation: -13...122 F (-25...50 C)
Ambient air temperature for storage: -58...176 F (-50...80 C)
Minimum switching current: 5 mA
Minimum switching voltage: 17 V
Non overlap distance: 0.02 in (0.5 mm)
