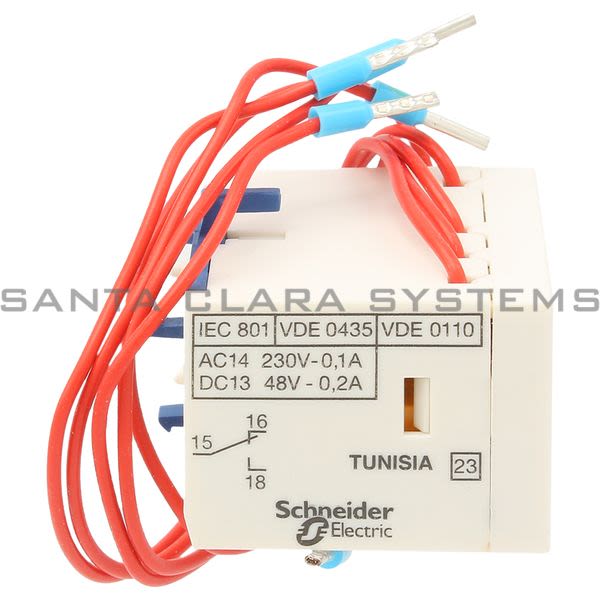

LA2KT2U

Telemecanique - TeSys K -Time delay auxiliary contact block - 1 C/O - 110...240 V - 1?30s

Product Summary:

Product weight: 0.09 lb(US) (0.04 kg)
Range of product: TeSys KTeSys K control relay
IP degree of protection: IP2x conforming to VDE 0106
Standards: VDE 0660IEC 60947BS 5424NF C 63-110
Device short name: LA1

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys K -Time delay auxiliary contact block - 1 C/O - 110...240 V - 1?30s
Product weight: 0.09 lb(US) (0.04 kg)
Range of product: TeSys KTeSys K control relay
IP degree of protection: IP2x conforming to VDE 0106
Standards: VDE 0660IEC 60947BS 5424NF C 63-110
Device short name: LA1
Width: 1.5 in (38 mm)
Height: 1.06 in (27 mm)
Depth: 1.5 in (38 mm)
Protective treatment: TC conforming to IEC 60068
Connections - terminals: Slip-on terminals
Range: TeSys

[Ith] conventional free air thermal current: 2:00 AM
System Voltage: 110...240 V AC supply circuit240 V AC signaling circuit240 V DC signaling circuit
Mounting location: Front
Environmental characteristic: Normal environment
Rated operational voltage limits: 0.85...1.1 Uc
Product certifications: ULCSA
Product or component type: Time delay auxiliary contact block
Pole contact composition: 1 C/O
Timer type: On delay
Time delay range: 1...30 s
Ambient air temperature for operation: 14...140 °F (-10...60 °C)
Reset time: 1.5 ms
