Out of Stock

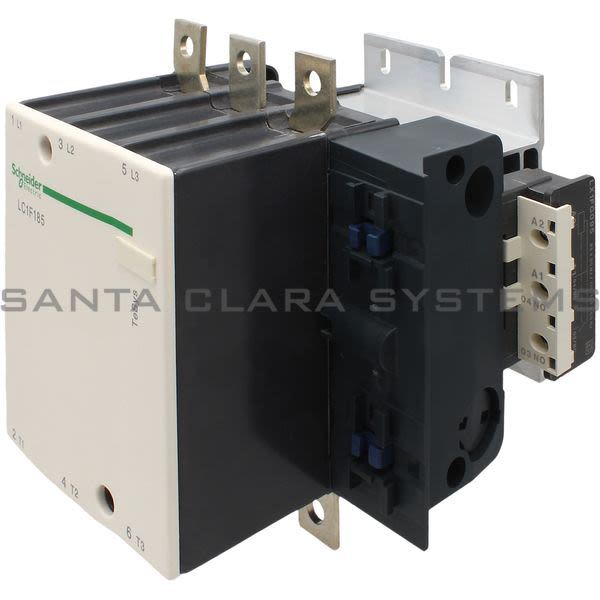

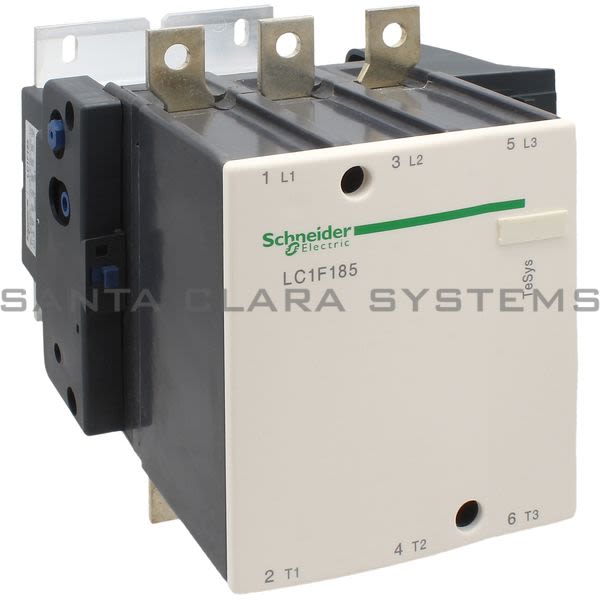

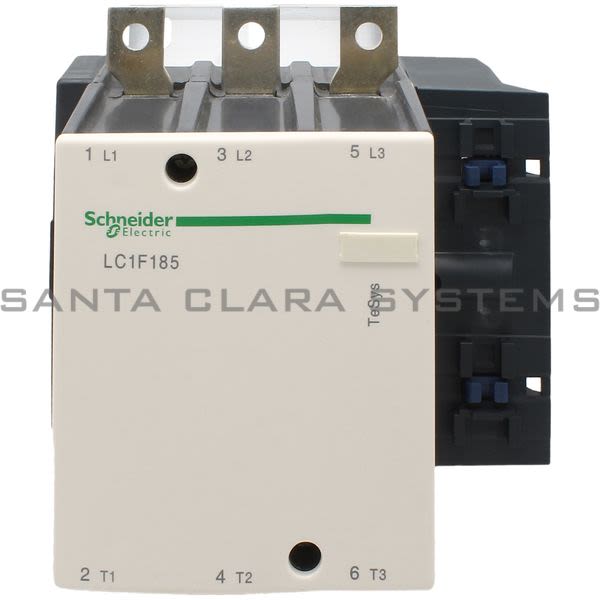

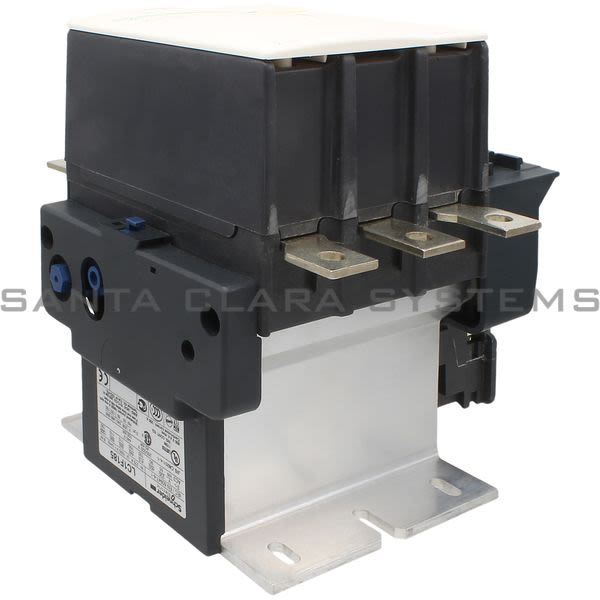

Telemecanique LC1F185G6 Contactor Product Image

LC1F185G6

Telemecanique - Contactor

Product Summary:

Product weight: 10.25 lb(US) (4.65 kg)
Standards: JIS C8201-4-1IEC 60947-1IEC 60947-4-1EN 60947-1EN 60947-4-1
Device short name: LC1F
Width: 6.63 in (168.5 mm)
Height: 6.85 in (174 mm)

Current response time:

13 Minutes 43 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Contactor
Product weight: 10.25 lb(US) (4.65 kg)
IP degree of protection: IP2x front face with shrouds (ordered separately) conforming to IEC 60529IP2x front face with shrouds (ordered separately) conforming to VDE 0106
Standards: JIS C8201-4-1IEC 60947-1IEC 60947-4-1EN 60947-1EN 60947-4-1
Device short name: LC1F
Width: 6.63 in (168.5 mm)
Height: 6.85 in (174 mm)
Depth: 7.13 in (181 mm)
Protective treatment: TH
[Ui] rated insulation voltage: 1000 V conforming to IEC 60947-4-11500 V conforming to VDE 0110 group C
[Uimp] rated impulse withstand voltage: 8 kV
Operating altitude: 9842.52 ft. (3000 m) without derating in temperature
Mechanical durability: 10 Mcycles
Tightening torque: Control circuit: 10.62 lbf.in (1.2 N.m)Power circuit: 159.29 lbf.in (18 N.m)
Connections - terminals: Control circuit: screw clamp terminals 2 cable(s) 0...0 in² (1...2.5 mm²) - cable stiffness: flexible - with cable endPower circuit: connector 1 cable(s) 0.23 in² (150 mm²)Control circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - without cable endControl circuit: screw clamp terminals 2 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - without cable endControl circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - with cable endControl circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: solid - without cable endControl circuit: screw clamp terminals 2 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: solid - without cable endPower circuit: lugs-ring terminals 1 cable(s) 0.23 in² (150 mm²)Power circuit : bolted connectionPower circuit : bar 2 x (25 x 3 mm)
Range: TeSys
Mounting support: Plate
[Ith] conventional free air thermal current: 275 A at <= 104 °F (40 °C)
System Voltage: <= 1000 V AC 50/60 Hz<= 460 V DC
Operating rate: 2400 cyc/h at <= 131 °F (55 °C)
Product name: TeSys F
[Uc] control circuit voltage: 120 V AC 60 Hz
motor power kW: 55 kW at 220...230 V AC 50/60 Hz AC-390 kW at 380...400 V AC 50/60 Hz AC-3100 kW at 415 V AC 50/60 Hz AC-3100 kW at 440 V AC 50/60 Hz AC-3110 kW at 500 V AC 50/60 Hz AC-3110 kW at 660...690 V AC 50/60 Hz AC-3100 kW at 1000 V AC 50/60 Hz AC-333 kW at 400 V AC 50/60 Hz AC-4

[Ie] rated operational current: 275 A (<= 104 °F (40 °C)) at <= 440 V AC AC-1185 A (<= 131 °F (55 °C)) at <= 440 V AC AC-3
Utilization category: AC-3AC-1AC-4
Control circuit voltage limits: 0.35...0.55 Uc at 131 °F (55 °C) drop-out 50/60 Hz0.85...1.1 Uc at 131 °F (55 °C) operational 50/60 Hz
Poles description: 3P
Overvoltage category: III
Operating time: 20...35 ms closing7...15 ms opening
Associated fuse rating: 200 A aM at <= 440 V315 A gG at <= 440 V
Product or component type: Contactor
Ambient air temperature for operation: 23...131 °F (-5...55 °C)
Rated breaking capacity: 1480 A conforming to IEC 60947-4-1
Ambient air temperature for storage: -76...176 °F (-60...80 °C)
Contactor application: Motor controlResistive load
[Icw] rated short-time withstand current: 1500 A <= 104 °F (40 °C) 10 s920 A <= 104 °F (40 °C) 30 s740 A <= 104 °F (40 °C) 1 min500 A <= 104 °F (40 °C) 3 min400 A <= 104 °F (40 °C) 10 min
Permissible ambient air temperature around the device: -40...158 °F (-40...70 °C)
Average impedance: 0.33 mOhm at 50 Hz - Ith 275 A
Mechanical robustness: Vibrations contactor closed 5 Gn, 5...300 HzShocks contactor open 7 Gn for 11 msVibrations contactor open 2 Gn, 5...300 HzShocks contactor closed 15 Gn for 11 ms
Pole contact composition: 3 NO
Power dissipation per pole: 12 W AC-325 W AC-1
Product certifications: BVRINACBRMRoSULCCCLROS (Lloyds register of shipping)DNVABS
inrush power in VA: 970 VA at 68 °F (20 °C) (cos ? 0.3) 60 Hz
hold-in power consumption in VA: 66 VA at 68 °F (20 °C) (cos ? 0.3) 60 Hz
Heat dissipation: 18...24 W

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LC1F185G6 . Santa Clara Systems carries 10,643 items from Telemecanique.
