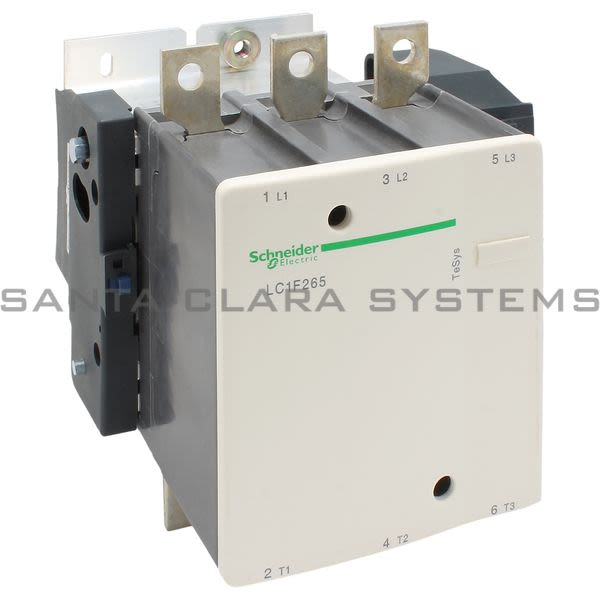

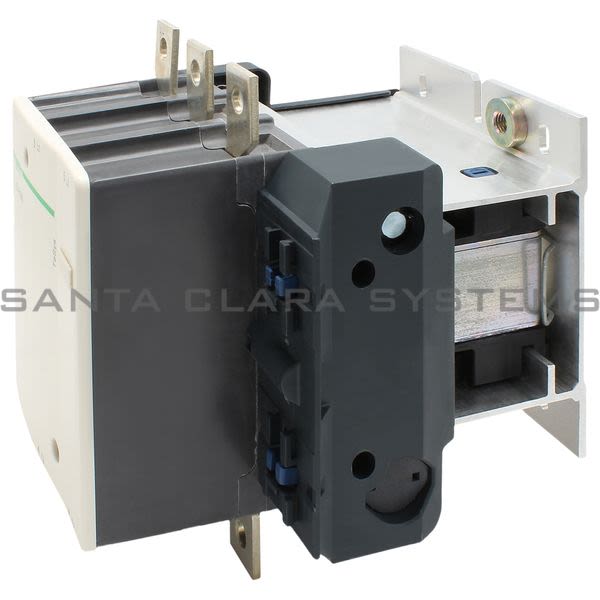

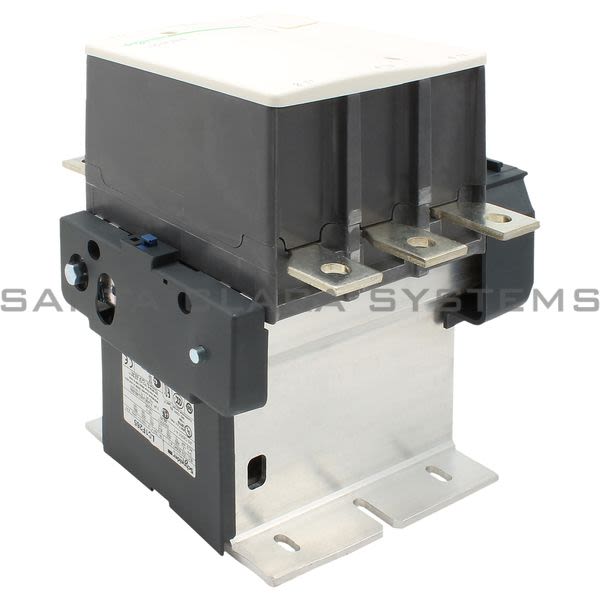

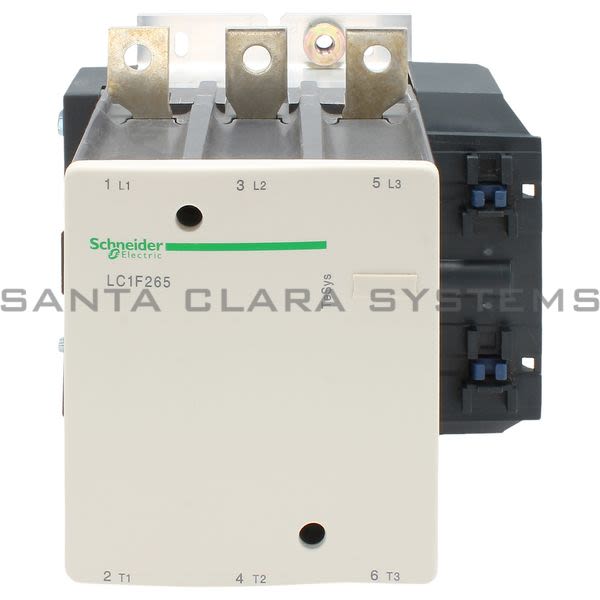

LC1F265

Telemecanique - TeSys F contactor - 3P(3 NO) - AC-3 - <= 440 V 265 A - without coil

Current response time:

4 Minutes 36 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys F contactor - 3P(3 NO) - AC-3 - <= 440 V 265 A - without coil
Product weight: 18.83 lb(US) (8.54 kg)
IP degree of protection: IP20 front face with shrouds (ordered separately) conforming to IEC 60529, IP20 front face with shrouds (ordered separately) conforming to VDE 0106
Standards: EN 60947-1, IEC 60947-1, EN 60947-4-1, JIS C8201-4-1, IEC 60947-4-1
Device short name: LC1F
Width: 7.93 in (201.5 mm)
Height: 7.99 in (203 mm)
Depth: 8.39 in (213 mm)
Protective treatment: TH
[Ui] rated insulation voltage: 1000 V conforming to IEC 60947-4-1, 1500 V conforming to VDE 0110 group C
[Uimp] rated impulse withstand voltage: 8 kV
Operating altitude: 9842.52 ft. (3000 m) without derating in temperature
Tightening torque: Power circuit: 309.73 lbf.in (35 N.m)
Connections - terminals: Power circuit: connector 1 cable(s) 0.37 in (240 mm), Power circuit: lugs-ring terminals 1 cable(s) 0.37 in (240 mm), Power circuit: bar 2 x ( 32 x 4 mm), Power circuit : bolted connection
Range: TeSys
Mounting support: Plate
[Ith] conventional free air thermal current: 350 A at <= 104 F (40 C)
System Voltage: <= 1000 V AC 50/60 Hz, <= 460 V DC
Product name: TeSys F

motor power kW: 132 kW at 380...400 V AC 50/60 Hz AC-3, 140 kW at 415 V AC 50/60 Hz AC-3, 140 kW at 440 V AC 50/60 Hz AC-3, 160 kW at 500 V AC 50/60 Hz AC-3, 160 kW at 660?690 V AC 50/60 Hz AC-3, 147 kW at 1000 V AC 50/60 Hz AC-3, 51 kW at 400 V AC 50/60 Hz AC-4, 75 kW at 220...240 V AC 50/60 Hz AC-3
[Ie] rated operational current: 350 A (<= 104 F (40 C)) at <= 440 V AC AC-1, 265 A (<= 131 F (55 C)) at <= 440 V AC AC-3
Utilization category: AC-1, AC-4, AC-3
Poles description: 3P
Overvoltage category: III
Associated fuse rating: 315 A aM at <= 440 V, 400 A gG at <= 440 V
Product or component type: Contactor
Ambient air temperature for operation: 23...131 F (-5...55 C)
Irms rated making capacity: 2650 A AC conforming to IEC 60947-4-1
Ambient air temperature for storage: -76...176 F (-60...80 C)
Contactor application: Motor control, Resistive load
Rated breaking capacity: 2120 A conforming to IEC 60947-4-1
Permissible ambient air temperature around the device: -40...158 F (-40...70 C)
[Icw] rated short-time withstand current: 2200 A <= 104 F (40 C) 10 s, 1230 A <= 104 F (40 C) 30 s, 950 A <= 104 F (40 C) 1 min, 620 A <= 104 F (40 C) 3 min, 480 A <= 104 F (40 C) 10 min
Mechanical robustness: Vibrations contactor closed 5 Gn, 5...300 Hz, Vibrations contactor open 2 Gn, 5...300 Hz, Shocks contactor closed 15 Gn for 11 ms, Shocks contactor open 6 Gn for 11 ms
Pole contact composition: 3 NO
Average impedance: 0.3 mOhm at 50 Hz - Ith 350 A
Power dissipation per pole: 21 W AC-3, 37 W AC-1
Product certifications: RMRoS, DNV, CSA, RINA, ABS, CB, BV, LROS (Lloyds register of shipping), UL
