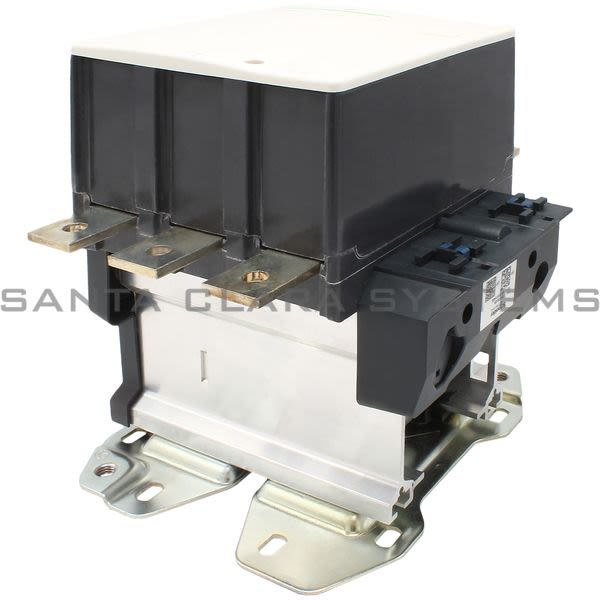

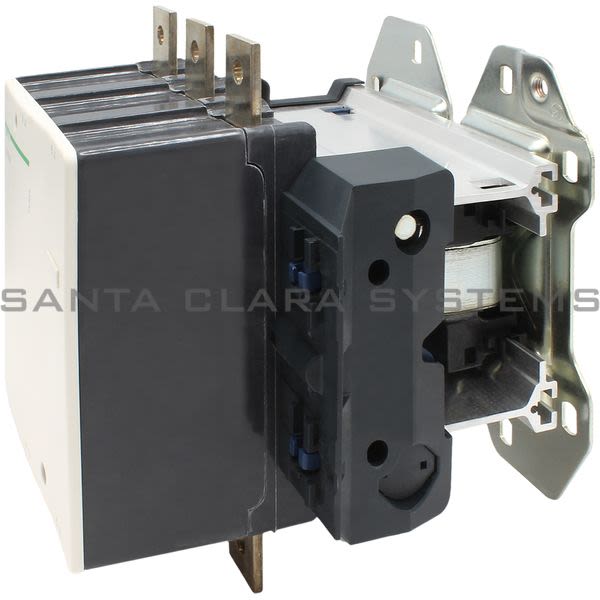

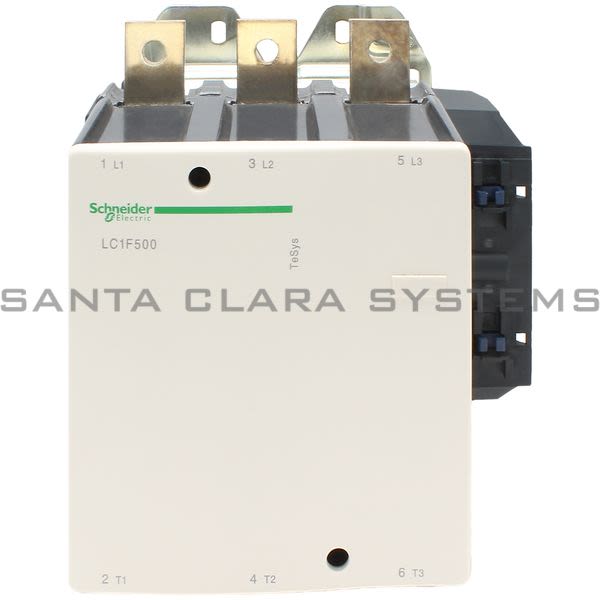

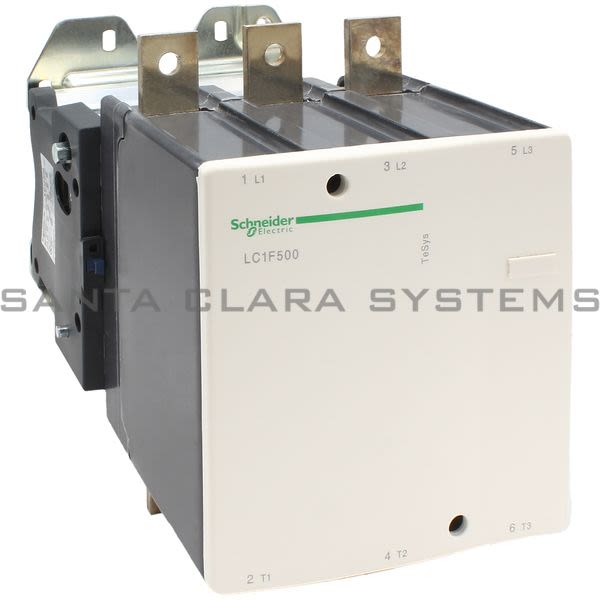

LC1F500

Telemecanique - TeSys F contactor - 3P(3 NO) - AC-3 - <= 440 V 500 A - without coil

Current response time:

By 5AM PT on Thursday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys F contactor - 3P(3 NO) - AC-3 - <= 440 V 500 A - without coil
Product weight: 21.5 lb(US) (9.75 kg)
IP degree of protection: IP20 front face with shrouds (ordered separately) conforming to IEC 60529, IP20 front face with shrouds (ordered separately) conforming to VDE 0106
Standards: EN 60947-4-1, IEC 60947-1, IEC 60947-4-1, EN 60947-1, JIS C8201-4-1
Device short name: LC1F
Width: 9.17 in (233 mm)
Height: 9.37 in (238 mm)
Depth: 9.13 in (232 mm)
Protective treatment: TH
[Ui] rated insulation voltage: 1000 V conforming to IEC 60947-4-1, 1500 V conforming to VDE 0110 group C
[Uimp] rated impulse withstand voltage: 8 kV
Operating altitude: 9842.52 ft. (3000 m) without derating in temperature
Tightening torque: Power circuit: 309.73 lbf.in (35 N.m)
Connections - terminals: Power circuit: lugs-ring terminals 2 cable(s) 0.37 in (240 mm), Power circuit : bolted connection, Power circuit : bar 2 x (40 x 5 mm)
Range: TeSys
Mounting support: Plate
[Ith] conventional free air thermal current: 700 A at <= 104 F (40 C)
System Voltage: <= 1000 V AC 50/60 Hz, <= 460 V DC
Product name: TeSys F

motor power kW: 250 kW at 380...400 V AC 50/60 Hz AC-3, 280 kW at 415 V AC 50/60 Hz AC-3, 295 kW at 440 V AC 50/60 Hz AC-3, 355 kW at 500 V AC 50/60 Hz AC-3, 335 kW at 1000 V AC 50/60 Hz AC-3, 80 kW at 400 V AC 50/60 Hz AC-4, 147 kW at 220...240 V AC 50/60 Hz AC-3, 335 kW at 660...690 V AC 50/60 Hz AC-3
[Ie] rated operational current: 700 A (<= 104 F (40 C)) at <= 440 V AC AC-1, 500 A (<= 131 F (55 C)) at <= 440 V AC AC-3
Utilization category: AC-4, AC-3, AC-1
Poles description: 3P
Overvoltage category: III
Associated fuse rating: 500 A aM at <= 440 V, 800 A gG at <= 440 V
Product or component type: Contactor
Ambient air temperature for operation: 23...131 F (-5...55 C)
Irms rated making capacity: 5000 A AC conforming to IEC 60947-4-1
Ambient air temperature for storage: -76...176 F (-60...80 C)
Contactor application: Motor control, Resistive load
Rated breaking capacity: 4000 A conforming to IEC 60947-4-1
Permissible ambient air temperature around the device: -40...158 F (-40...70 C)
[Icw] rated short-time withstand current: 4200 A <= 104 F (40 C) 10 s, 3200 A <= 104 F (40 C) 30 s, 2400 A <= 104 F (40 C) 1 min, 1500 A <= 104 F (40 C) 3 min, 1200 A <= 104 F (40 C) 10 min
Mechanical robustness: Shocks contactor open 9 Gn for 11 ms, Vibrations contactor open 2 Gn, 5...300 Hz, Vibrations contactor closed 4 Gn, 5...300 Hz, Shocks contactor closed 15 Gn for 11 ms
Pole contact composition: 3 NO
Average impedance: 0.18 mOhm at 50 Hz - Ith 700 A
Power dissipation per pole: 45 W AC-3, 88 W AC-1
Product certifications: CSA, RINA, ABS, DNV, BV, RMRoS, LROS (Lloyds register of shipping), UL, CB
