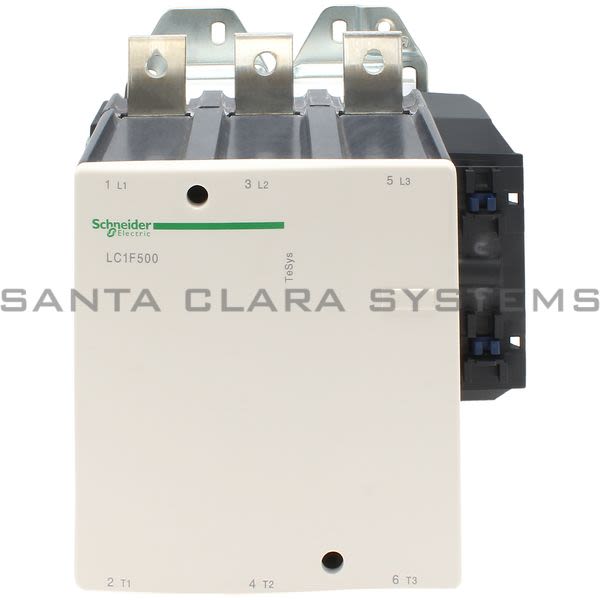

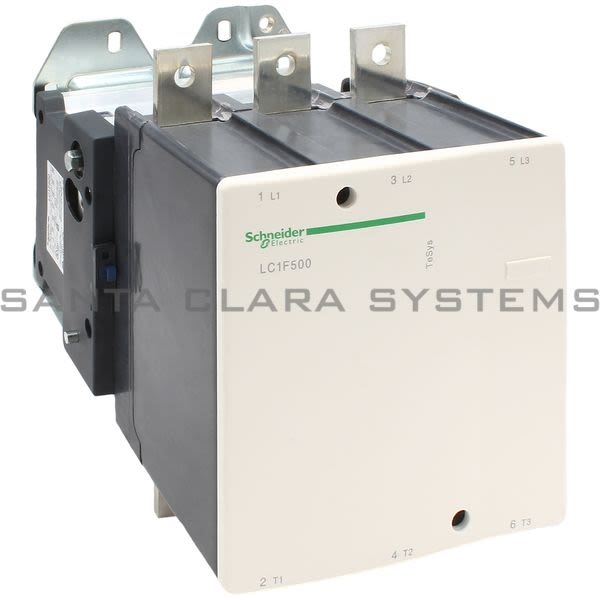

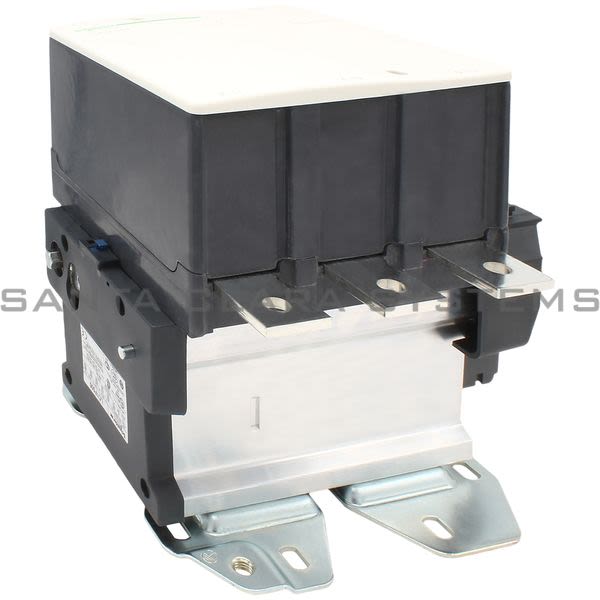

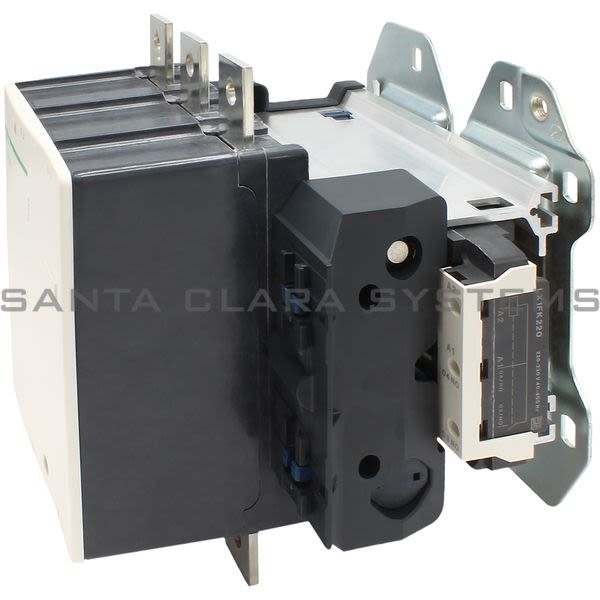

Telemecanique LC1F500M7 TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 500 A - coil 220 V AC Product Image

LC1F500M7

Telemecanique - TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 500 A - coil 220 V AC

Current response time:

17 Minutes 44 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 500 A - coil 220 V AC
Product weight: 25.02 lb(US) (11.35 kg)
IP degree of protection: IP20 front face with shrouds (ordered separately) conforming to IEC 60529IP20 front face with shrouds (ordered separately) conforming to VDE 0106
Standards: IEC 60947-1EN 60947-1JIS C8201-4-1IEC 60947-4-1EN 60947-4-1
Device short name: LC1F
Width: 9.17 in (233 mm)
Height: 9.37 in (238 mm)
Depth: 9.13 in (232 mm)
Protective treatment: TH
[Ui] rated insulation voltage: 1000 V conforming to IEC 60947-4-11500 V conforming to VDE 0110 group C
[Uimp] rated impulse withstand voltage: 8 kV
Operating altitude: 9842.52 ft. (3000 m) without derating in temperature
Mechanical durability: 10 Mcycles
Tightening torque: Power circuit: 309.73 lbf.in (35 N.m)Control circuit: 10.62 lbf.in (1.2 N.m)
Connections - terminals: Control circuit: screw clamp terminals 2 cable(s) 0...0 in² (1...2.5 mm²) - cable stiffness: flexible - with cable endControl circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - without cable endControl circuit: screw clamp terminals 2 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - without cable endControl circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - with cable endControl circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: solid - without cable endControl circuit: screw clamp terminals 2 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: solid - without cable endPower circuit: lugs-ring terminals 2 cable(s) 0.37 in² (240 mm²)Power circuit : bolted connectionPower circuit : bar 2 x (40 x 5 mm)
Range: TeSys
Mounting support: Plate
[Ith] conventional free air thermal current: 700 A at <= 104 °F (40 °C)
System Voltage: <= 1000 V AC 50/60 Hz<= 460 V DC
Operating rate: 2400 cyc/h at <= 131 °F (55 °C)
Product name: TeSys F
[Uc] control circuit voltage: 220 V AC 40...400 Hz
motor power kW: 250 kW at 380...400 V AC 50/60 Hz AC-3280 kW at 415 V AC 50/60 Hz AC-3295 kW at 440 V AC 50/60 Hz AC-3355 kW at 500 V AC 50/60 Hz AC-3335 kW at 1000 V AC 50/60 Hz AC-3147 kW at 220...230 V AC 50/60 Hz AC-380 kW at 400 V AC 50/60 Hz AC-4335 kW at 660...690 V AC 50/60 Hz AC-3

[Ie] rated operational current: 700 A (<= 104 °F (40 °C)) at <= 440 V AC AC-1500 A (<= 131 °F (55 °C)) at <= 440 V AC AC-3
Utilization category: AC-4AC-3AC-1
Control circuit voltage limits: 0.85...1.1 Uc at 131 °F (55 °C) operational 40...400 Hz0.3...0.5 Uc at 131 °F (55 °C) drop-out 40...400 Hz
Poles description: 3P
Overvoltage category: III
Operating time: 100...170 ms opening40...65 ms closing
Associated fuse rating: 500 A aM at <= 440 V800 A gG at <= 440 V
Product or component type: Contactor
Ambient air temperature for operation: 23...131 °F (-5...55 °C)
Rated breaking capacity: 4000 A conforming to IEC 60947-4-1
Ambient air temperature for storage: -76...176 °F (-60...80 °C)
Contactor application: Motor controlResistive load
[Icw] rated short-time withstand current: 4200 A <= 104 °F (40 °C) 10 s3200 A <= 104 °F (40 °C) 30 s2400 A <= 104 °F (40 °C) 1 min1500 A <= 104 °F (40 °C) 3 min1200 A <= 104 °F (40 °C) 10 min
Permissible ambient air temperature around the device: -40...158 °F (-40...70 °C)
Average impedance: 0.18 mOhm at 50 Hz - Ith 700 A
Mechanical robustness: Shocks contactor open 9 Gn for 11 msVibrations contactor open 2 Gn, 5...300 HzVibrations contactor closed 4 Gn, 5...300 HzShocks contactor closed 15 Gn for 11 ms
Pole contact composition: 3 NO
Power dissipation per pole: 45 W AC-388 W AC-1
Product certifications: BVLROS (Lloyds register of shipping)DNVABSULCBCSARINARMRoS
inrush power in VA: 1100 VA at 68 °F (20 °C) (cos ? 0.9) 40...400 Hz
hold-in power consumption in VA: 18 VA at 68 °F (20 °C) (cos ? 0.9) 40...400 Hz
Heat dissipation: 18 W
