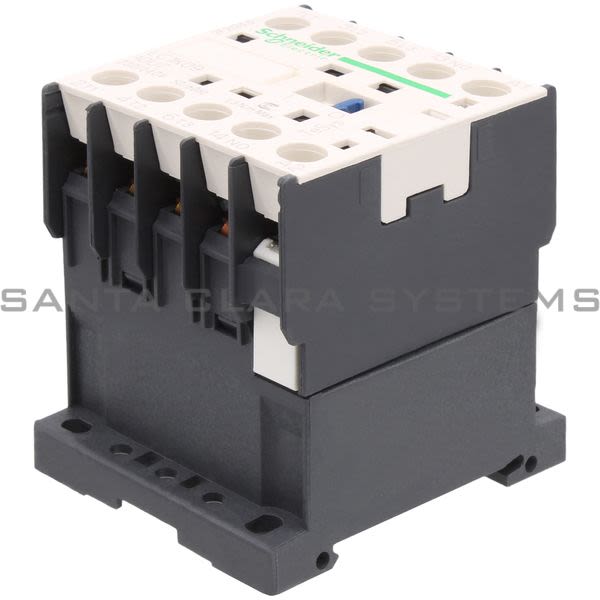

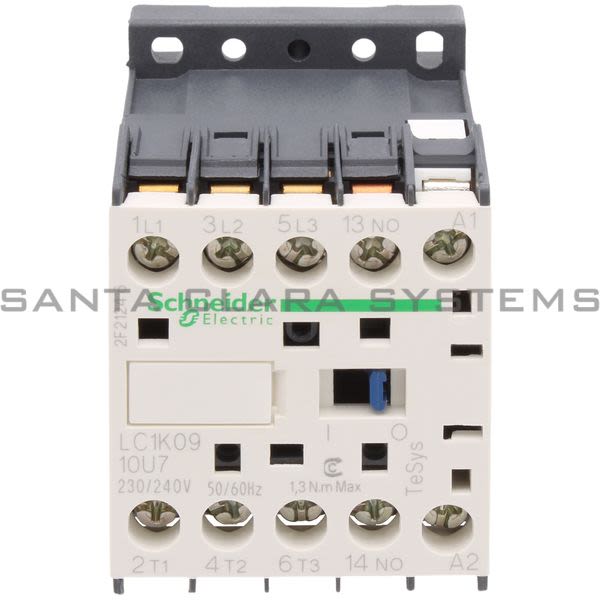

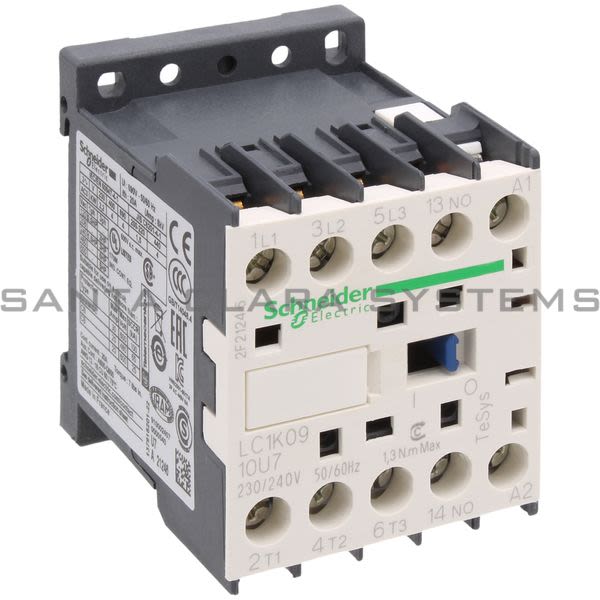

LC1K0910U7

Telemecanique - Contactor

Product Summary:

Range of product: TeSys K
Protective treatment: TC conforming to IEC 60068TC conforming to DIN 50016
Operating altitude: 6561.68 ft. (2000 m) without derating in temperature
Range: TeSys
Operating rate: 3600 cyc/h

Current response time:

10 Minutes 46 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Contactor
Range of product: TeSys K
Protective treatment: TC conforming to IEC 60068TC conforming to DIN 50016
Operating altitude: 6561.68 ft. (2000 m) without derating in temperature
Range: TeSys
[Ith] conventional free air thermal current: 20 A at <= 122 °F (50 °C) power circuit10 A at <= 122 °F (50 °C) signaling circuit
Operating rate: 3600 cyc/h
Product name: TeSys K
[Uc] control circuit voltage: 230...240 V AC 50/60 Hz
Insulation resistance: > 10 MOhm signaling circuit
motor power kW: 2.2 kW at 400 V AC 50/60 Hz AC-42.2 kW at 220...230 V AC 50/60 Hz AC-34 kW at 380...415 V AC 50/60 Hz AC-34 kW at 440 V AC 50/60 Hz AC-34 kW at 480 V AC 50/60 Hz AC-34 kW at 500...600 V AC 50/60 Hz AC-34 kW at 660...690 V AC 50/60 Hz AC-3
[Ie] rated operational current: 9 A at <= 440 V AC AC-3 power circuit20 A (<= 122 °F (50 °C)) at <= 440 V AC AC-1 power circuit16 A (<= 158 °F (70 °C)) at 690 V AC AC-1 power circuit
Utilization category: AC-1AC-4AC-3
Control circuit voltage limits: 0.2...0.75 Uc at <= 122 °F (50 °C) drop-out0.8...1.15 Uc at <= 122 °F (50 °C) operational
Poles description: 3P
Overvoltage category: III
Operating time: 10...20 ms coil de-energisation and NO opening10...20 ms coil energisation and NO closing
Associated fuse rating: 25 A gG at <= 440 V power circuit25 A aM power circuit10 A gG signaling circuit conforming to IEC 6094710 A gG signaling circuit conforming to VDE 0660
Control circuit type: AC 50/60 Hz
Product certifications: CSAUL

Product or component type: Contactor
Pole contact composition: 3 NO
Flame retardance: V1 conforming to UL 94Requirement 2 conforming to NF F 16-101Requirement 2 conforming to NF F 16-102
Device application: Control
Contactor application: Resistive loadMotor control
Auxiliary contact composition: 1 NO
Irms rated making capacity: 110 A AC power circuit conforming to NF C 63-110110 A AC power circuit conforming to IEC 60947110 A AC signaling circuit conforming to IEC 60947
Rated breaking capacity: 110 A at 415 V conforming to IEC 60947110 A at 440 V conforming to IEC 6094780 A at 500 V conforming to IEC 60947110 A at 220...230 V conforming to IEC 60947110 A at 380...400 V conforming to IEC 6094770 A at 660...690 V conforming to IEC 60947
Average impedance: 3 mOhm at 50 Hz - Ith 20 A power circuit
inrush power in VA: 30 VA at 68 °F (20 °C)
hold-in power consumption in VA: 4.5 VA at 68 °F (20 °C)
Heat dissipation: 1.3 W
Auxiliary contacts type: Type instantaneous (1 NO)
Signaling circuit frequency: <= 400 Hz
Minimum switching current: 5 mA signaling circuit
Minimum switching voltage: 17 V signaling circuit
Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Non overlap distance: 0.02 in (0.5 mm)
Mechanical robustness: Shocks contactor closed, on X axis 10 Gn for 11 ms IEC 60068-2-27Shocks contactor closed, on Y axis 15 Gn for 11 ms IEC 60068-2-27Shocks contactor closed, on Z axis 15 Gn for 11 ms IEC 60068-2-27Shocks contactor opened, on X axis 6 Gn for 11 ms IEC 60068-2-27Shocks contactor opened, on Y axis 10 Gn for 11 ms IEC 60068-2-27Shocks contactor opened, on Z axis 10 Gn for 11 ms IEC 60068-2-27Vibrations contactor closed 4 Gn, 5...300 Hz IEC 60068-2-6Vibrations contactor opened 2 Gn, 5...300 Hz IEC 60068-2-6
