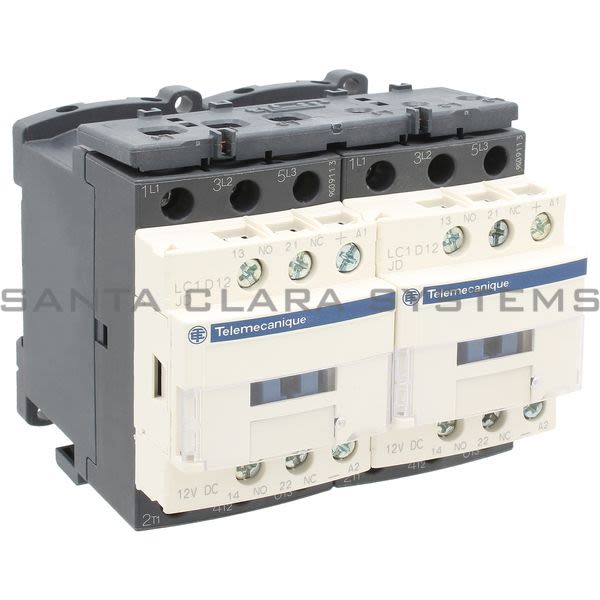

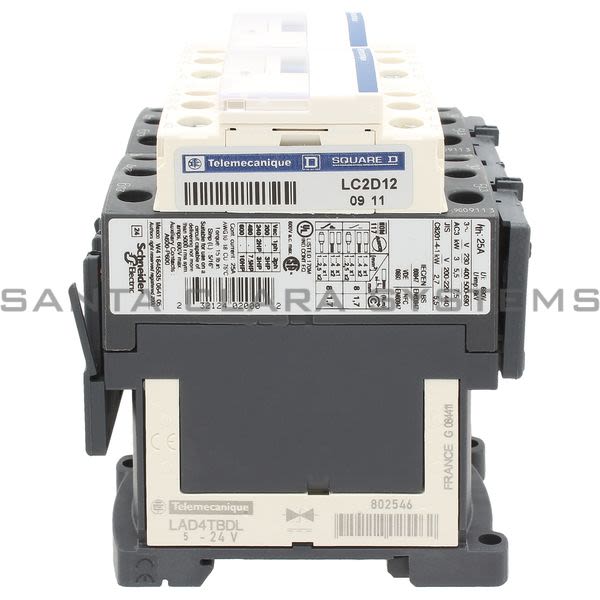

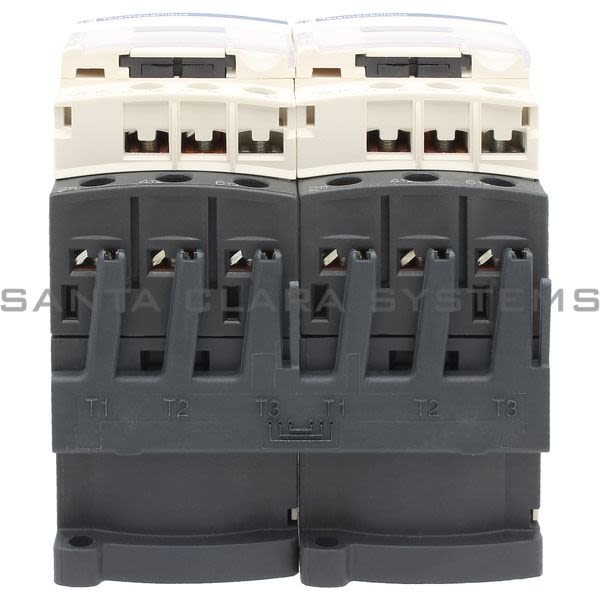

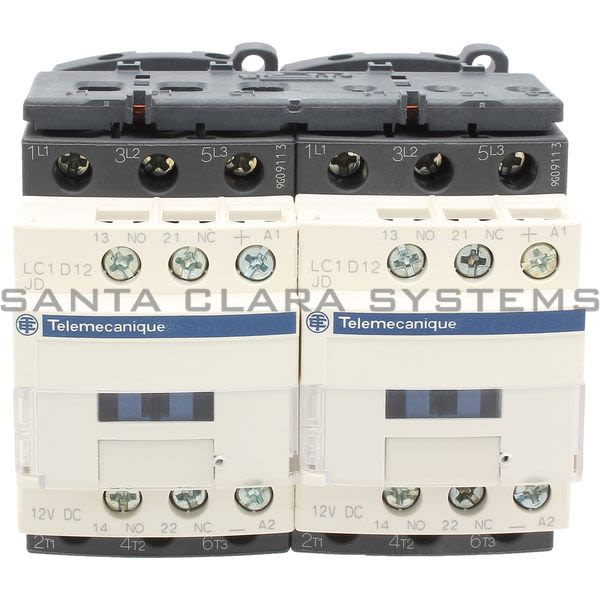

LC2D12JD

Telemecanique - Reversing Contactor

Product Summary:

Product weight: 2.26 lb(US) (1.027 kg)
Range of product: TeSys D
IP degree of protection: IP20 front face conforming to IEC 60529
Standards: CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508
Device short name: LC2D

Current response time:

14 Minutes 29 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Reversing Contactor
Product weight: 2.26 lb(US) (1.027 kg)
Range of product: TeSys D
IP degree of protection: IP20 front face conforming to IEC 60529
Standards: CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508
Device short name: LC2D
Width: 3.54 in (90 mm)
Height: 3.03 in (77 mm)
Depth: 3.74 in (95 mm)
Protective treatment: TH conforming to IEC 60068-2-30
[Ui] rated insulation voltage: 600 V power circuit certifications CSA600 V power circuit certifications UL690 V power circuit conforming to IEC 60947-4-1690 V signaling circuit conforming to IEC 60947-1600 V signaling circuit certifications CSA600 V signaling circuit certifications UL
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947
Operating altitude: 9842.52 ft. (3000 m) without derating in temperature
Mechanical durability: 30 Mcycles
Tightening torque: Power circuit: 15.04 lbf.in (1.7 N.m) - on screw clamp terminals - with screwdriver flat Ø 6 mmPower circuit: 15.04 lbf.in (1.7 N.m) - on screw clamp terminals - with screwdriver Philips No 2Control circuit: 15.04 lbf.in (1.7 N.m) - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 15.04 lbf.in (1.7 N.m) - on screw clamp terminals - with screwdriver Philips No 2
Connections - terminals: Control circuit: screw clamp terminals 2 cable(s) 0...0 in² (1...2.5 mm²) - cable stiffness: flexible - with cable endPower circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - with cable endControl circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - without cable endControl circuit: screw clamp terminals 2 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - without cable endControl circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - with cable endControl circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: solid - without cable endControl circuit: screw clamp terminals 2 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: solid - without cable endPower circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - without cable endPower circuit: screw clamp terminals 2 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - without cable endPower circuit: screw clamp terminals 2 cable(s) 0...0 in² (1...2.5 mm²) - cable stiffness: flexible - with cable endPower circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: solid - without cable endPower circuit: screw clamp terminals 2 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: solid - without cable end
Range: TeSys
Mounting support: RailPlate
[Ith] conventional free air thermal current: 25 A at <= 140 °F (60 °C) power circuit10 A at <= 140 °F (60 °C) signaling circuit
System Voltage: <= 300 V DC power circuit<= 690 V AC 25...400 Hz power circuit
Operating rate: 3600 cyc/h at <= 140 °F (60 °C)
Product name: TeSys D
[Uc] control circuit voltage: 12 V DC
Electrical durability: 2 Mcycles 12 A AC-3 at Ue <= 440 V0.8 Mcycles 25 A AC-1 at Ue <= 440 V
Insulation resistance: > 10 MOhm signaling circuit
motor power kW: 3 kW at 220...230 V AC 50/60 Hz7.5 kW at 500 V AC 50/60 Hz7.5 kW at 660...690 V AC 50/60 Hz5.5 kW at 380...400 V AC 50/60 Hz5.5 kW at 415...440 V AC 50/60 Hz
[Ie] rated operational current: 12 A (<= 140 °F (60 °C)) at <= 440 V AC AC-3 power circuit25 A (<= 140 °F (60 °C)) at <= 440 V AC AC-1 power circuit
Utilization category: AC-3AC-1
Control circuit voltage limits: 0.1...0.25 Uc drop-out at 140 °F (60 °C), DC0.7...1.25 Uc operational at 140 °F (60 °C), DC
Poles description: 3P
Overvoltage category: III
Operating time: 53.55...72.45 ms closing16...24 ms opening
Associated fuse rating: 25 A gG at <= 690 V coordination type 2 power circuit40 A gG at <= 690 V coordination type 1 power circuit10 A gG signaling circuit conforming to IEC 60947-5-1

Control circuit type: DC standard
Coil technology: Built-in bidirectional peak limiting diode suppressor
Time constant: 28 ms
Pollution degree: 3
Product or component type: Reversing contactor
inrush power in W: 5.4 W at 68 °F (20 °C)
Ambient air temperature for operation: -4...140 °F (-20...60 °C)
hold-in power consumption in W: 5.4 W at 68 °F (20 °C)
Ambient air temperature for storage: -76...176 °F (-60...80 °C)
Contactor application: Resistive loadMotor control
Auxiliary contacts type: Type mechanically linked (1 NO + 1 NC) conforming to IEC 60947-5-1Type mirror contact (1 NC) conforming to IEC 60947-4-1
Permissible ambient air temperature around the device: -40...158 °F (-40...70 °C) at Uc
Signaling circuit frequency: 25...400 Hz
Device presentation: Preassembled with reversing power busbar
Minimum switching current: 5 mA signaling circuit
Fire resistance: 1562 °F (850 °C) conforming to IEC 60695-2-1
Minimum switching voltage: 17 V Signaling circuit
Flame retardance: V1 conforming to UL 94
Pole contact composition: 3 NO
Non-overlap time: 1.5 ms on de-energisation (between NC and NO contact)1.5 ms on energisation (between NC and NO contact)
Mechanical robustness: Vibrations contactor open 2 Gn, 5...300 HzVibrations contactor closed 4 Gn, 5...300 HzShocks contactor open 10 Gn for 11 msShocks contactor closed 15 Gn for 11 ms
Motor power hp: 1 hp at 115 V AC 50/60 Hz 1 phase motors2 hp at 230/240 V AC 50/60 Hz 1 phase motors3 hp at 200/208 V AC 50/60 Hz 3 phases motors3 hp at 230/240 V AC 50/60 Hz 3 phases motors7.5 hp at 460/480 V AC 50/60 Hz 3 phases motors10 hp at 575/600 V AC 50/60 Hz 3 phases motors
Auxiliary contact composition: 1 NO + 1 NC
Irms rated making capacity: 250 A at 440 V power circuit conforming to IEC 60947140 A AC signaling circuit conforming to IEC 60947-5-1250 A DC signaling circuit conforming to IEC 60947-5-1
Rated breaking capacity: 250 A at 440 V power circuit conforming to IEC 60947
[Icw] rated short-time withstand current: 105 A <= 104 °F (40 °C) 10 s power circuit210 A <= 104 °F (40 °C) 1 s power circuit30 A <= 104 °F (40 °C) 10 min power circuit61 A <= 104 °F (40 °C) 1 min power circuit100 A 1 s signaling circuit120 A 500 ms signaling circuit140 A 100 ms signaling circuit
Average impedance: 2.5 mOhm at 50 Hz - Ith 25 A power circuit
Power dissipation per pole: 0.36 W AC-31.56 W AC-1
Protective cover: With
Interlocking type: Mechanical
Product certifications: GOSTULCSADNVRINAGLBVLROS (Lloyds register of shipping)CCC
Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
